Front Seat

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION

WARNING:
- Before removing the front seat assembly, refer to SRS, Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the front passenger seat, be sure to carry out accuracy check of occupant classification sensor after the seat has been installed in the vehicle. (Refer to SRS, On-vehicle Service.)

CAUTION: Do not impact the seat. If any impact is applied to the seat, the occupant classification sensor transmitting error may occur.

Post-Installation Operation:

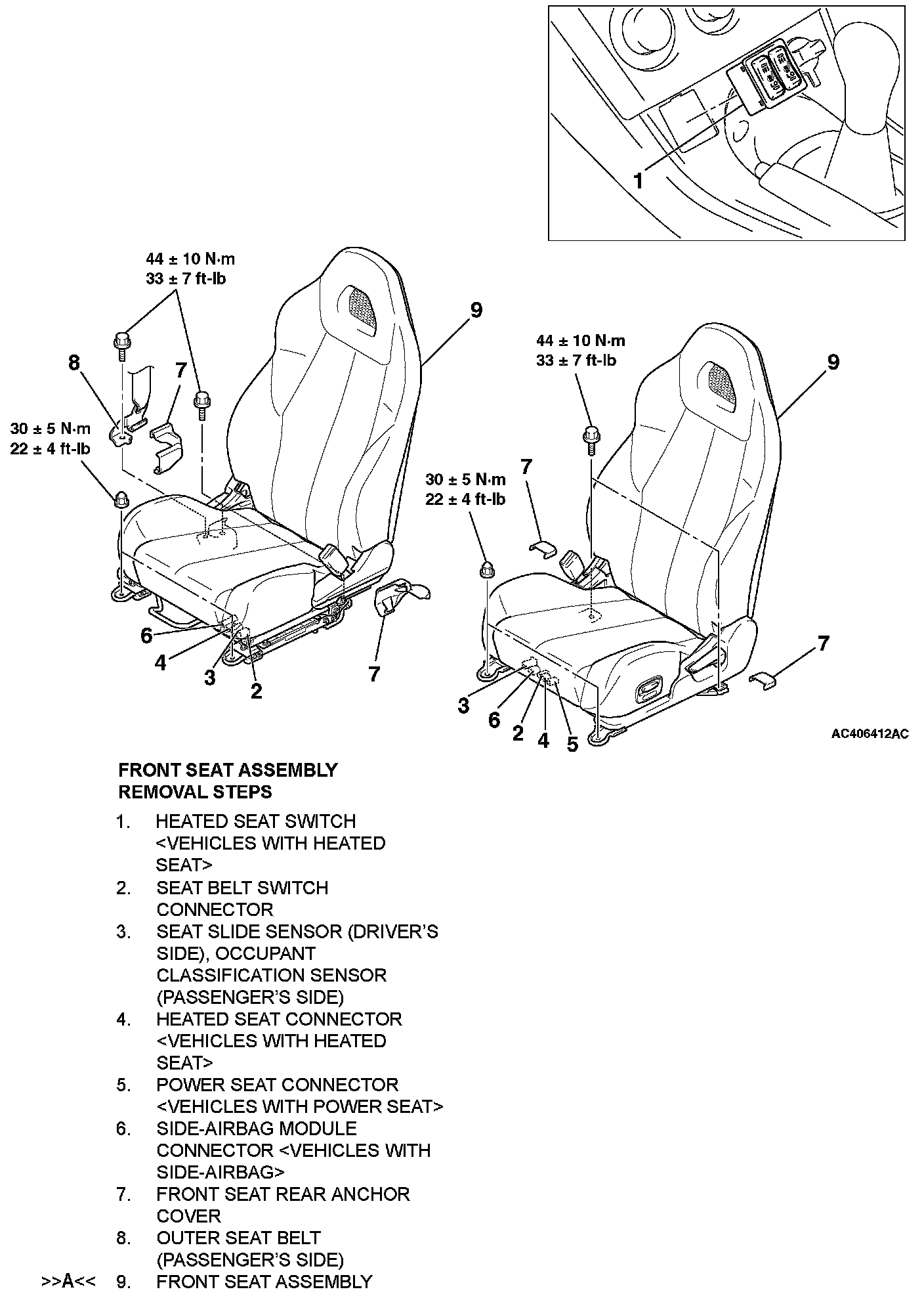

Removal Steps 1-9:

REMOVAL SERVICE POINTS

[[A]] SEATBACK PANEL REMOVAL

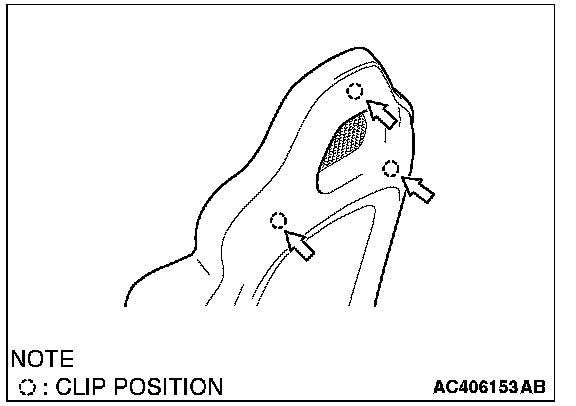

1. Raise the seatback panel while holding it as shown, and disconnect the seatback frame wire and hook connection.

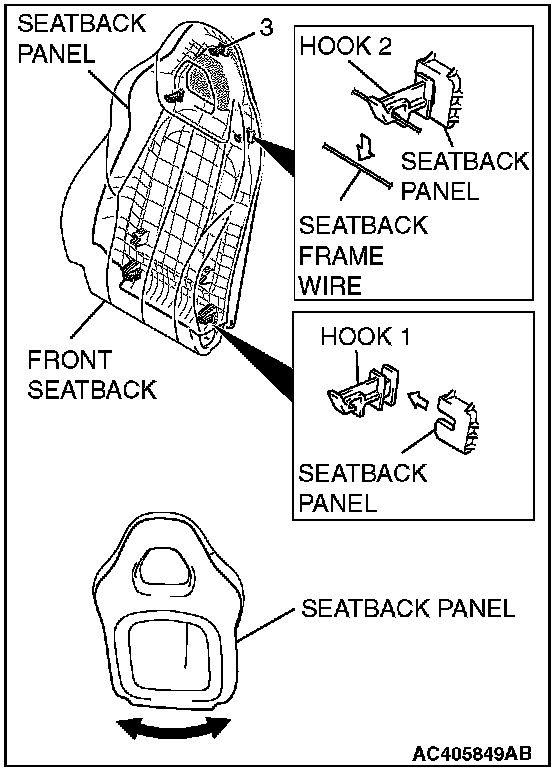

2. If the seatback panel cannot be removed by the steps above, remove it as follows.
1. Insert a screwdriver and slide hook 1 to remove it from the panel.
2. Swing the panel to the right and left, and remove hook 2 from the wire.
3. Finally, remove hook 3.

[[B]] SEATBACK PANEL REMOVAL

WARNING: Do not remove the occupant classification-ECU and the occupant classification sensor from the slide adjuster.

INSTALLATION SERVICE POINT

]]A[[ FRONT SEAT ASSEMBLY INSTALLATION

CAUTION: Install the front passenger's seat assembly before installing the outer seat belt.

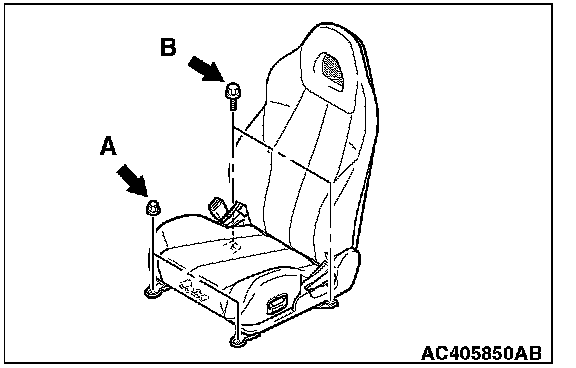

1. Temporarily tighten the nuts in mounting locations shown in the illustration with no weight on the front seat cushion and check the operation of the seat slide.
2. Temporarily tighten the bolts in mounting locations shown in the illustration with no weight on the front seat cushion.
3. Tighten the nuts and bolts in all mounting locations to the specified torque.

Tightening torque:
A: 30 ± 5 N.m (22 ± 4 ft- lb)
B: 44 ± 10 N.m (33 ± 7 ft- lb)
