Trims[Eclipse Spyder]

TRIMS[ECLIPSE SPYDER]

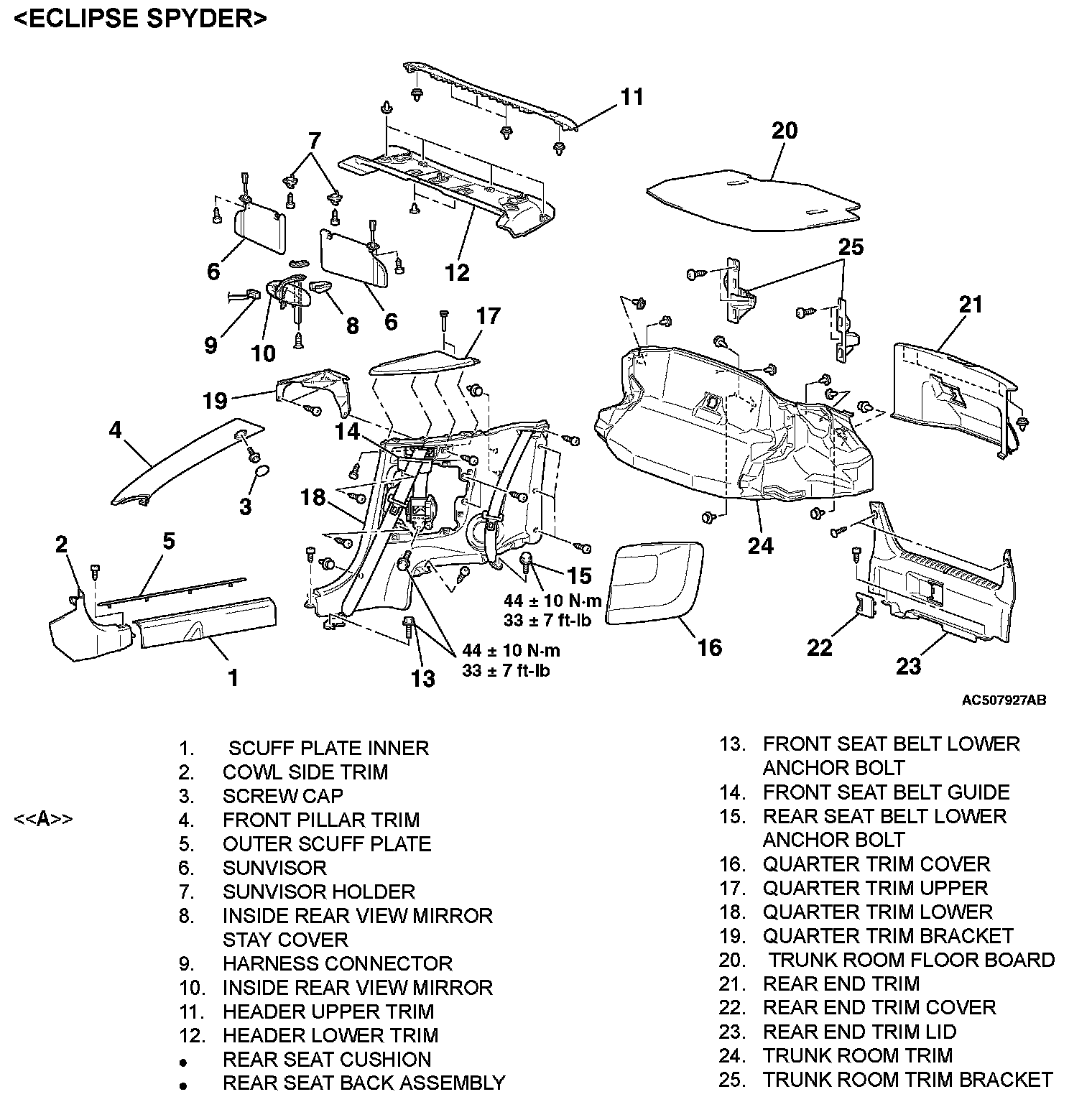

REMOVAL AND INSTALLATION

Removal Steps 1-19:

Removal Steps 1-25:

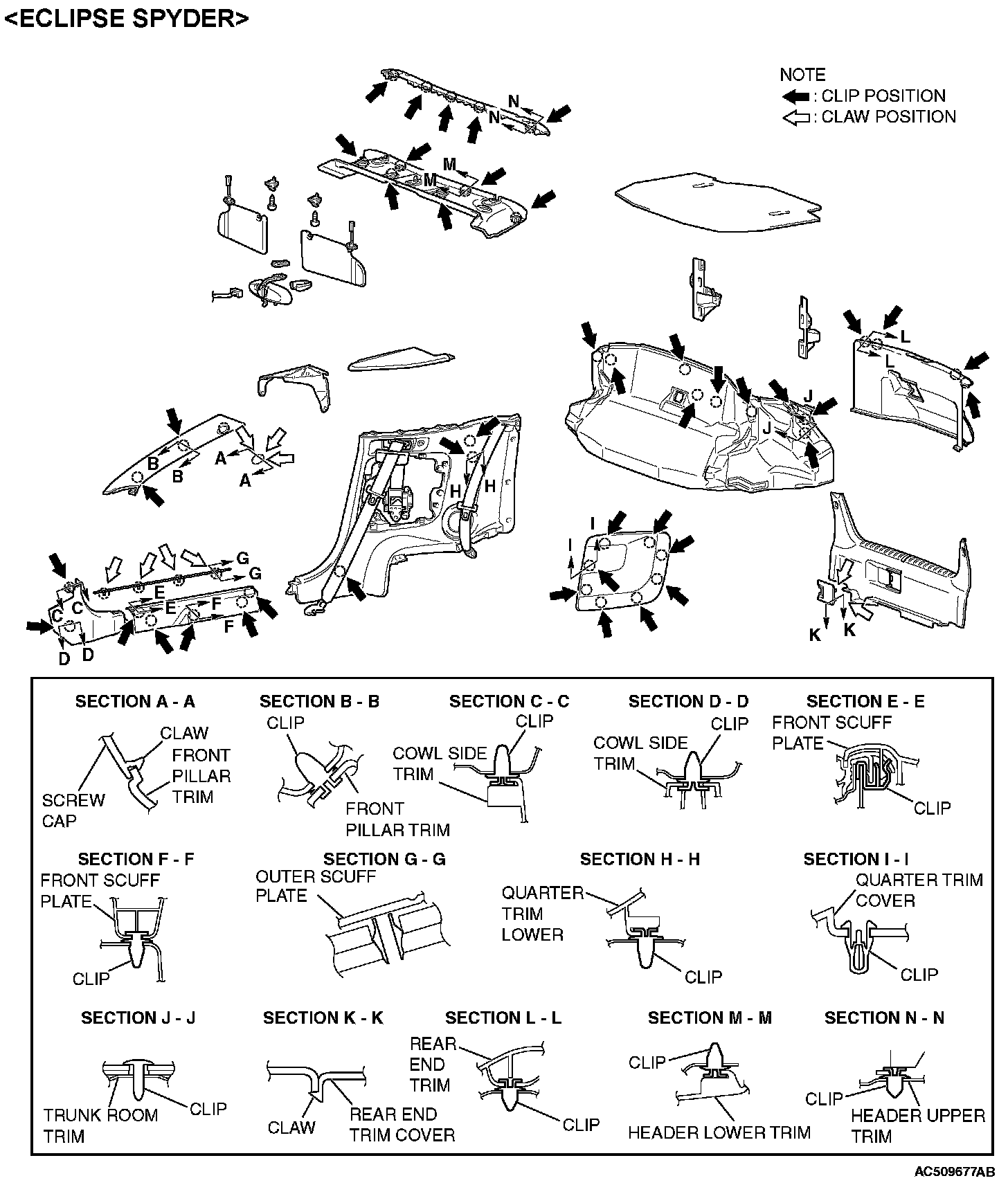

CLIP AND CLAW POSITION










REMOVAL SERVICE POINT

[[A]] FRONT PILLAR TRIM REMOVAL







Release the clip and remove the front pillar trim by pulling it to the direction shown.
