Rear Wiper and Washer

REAR WIPER AND WASHER

REMOVAL AND INSTALLATION

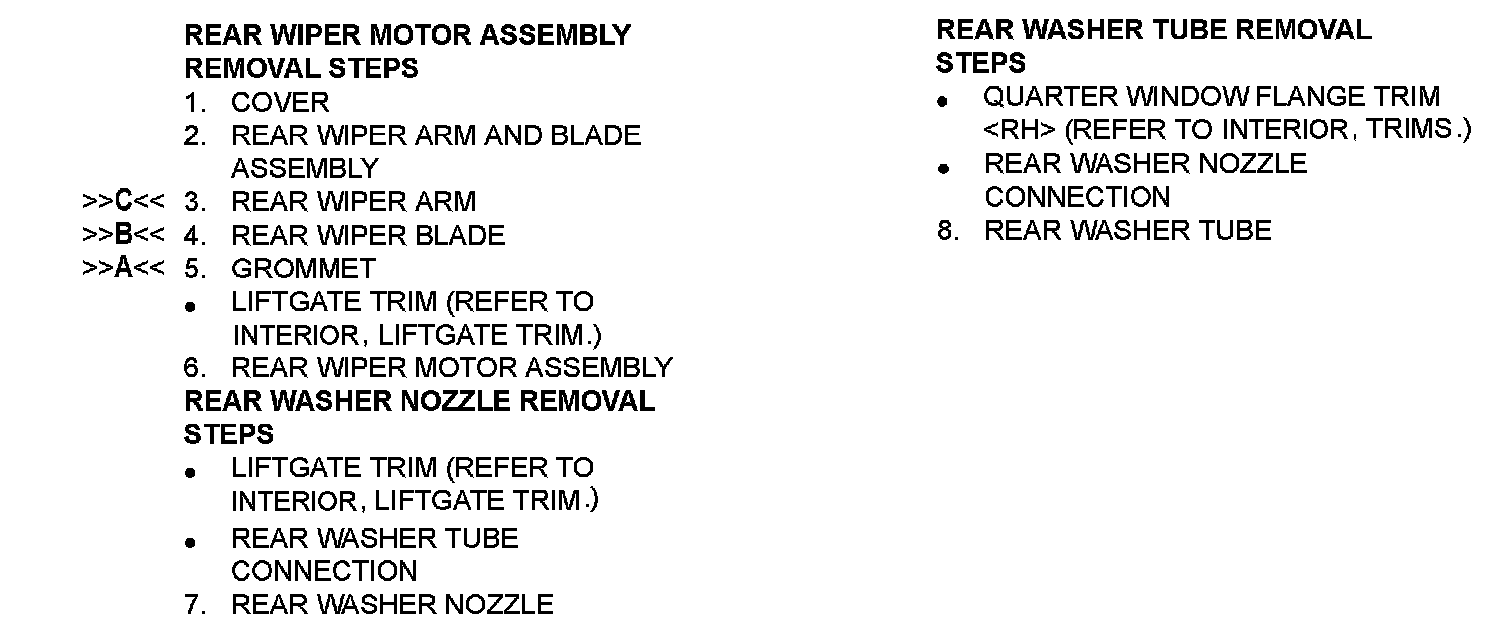

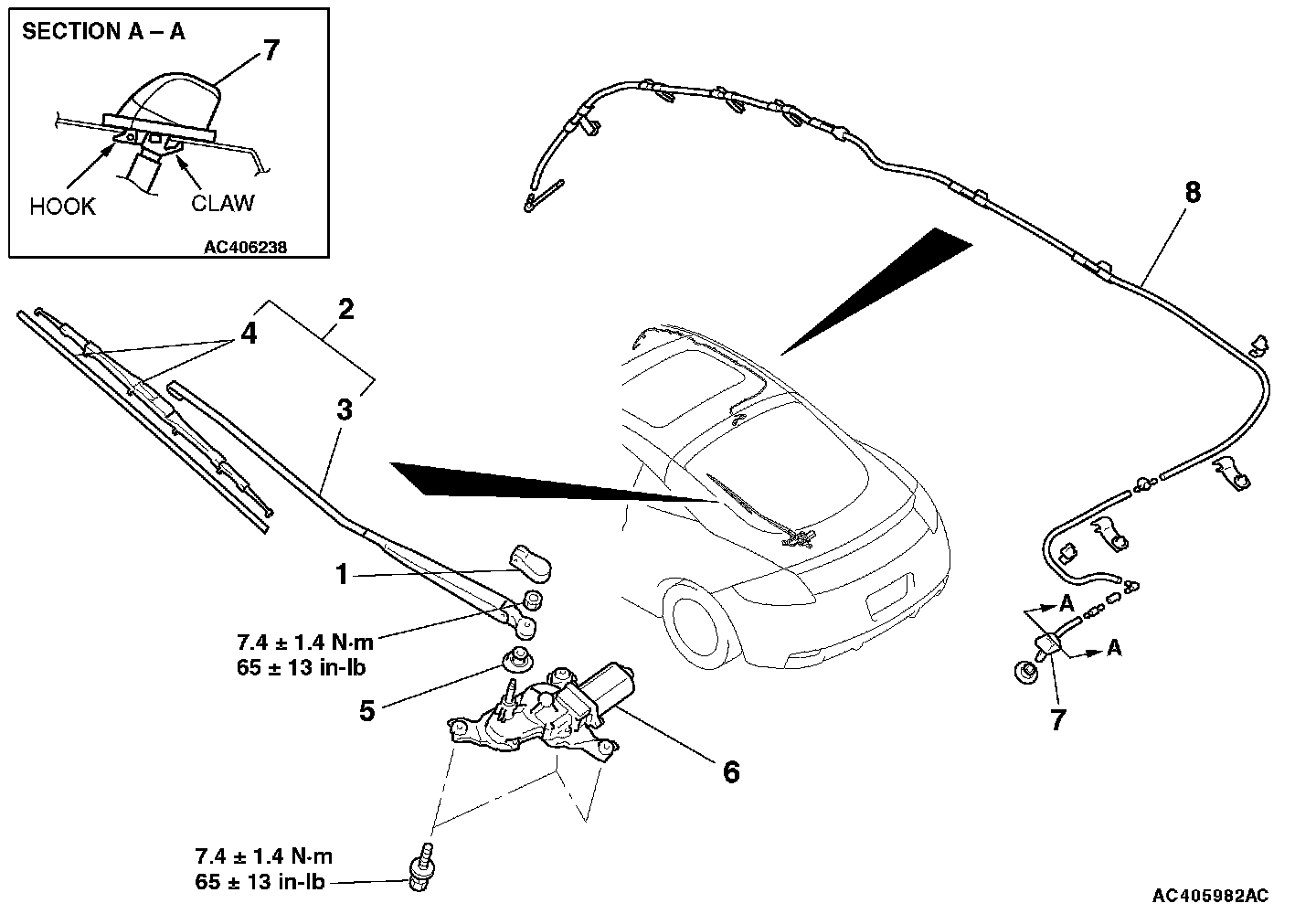

Removal Steps 1-8 (Part 1):

Removal Steps 1-8 (Part 2):

NOTE:
- For removal and installation of the wiper and washer switch, refer to chassis electrical, Column Switch.
- For removal and installation of the washer tank assembly and rear washer motor, refer to Windshield Wiper and Washer.

INSTALLATION SERVICE POINTS

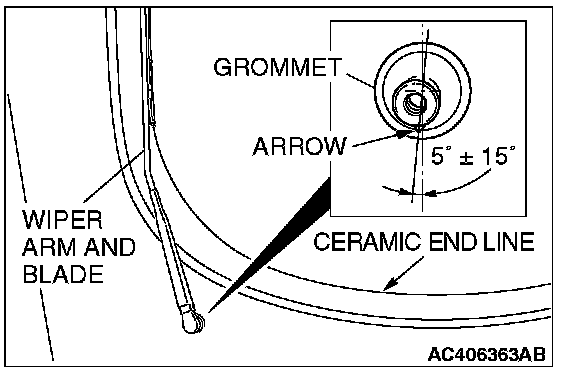

]]A[[ GROMMET INSTALLATION







Install the grommet so that the arrow points backward.

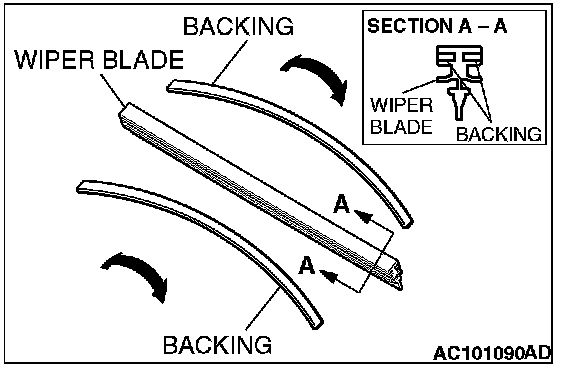

]]B[[ REAR WIPER BLADE INSTALLATION







CAUTION: Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.

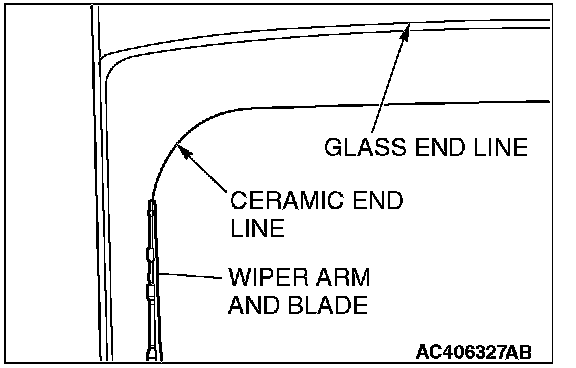

]]C[[REAR WIPER ARM INSTALLATION







Install the wiper arm and blade assembly so that it is positioned on the ceramic end line.
