Transmission Case

TRANSAXLE CASE

DISASSEMBLY AND ASSEMBLY

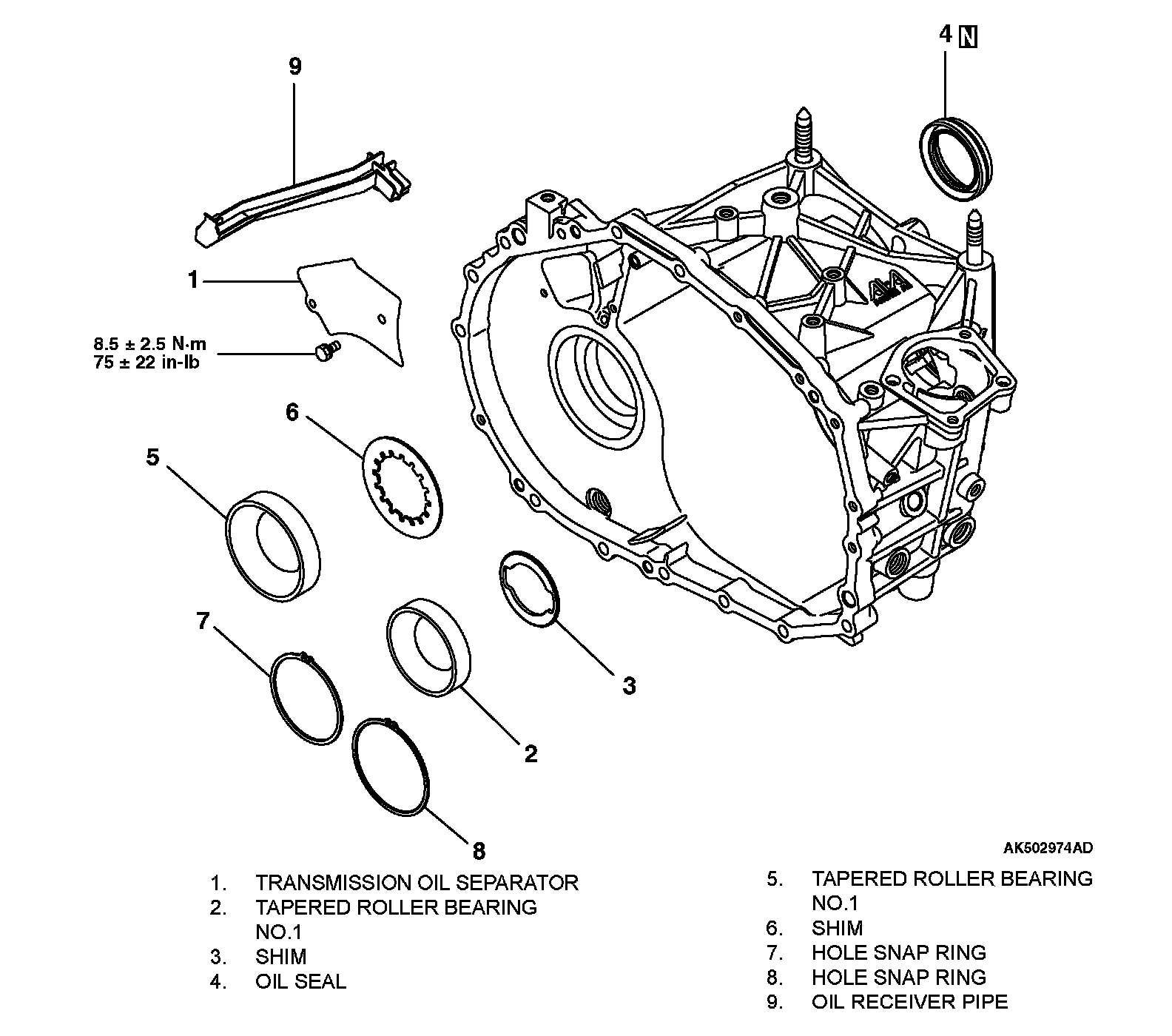

Transaxle Case:

Required Special Tools:
^ MB990211: Slide hammer
^ MB990938: Installer bar
^ MB991015: Knuckle oil seal installer
^ MB991966: Bearing outer race installer
^ MB992039: Slide hammer puller
^ MB991168: Differential oil seal installer

DISASSEMBLY





1. Remove the transmission oil separator.

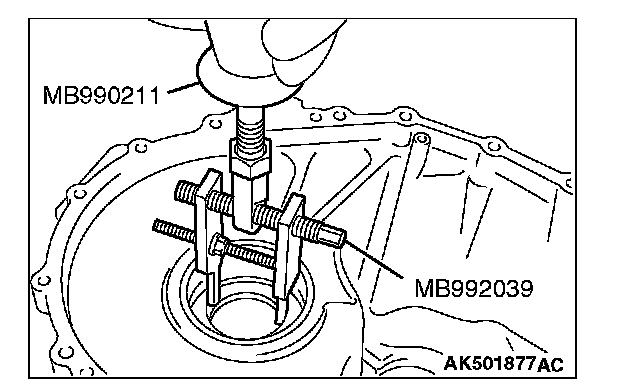

2. Using special tools MB990211 and MB992039, remove the tapered roller bearing No.1.





3. Remove the shim.





4. Remove the type T oil seal.

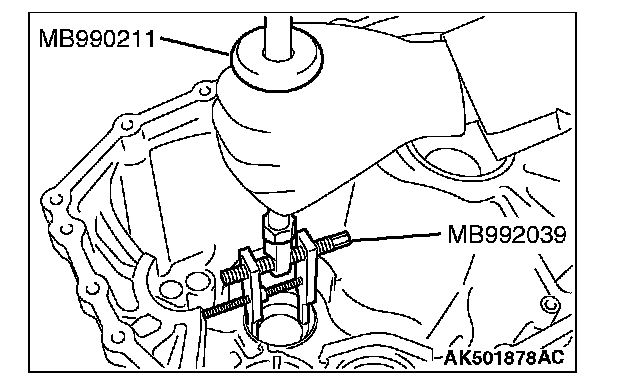

5. Using special tools MB990211 and MB992039, remove the tapered roller bearing No.1 and shim.

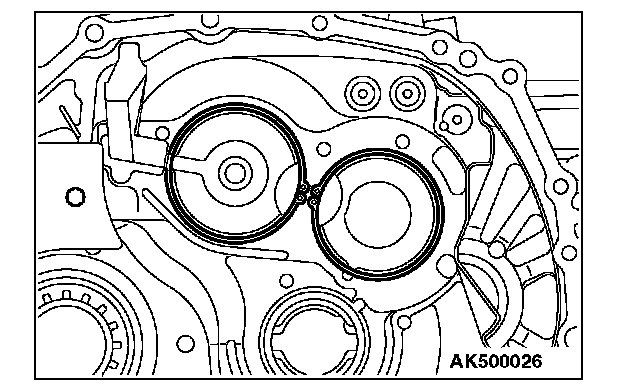

6. Remove the hole snap ring (two pieces).

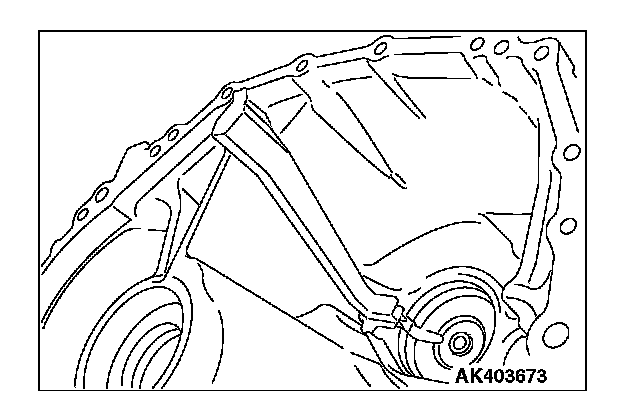

7. Remove the oil receiver pipe.

ASSEMBLY

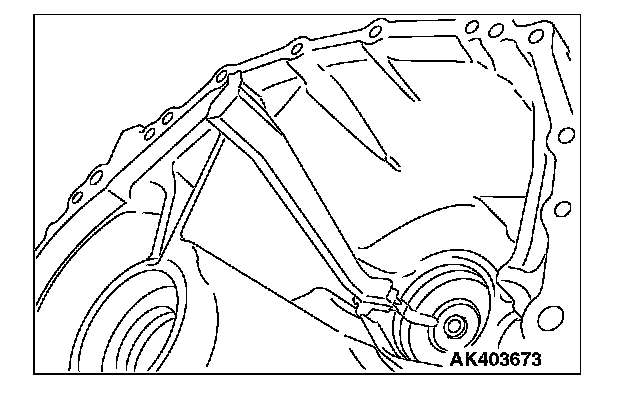

1. install the oil receiver pipe in the transaxle case.

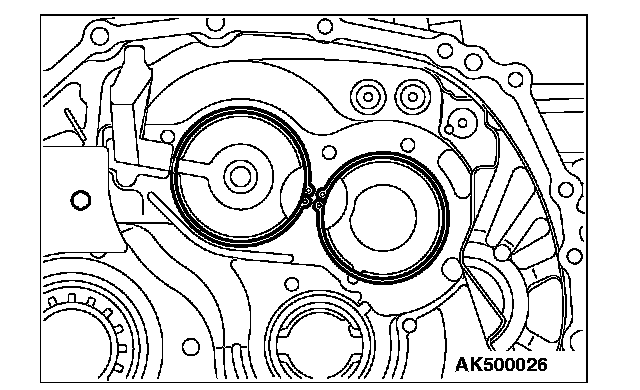

2. install the hole snap ring (two pieces) in the transaxle case.

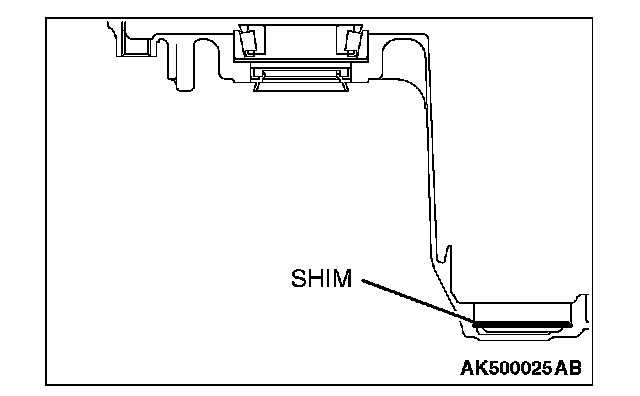

3. install the shim in the transaxle case.

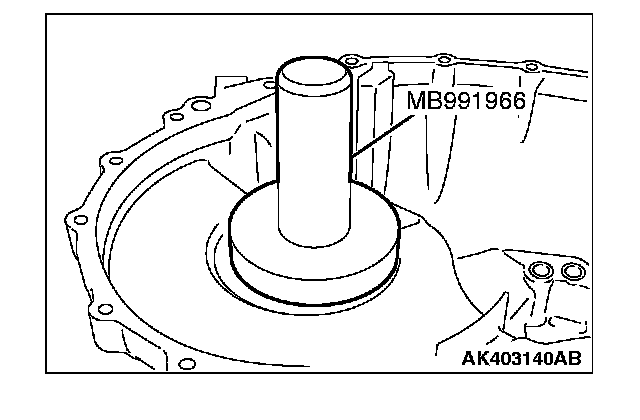

4. Using special tool MB991966, install the tapered roller bearing No.1 in the transaxle case.





5. Using special tool MB991168, install the type T oil seal in the transaxle case.

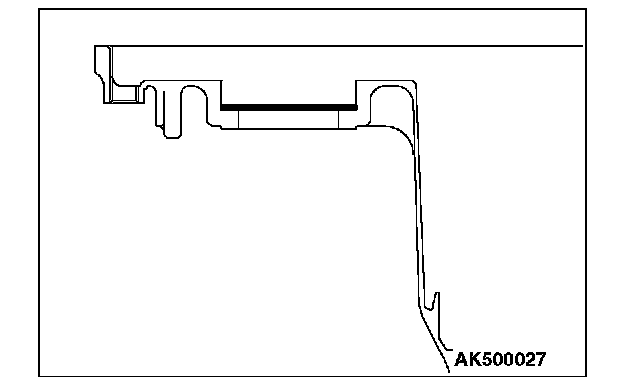

6. Install the shim in the transaxle case.

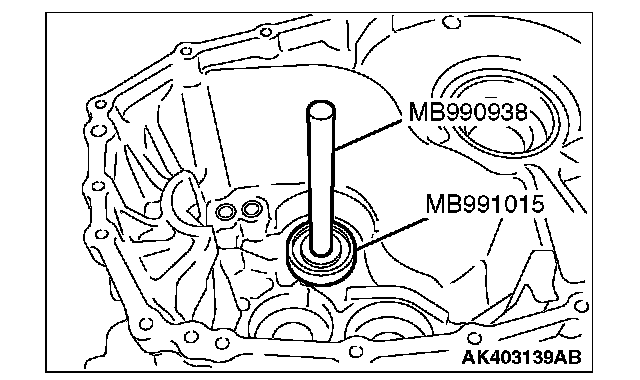

7. Using special tools MB990938 and MB991015, install the tapered roller bearing No.1 in the transaxle case.

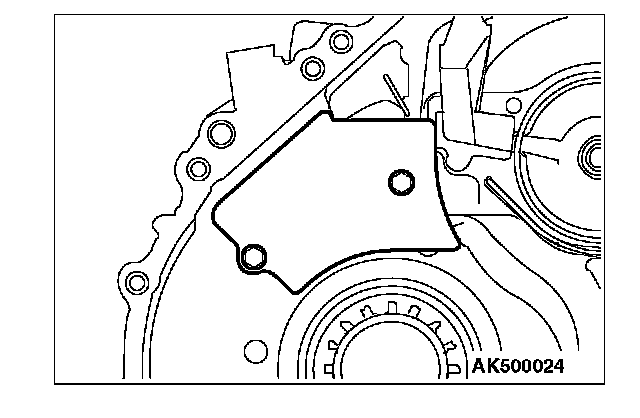

8. Install the transmission oil separator and tighten to the specified torque.

Tighten torque: 8.5±2.5 N-m (75±25 in-lb)
