DIFFERENTIAL

DISASSEMBLY AND ASSEMBLY

Differential:

Required Special Tools:
^ MD998812: Installer cap
^ MD998813: Installer-100
^ MD998827: Installer adapter
^ MD998917: Bearing remover

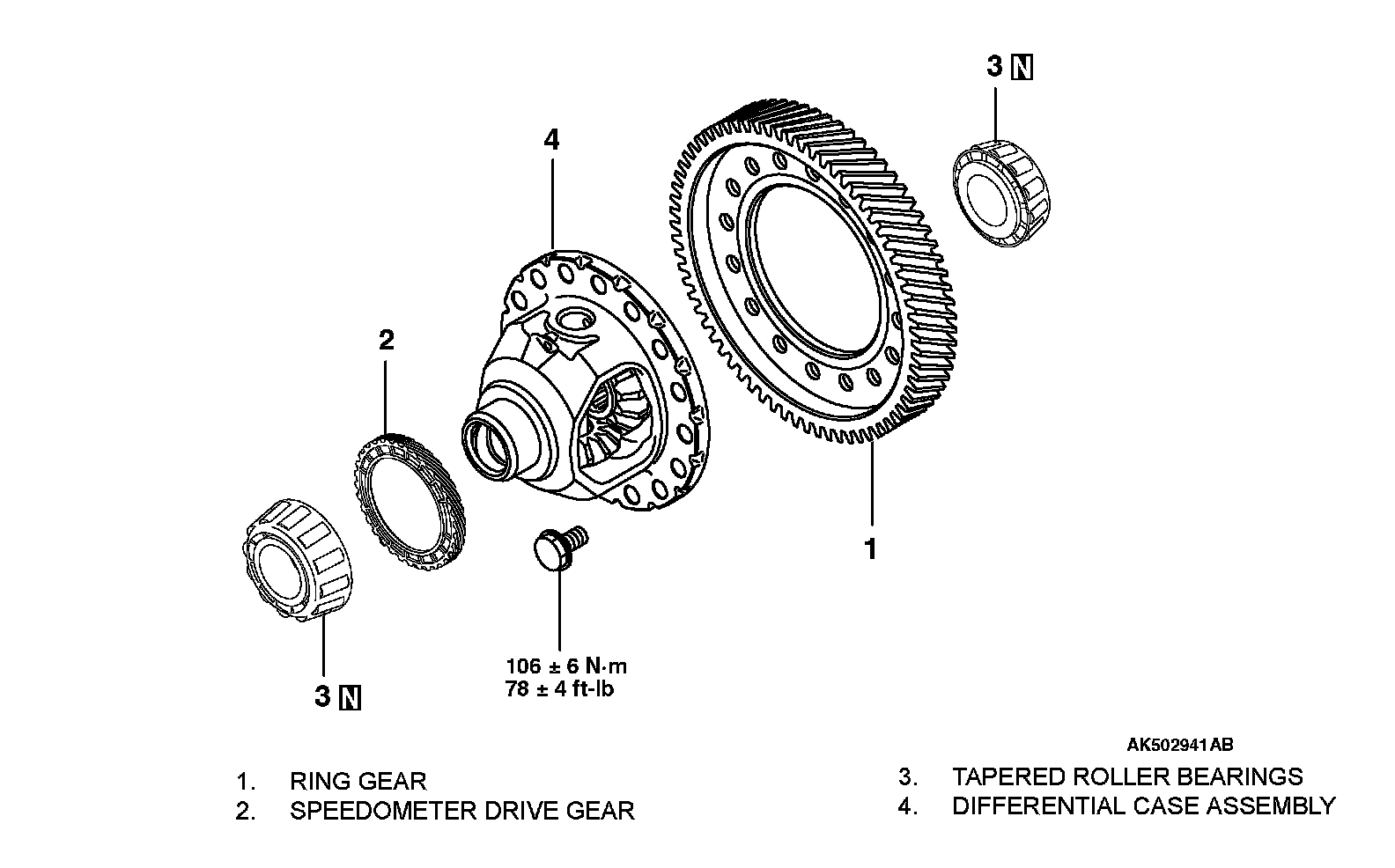

DISASSEMBLY

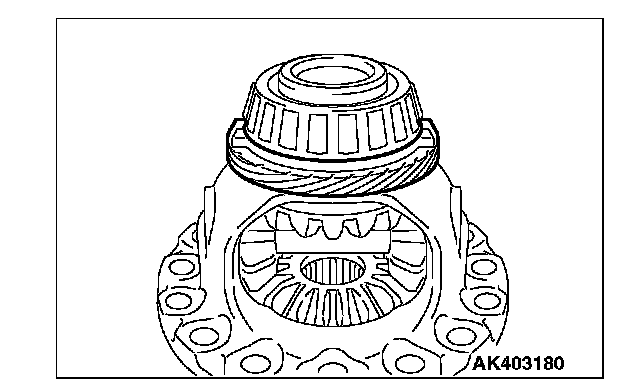

1. Remove the differential ring gear.

CAUTION

Do not damage the case and the gear.

2. Loosen and remove the speedometer drive gear.

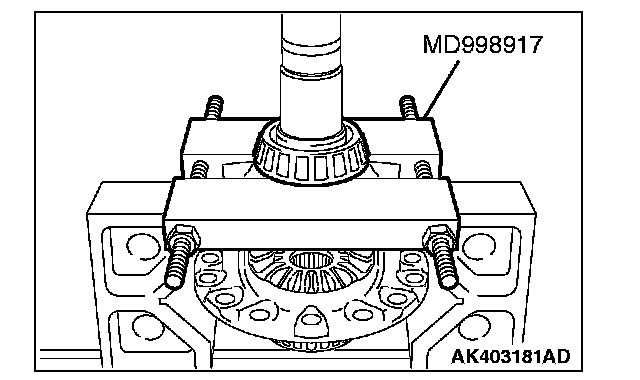

3. Place special tool MD998917 in the speedometer drive gear location, and remove the tapered roller bearing No.2.

CAUTION

Do not damage the case and the gear.

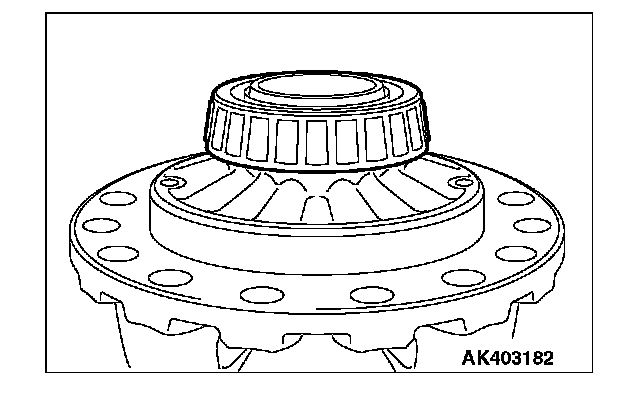

4. Loosen and remove the tapered roller bearing No.2 (roller).

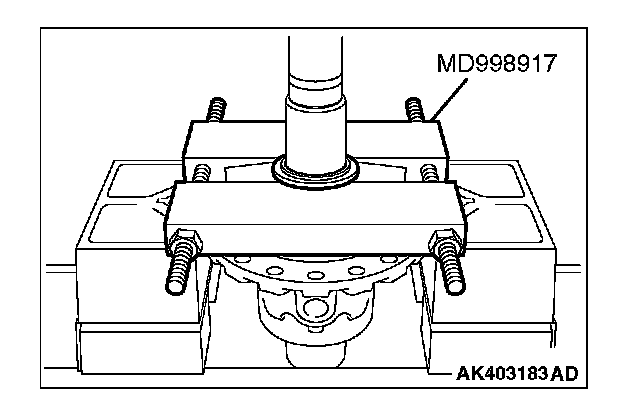

5. Place special tool MD998917 in the tapered roller bearing No.2 (roller) location, and remove the tapered roller bearing No.2 (inner race).

ASSEMBLY

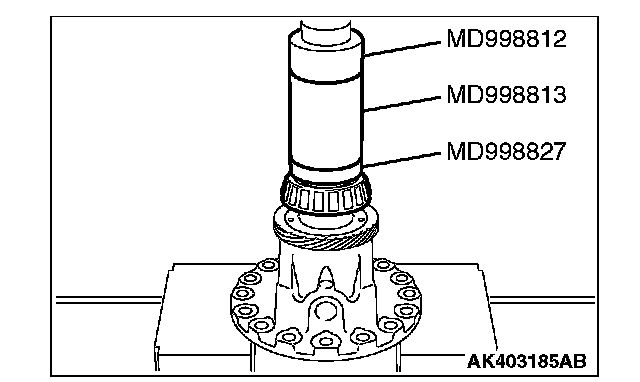

1. Using special tools MD998812, MD998813 and MD998827, install the tapered roller bearing No.2.
2. Install the speedometer drive gear to the differential case subassembly.





3. Using special tools MD998812, MD998813 and MD998827, install the tapered roller bearing No.2.

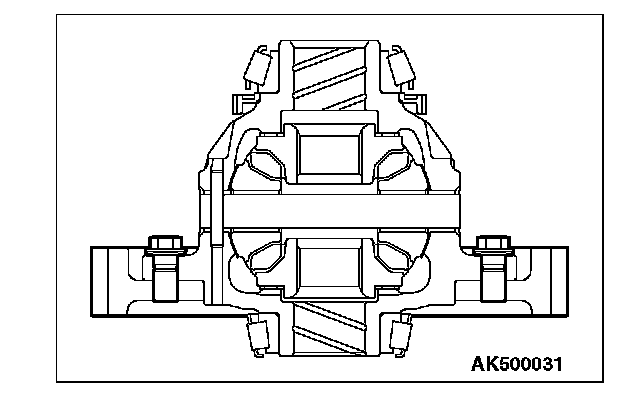

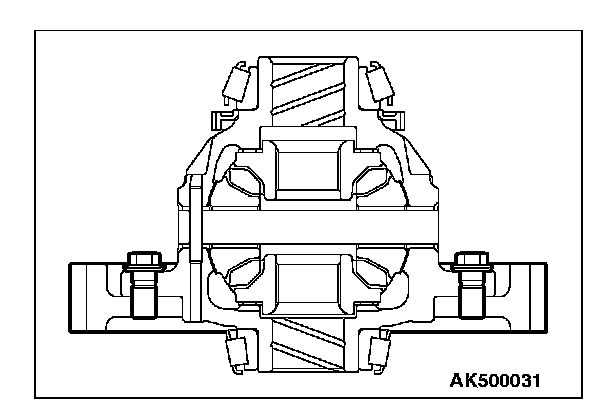

4. Install the differential ring gear to the differential case sub-assembly and tighten the bolts to the specified torque.

Tightening torque: 106±6 N-m (78±4 ft-lb)
