Clutch Housing

CLUTCH HOUSING

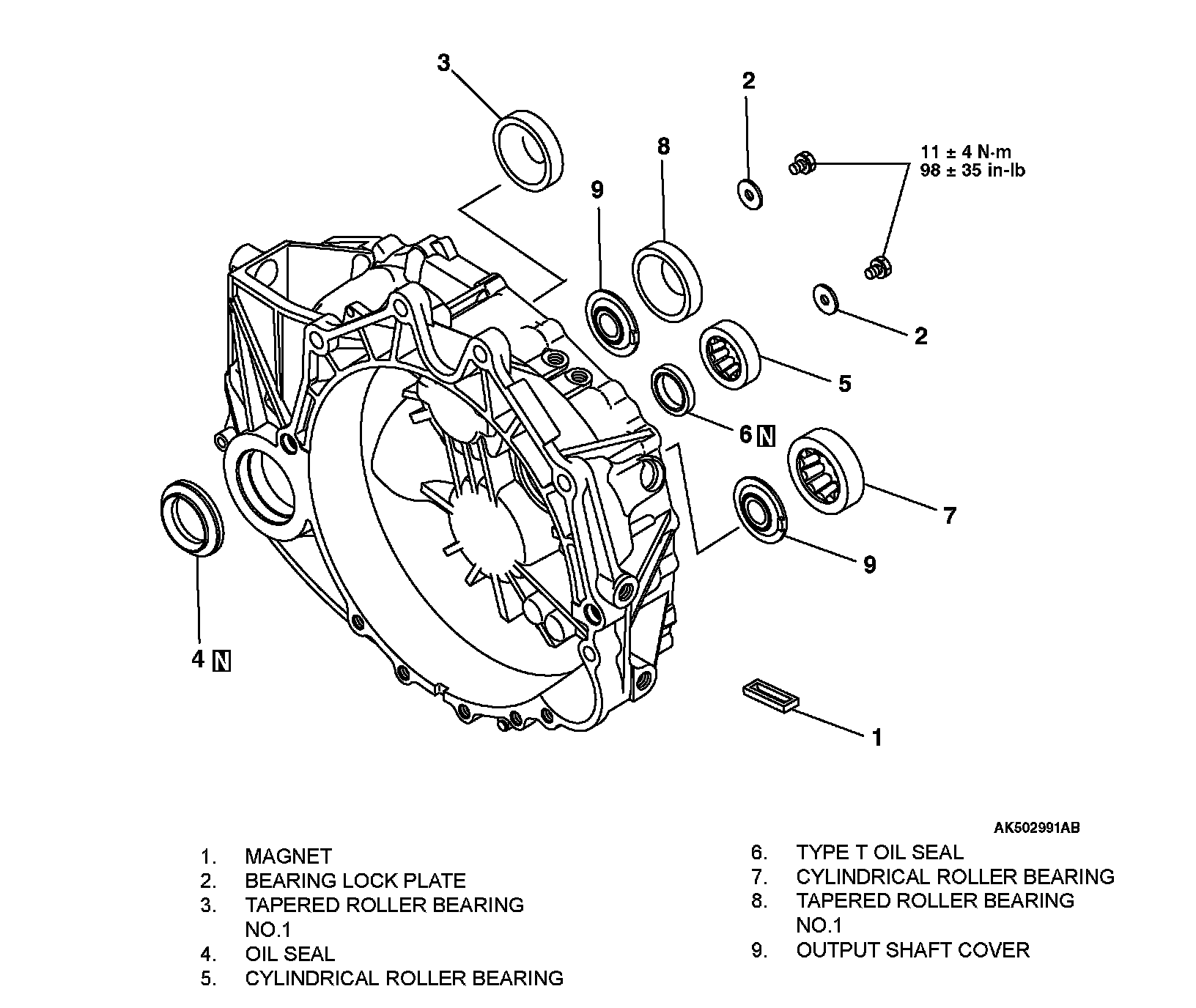

DISASSEMBLY AND ASSEMBLY

Clutch Housing:

Required Special Tools:
^ MB990211: Slide hammer
^ MB990699: Differential oil seal installer
^ MB990938: Installer bar
^ MB991168: Differential oil seal installer
^ MB991445: Bush remover & installer base
^ MB991448: Bush remover & installer base
^ MB992037: Input shaft oil seal installer
^ MB992039: Slide hammer puller
^ MD998550: Extension HSG seal installer

DISASSEMBLY

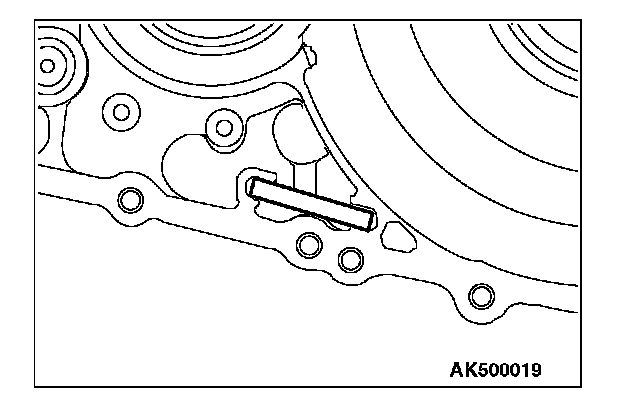

1. Remove the magnet.

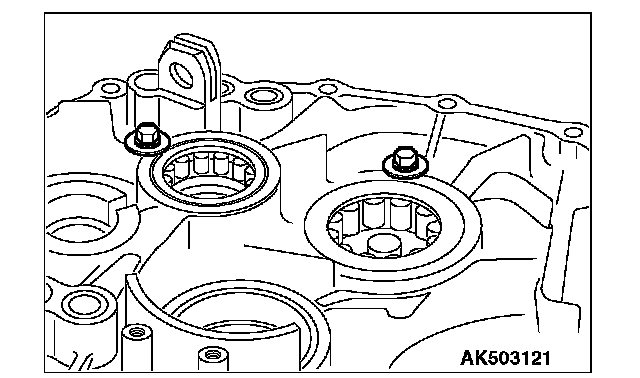

2. Remove the bolt with washer and bearing lock plate.

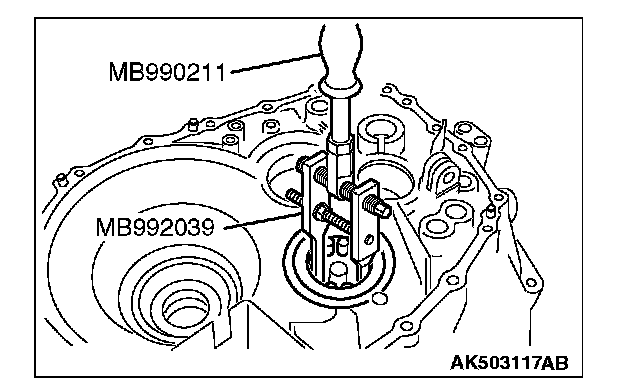

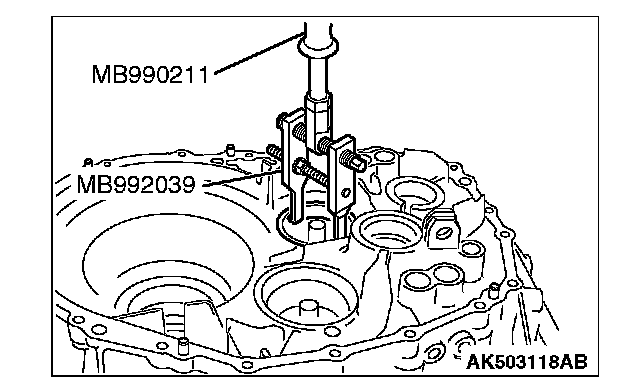

3. Using special tools MB990211 and MB992039, remove the tapered roller bearing No.1.





4. Remove the type T oil seal.

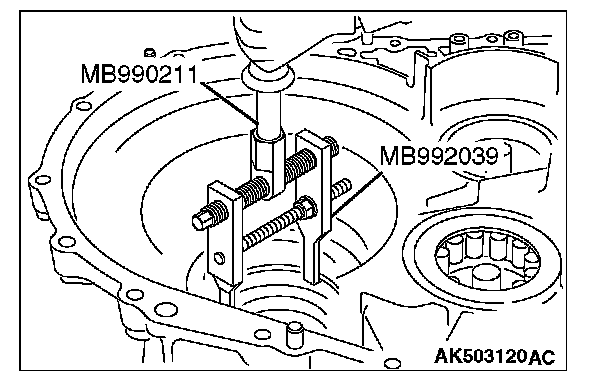

5. Using special tools MB990211 and MB992039, remove the cylindrical roller bearing.





6. Remove the type T oil seal.





7. Using special tools MB990211 and MB992039, remove the cylindrical roller bearing.

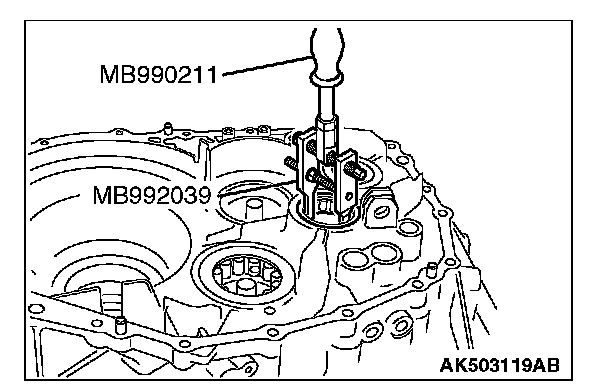

8. Using special tools MB990211 and MB992039, remove the tapered roller bearing No.1.

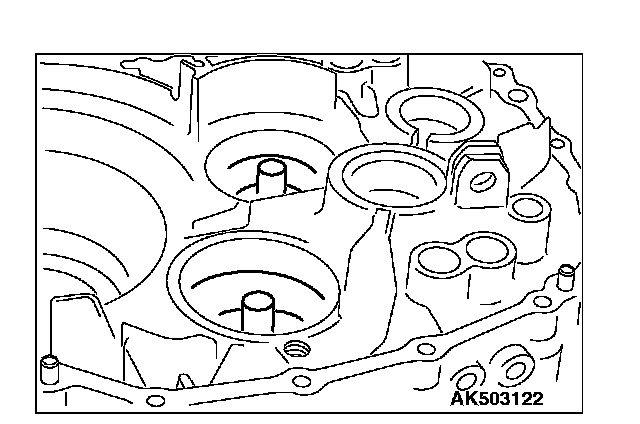

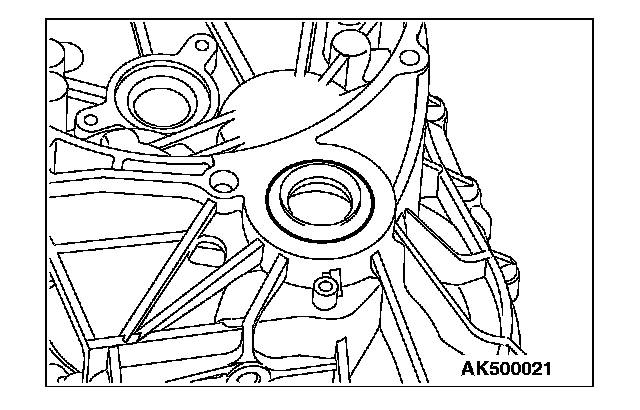

9. Remove the output shaft cover (two pieces).

ASSEMBLY

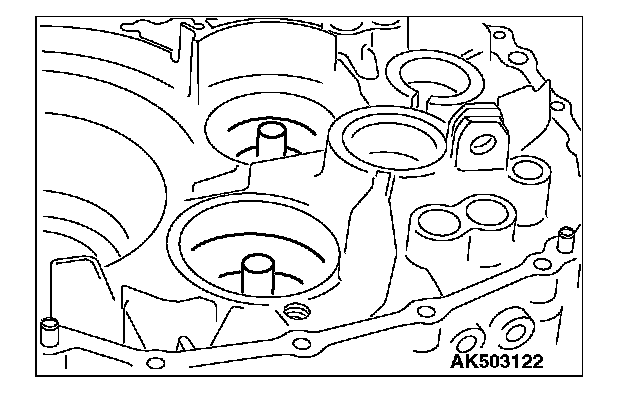

1. Install the output shaft cover (two pieces) in the clutch housing.

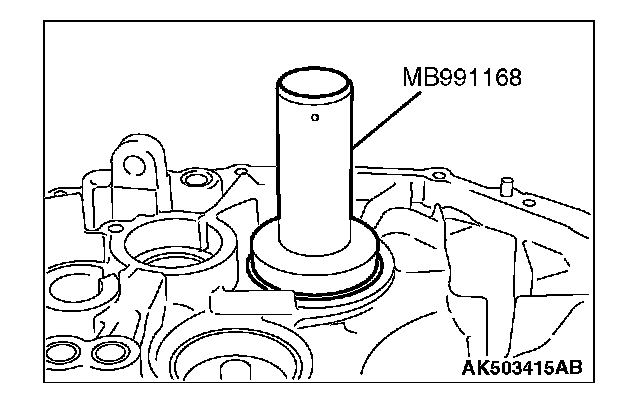

2. Using special tool MB991168, install the tapered roller bearing No.1 in the clutch housing.

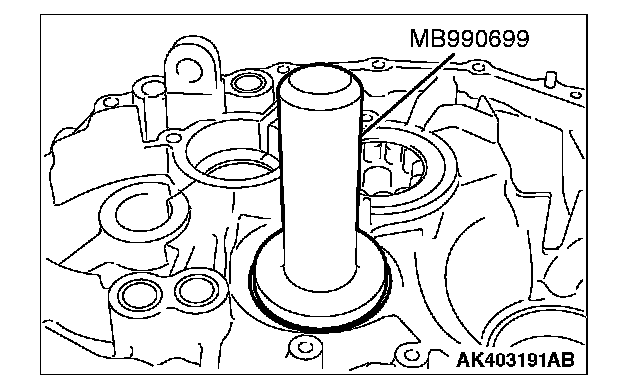

3. Using special tool MB990699, install the cylindrical roller bearing in the clutch housing.

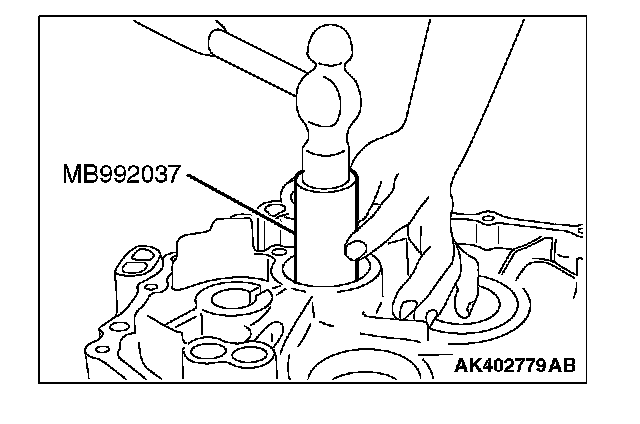

4. Using special tool MB992037, install the type T oil seal in the clutch housing.

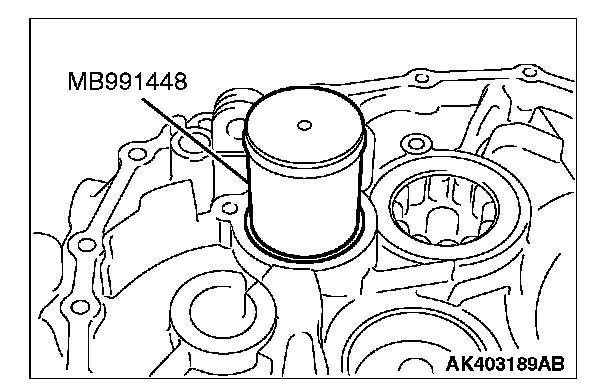

5. Using special tool MB991448, install the cylindrical roller bearing in the clutch housing.

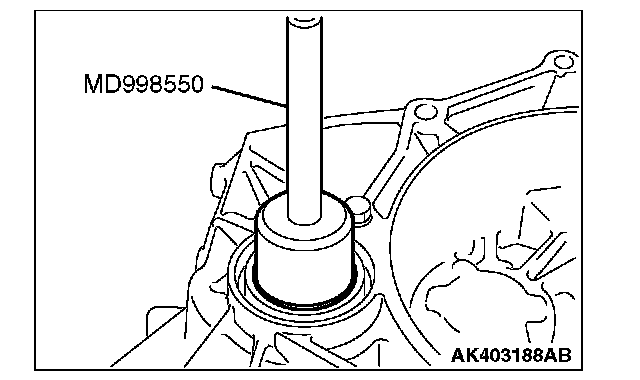

6. Using special tool MD998550, install the type T oil seal in the clutch housing.

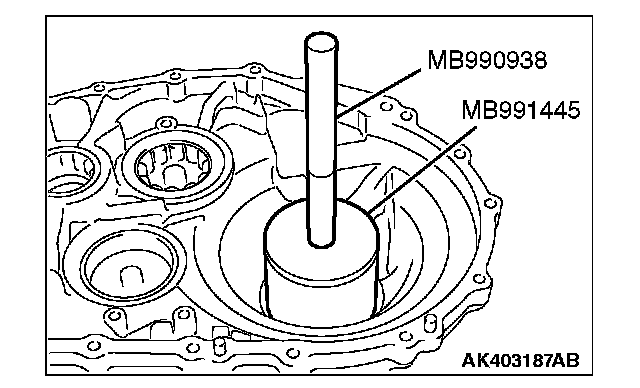

7. Using special tools MB990938 and MB991445, install the tapered roller bearing No.1 in the clutch housing.

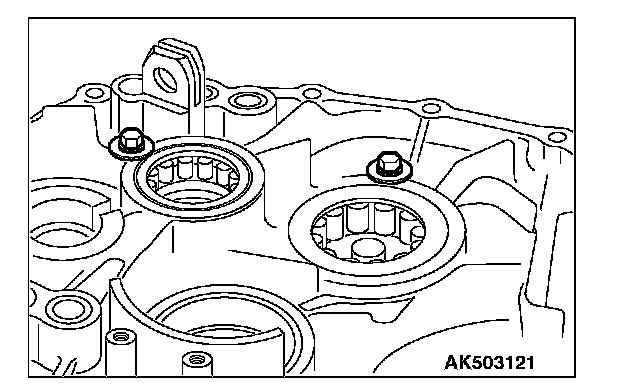

8. Install the bearing lock plate.
9. Tighten the bolt with washer to the specified torque.

Tighten torque: 11±4 N-m (98±35 in-lb)





10. Install the magnet in the clutch housing.
