General Description

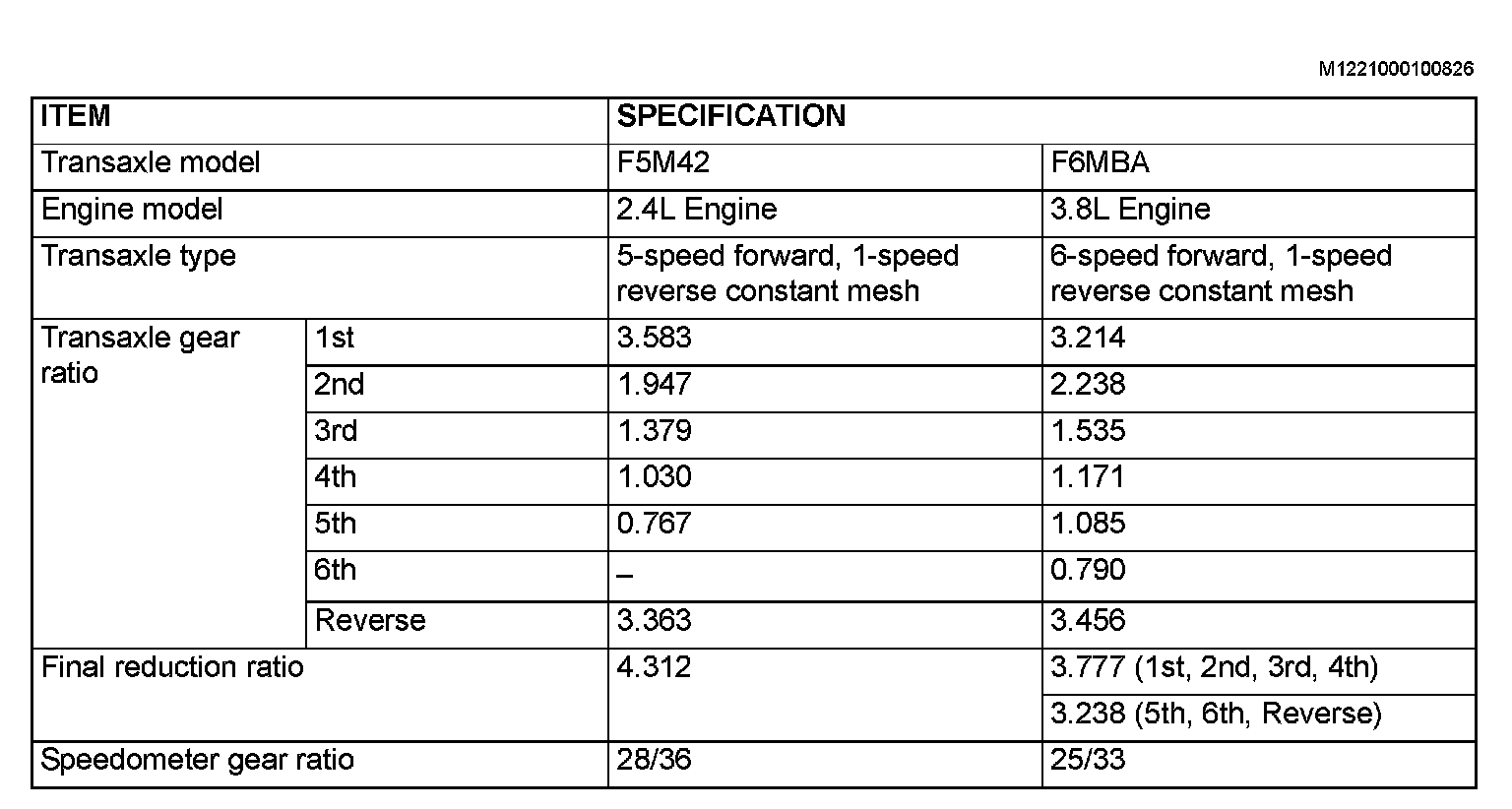

GENERAL DESCRIPTION:





GENERAL DESCRIPTION

SECTIONAL VIEW

SECTIONAL VIEW [5M/T]:





[5M/T]

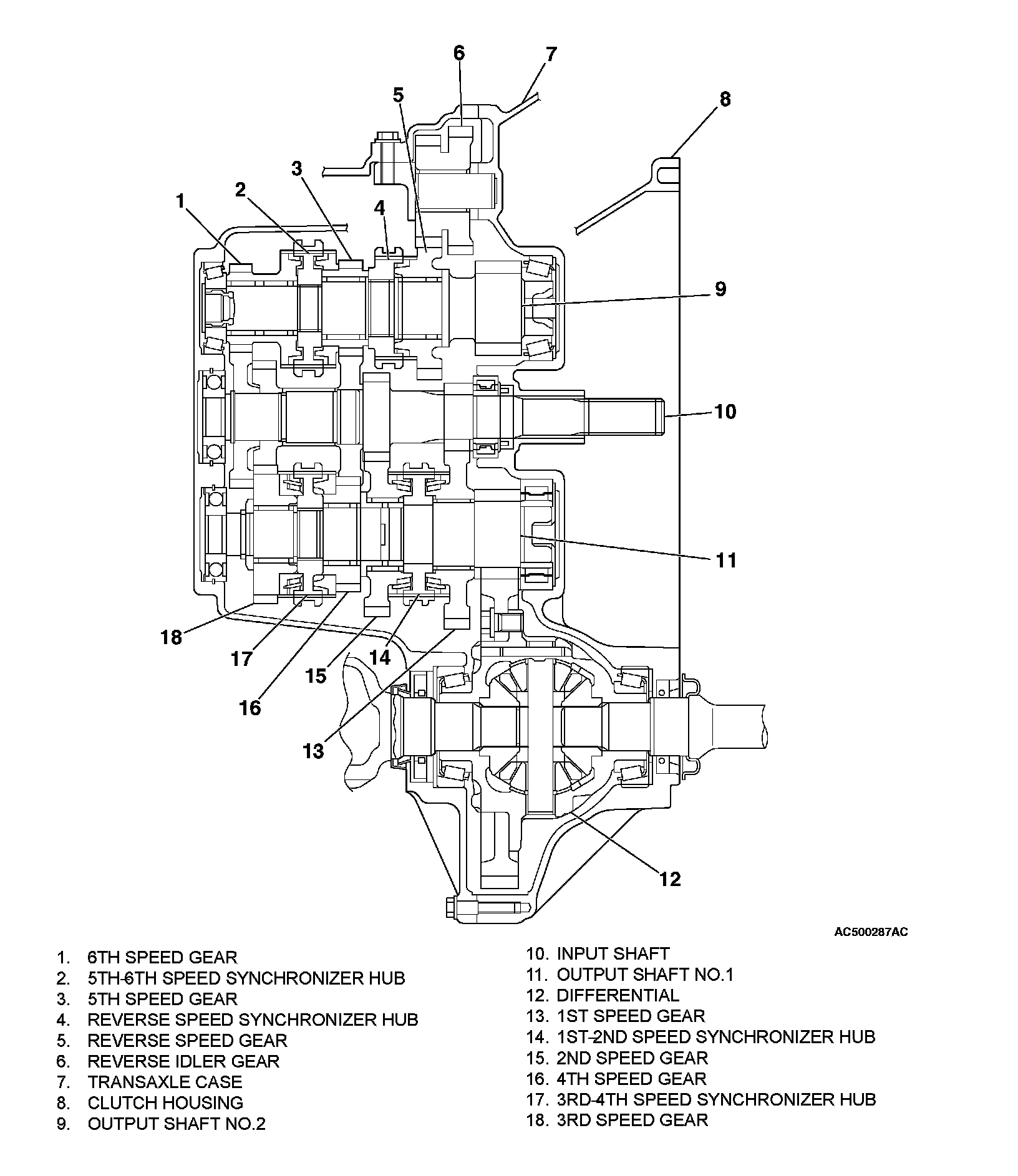

SECTIONAL VIEW [6M/T]:





[6M/T]
