Overhaul

CLUTCH RELEASE CYLINDER

DISASSEMBLY AND ASSEMBLY

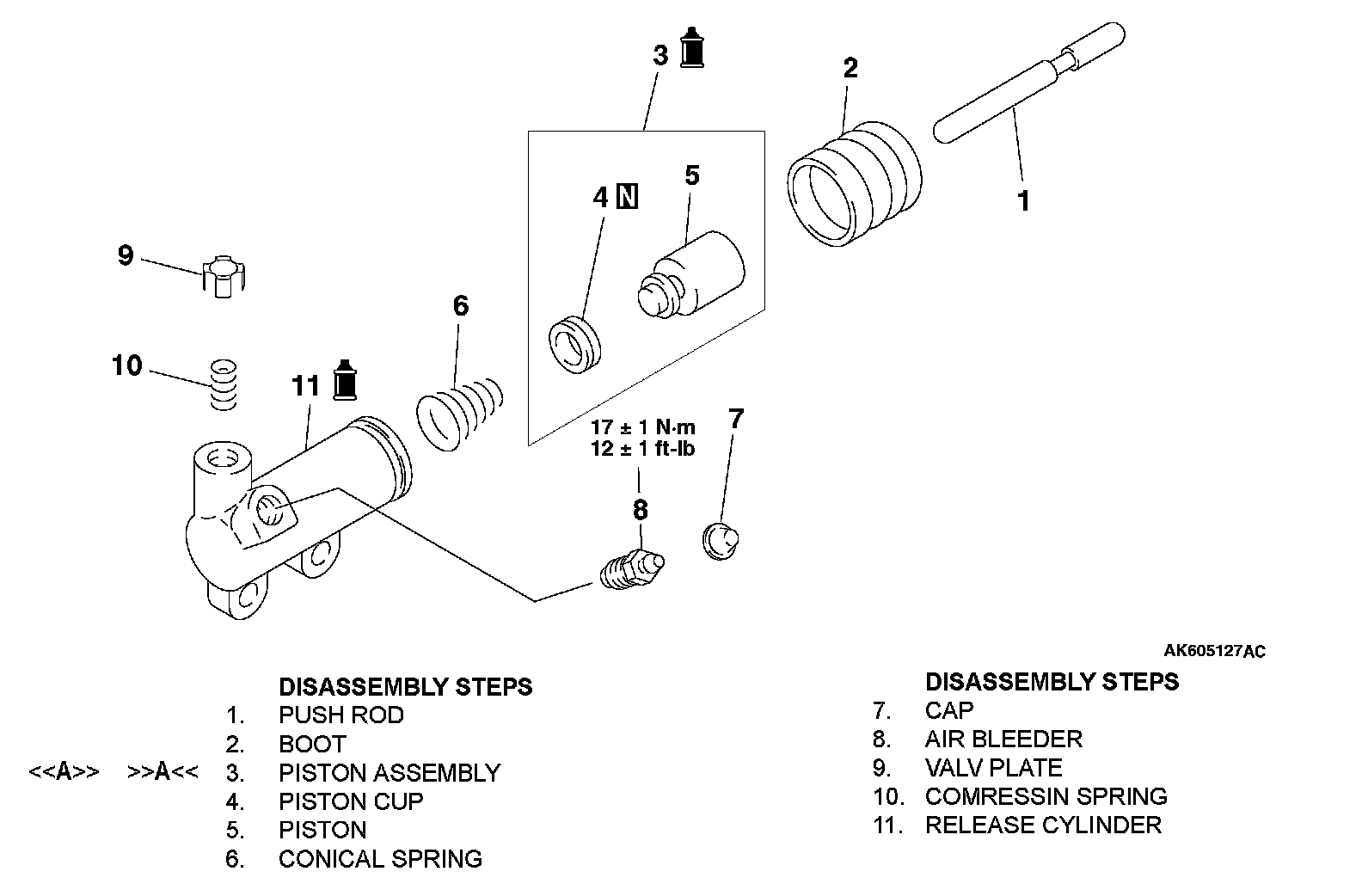

Disassembly Steps 1-11:

DISASSEMBLY SERVICE POINT

[[A]] PISTON ASSEMBLY REMOVAL

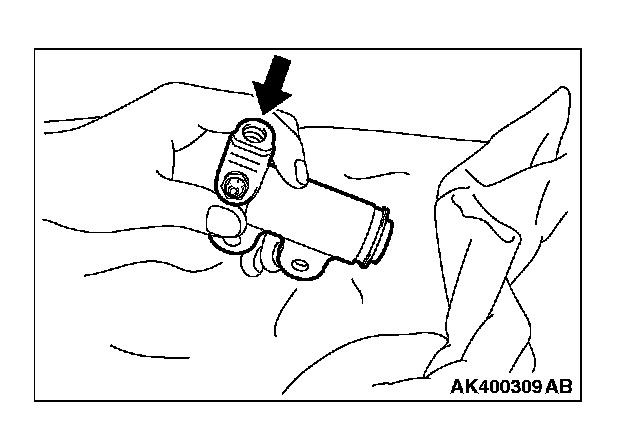

1. Cover with a shop towel to prevent the piston from popping out.

CAUTION
Apply compressed air slowly to prevent brake fluid from splashing.

2. Apply the compressed air into the tube mounting hole to remove the piston assembly.

ASSEMBLY SERVICE POINT

]]A[[ PISTON ASSEMBLY INSTALLATION

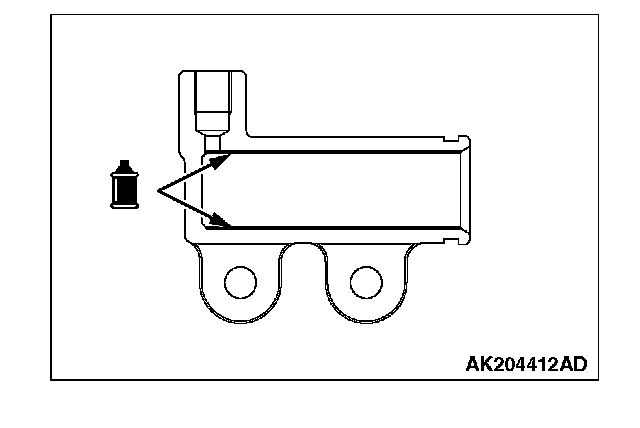

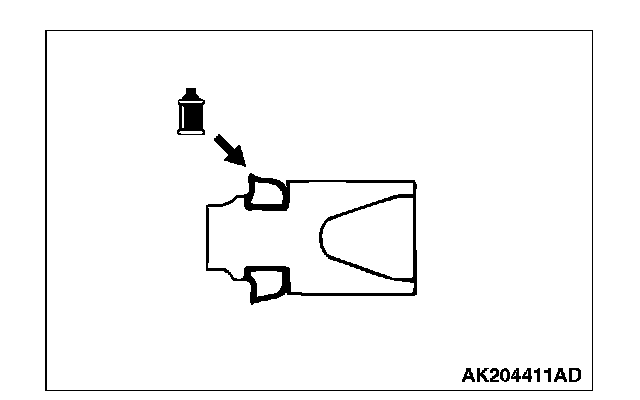

1. Apply brake fluid SAE J1703 (DOT3) to the piston cup and inner surface of the release cylinder.
2. Insert the piston assembly into the release cylinder.
