Transmission Mount: Service and Repair

REMOVAL AND INSTALLATION

CAUTION
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

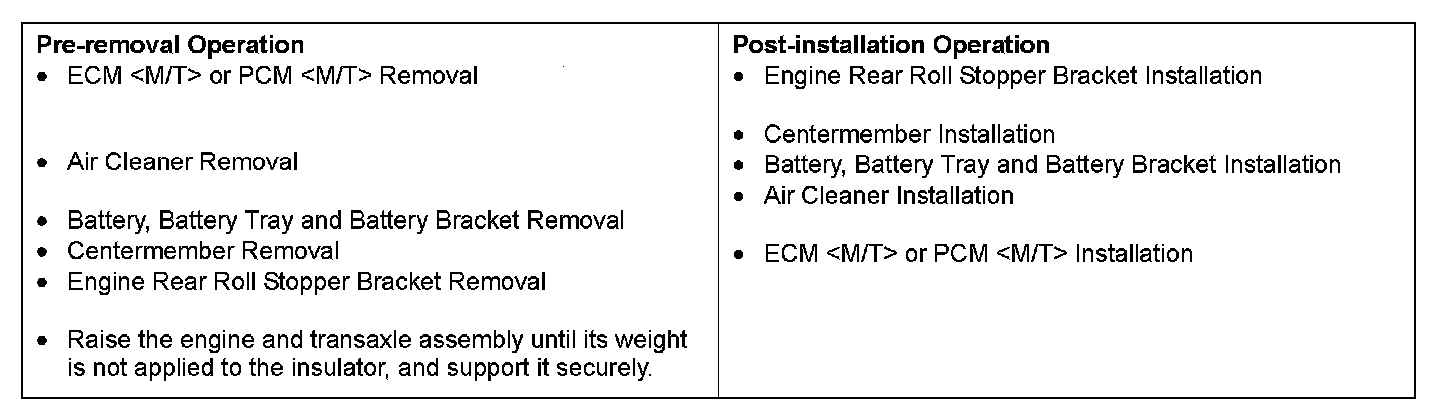

Pre-removal & Post-installation Operation:

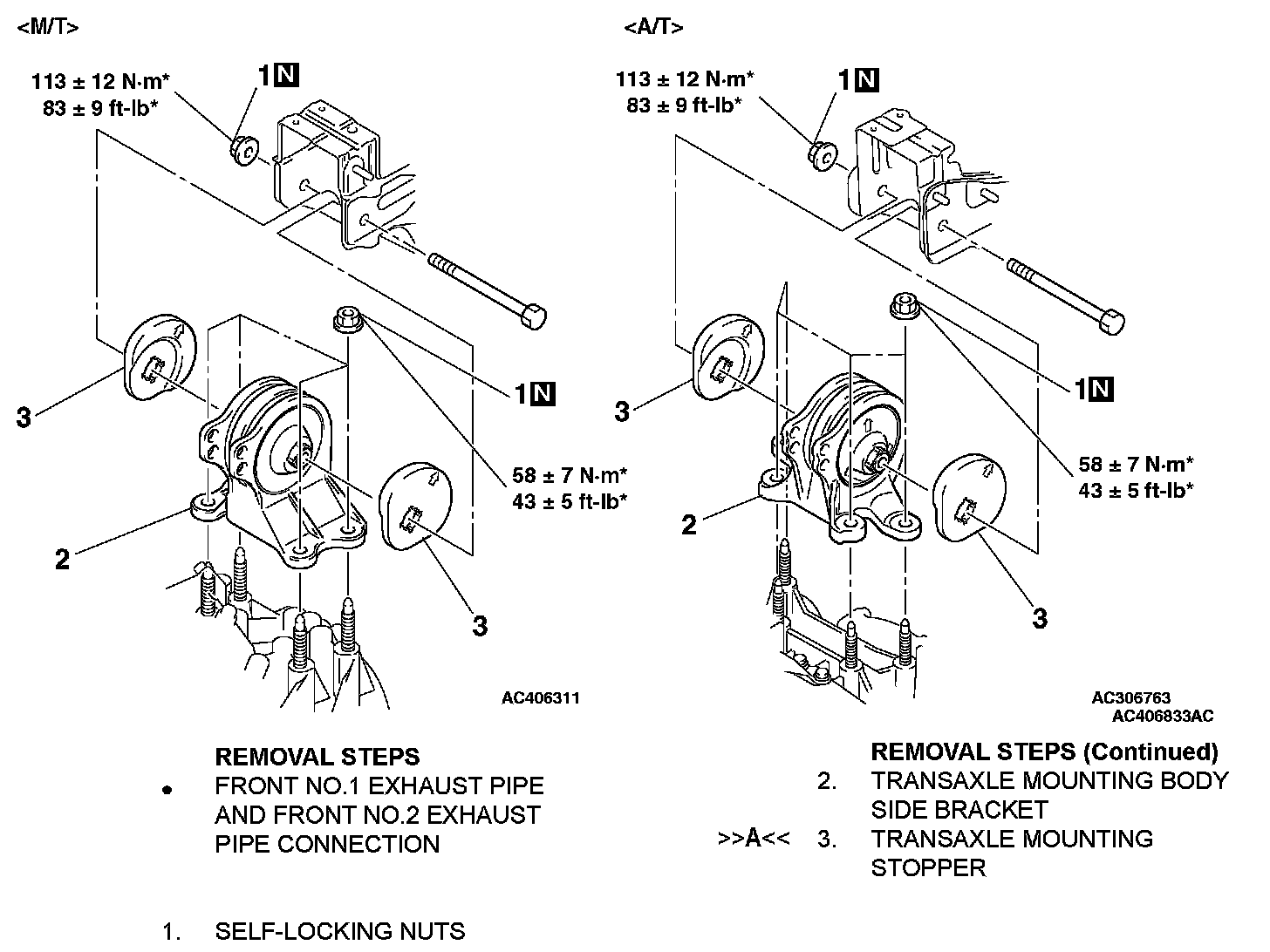

Removal Steps 1-3:

INSTALLATION SERVICE POINT

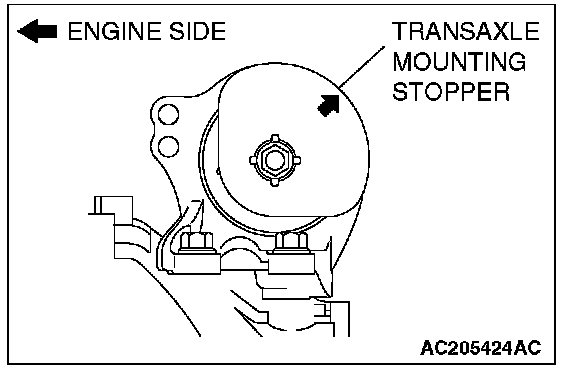

]]A[[ TRANSAXLE MOUNTING STOPPER INSTALLATION





Install the transaxle mounting stopper so that its arrow points upward.
