Removal and Replacement

TRANSMISSION FLUID COOLER, HOSE AND PIPE

REMOVAL AND INSTALLATION

[4A/T]

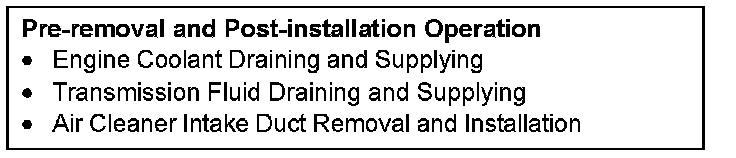

Pre-removal & Post-installation Operation:

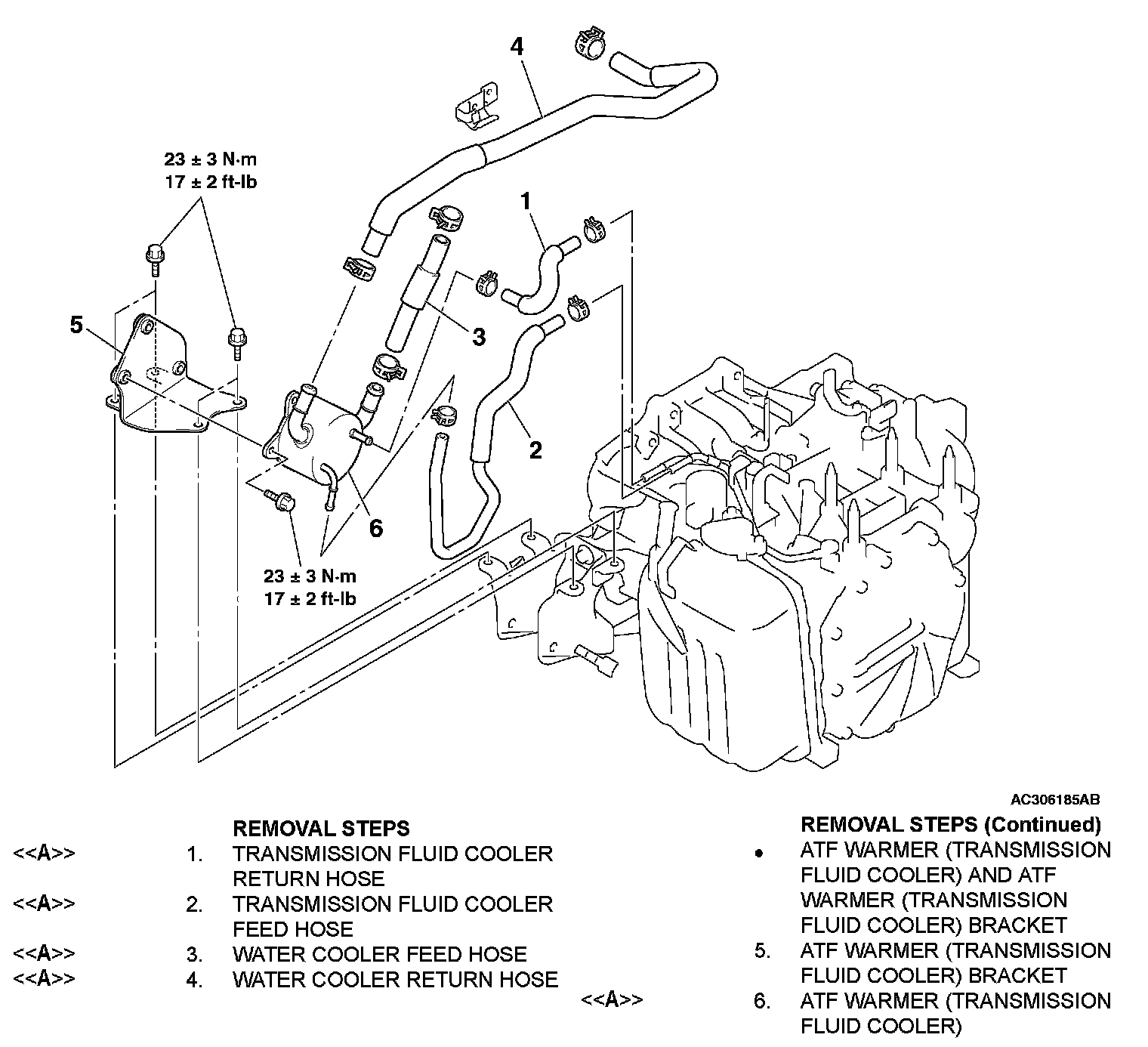

Removal Steps 1-6:

REMOVAL SERVICE POINTS

[[A]] TRANSMISSION FLUID COOLER RETURN HOSE/TRANSMISSION FLUID COOLER FEED HOSE/WATER COOLER FEED HOSE/WATER COOLER RETURN HOSE/ATF WARMER (TRANSMISSION FLUID COOLER) REMOVAL
Drain the transmission fluid and engine coolant, which still remained in the hoses and the ATF warmer (transmission fluid cooler).

REMOVAL AND INSTALLATION

[5A/T]

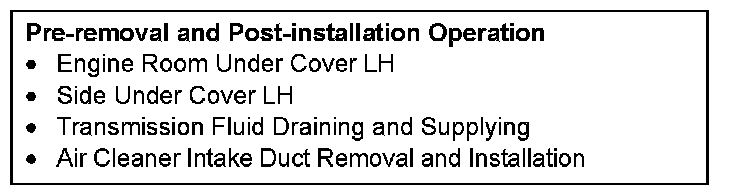

Pre-removal & Post-installation Operation:

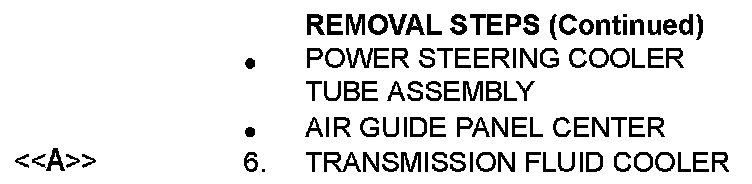

Removal Steps 1-5:

Removal Step 6:

REMOVAL SERVICE POINTS

[[A]] TRANSMISSION FLUID COOLER LINE HOSE A, B, C/TRANSMISSION FLUID COOLER LINE TUBE/TRANSMISSION FLUID COOLER REMOVAL
Drain the transmission fluid and engine coolant, which still remain in the hoses and the transmission fluid cooler.
