Home >> Mitsubishi >> 2009 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment >> Required For Overhaul >> F4A4B

F4A4B

SPECIAL TOOLS

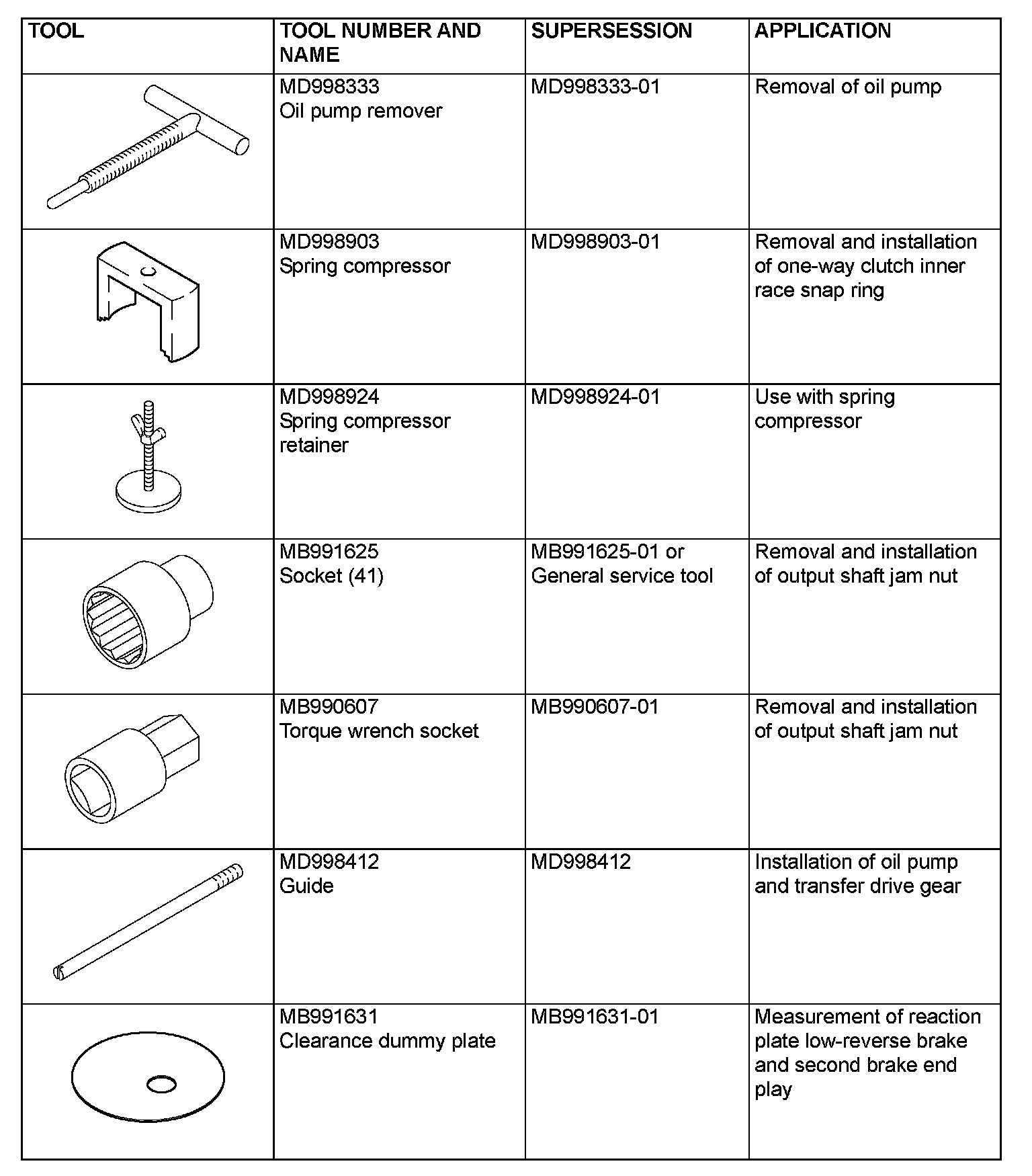

Part 1:

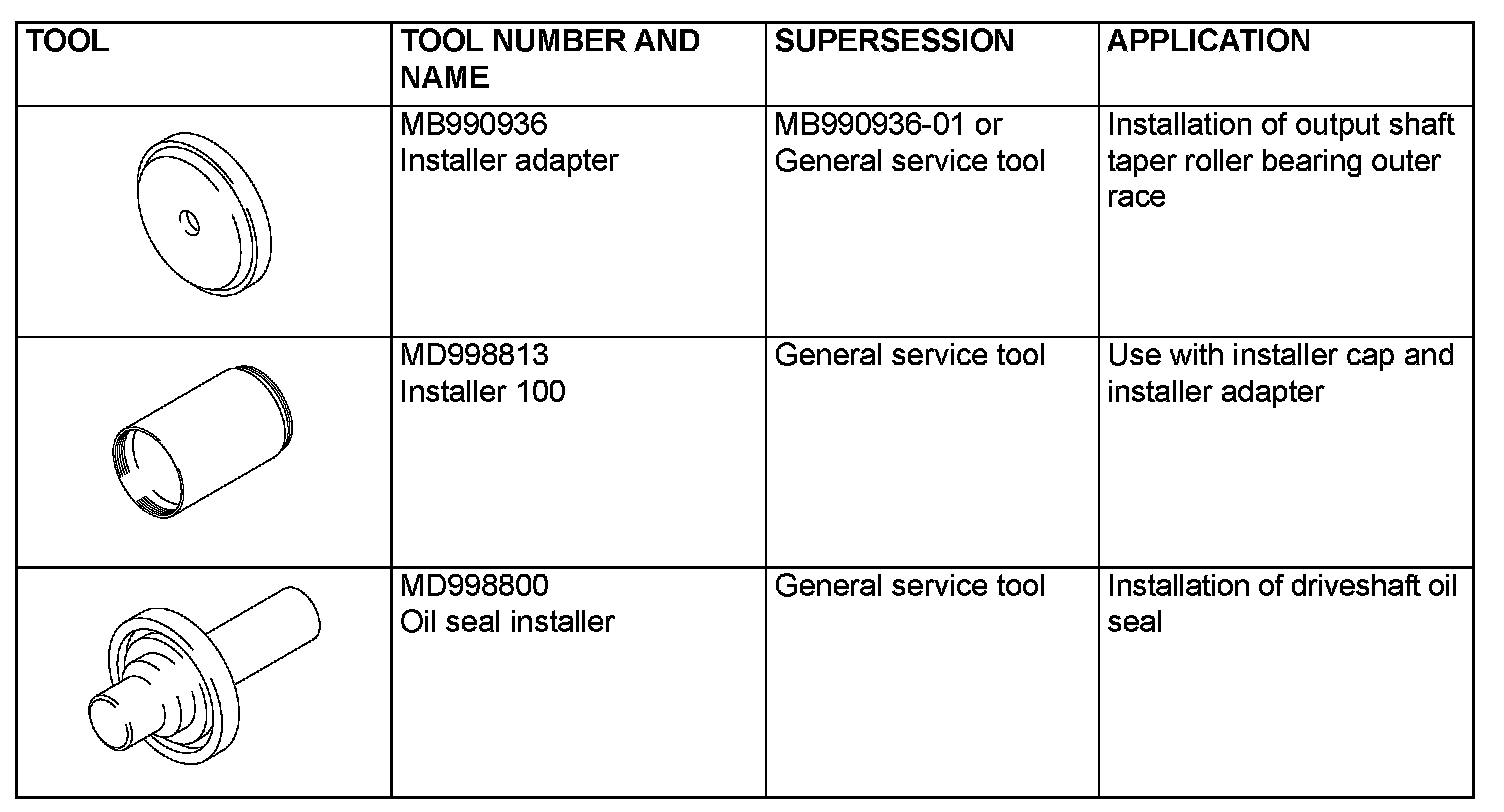

Part 2:

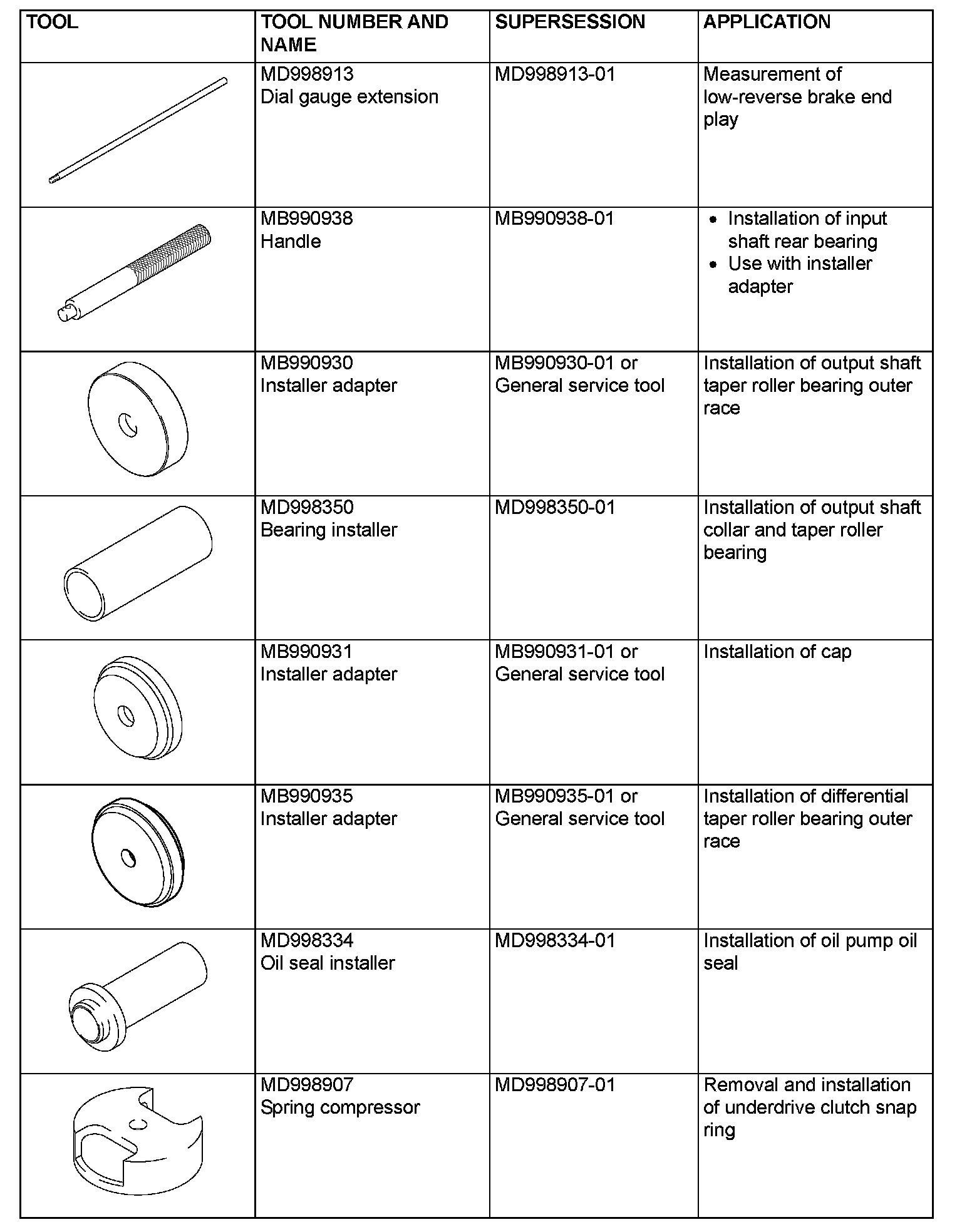

Part 3:




Part 4:
