Disassembly
TRANSAXLEDISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-11:
Disassembly Steps 12-29:
Disassembly Steps 30-58:
Disassembly Steps 59-73:
Disassembly Steps 74-97:
Required Special Tools:
^ MD998333: Oil Pump Remover
^ MD999577: Spring Compressor
^ MD998924: Spring Compressor Retainer
^ MD998412: Guide
^ MB991632: Clearance Dummy Plate
^ MD998913: Dial Gauge Extension
^ MB990938: Handle
^ MB991633: Reduction brake wrench set
^ MB990936: Installer Adapter
^ MB991445: Bushing remover and installer base
DISASSEMBLY
CAUTION
^ Because the automatic transaxle is manufactured from high-precision parts, care must be taken not to scratch or damage these parts during disassembly and assembly.
^ The working area should be covered with a rubber mat to keep it clean at all times.
^ Do not wear any cloth gloves and do not use any shop towels during disassembly. Use only nylon cloth, paper towels or any other lint-free material.
^ Parts which have been disassembled should all be cleaned. Metal parts can be cleaned with normal detergent, but they should be dried completely using compressed air.
^ Clutch discs, plastic thrust plates and rubber parts should be cleaned with automatic transmission fluid (ATF).
^ If the transaxle body has been damaged, disassemble and clean the cooler system.
1. Remove the torque converter.
2. Use a dial gauge to measure the input shaft end play.
3. Remove control cable support bracket.
4. Remove the dipstick.
5. Remove the eye bolt, gaskets and the oil cooler feed tube.

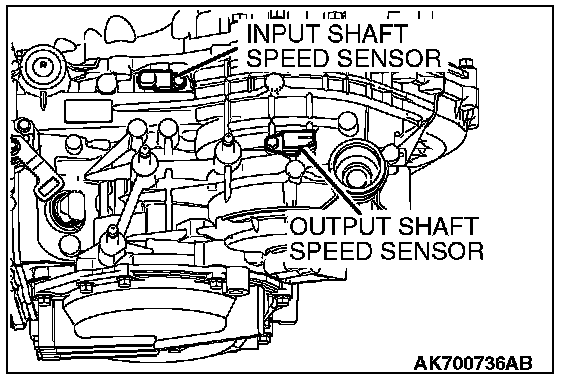

6. Remove the input shaft speed sensor and output shaft speed sensor.
CAUTION
The manual control lever tightening nut must be removed before removing the valve body. If the valve body is removed before the nut, the park/neutral position switch will be damaged.

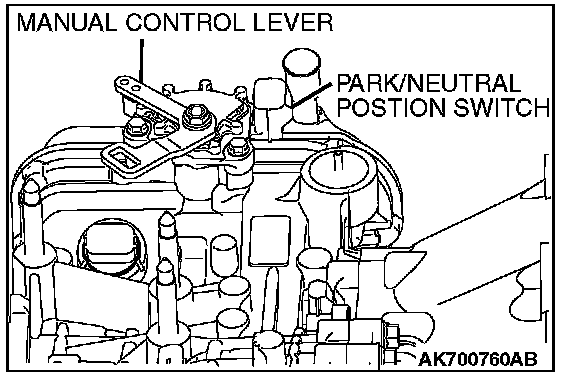

7. Loosen the manual control lever tightening nut, and then remove the manual control lever and the park/neutral position switch.

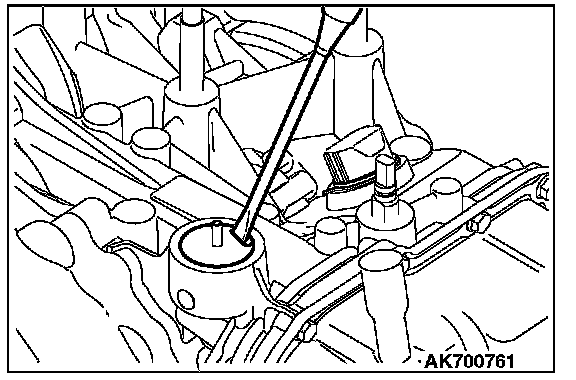

8. Remove the air breather by inserting a screwdriver into the air breather and prying it up.

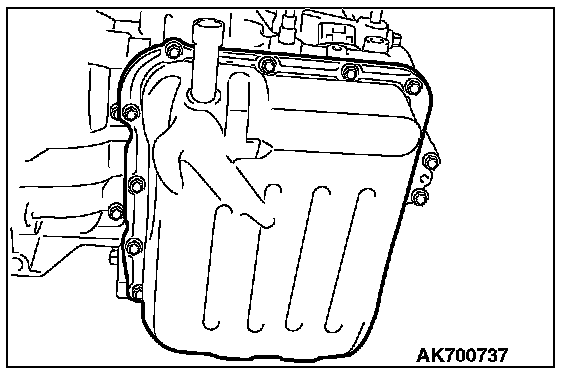

9. Remove the valve body cover.

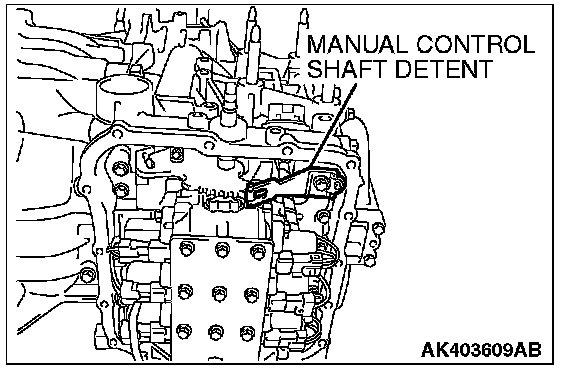

10. Remove the manual control shaft detent.
11. Disconnect the solenoid valve harness from the valve body by disconnecting the fluid temperature sensor and all the connectors.
CAUTION
^ Make sure that the manual control lever and the park/neutral position switch are removed. See step 7.

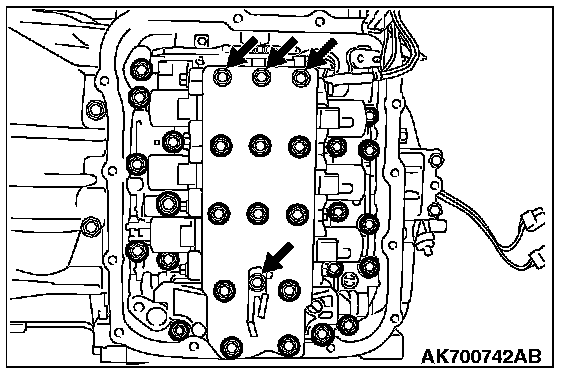

^ Do not remove the bolts (four pieces) shown in the illustration.
12. Remove the valve body mounting bolts (twenty seven pieces).
CAUTION
Do not lose the two steel balls.

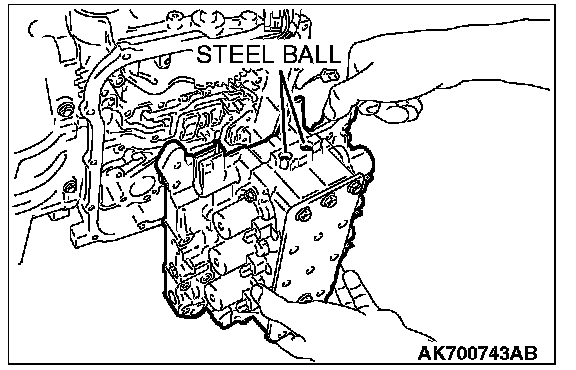

13. Remove the valve body and the steel balls (two pieces).

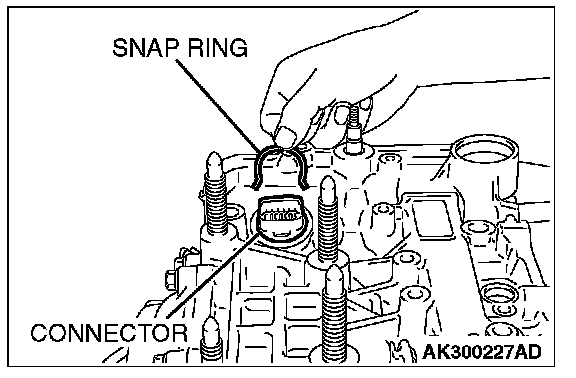

14. Remove the snap ring from the connector. Push the connector into the transaxle case and remove the solenoid valve harness.

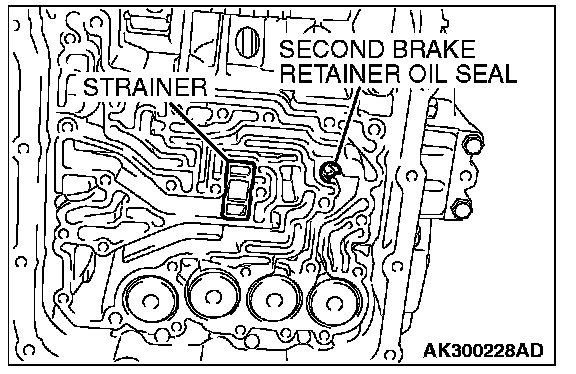

15. Remove the strainer and the second brake retainer oil seal.

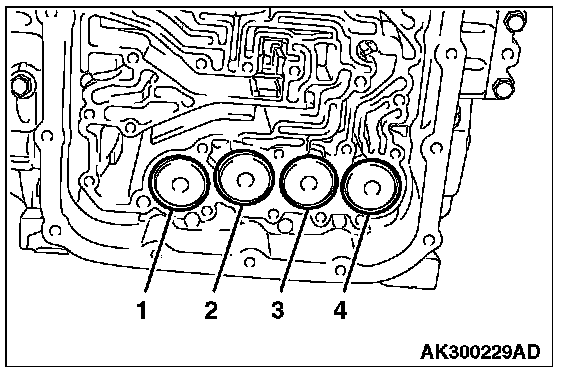

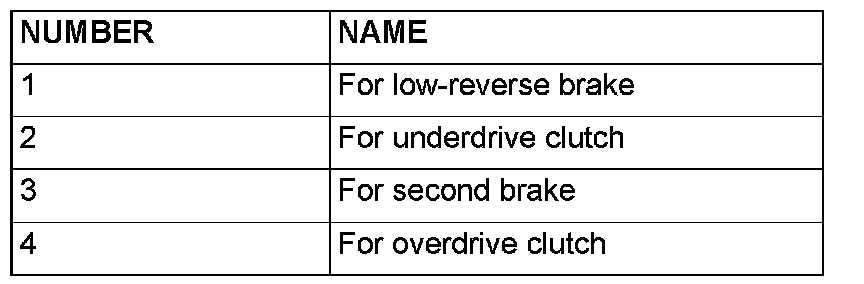

16. Remove each accumulator piston and spring.

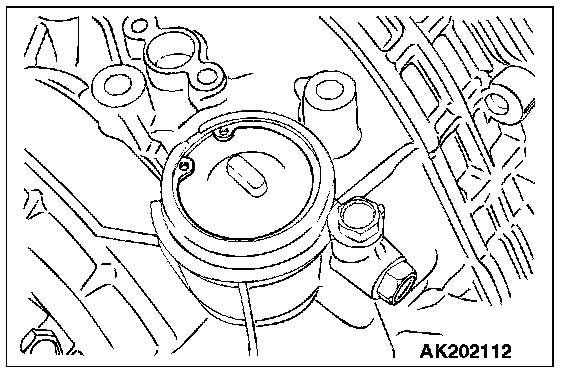

17. Remove the reduction brake accumulator cover after removing the snap ring, then remove the spring and piston.
18. Remove the manual control lever shaft roller.

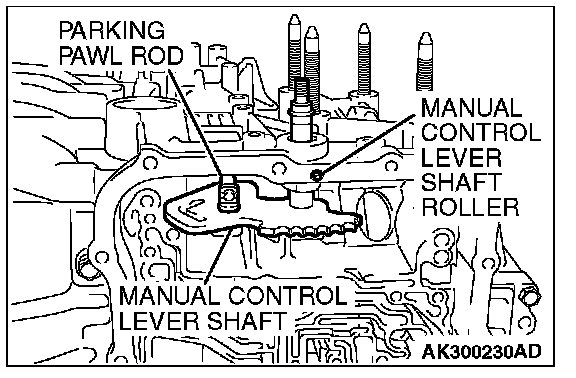

19. Remove the manual control lever shaft and the parking pawl rod.

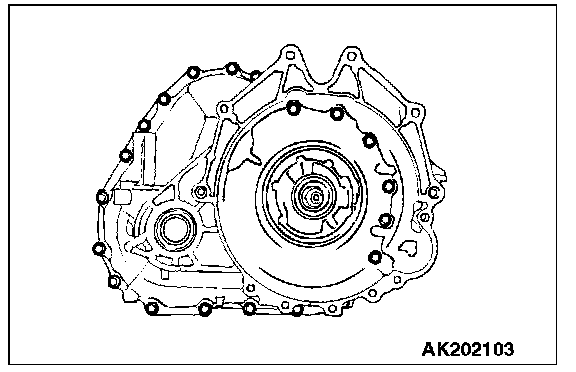

20. Remove the torque converter housing mounting bolts (twenty pieces), and then remove the torque converter housing.
21. Remove the O-rings (two pieces).
22. Remove the differential bearing outer race and spacer from the converter housing.

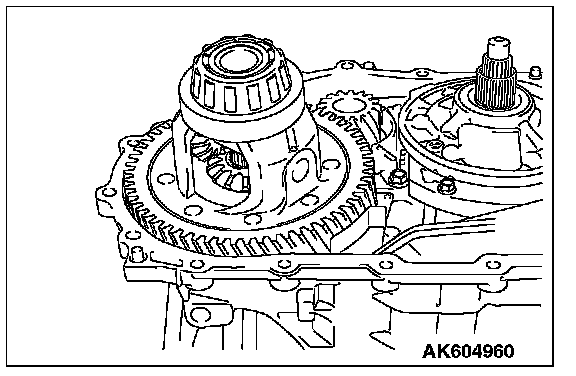

23. Remove the differential.
24. Remove the oil filter.

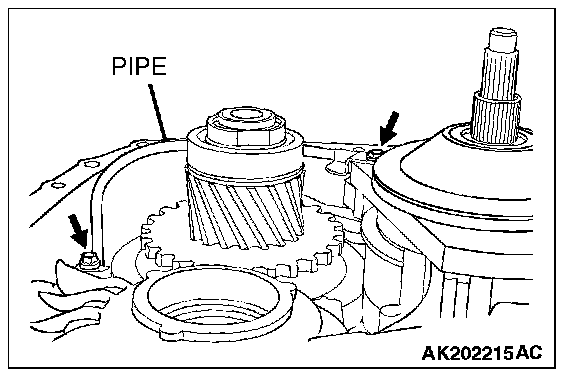

25. Remove the pipe clamp bolts (two places).

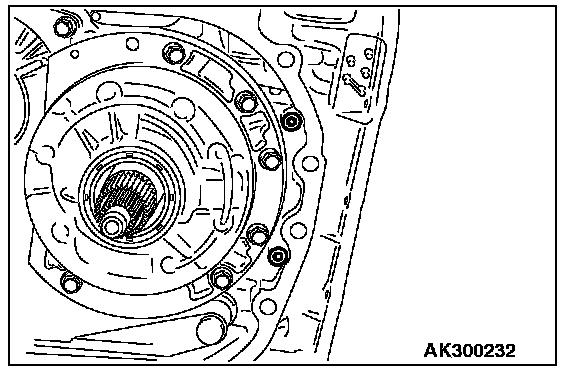

26. Remove the oil pump mounting bolts (six pieces).

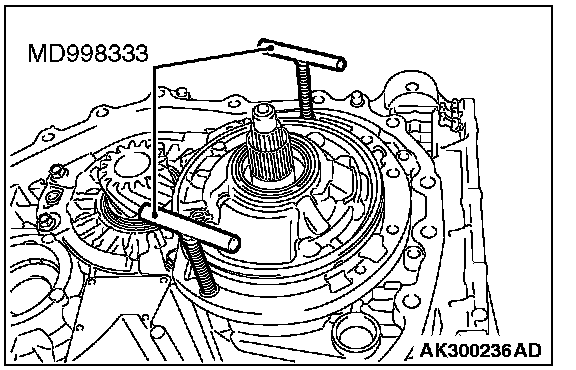

27. Place special tool MD998333 as shown in the drawing.
28. Turn special tool MD998333 to remove the oil pump.
29. Remove the oil pump gasket.

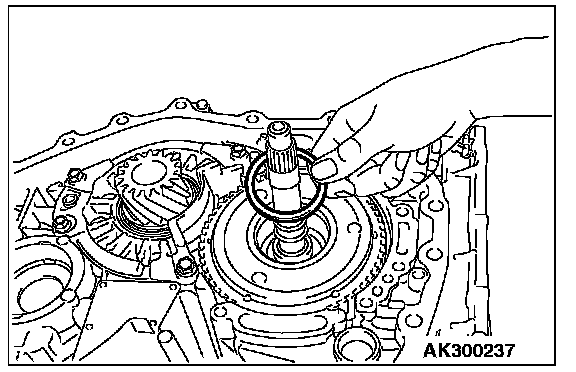

30. Remove thrust washer number 1.

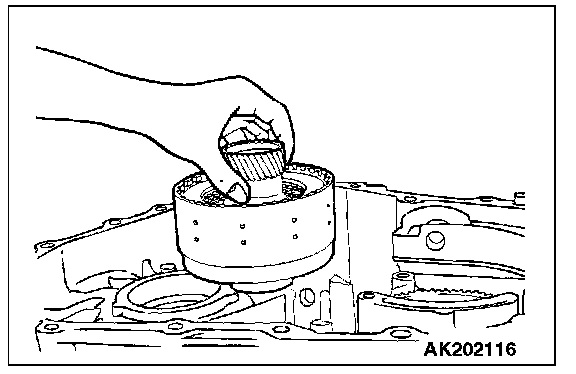

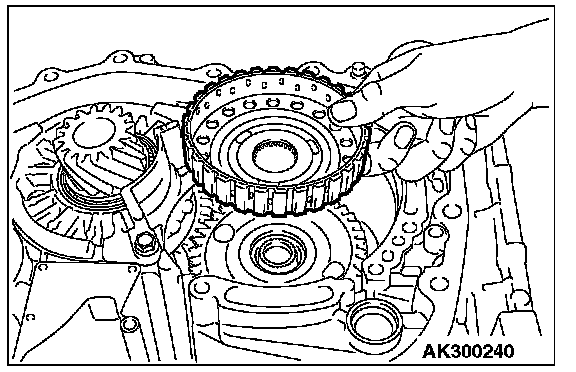

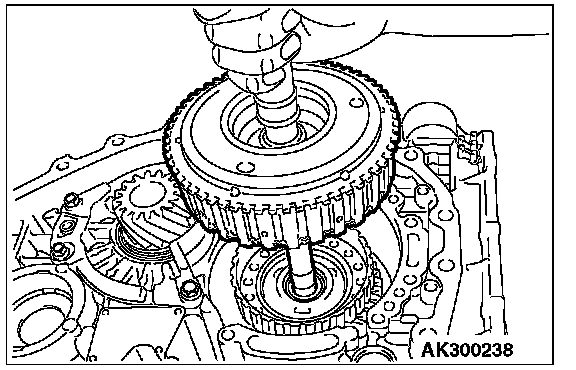

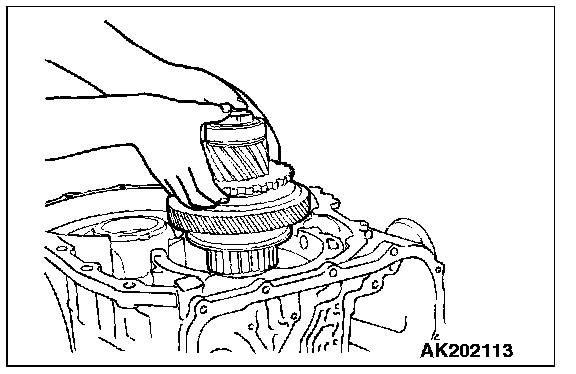

31. Holding the input shaft, remove the underdrive clutch and input shaft.

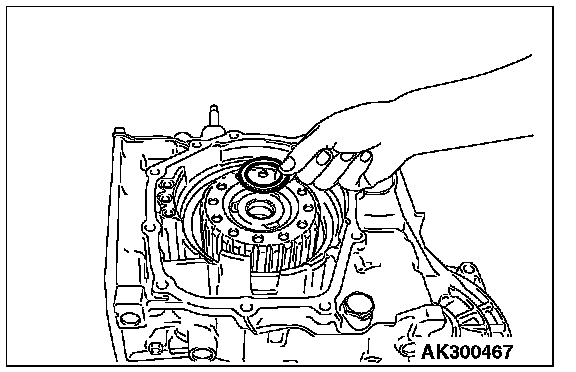

32. Remove thrust bearing number 2.
33. Remove the underdrive clutch hub.
34. Remove the reduction brake piston cover after removing the snap ring.
35. Remove the reduction brake piston and spring after removing the snap ring.

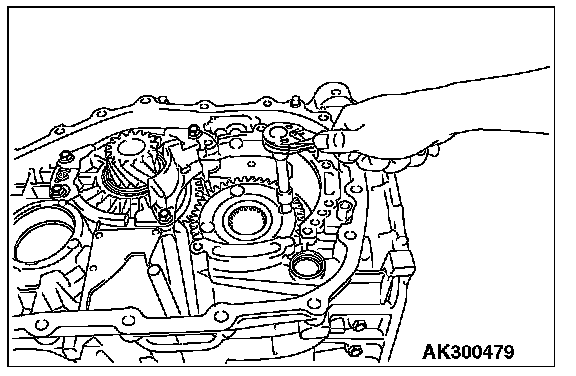

36. Remove the parking pawl shaft, and then remove the spacer and spring.
37. Remove the parking roller support shafts (two pieces), and then remove the parking pawl and parking roller support.
38. Remove the direct planetary carrier assembly.
39. Remove the anchor plug and O-ring.

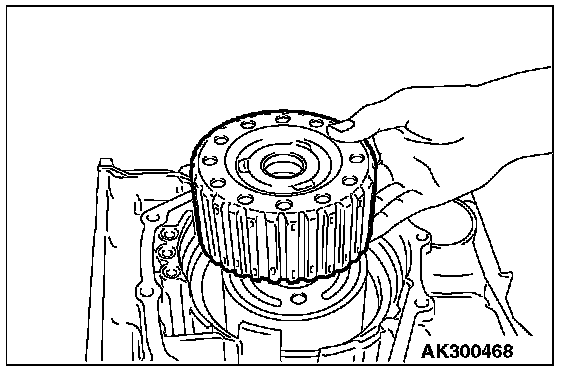

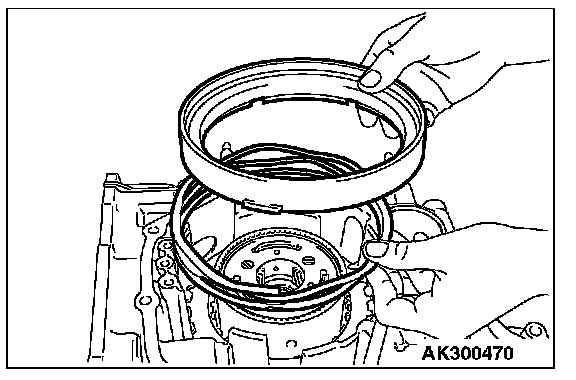

40. Remove the direct clutch.

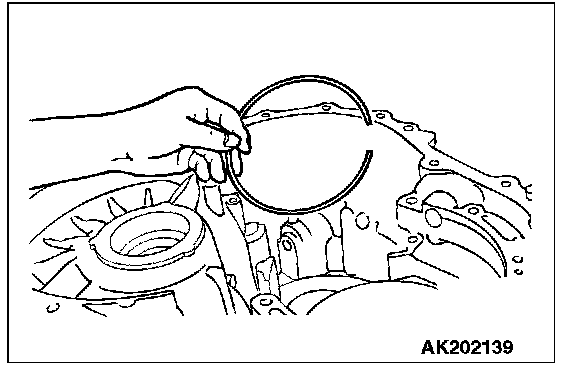

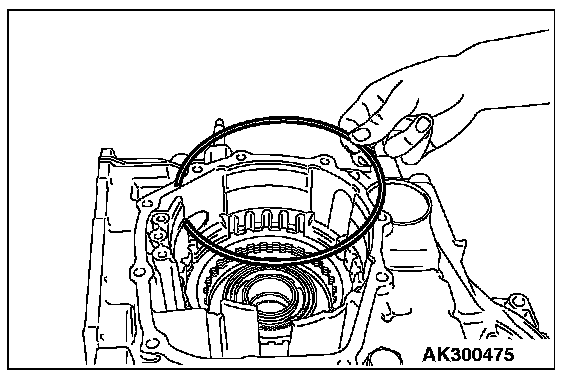

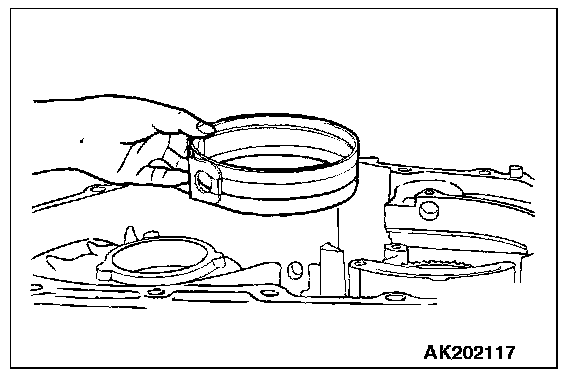

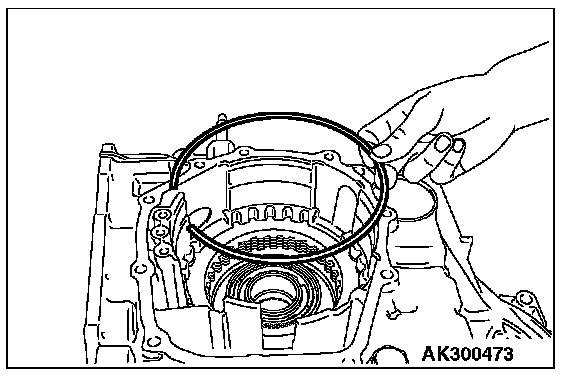

41. Remove the reduction brake band.

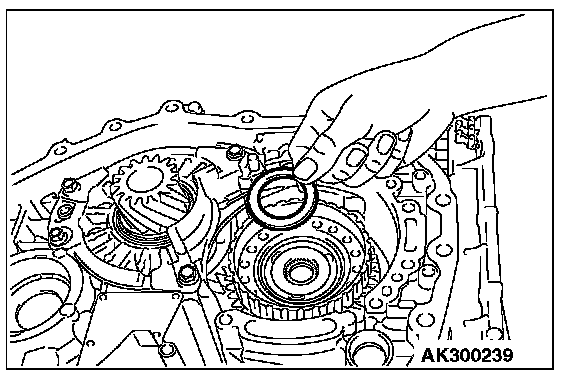

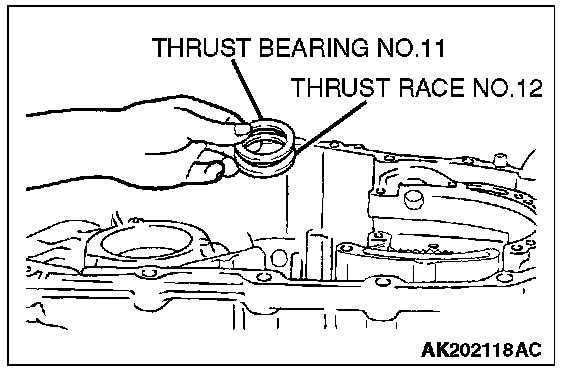

42. Remove the thrust bearing number 11 and thrust race number 12.

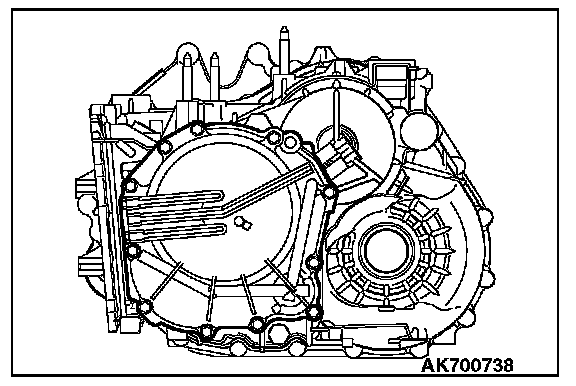

43. Remove the rear cover.
44. Remove the thrust race number 8.
45. Remove the seal rings (four pieces).
46. Remove the input shaft rear bearing.

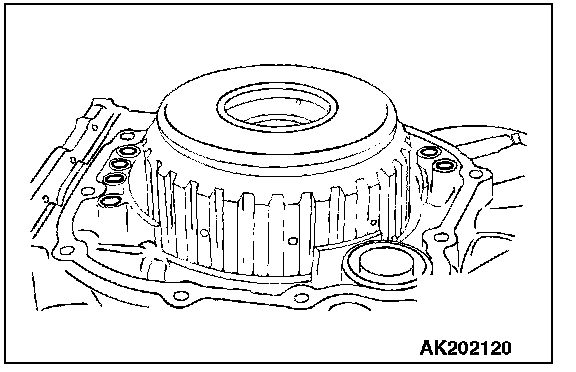

47. Remove the O-rings (six pieces).

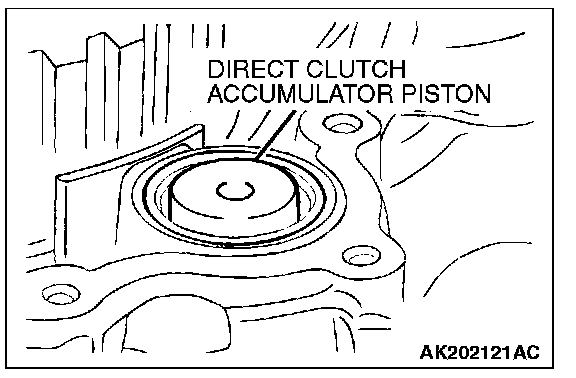

48. Remove the direct clutch accumulator piston and spring after removing the O-ring.

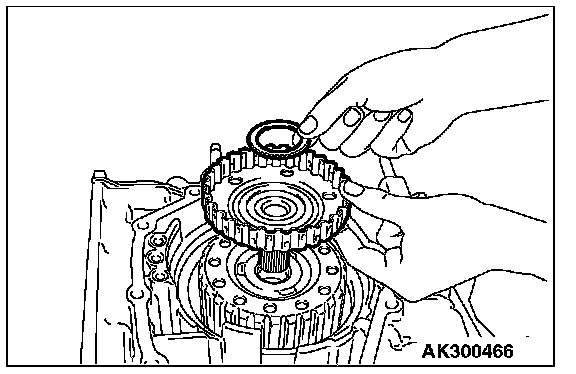

49. Remove the reverse and overdrive clutch and thrust bearing number 7.
50. Remove overdrive clutch hub and thrust bearing number 6.
51. Remove thrust bearing number 5.
52. Remove the planetary reverse sun gear.

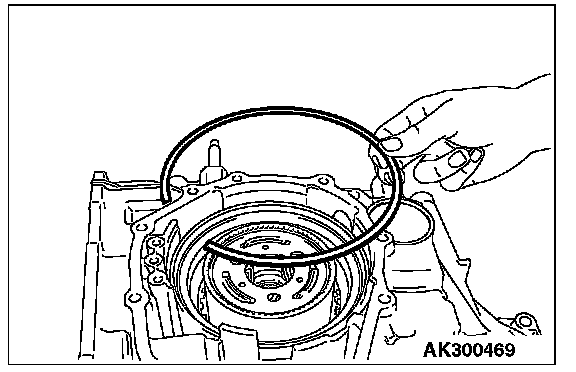

53. Remove the snap ring.
54. Remove the second brake piston and the return spring.

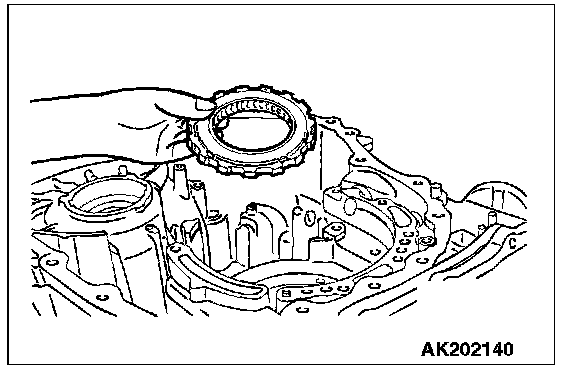

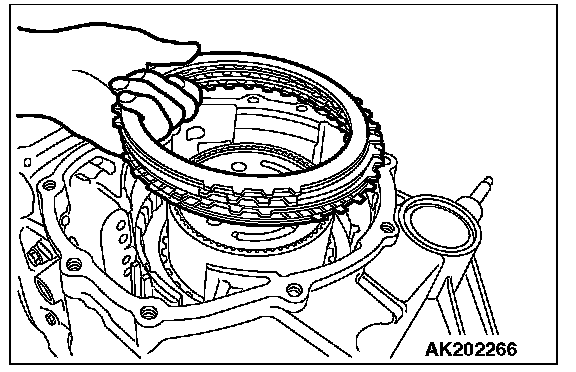

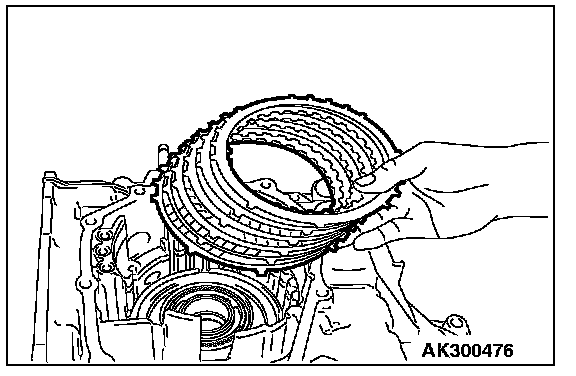

55. Remove the pressure plate, second brake discs (four pieces) and second brake plates (three pieces).
56. Remove the planetary carrier assembly.
57. Remove the snap ring.

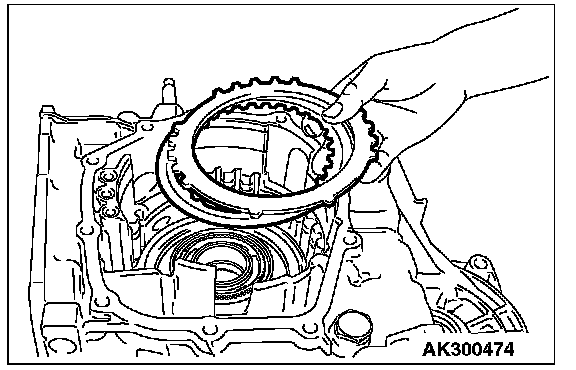

58. Remove the reaction plate and the brake disc.
59. Remove the snap ring.
60. Remove the brake plates (five pieces), brake discs (six pieces) and pressure plate.
NOTE: *Includes the brake discs removed in step 57.

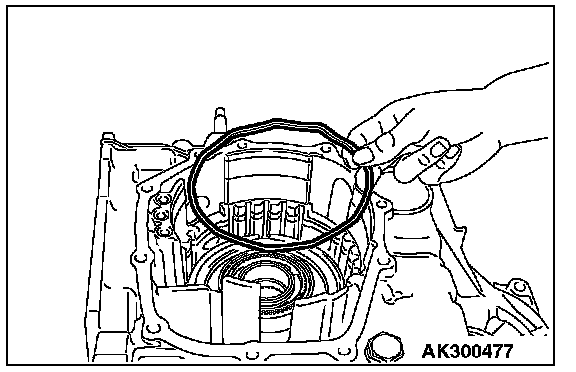

61. Remove the wave spring.
62. Remove the one-way clutch inner race and low-reverse brake piston as follows:

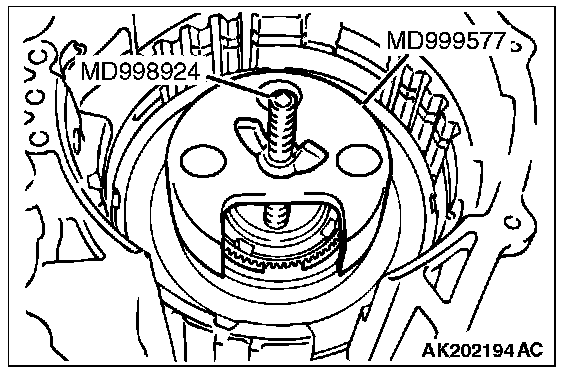

1) Using special tools MD999577 and MD998924, compress the one-way clutch inner race.
2) Remove the snap ring.
3) Remove the special tools.
4) Remove the one-way clutch inner race, O-ring, spring retainer, return spring and low-reverse brake piston.

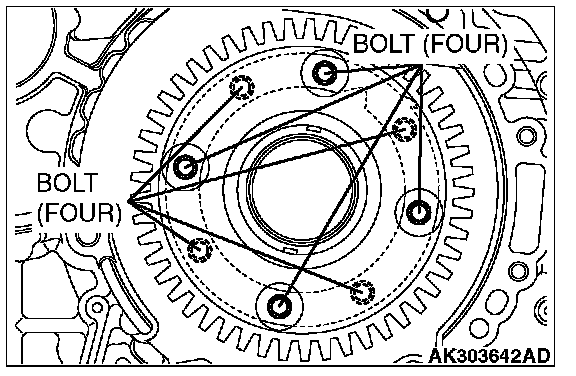

63. Remove the transfer drive gear bearing mounting bolts (four pieces).Then, turn the gear 1/8 turn (45 degrees) and remove the remaining bolts (four pieces).

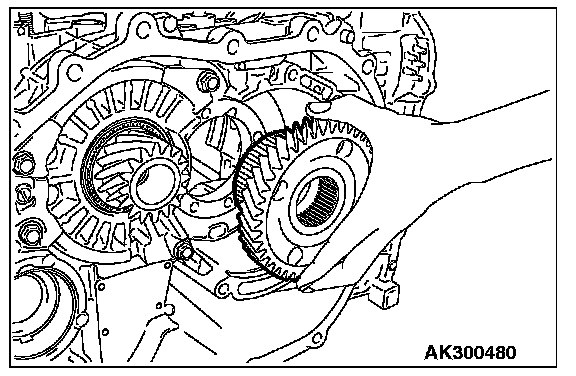

64. Remove the transfer drive gear.

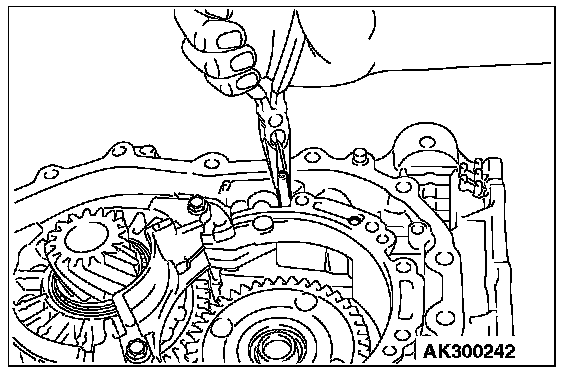

65. Remove the snap ring.
66. Remove the one-way clutch.
67. Remove the seal rings (two pieces).
68. Remove the needle bearing.
69. Remove the differential bearing outer race from the transaxle case.
