Oil Pump

OIL PUMP

DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-4:

ASSEMBLY SERVICE POINTS

]]A[[ OIL SEAL INSTALLATION
1. Apply a small amount of ATF to the oil seal lip.

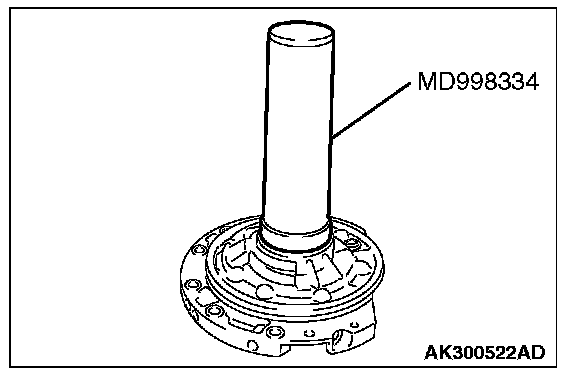

2. Use special tool MD998334 to tap the oil seal in the oil pump body.

]]B[[ O-RING INSTALLATION
Install a new O-ring to the outer groove of the oil pump, and apply ATF or petroleum jelly (Vaseline) to the O-ring.
