Differential
DIFFERENTIALDISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-9:
Required Special Tools:
^ MD998801: Bearing Remover
^ MD998812: Installer Cap
^ MD998823: Installer Adapter (48)
DISASSEMBLY SERVICE POINT

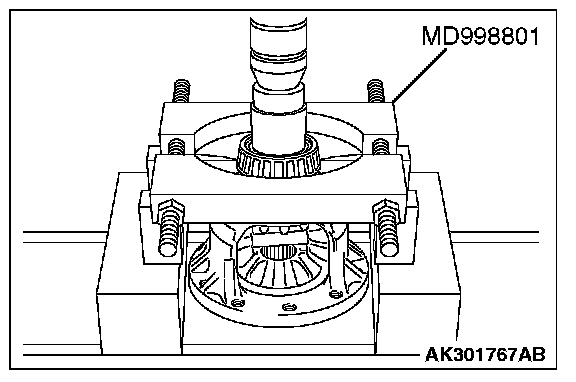

[[A]] TAPER ROLLER BEARING REMOVAL
1. Support the taper roller bearing with special tool MD998801, and then set them on the press.
2. Push down on the differential case with the press to remove the bearing.
ASSEMBLY SERVICE POINTS
]]A[[ SPACER / SIDE GEAR / WASHER / PINION AND PINION SHAFT INSTALLATION
1. Mount a spacer on the back surface of the side gear, and then install the side gear in the differential case.
NOTE: When a new side gear is to be installed, use a medium thickness spacer [0.93 to 1.00 mm (0.037 to 0.039 inch)].

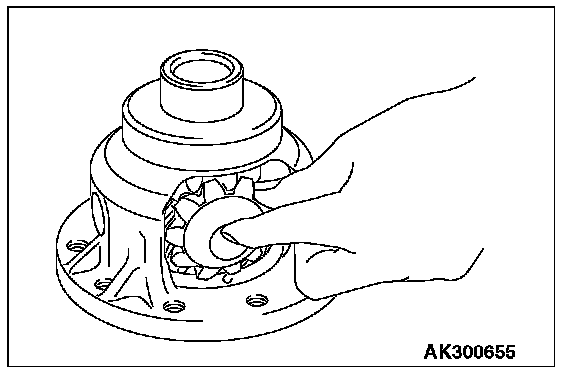

2. Set the washer on the back of each pinion, and put both pinions simultaneously in mesh with the side gears. While rotating them, install them into position.

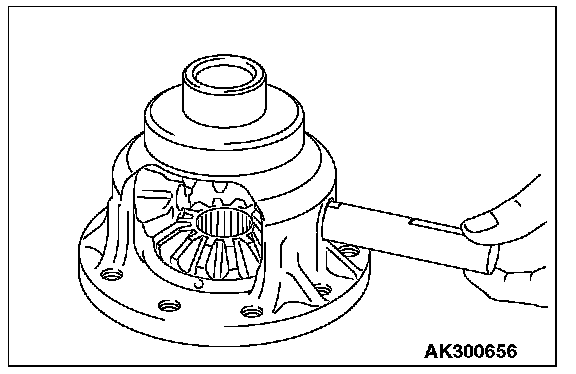

3. Insert the pinion shaft.
4. Measure the backlash between the side gear and pinion.
Standard value of backlash: 0.025 - 0.150 mm (0.0010 - 0.0059 inch)
5. If the backlash is out of the standard value, select a spacer and re-measure the backlash.
NOTE: Adjust until the backlash on both sides are equal.

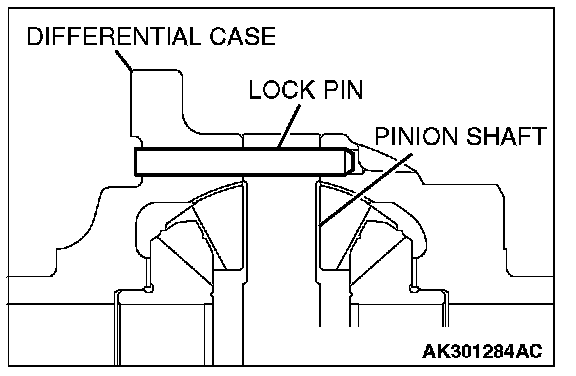

]]B[[ LOCK PIN INSTALLATION
Install the lock pin so that it will be oriented in the direction shown.

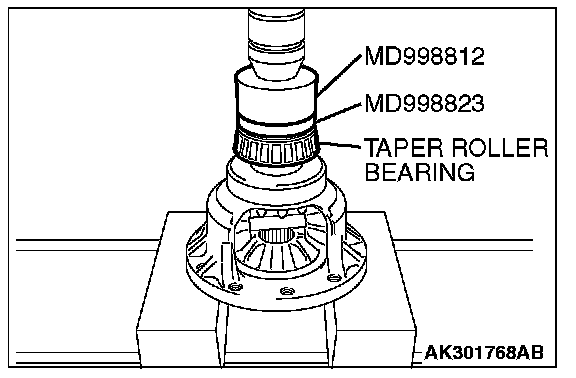

]]C[[ TAPER ROLLER BEARING INSTALLATION
Using special tools MD998812 and MD998823, press in the taper roller bearing.

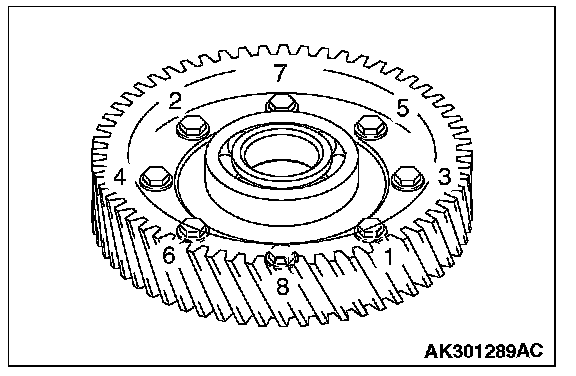

]]D[[ DIFFERENTIAL DRIVE GEAR INSTALLATION
Apply ATF to the bolt, and then tighten the bolts to the specified torque in the sequence shown.
Tightening torque: 135 ± 5 Nm (100 ± 4 ft-lb)
