F5A5A

ADJUSTING PLATE, SNAP RING AND SPACERS

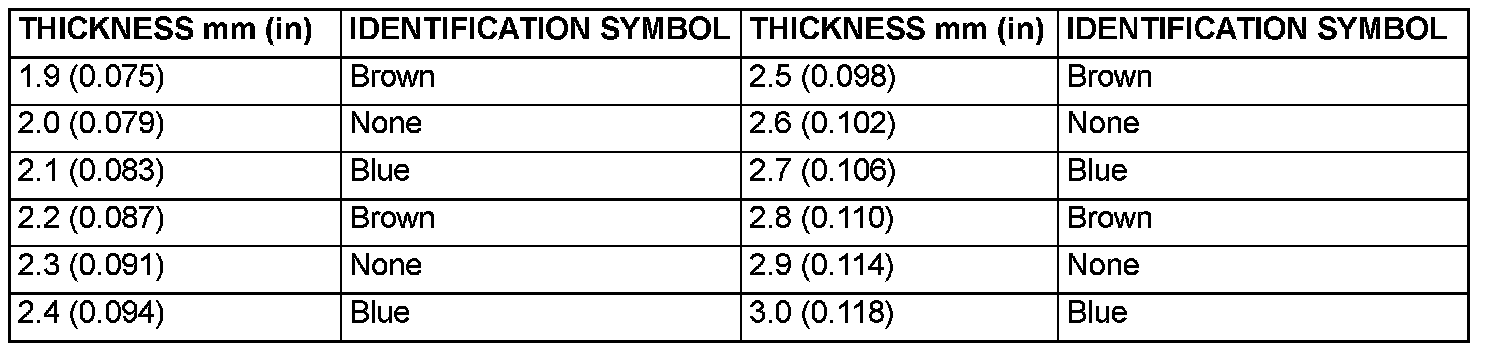

Thrust race (For adjustment of input shaft end play)

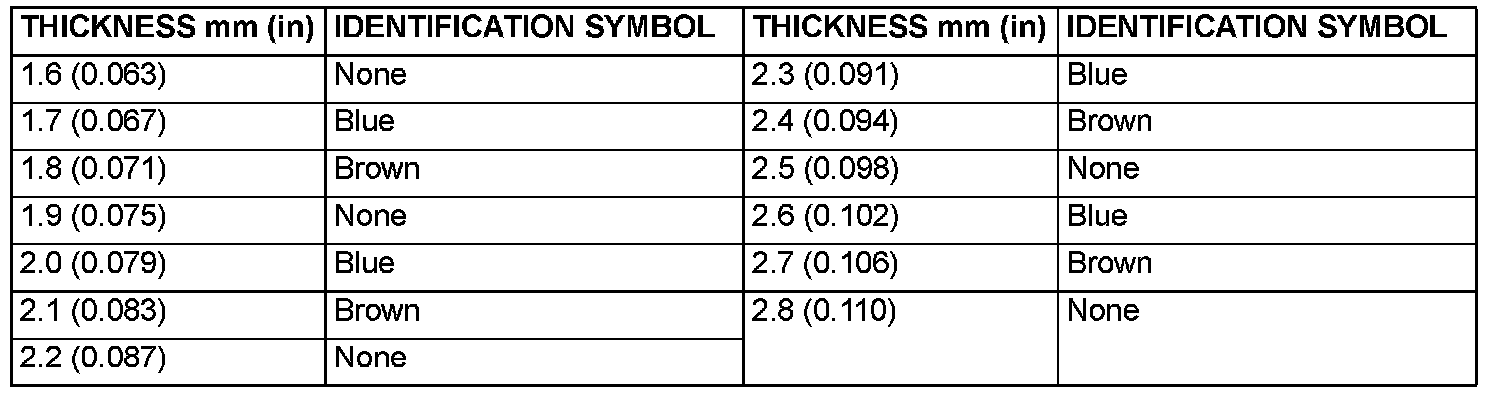

Snap ring (For adjustment of underdrive clutch and overdrive clutch end play)

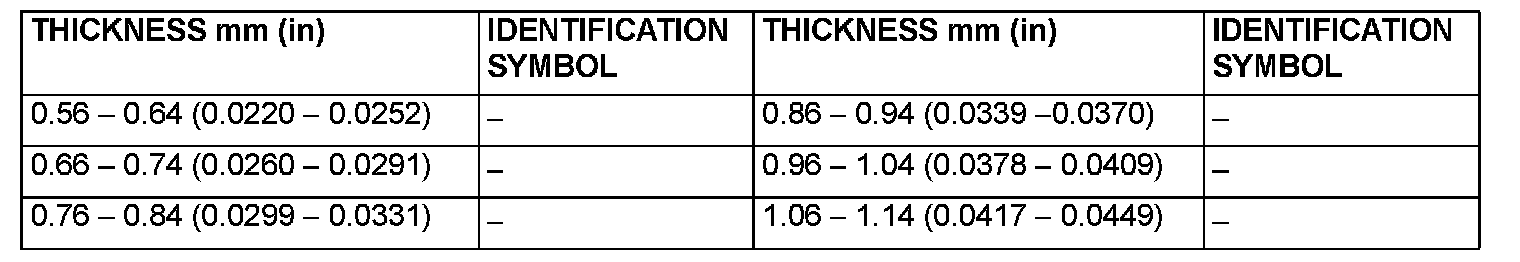

Snap ring (For adjustment of low-reverse brake and second brake reaction plates end play)

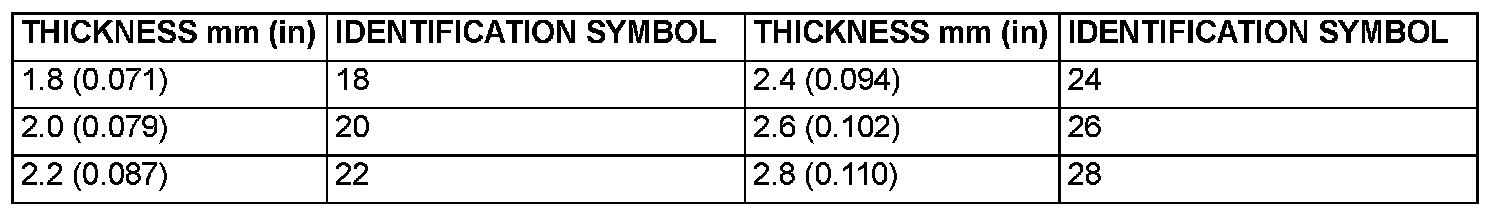

Pressure plate (For adjustment of low-reverse brake and second brake end play)

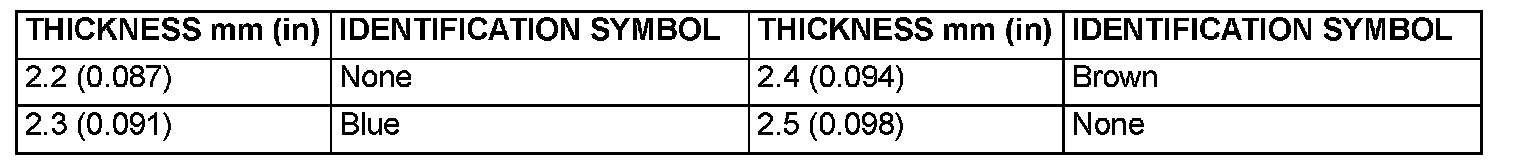

Snap ring (For adjustment of reverse clutch end play)

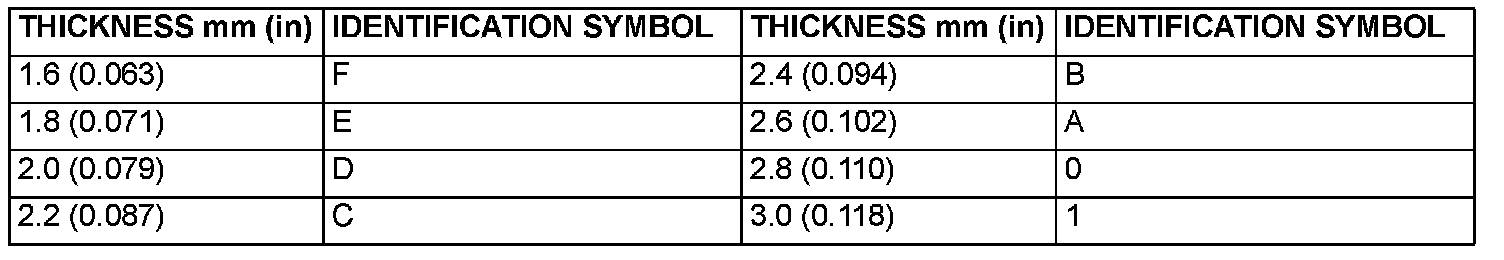

Snap ring (For adjustment of reverse clutch and overdrive clutch spring retainer end plays)

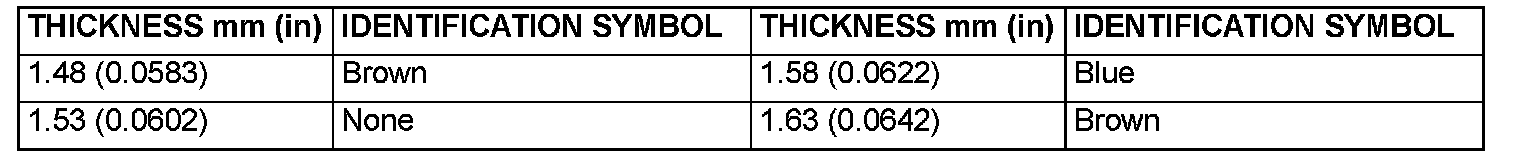

Thrust race (For adjustment of underdrive sun gear end play)

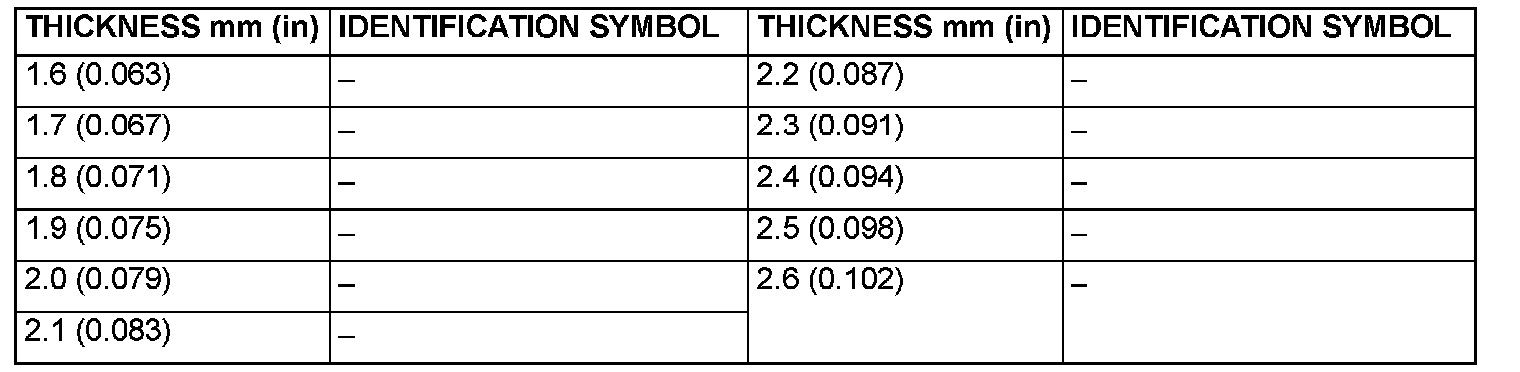

Spacer (For adjustment of direct clutch end play)

Spacer (For adjustment of differential case preload)

Spacer (For adjustment of backlash between differential side gear and pinion)
