Steering - Corrected Fluid Tube Illustrations
No: TSB-09-37-003Date: February, 2009
Model: See Below
SUBJECT:
INCORRECT POWER STEERING TUBE INSTALLATION ILLUSTRATIONS DELETED - SMR
PURPOSE
To delete incorrect illustrations relating to power steering tube markings in the applicable service manual.
AFFECTED VEHICLE(S)
2009 Eclipse & Eclipse Spyder
2008 Endeavor
The information in this TSB also applies to affected vehicles of earlier model years where the hoses are replaced with new parts.

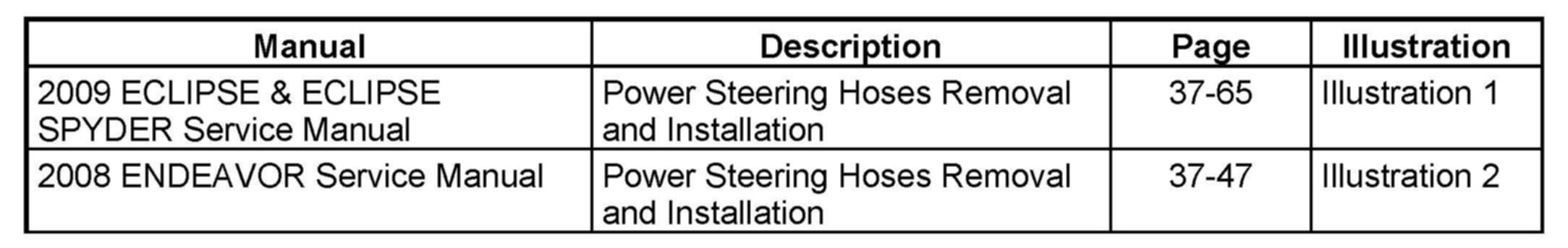

APPLICABLE MANUAL(S)

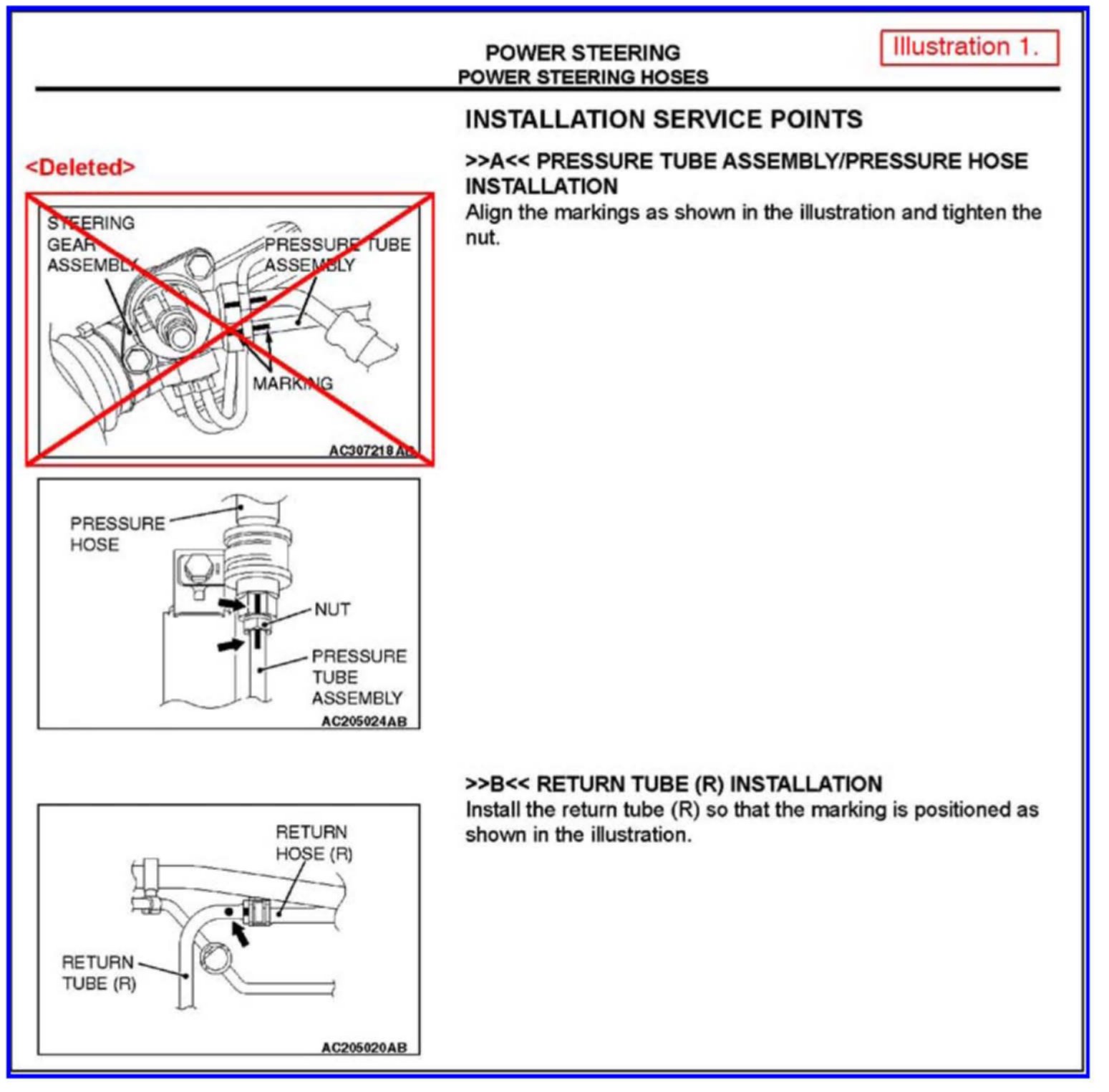

Illustration 1

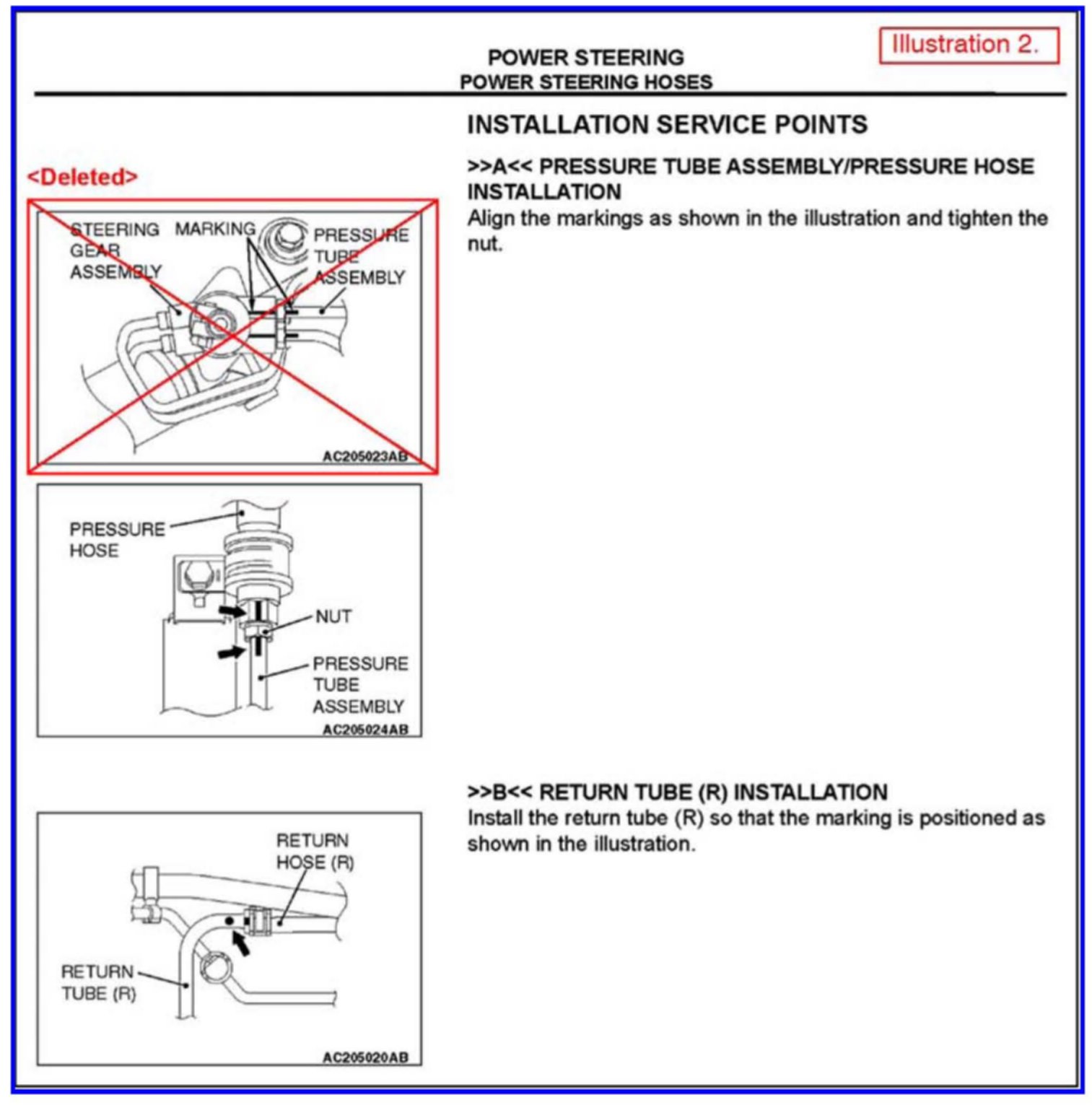

Illustration 2
