Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt
>>
Service and Repair
>>
Rear Seat Belt
>>
[Eclipse Spyder]
[Eclipse Spyder]

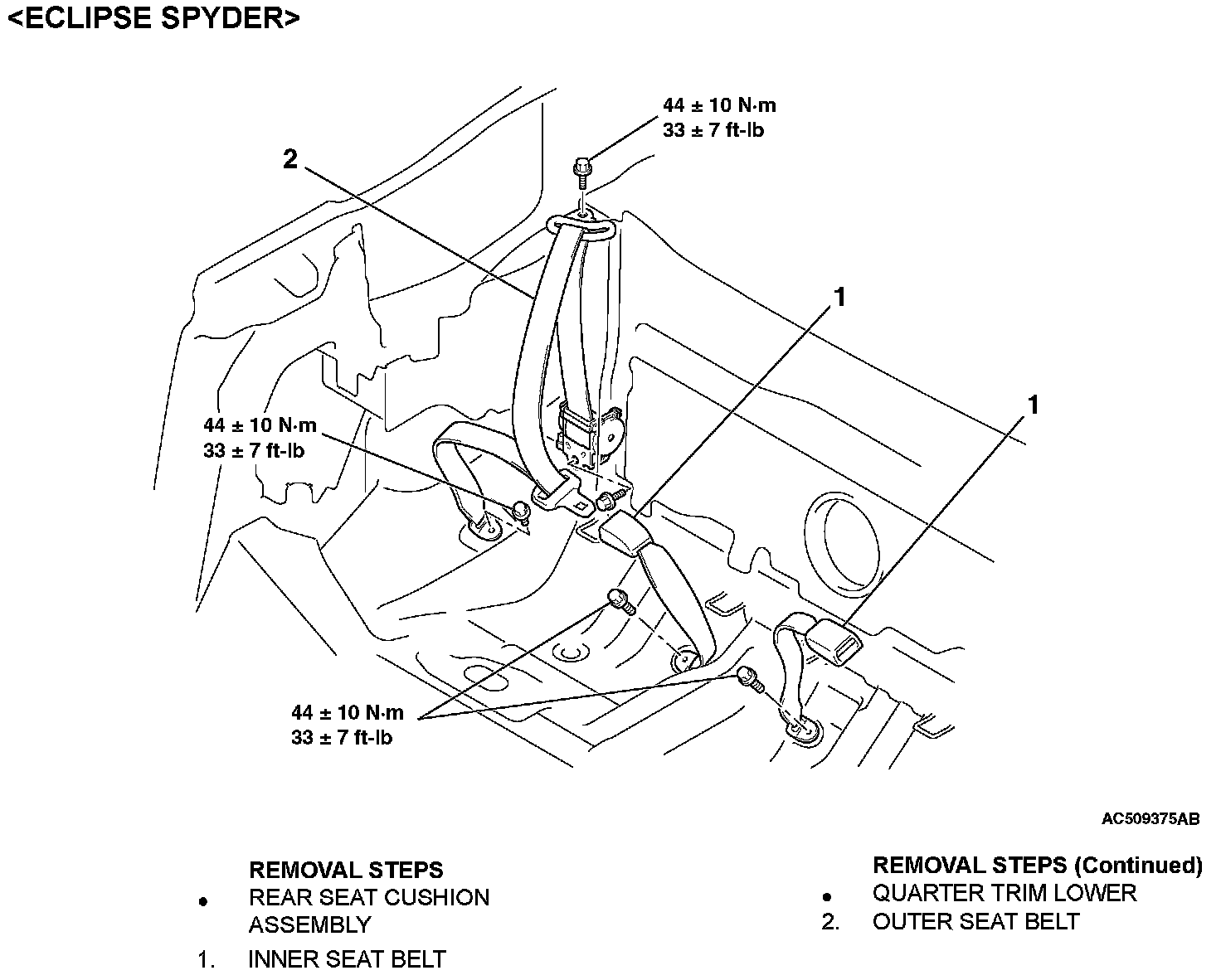

REAR
SEAT BELT
REMOVAL AND INSTALLATION
Removal Steps 1-2:
