Locations
>>
Connector Locations
Connector Locations

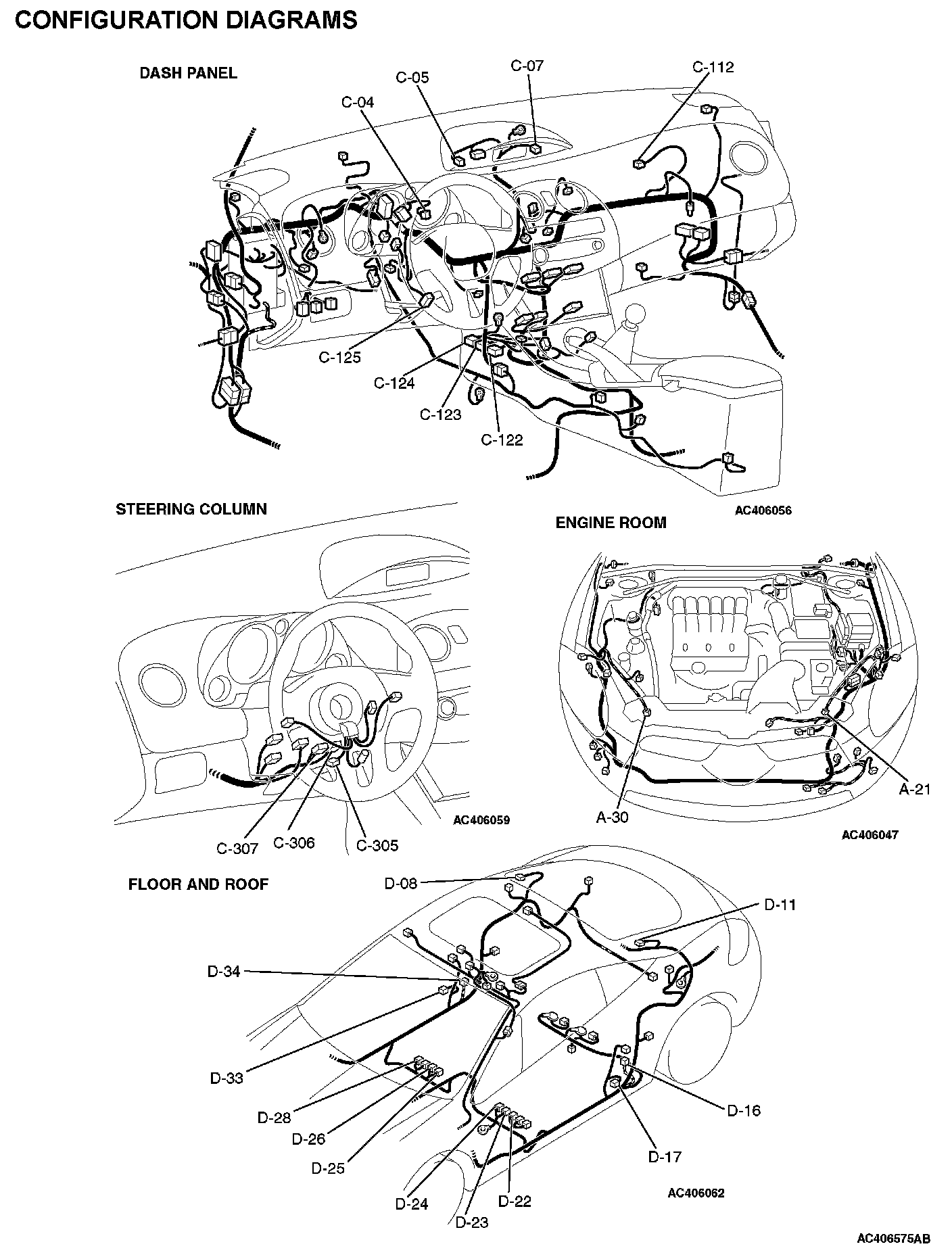

A-21 To A-30 / C-04 To C-307 / D-08 To D-34 (Part 1):
A-21 To A-30 / C-04 To C-307 / D-08 To D-34 (Part 2):
