Overhaul

DISASSEMBLY AND ASSEMBLY

FUEL PUMP MODULE

NOTE: For the removal and installation procedures, refer to the fuel pump module replacement procedure in On-vehicle Service.

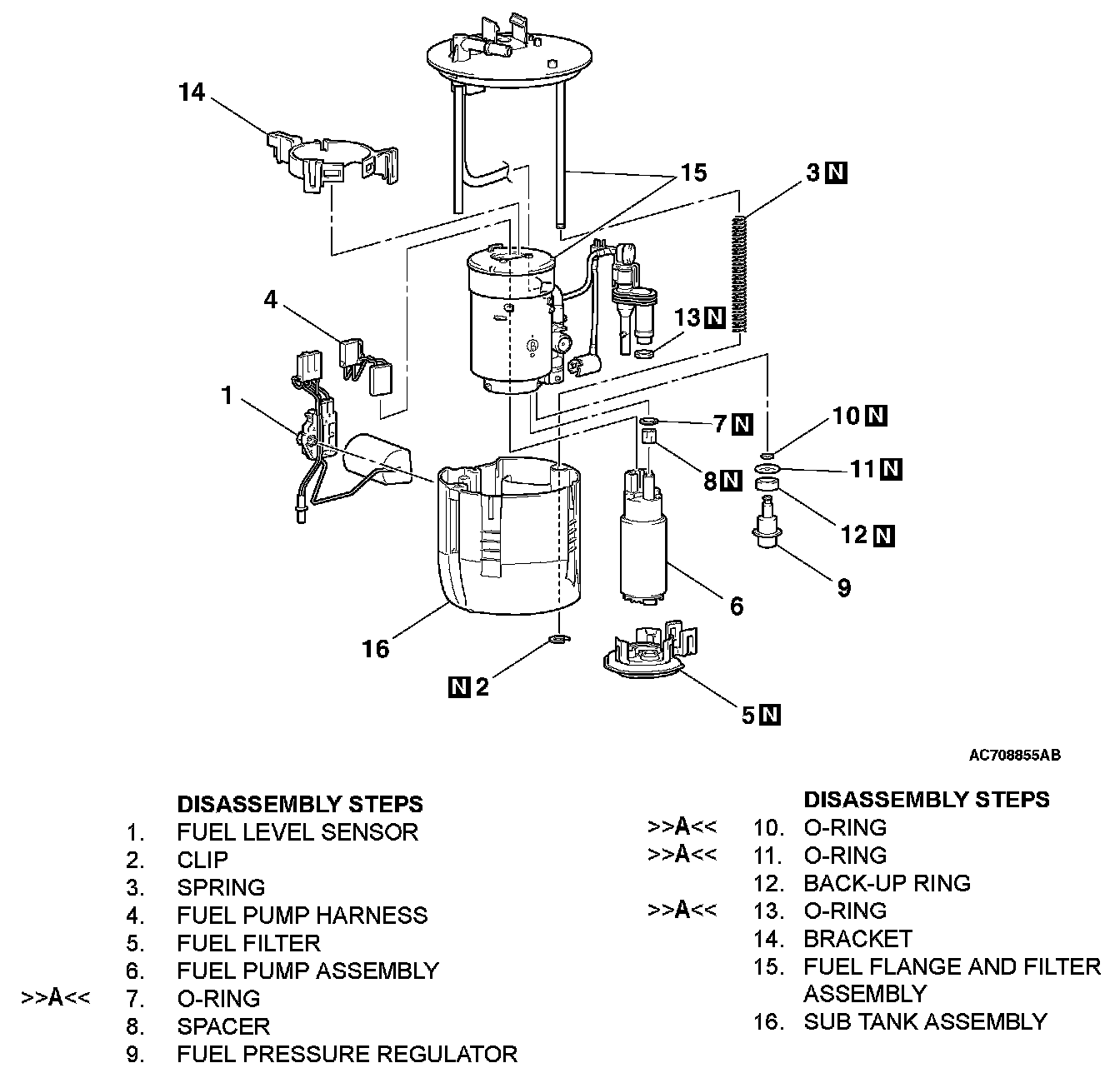

Disassembly Steps 1-16:

ASSEMBLY SERVICE POINT

]]A[[ O-RING INSTALLATION
Apply a gasoline on the O-ring before mounting them to prevent damage or twisting.
