EGR Valve: Service and Repair

REMOVAL AND INSTALLATION [2.4L ENGINE]

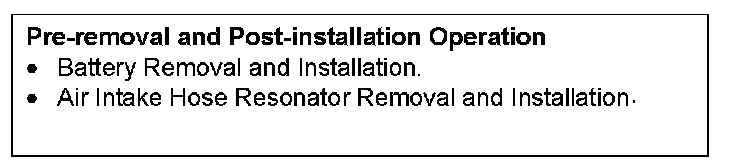

Pre-removal And Post-installation Operation:

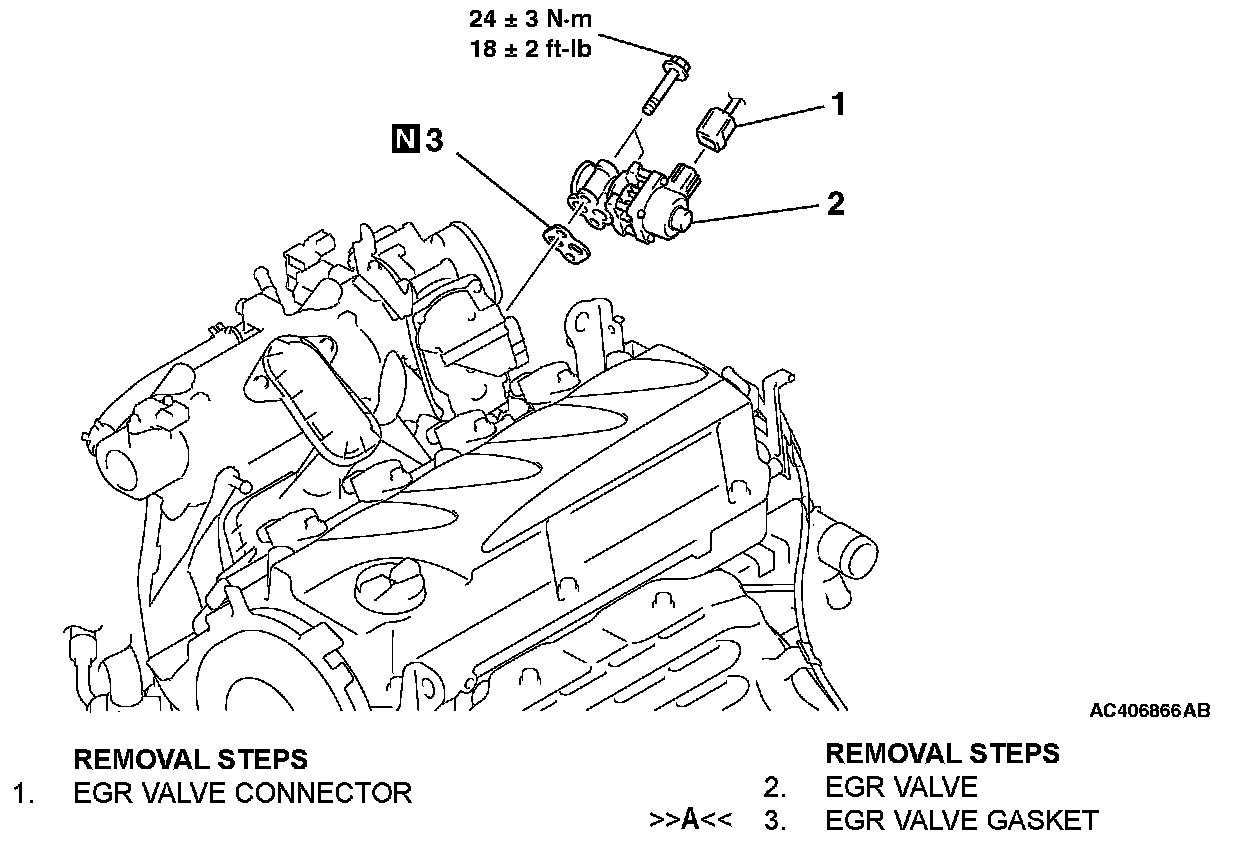

Removal Steps 1-3:

INSTALLATION SERVICE POINT

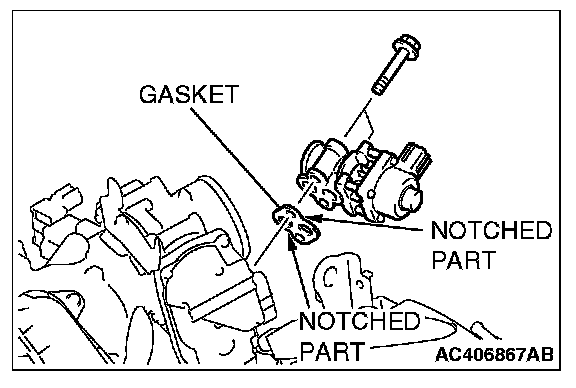

]]A[[ EGR VALVE GASKET INSTALLATION




Install the EGR valve gasket as shown in the illustration.
