Combination Switch: Service and Repair

COLUMN SWITCH

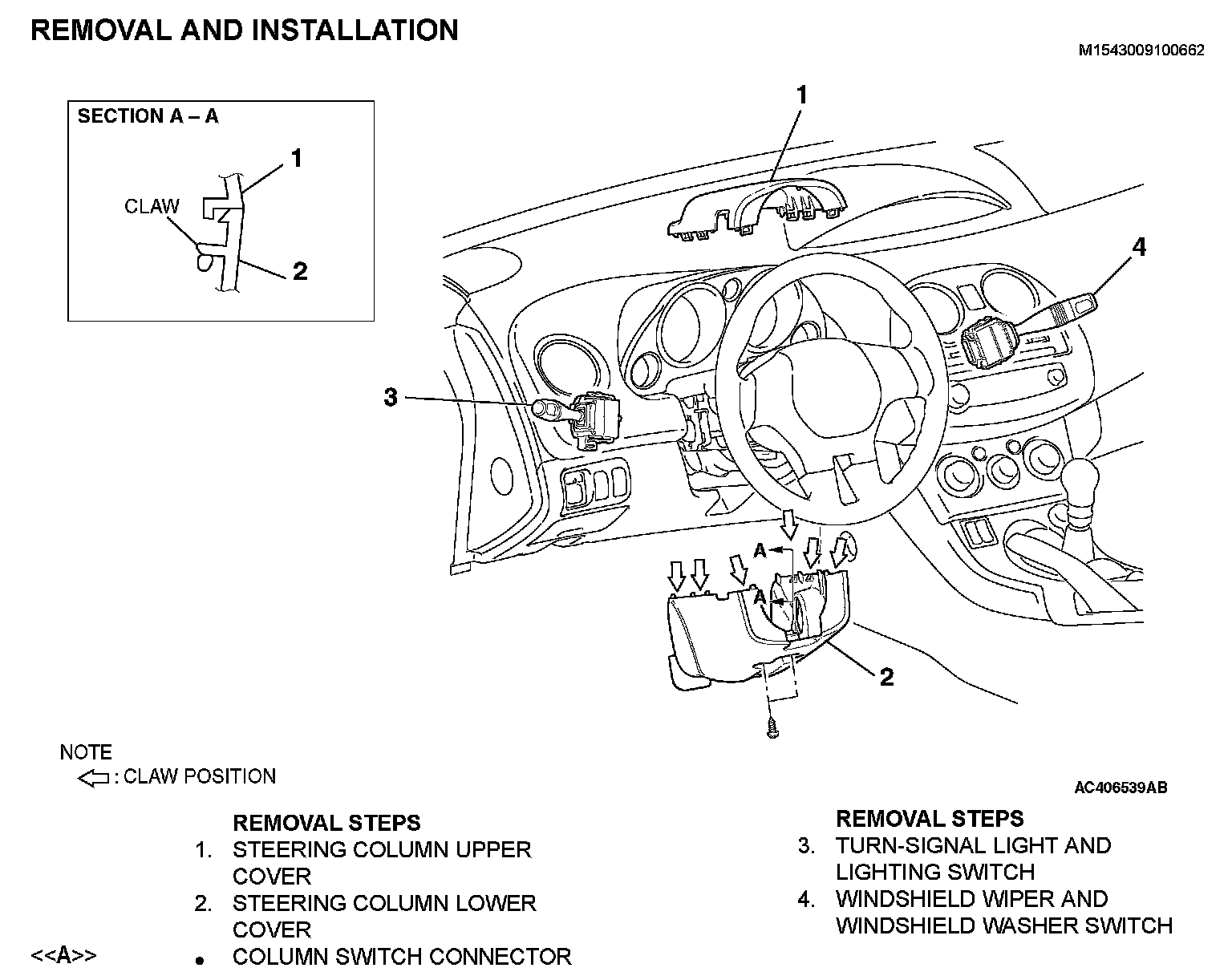

REMOVAL AND INSTALLATION


Removal Steps 1-4:






REMOVAL SERVICE POINT

[[A]] COLUMN SWITCH CONNECTOR

REMOVAL

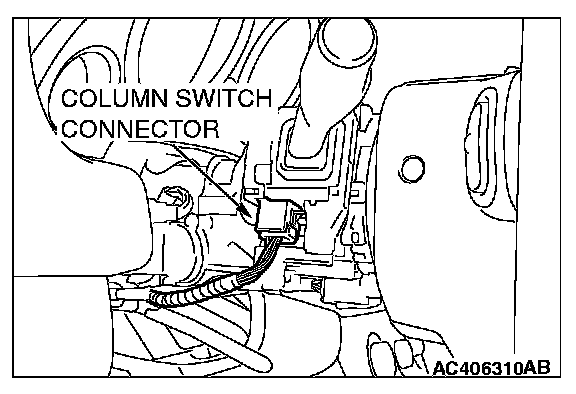

Disconnect column switch connector C-309 shown in the illustration.
