Headlamp: Service and Repair

Updated by TSB-09-54-002

HEADLIGHT AND FRONT COMBINATION LIGHT

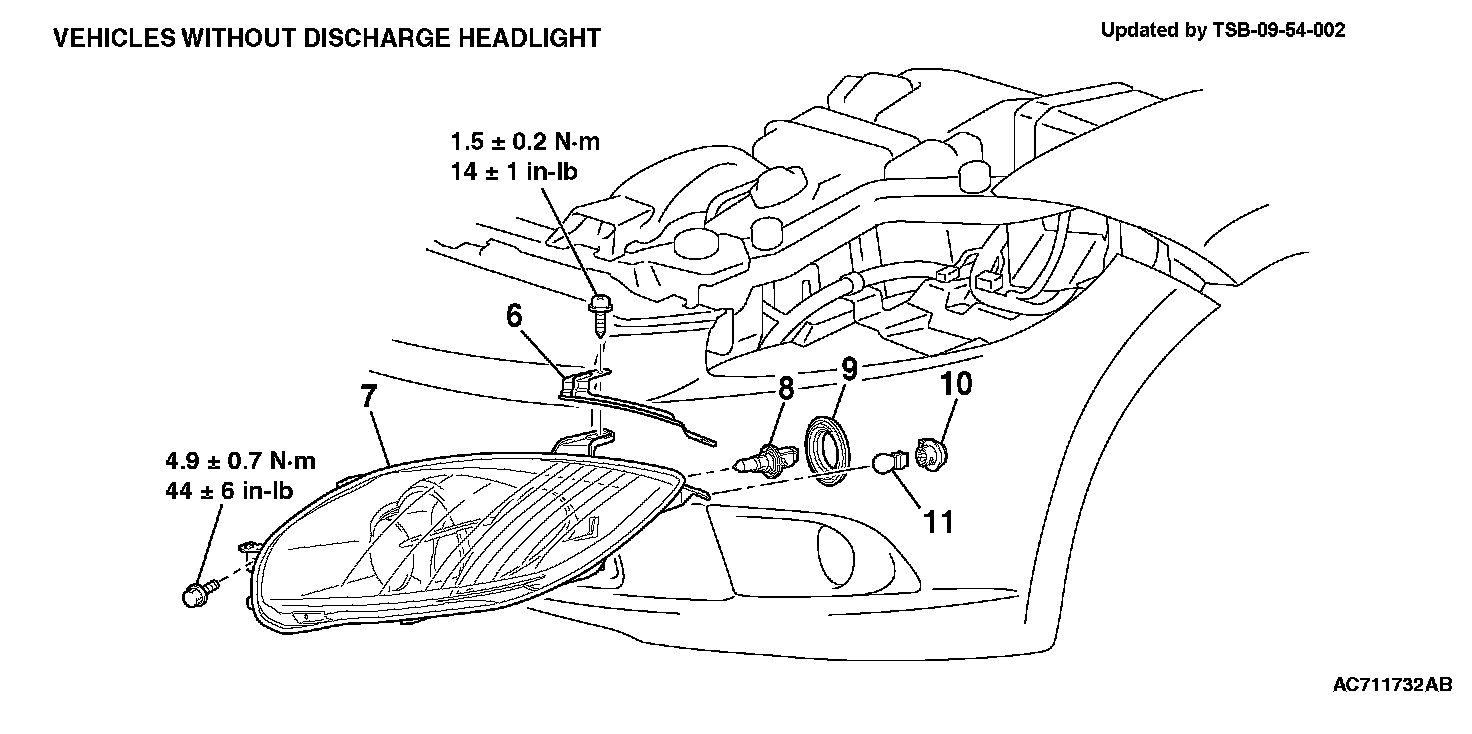

HEADLIGHT REMOVAL AND INSTALLATION

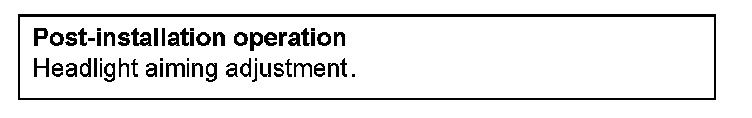

Post-installation Operation:

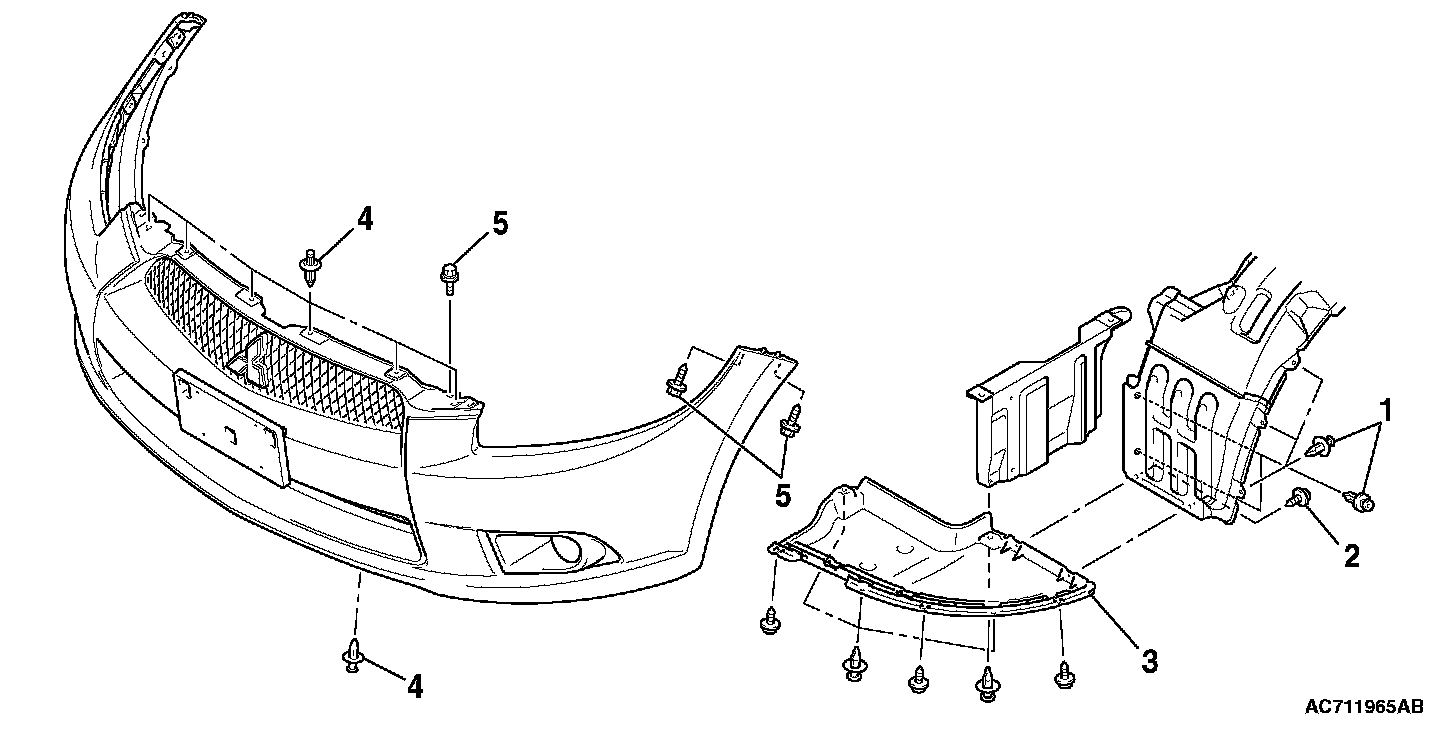

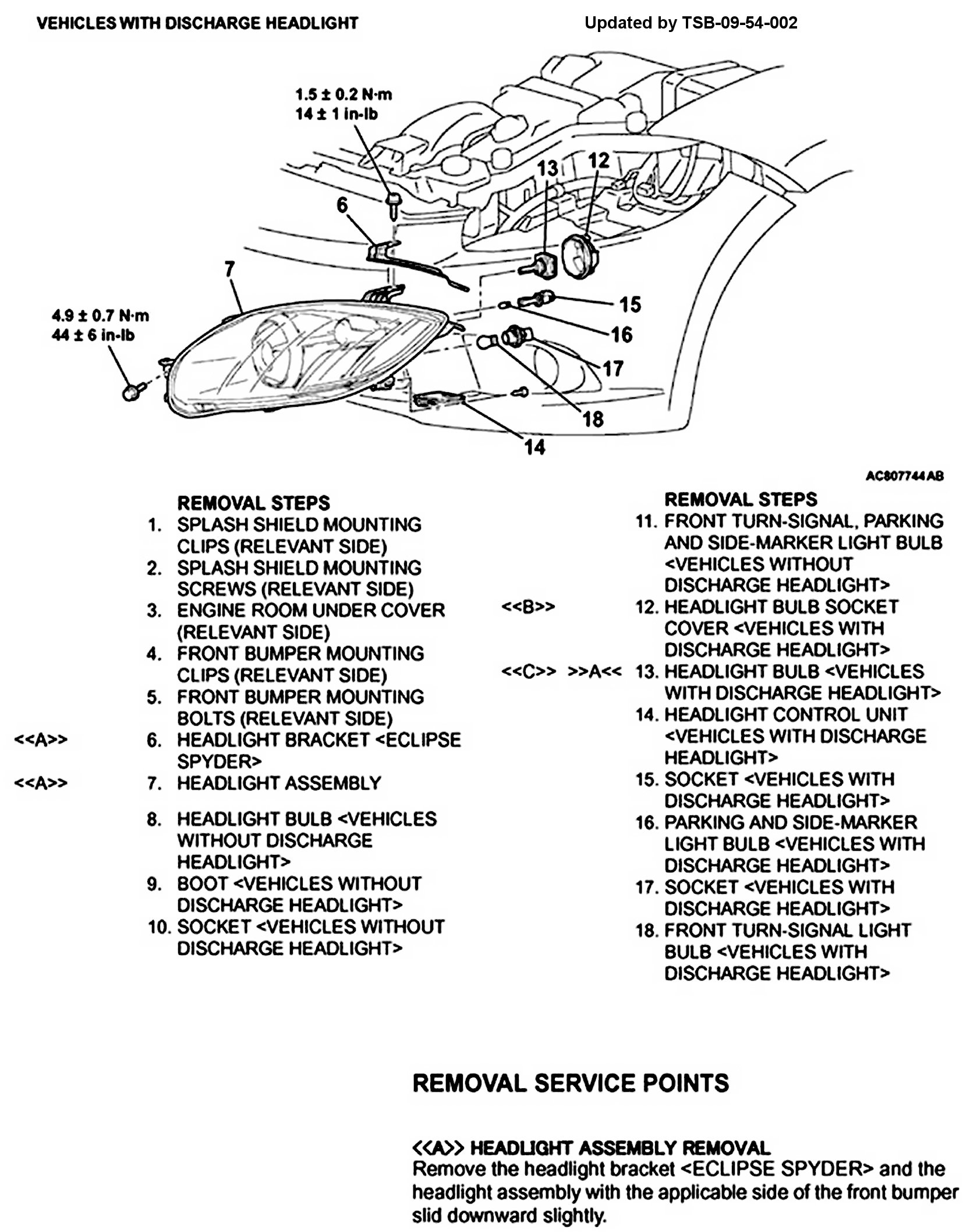

Removal Steps 1-11 (Part 1):

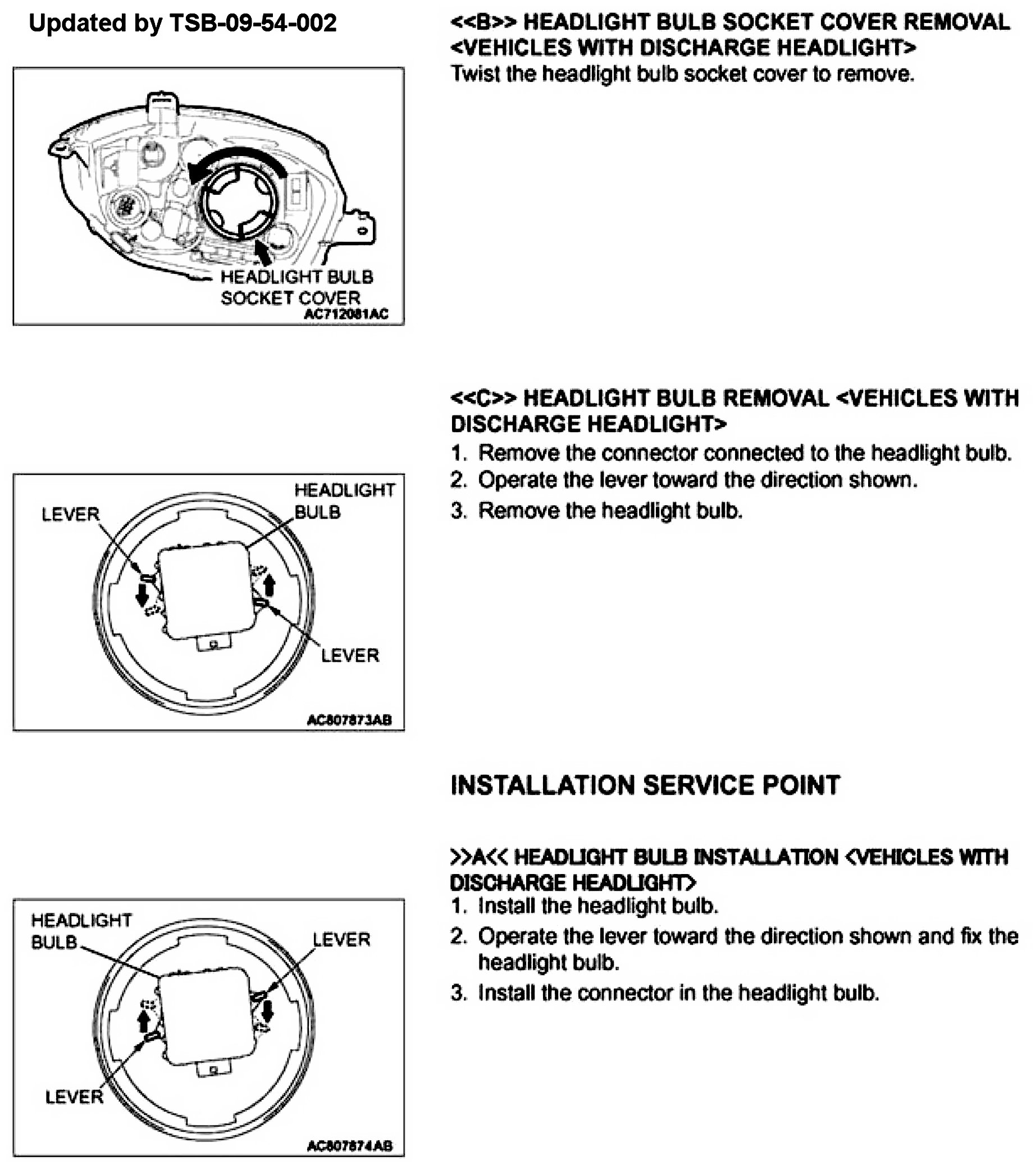

Removal Steps 1-11 (Part 2):
