Fuel Level Sensor Float Height

FUEL LEVEL SENSOR FLOAT HEIGHT

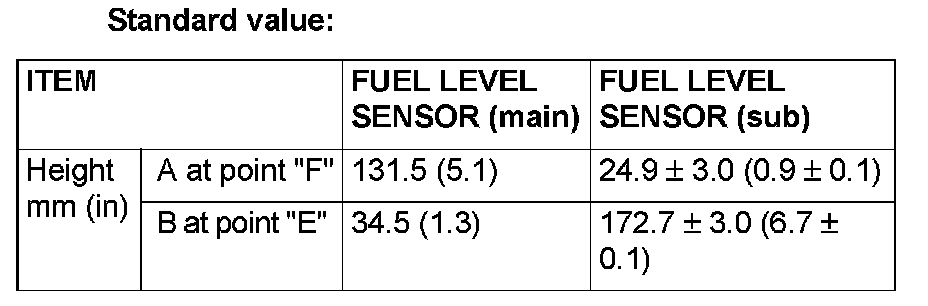

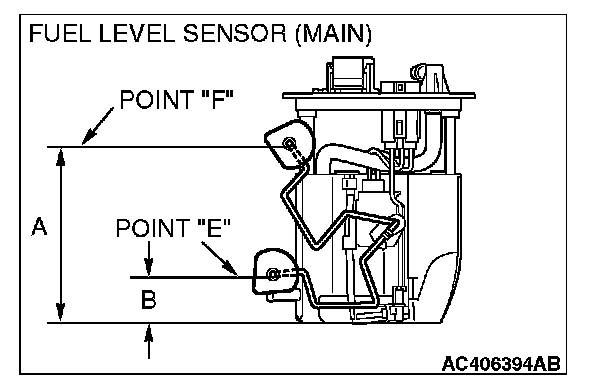

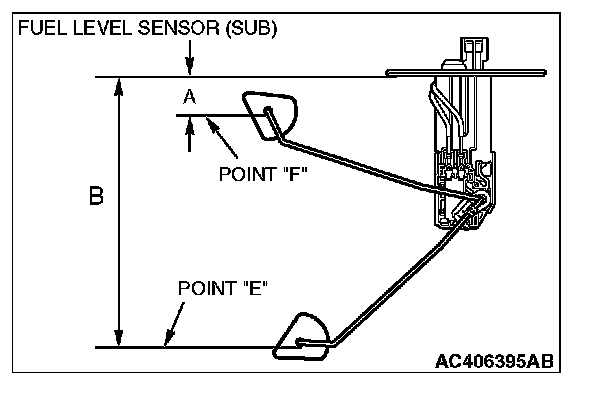

1. Move the float and measure height A at point "F" (highest) and B at point "E" (lowest).












2. If any check is not correct, replace the fuel pump module or fuel level sensor (sub).
