Air Door Actuator / Motor: Service and Repair

MOTORS AND TRANSISTOR

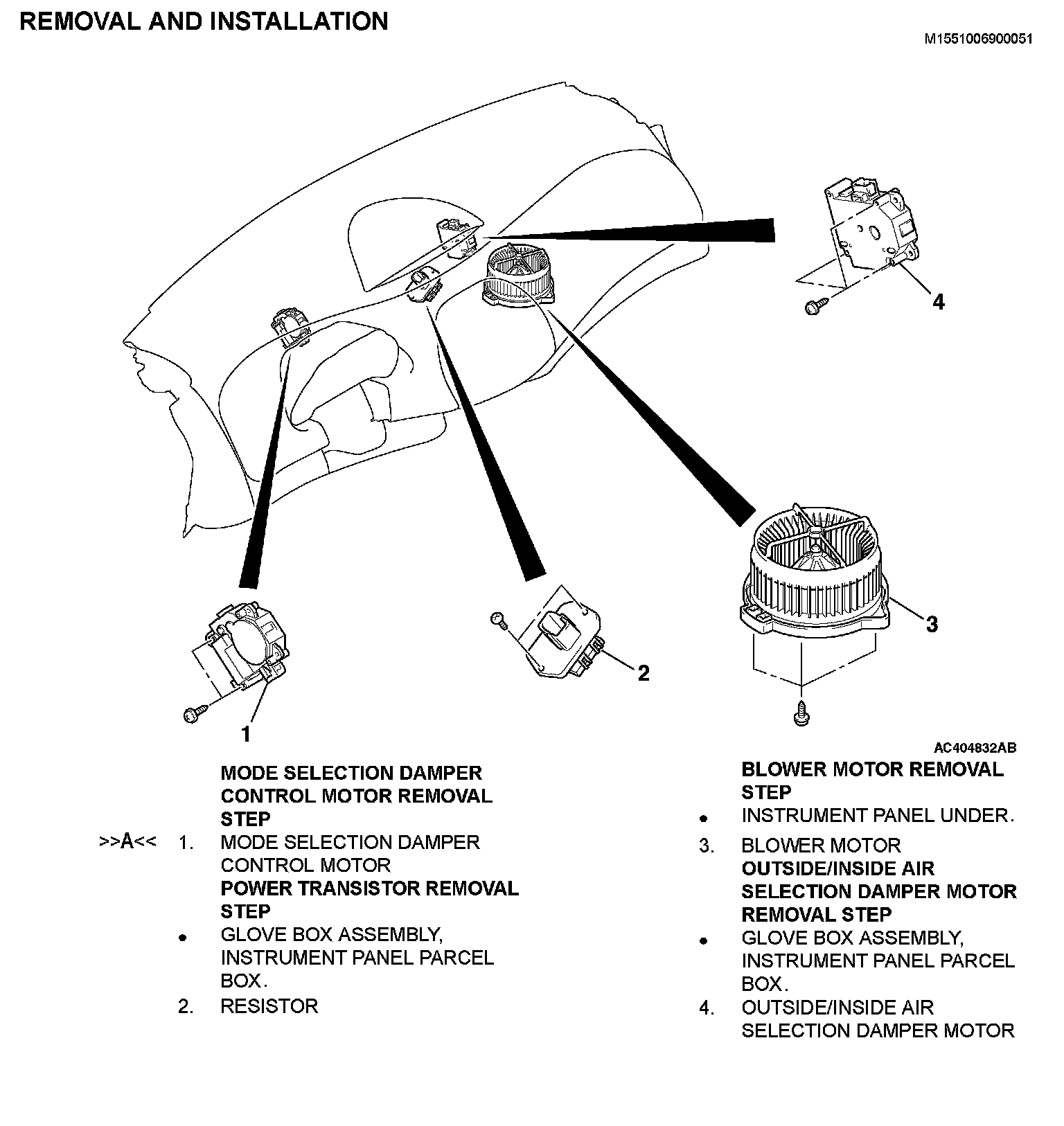

Removal Step 1-4:






INSTALLATION SERVICE POINT

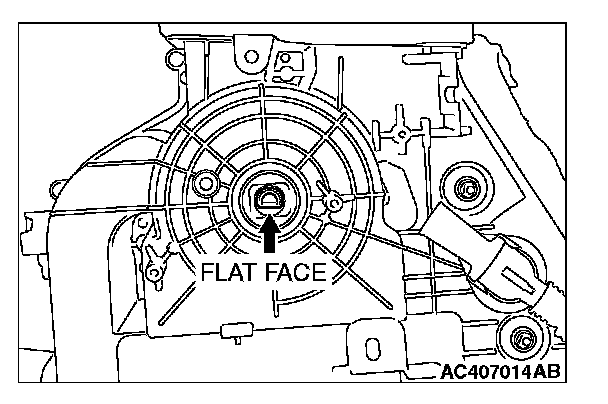

[A] MODE SELECTION DAMPER CONTROL MOTOR INSTALLATION
Place the flat face as shown downward and install.
