Exhaust Pipe: Service and Repair

EXHAUST PIPE AND MAIN MUFFLER

REMOVAL AND INSTALLATION [2.4L ENGINE]

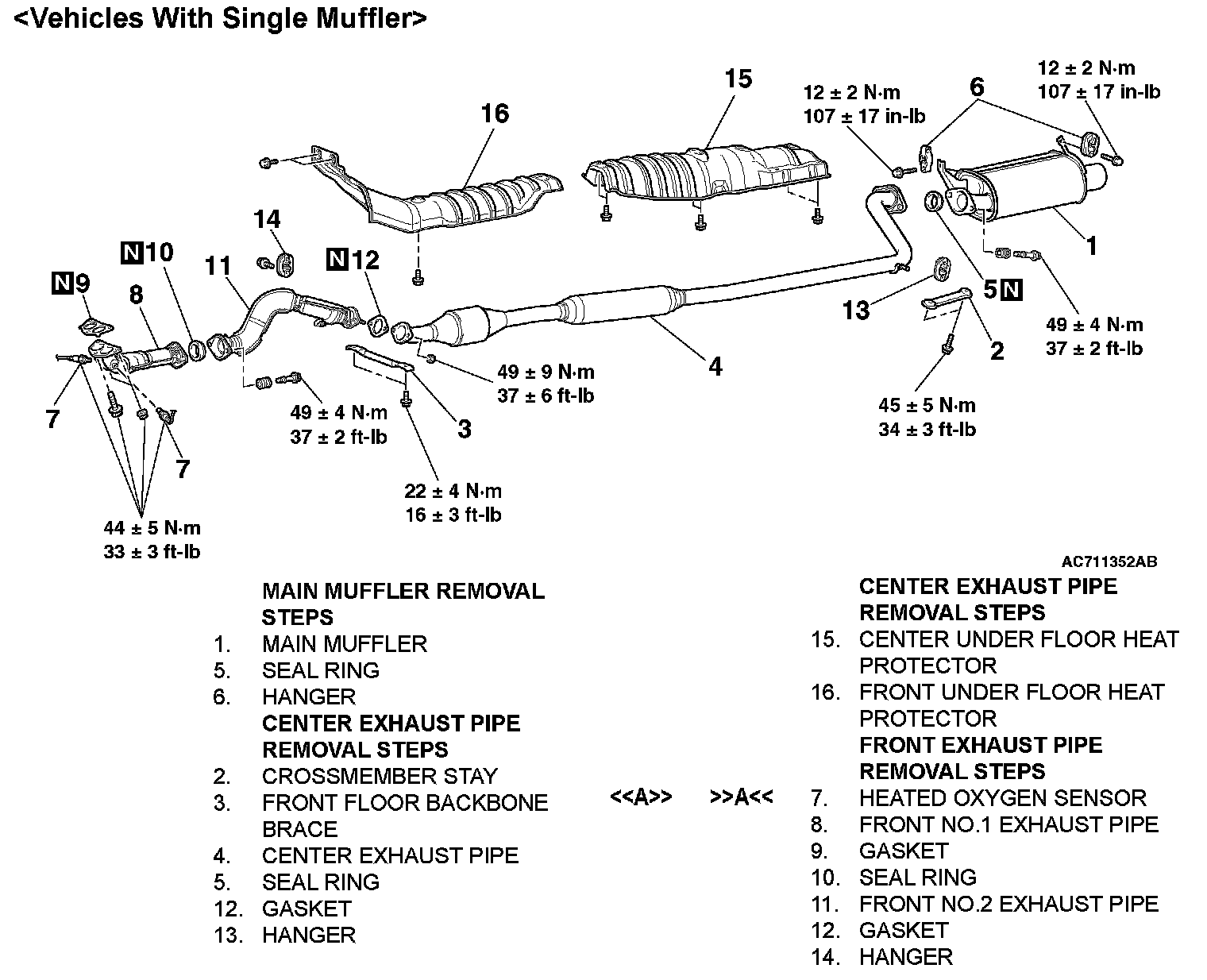

Removal Steps 1-14:

Required Special Tool:
- MB991953: Oxygen Sensor Wrench

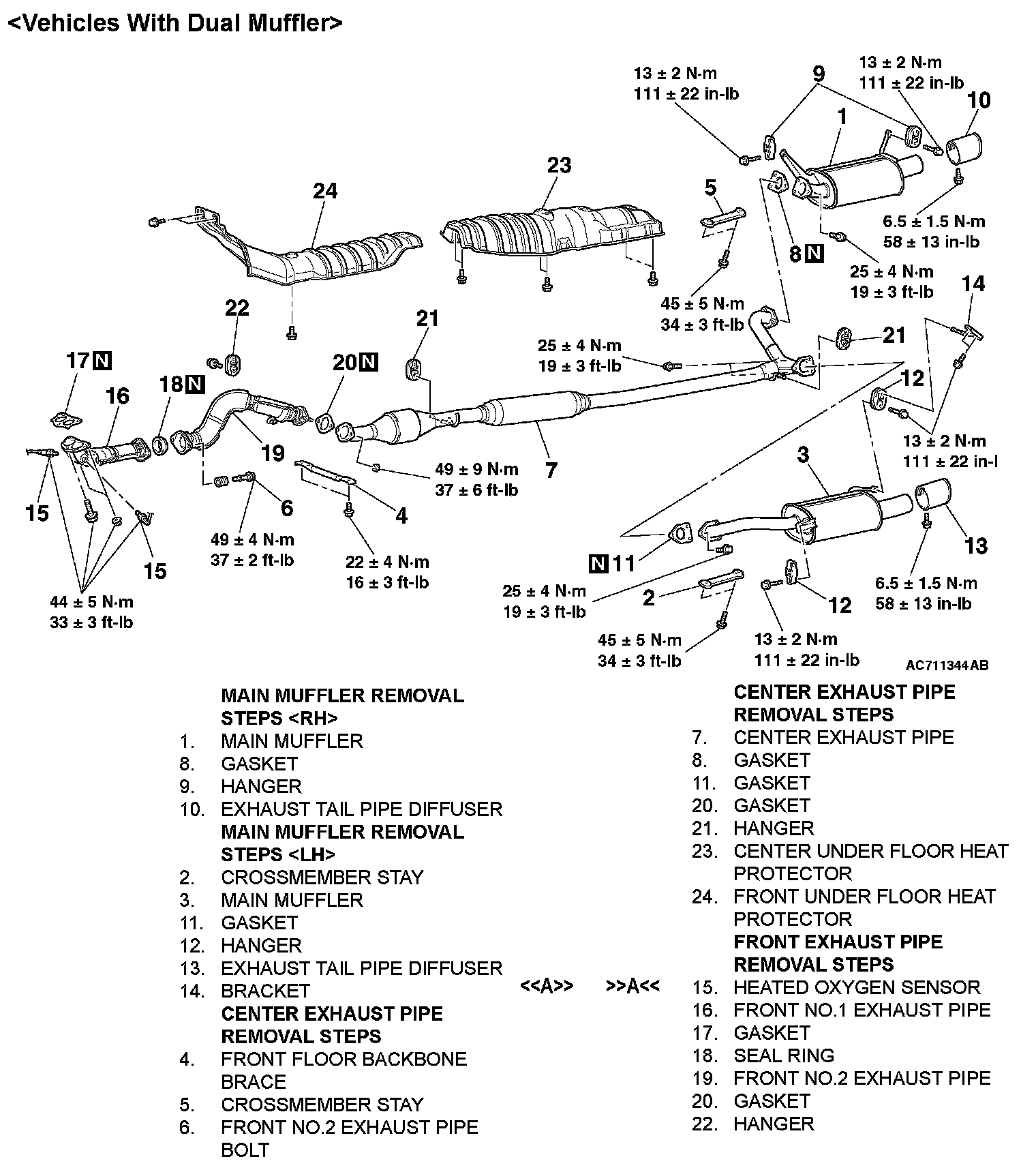

Removal Steps 1-22:

Required Special Tool:
- MB991953: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

[[A]] HEATED OXYGEN SENSOR REMOVAL




Use special tool MB991953 to remove the heated oxygen sensor.

INSTALLATION SERVICE POINT

]]A[[ HEATED OXYGEN SENSOR INSTALLATION




Use special tool MB991953 to install the heated oxygen sensor.
