Water Pump: Service and Repair

REMOVAL AND INSTALLATION

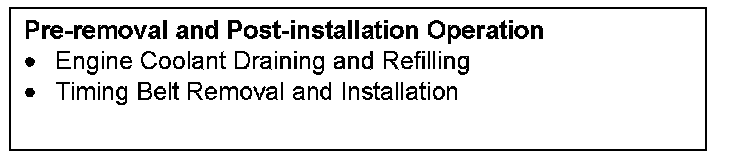

Pre-removal & Post-installation Operation:

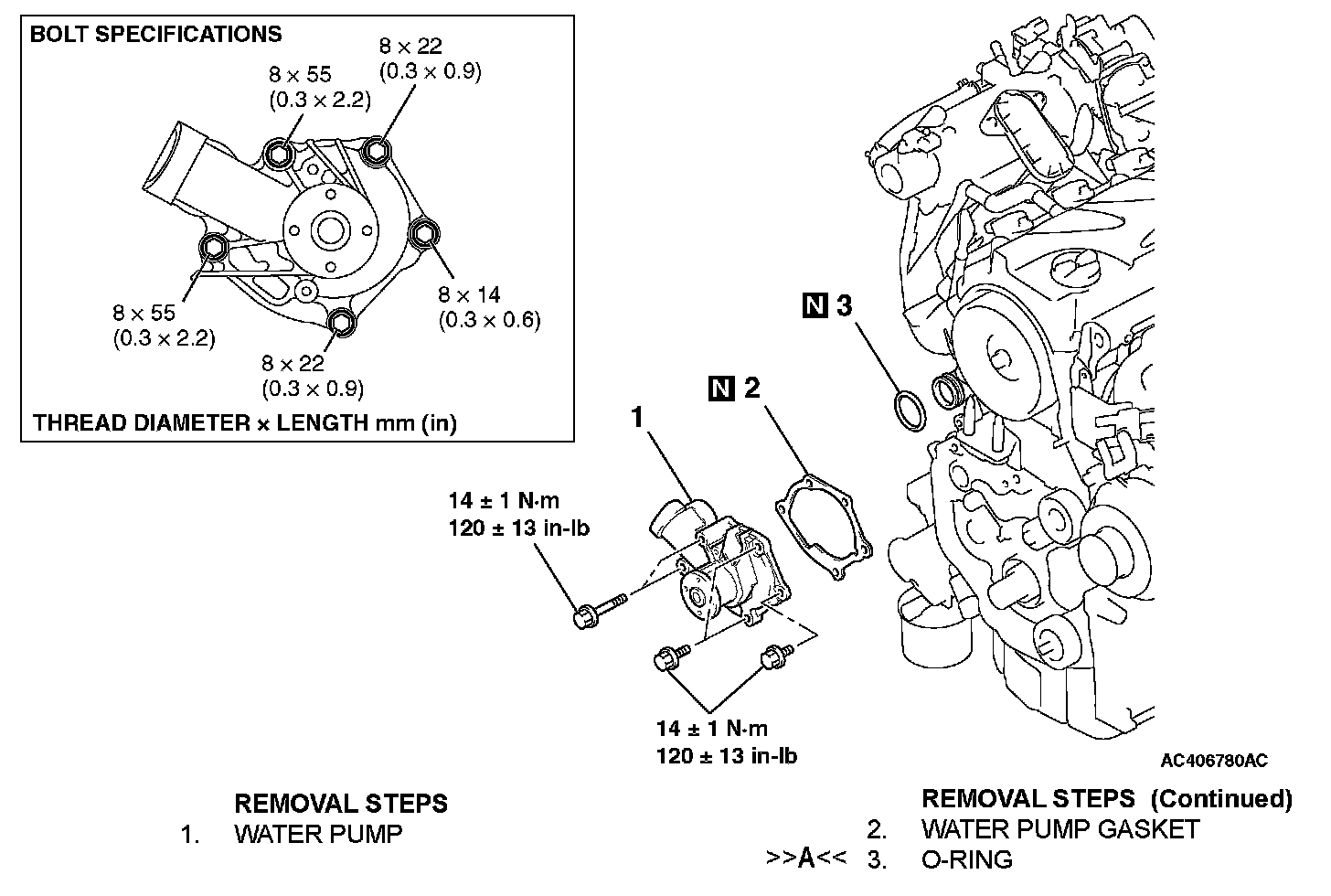

Removal Steps 1-3:

INSTALLATION SERVICE POINT

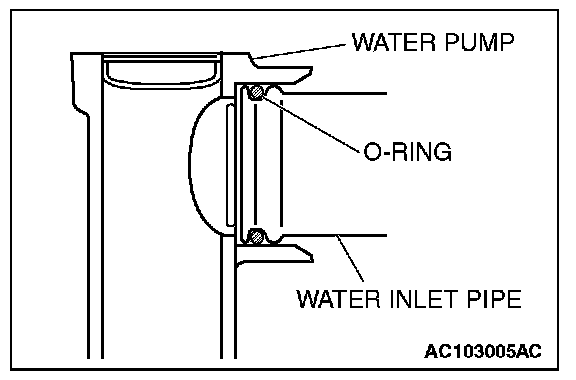

]]A[[ O-RING INSTALLATION

CAUTION
Do not let the O-ring get contaminated with grease or engine oil.





Fit an O-ring into the O-ring groove located at the end of the water inlet pipe and apply water or coolant to the O-ring or the inside of the mounting surface of the water pump for insertion.
