Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>

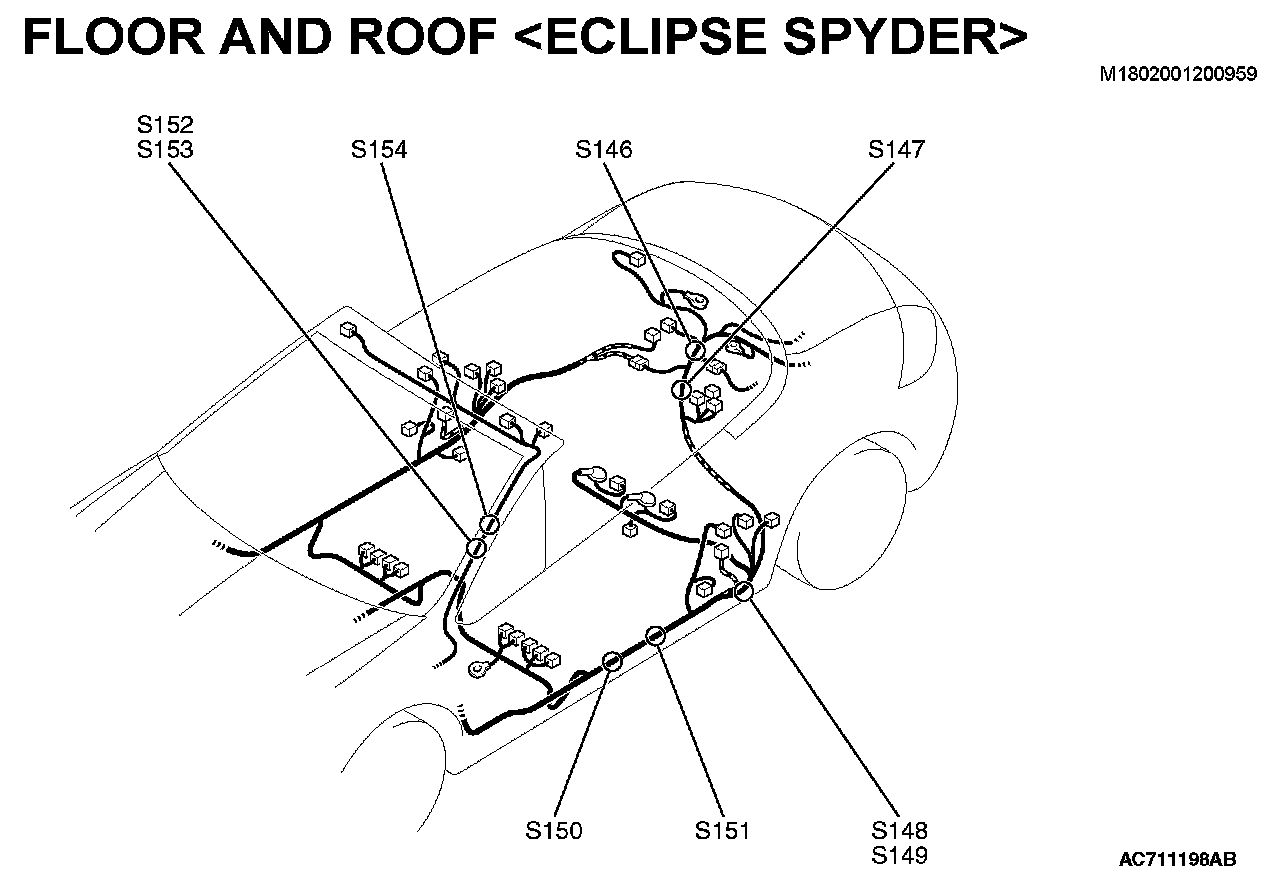

S106-S154 (Floor and Roof)
>>
Eclipse Spyder
Eclipse Spyder
S106 To S154:
