Direct Planetary Carrier

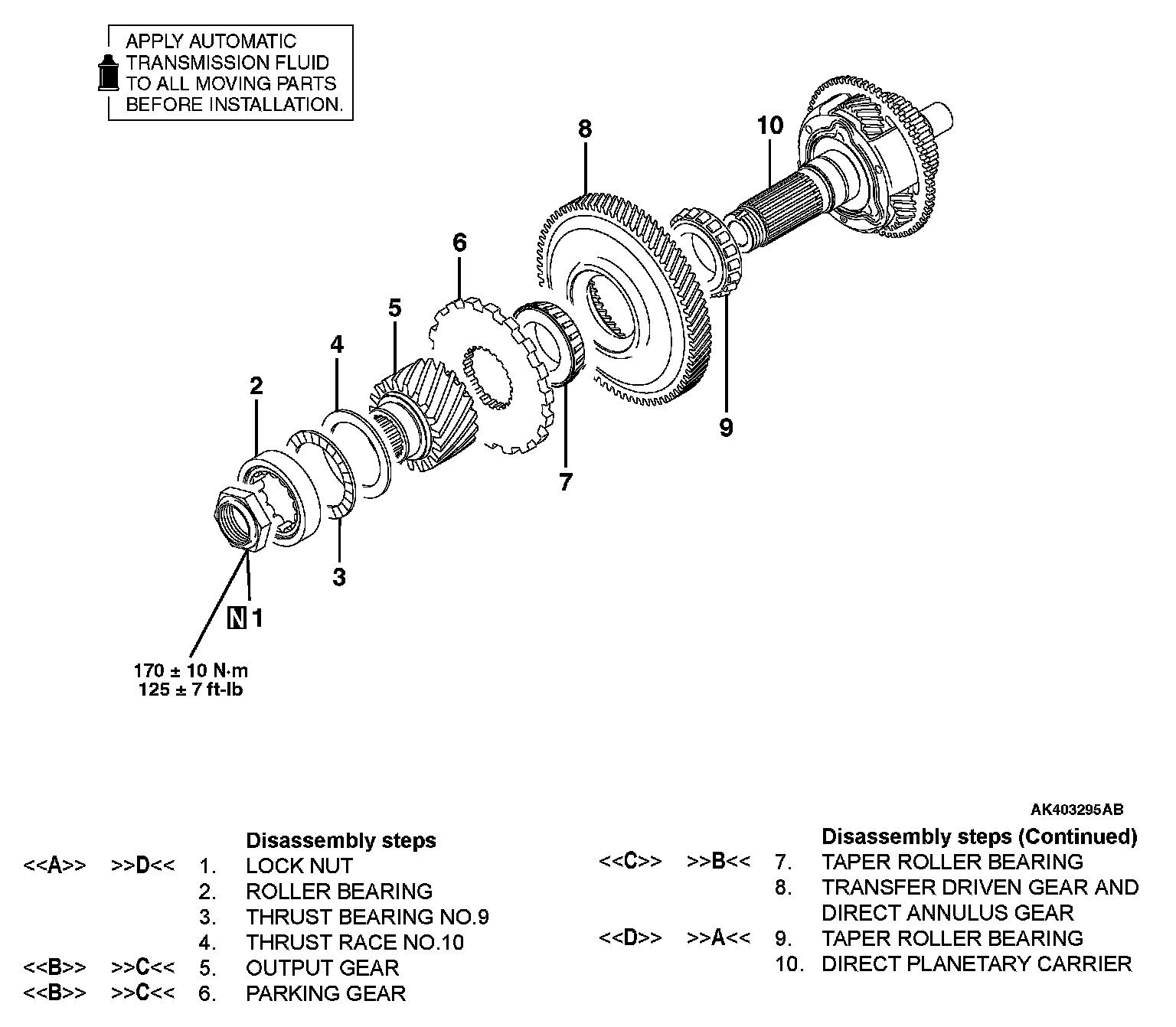

DIRECT PLANETARY CARRIER

DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-10:
