Cruise Control: Description and Operation

AUTO-CRUISE CONTROL

GENERAL DESCRIPTION
By using the auto-cruise control system, the driver can select and maintain a desired cruising speed [between 40 km/h (25 mph) and 200 km/h (124 mph)] without depressing the accelerator pedal.

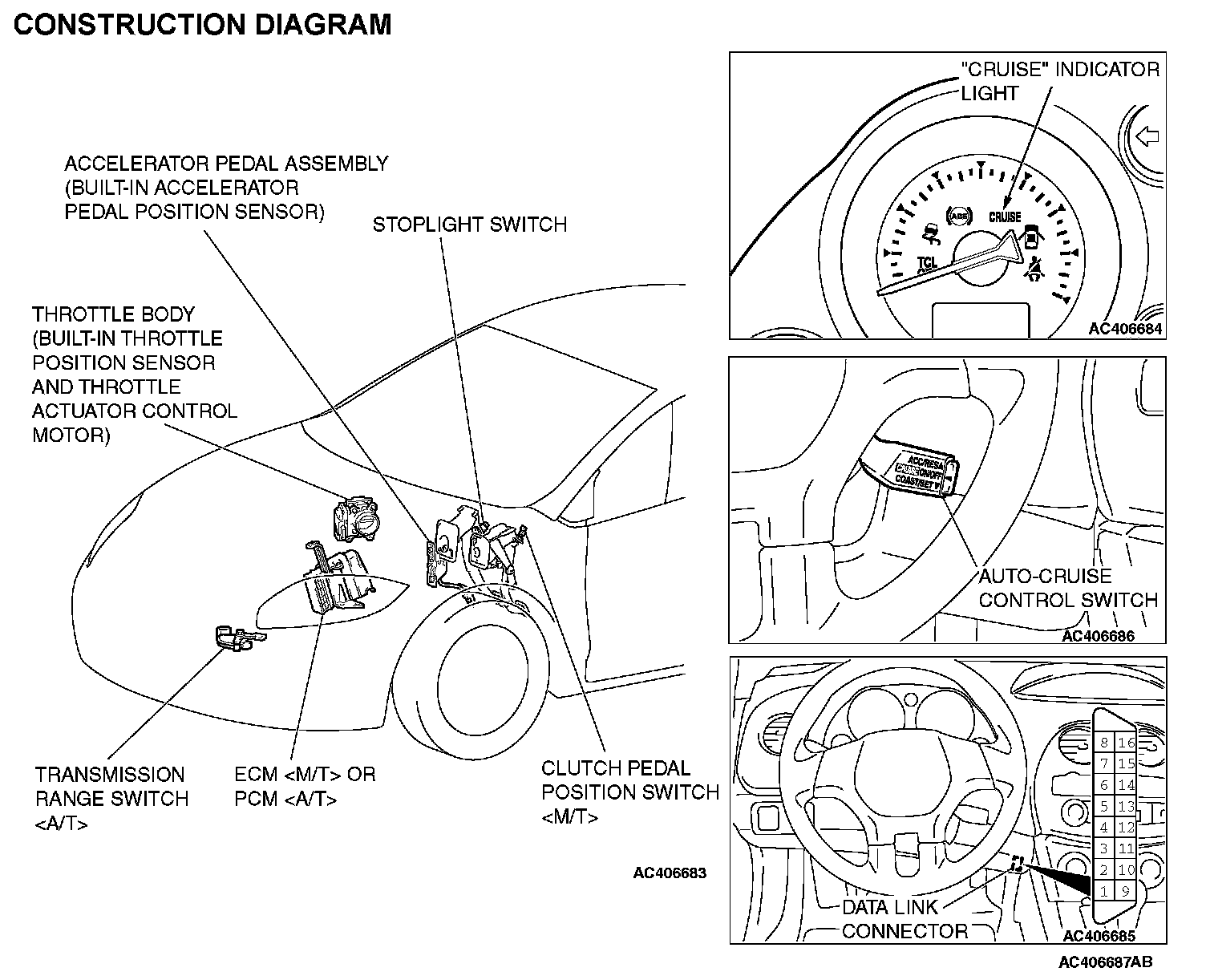

CONSTRUCTION DIAGRAM

Construction Diagram:
