ABS/TCS - Revised Self Check Sound Diagnosis

No: TSB-11-35-001

DATE: January, 2011

MODEL: See below

SUBJECT:

ABS/TCL/ASC SELF CHECK SOUND DIAGNOSIS PROCEDURES - SERVICE MANUAL REVISION

[TSB Revision: TSB-11-35-001]

PURPOSE

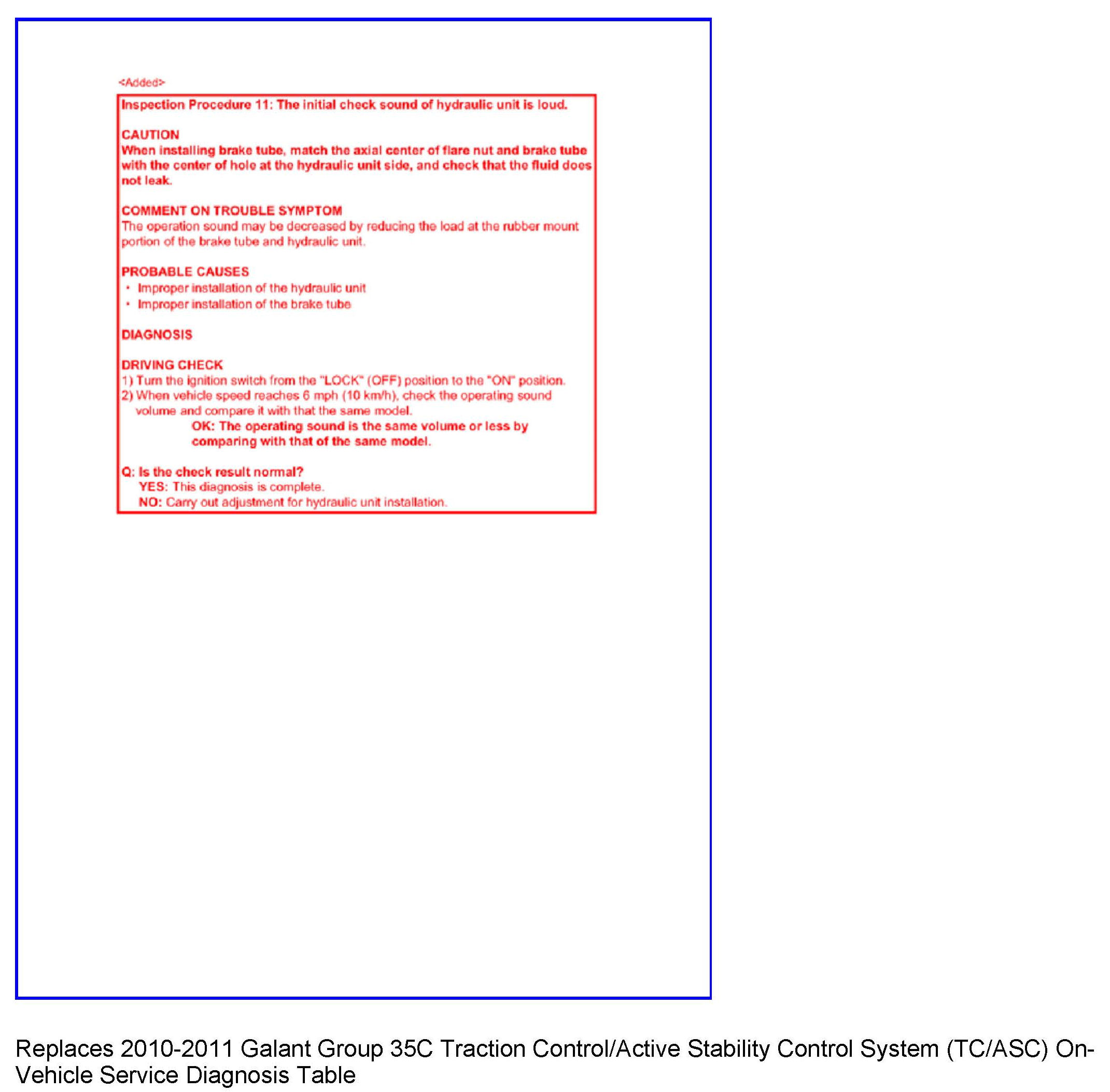

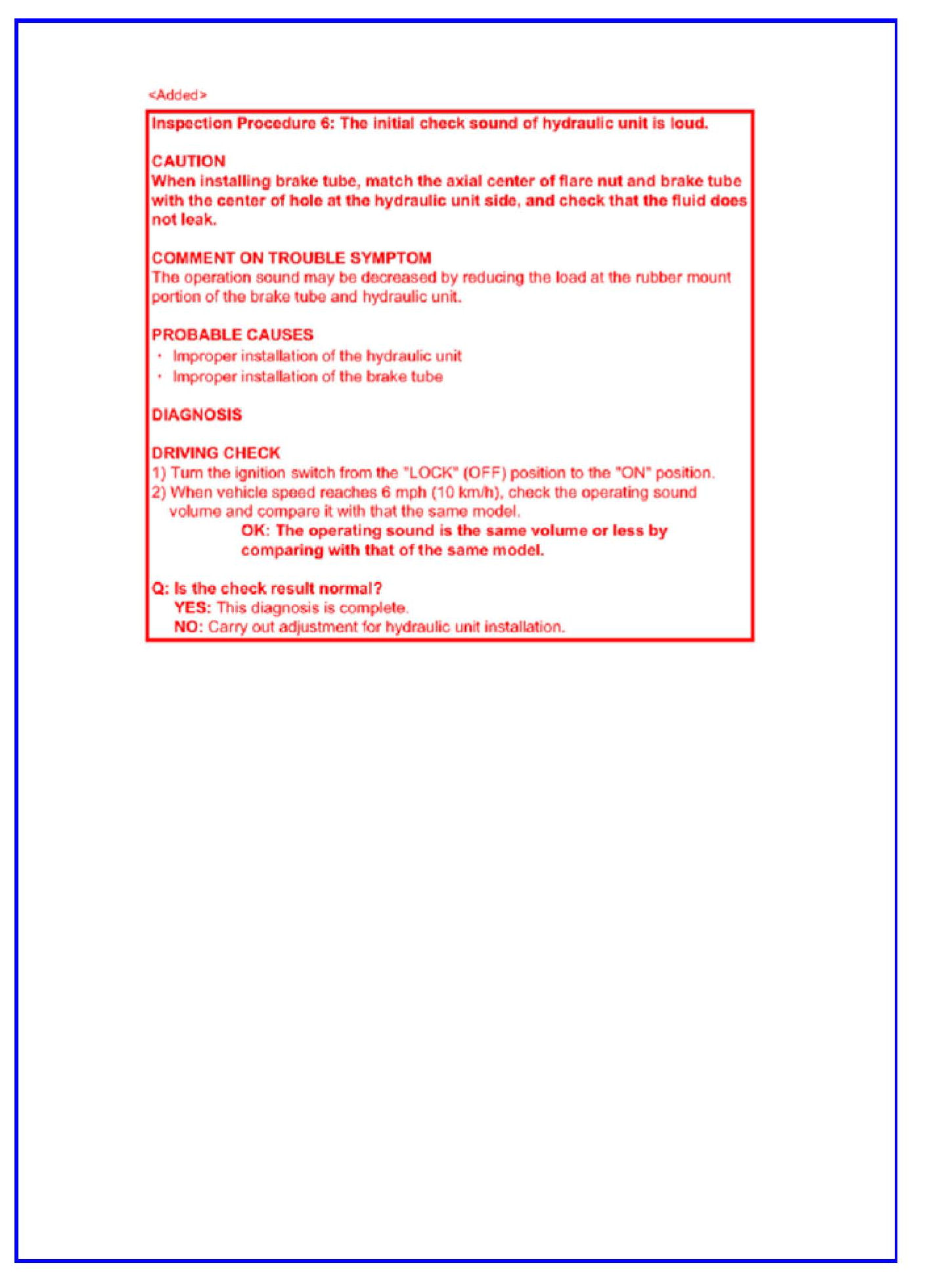

Inspection procedures for the "Initial check sound of the hydraulic unit loud" are missing from the ABS TCL and ASC diagnosis procedures in the service manuals for affected vehicles. The missing procedures are included in this TSB.

AFFECTED VEHICLES

2006-2011 Eclipse
2007-2011 Eclipse Spyder
2004-2011 Galant
2004-2011 Endeavor

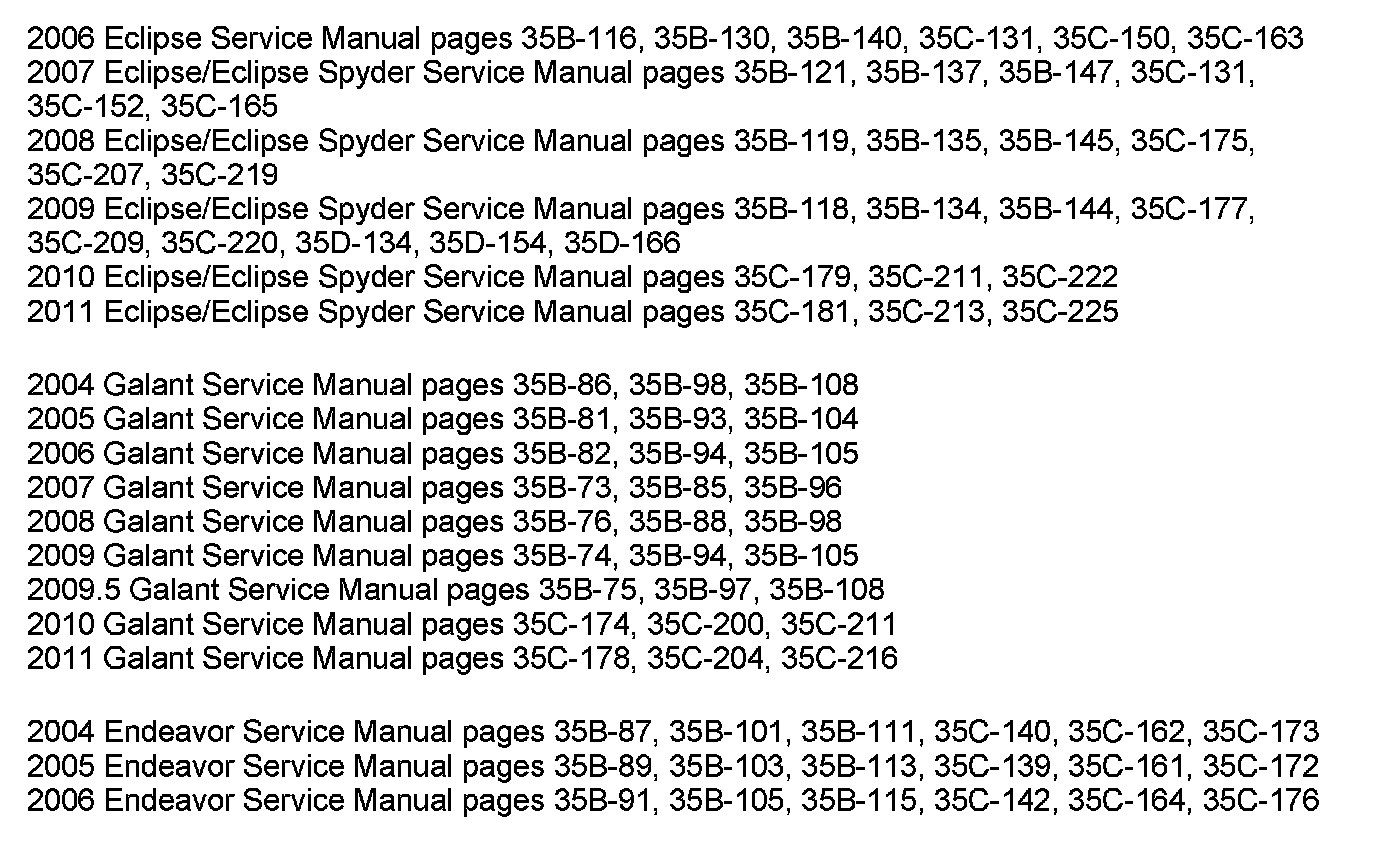

AFFECTED SERVICE MANUALS























Eclipse/Eclipse Spyder

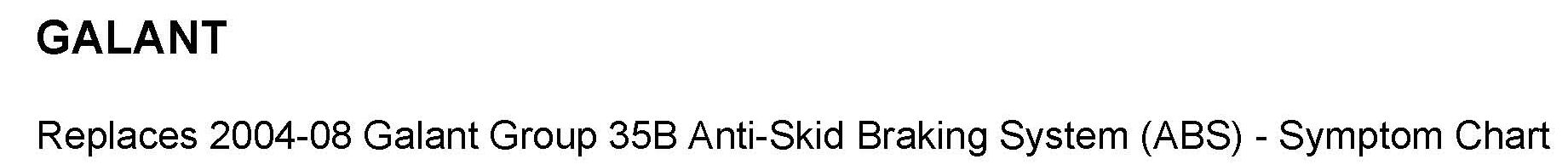

Galant

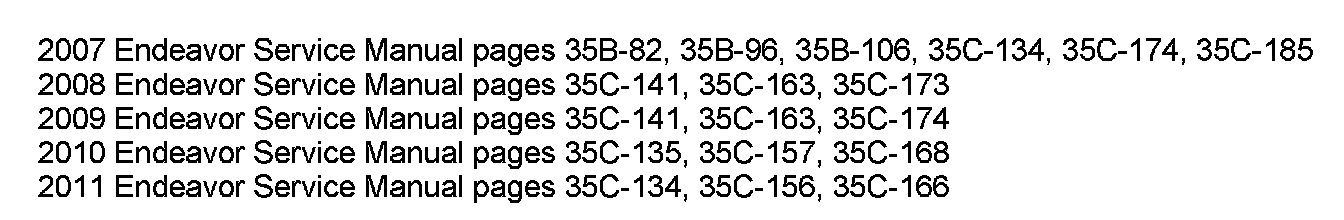

Endeavor
