Brake Master Cylinder: Service and Repair

MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY

REMOVAL AND INSTALLATION

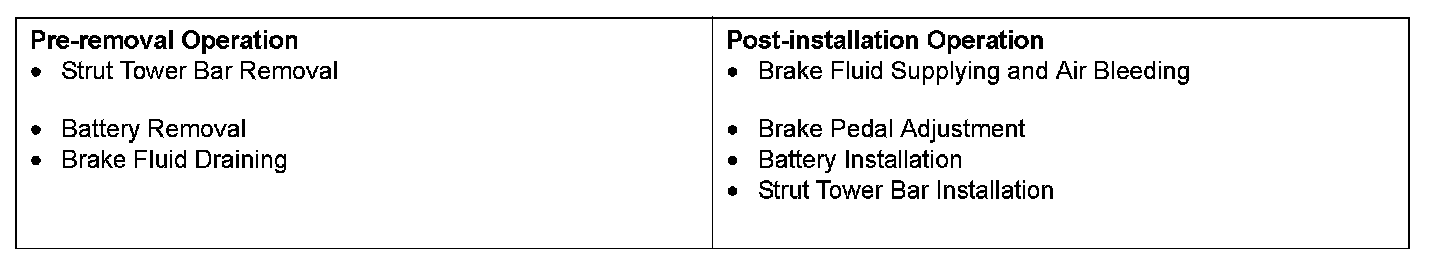

Pre-removal & Post-installation Operation:

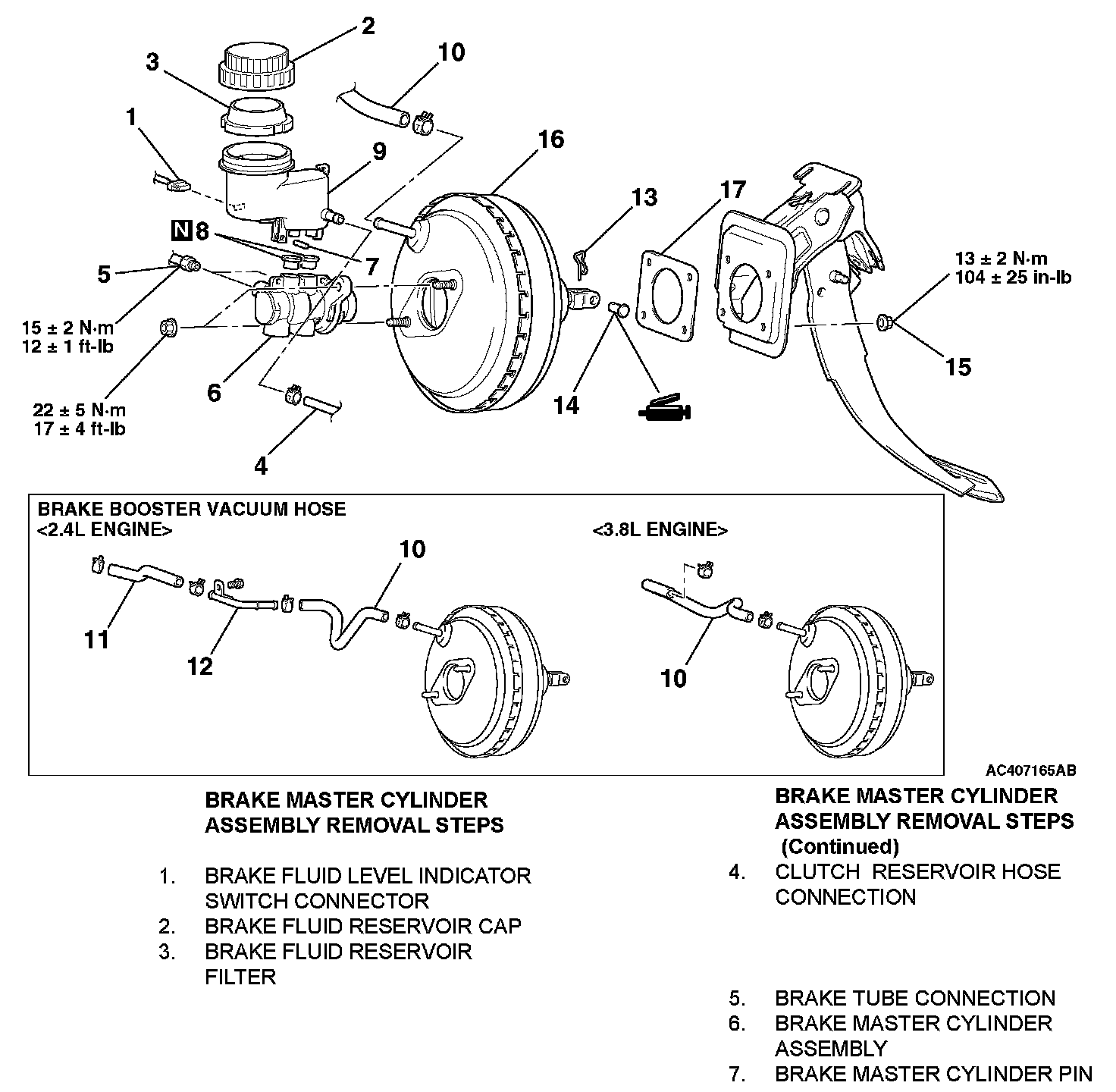

Removal Steps 1-7:

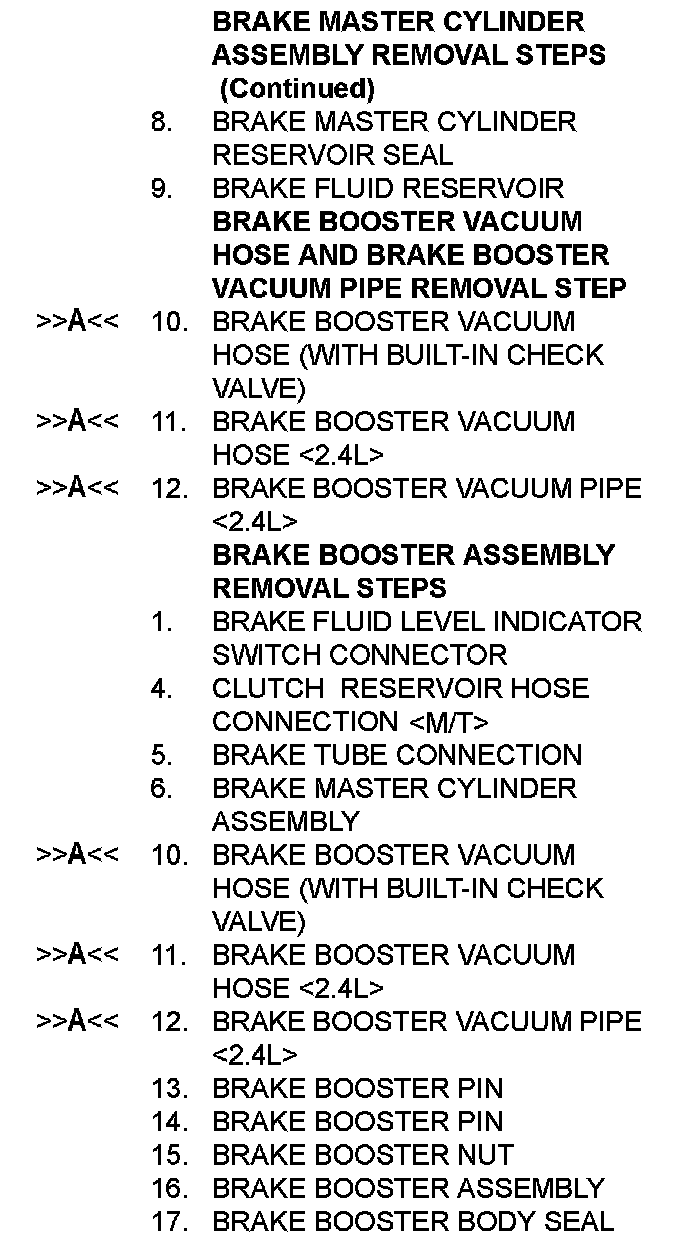

Brake Master Cylinder Assembly Removal Steps 8-9, Brake Booster Vacuum Hose And Brake Booster Vacuum Pip Removal Step 10-12, Brake Booster Assembly Removal Steps 1-17:

CAUTION
Do not touch the push rod in the brake booster because it is already adjusted.

INSTALLATION SERVICE POINT

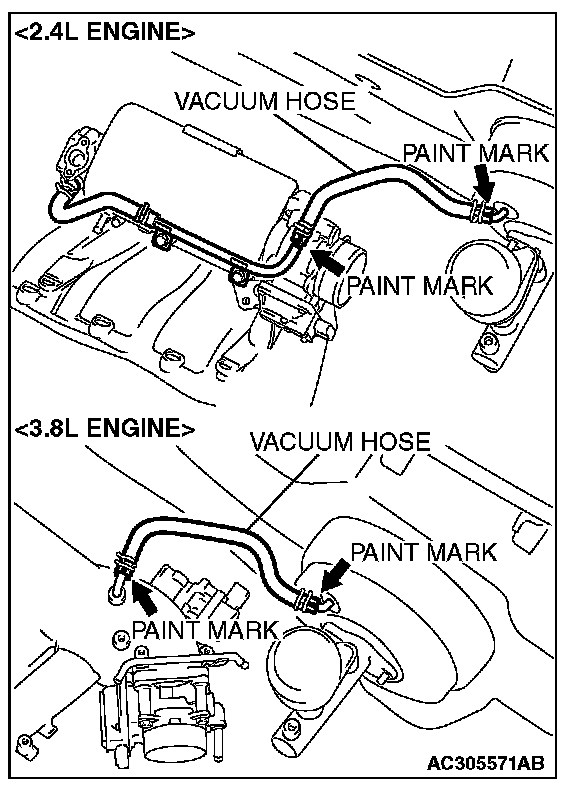

]]A[[ BRAKE BOOSTER VACUUM HOSE CONNECTION

Insert vacuum hose with its paint mark facing upward.
