Home >> Mitsubishi >> 2009 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Service and Repair >> Removal and Replacement >> Removal and Installation

Removal and Installation

DISC BRAKE ASSEMBLY

REMOVAL AND INSTALLATION

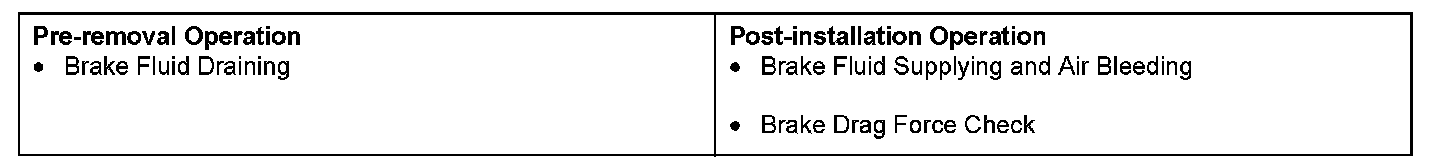

Pre-removal & Post-installation Operation:

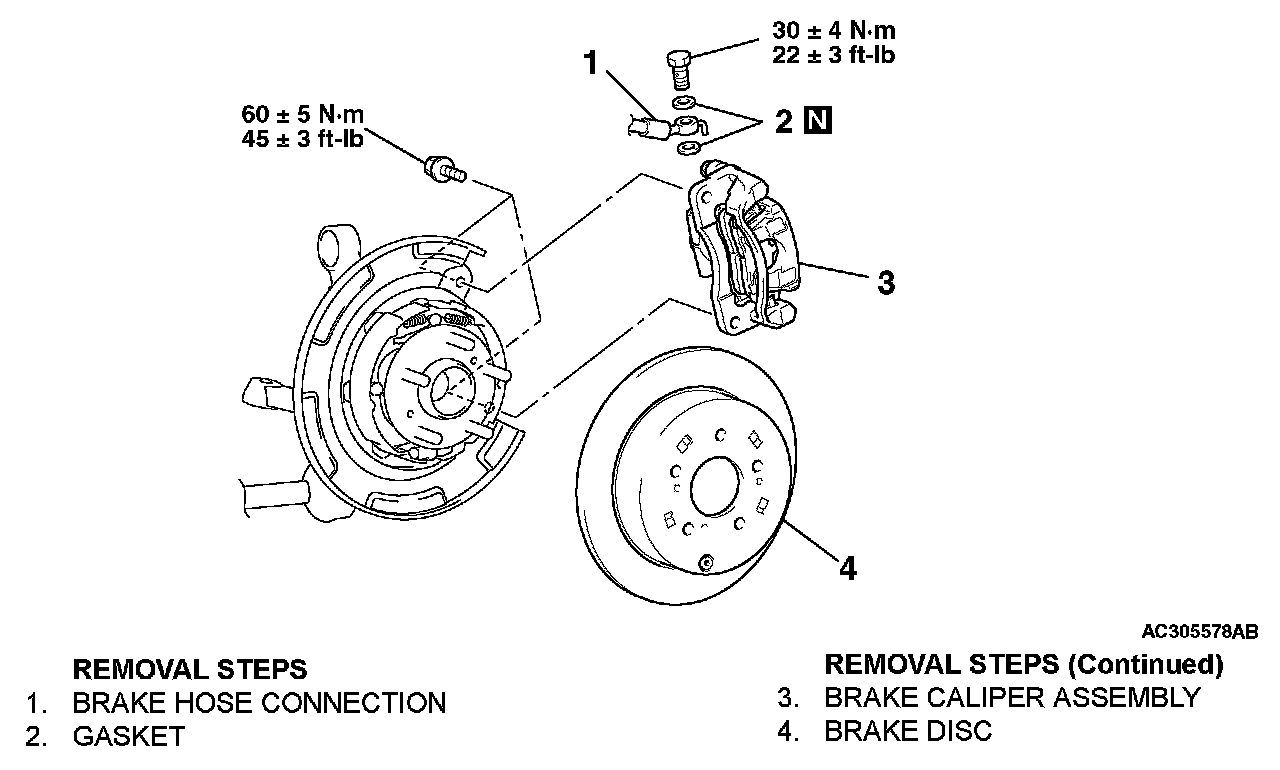

Removal Steps 1-4:





INSPECTION

BRAKE DISC CHECK
^ Disc wear.
^ Disc runout.
