Home >> Mitsubishi >> 2009 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Trunk / Liftgate Lock Actuator Position Sensor >> Testing and Inspection

Power Trunk / Liftgate Lock Actuator Position Sensor: Testing and Inspection

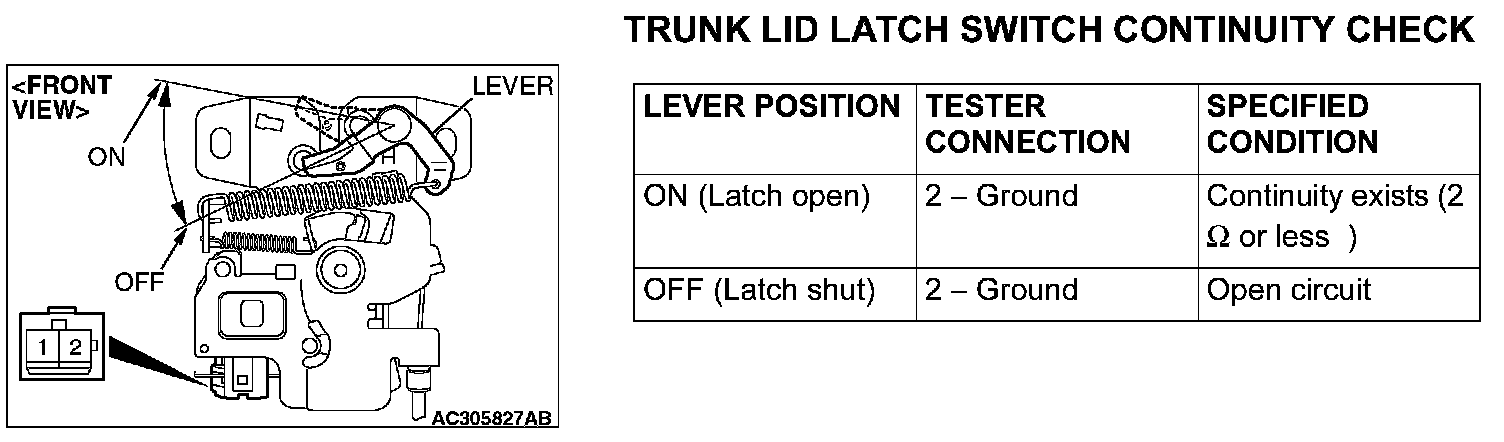

TRUNK LID LATCH SWITCH CONTINUITY CHECK


Trunk Lid Latch Switch Continuity Check:
