Front Seat
DISASSEMBLY AND ASSEMBLY[DRIVER'S SEAT]
WARNING: Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it.

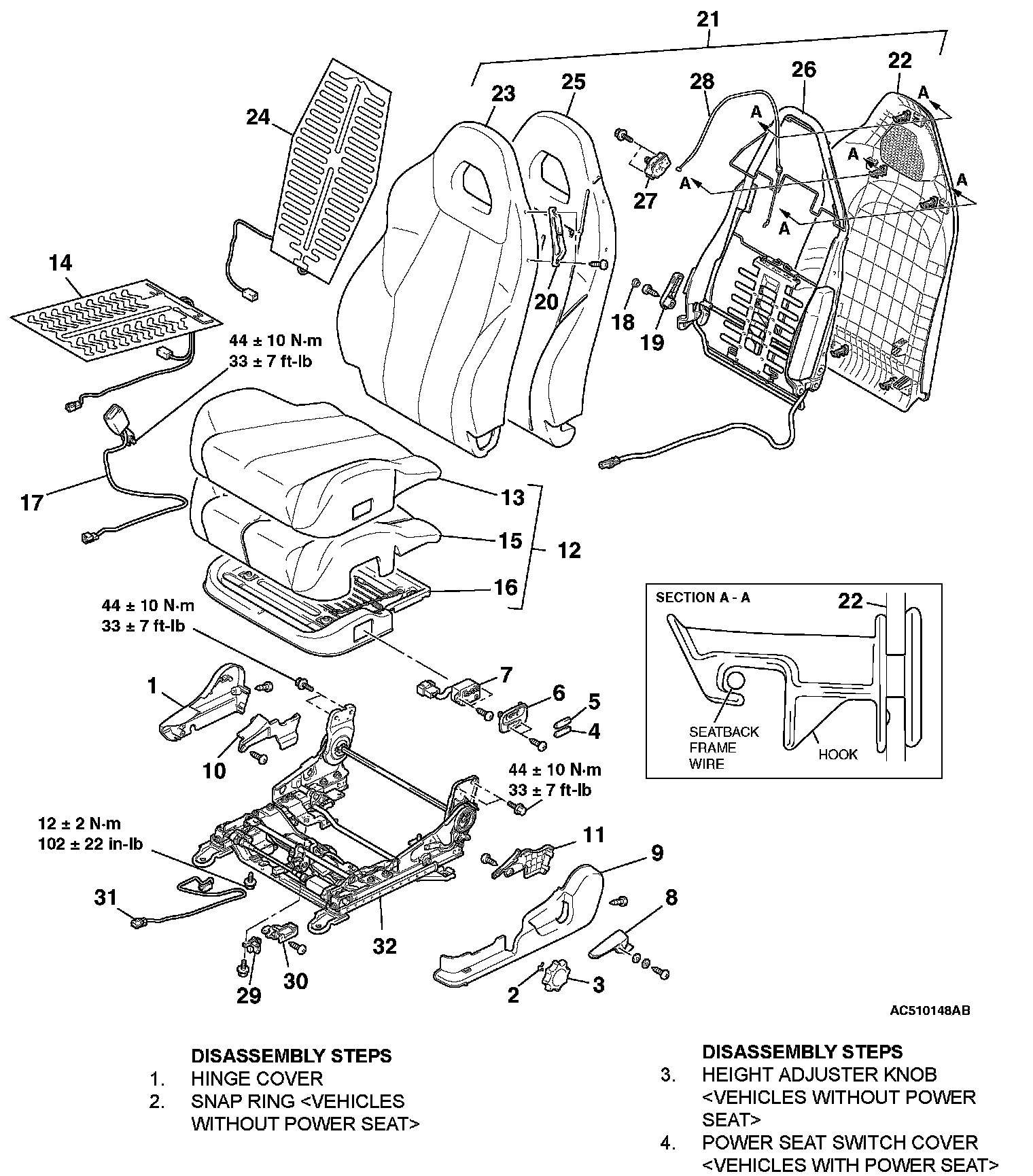

Disassembly Steps 1-32 (Part 1):

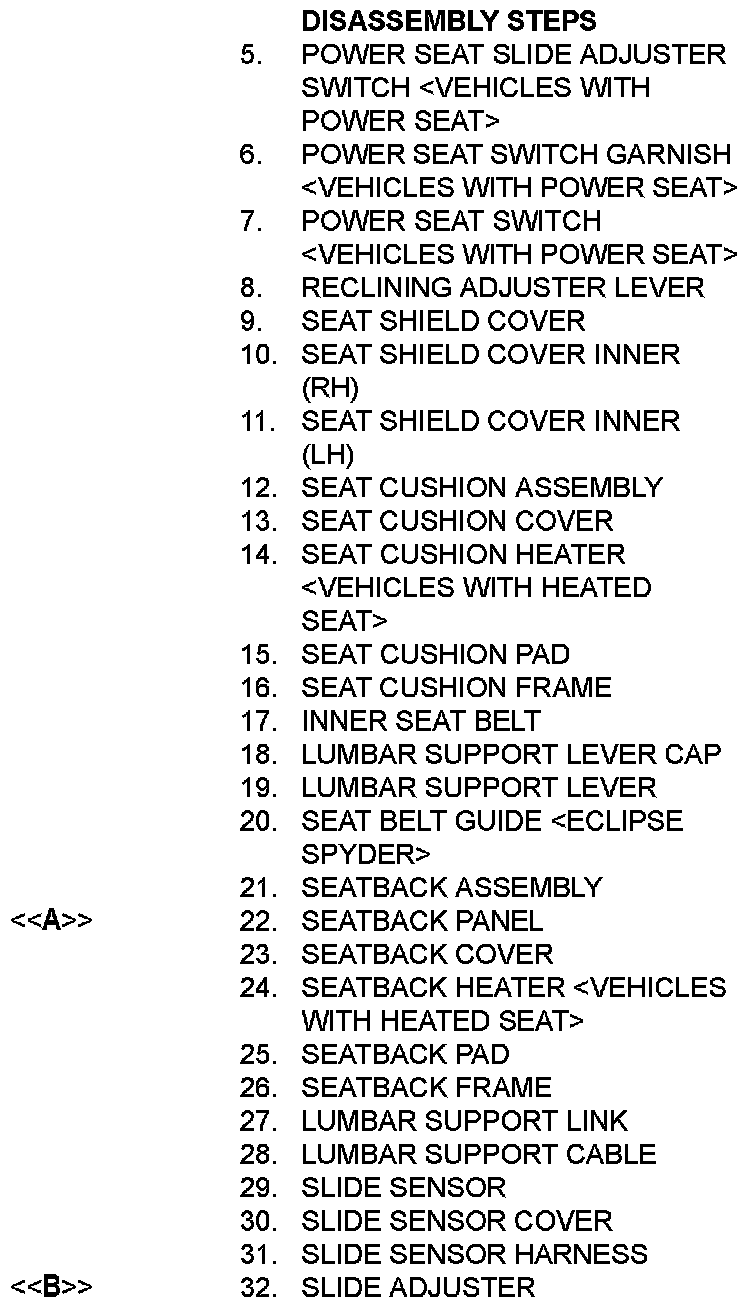

Disassembly Steps 1-32 (Part 2):
[FRONT PASSENGER'S SEAT]
WARNING:
- Never attempt to disassemble or repair the occupant classification-ECU or the occupant classification sensor. If faulty, replace it.
- Do not drop or subject the occupant classification-ECU and occupant classification sensor to impact or vibration. If denting, cracking, deformation, or rust is discovered in the occupant classification-ECU or the occupant classification sensor, replace it with a new one.

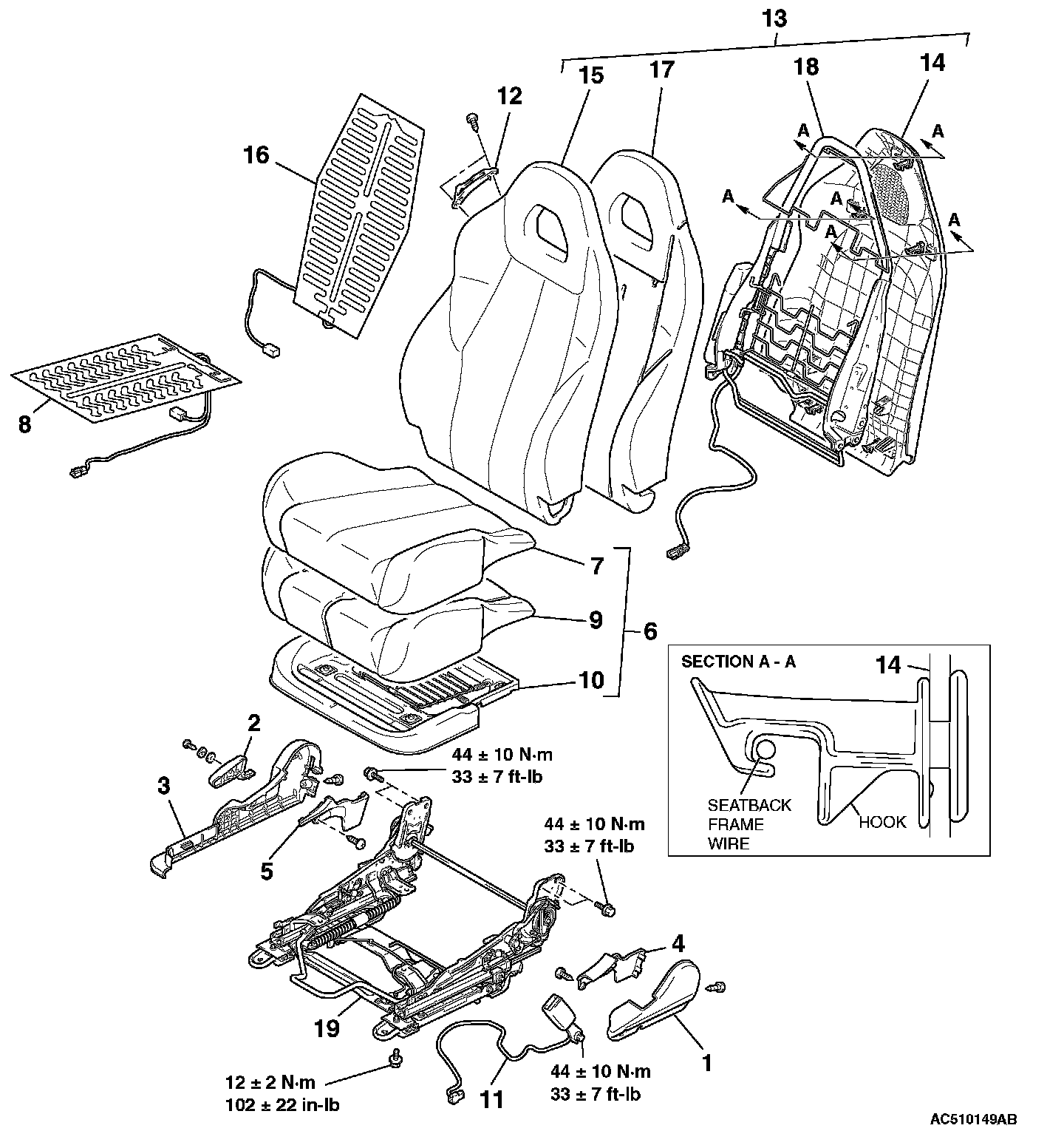

Removal Steps 1-19 (Part 1):

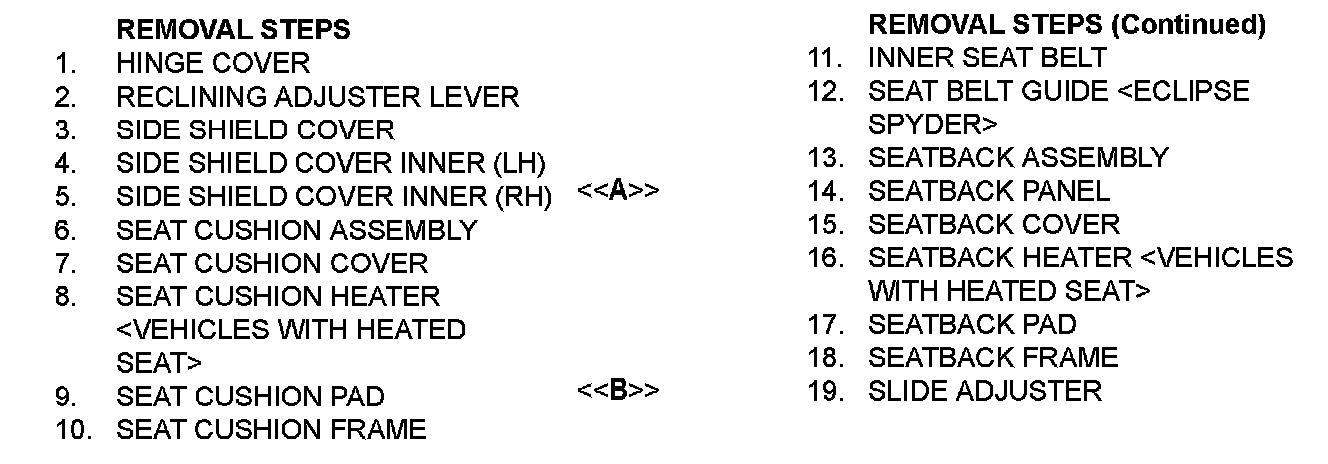

Removal Steps 1-19 (Part 2):
