Trims[Eclipse]
TRIMS[ECLIPSE]REMOVAL AND INSTALLATION

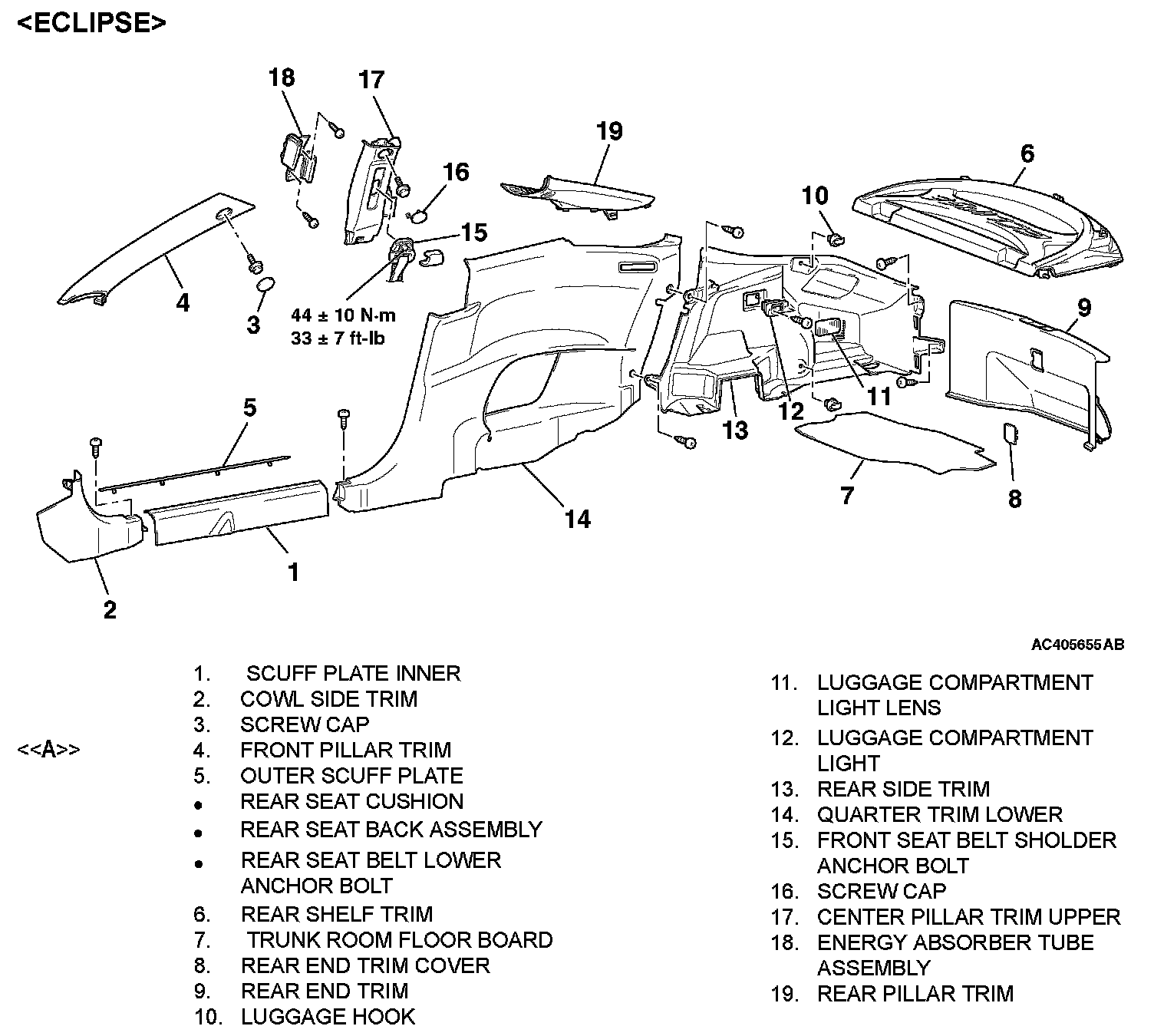

Removal Steps 1-19:

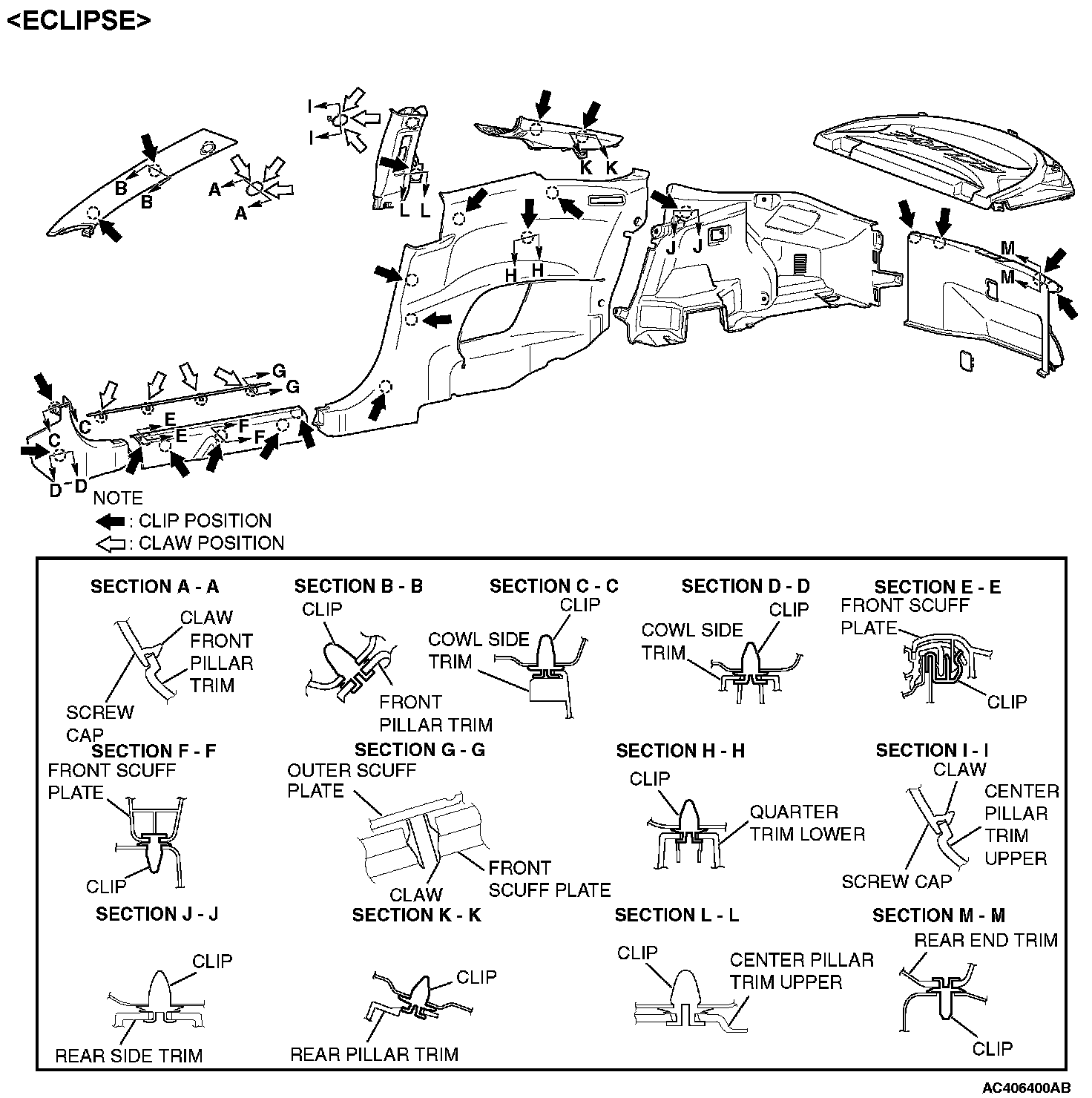

CLIP AND CLAW POSITION
REMOVAL SERVICE POINT

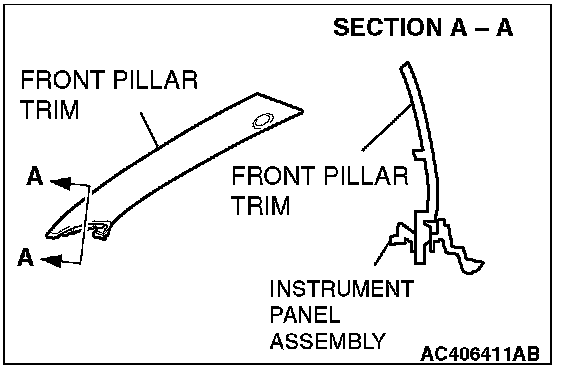

[[A]] FRONT PILLAR TRIM REMOVAL
Release the clip and remove the front pillar trim by pulling it to the direction shown.
REMOVAL AND INSTALLATION
CLIP AND CLAW POSITION
REMOVAL SERVICE POINT
[[A]] FRONT PILLAR TRIM REMOVAL
Release the clip and remove the front pillar trim by pulling it to the direction shown.
