Engine Roll Stopper and Center Member

ENGINE ROLL STOPPER AND CENTERMEMBER

REMOVAL AND INSTALLATION

CAUTION
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

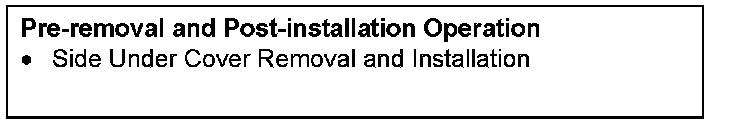

Pre-removal & Post-installation Operation:

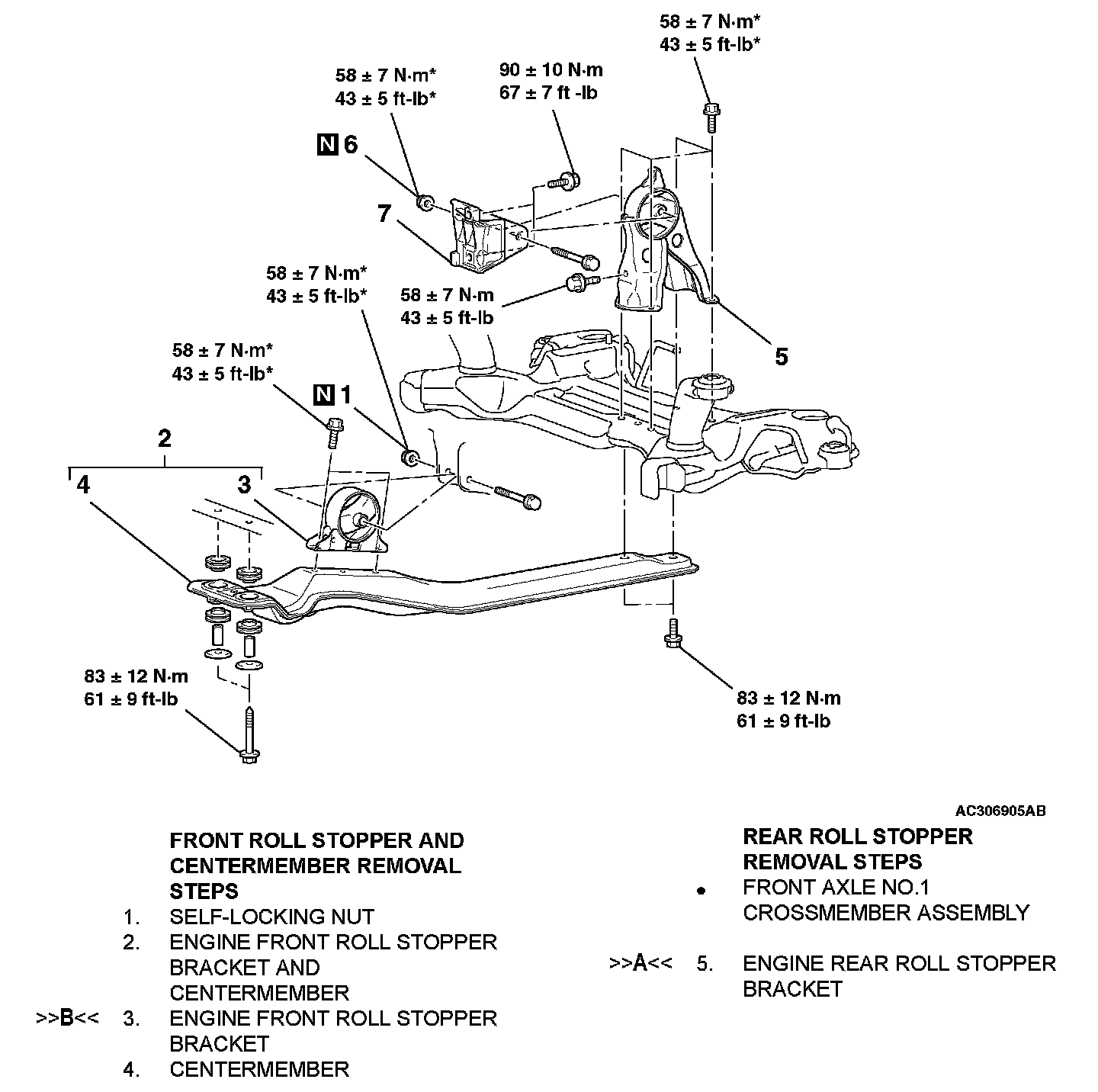

Front Roll Stopper And Centermember Removal Steps 1-4, Rear Roll Stopper And Centermember Removal Step 5:

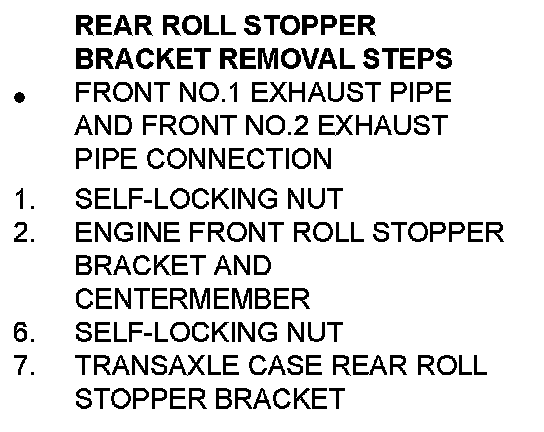

Rear Roll Stopper Bracket Removal Steps 1-7:

INSTALLATION SERVICE POINTS

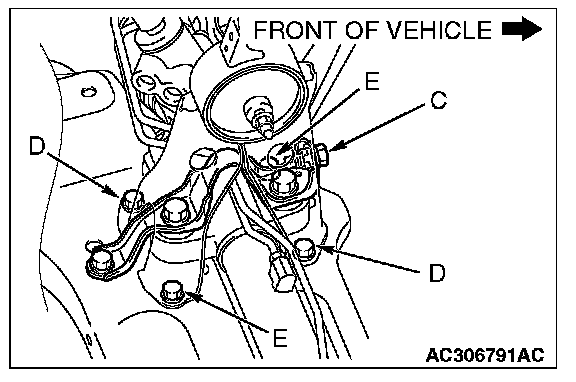

]]A[[ ENGINE REAR ROLL STOPPER BRACKET INSTALLATION





Tighten the bolts in the following sequence:
1. Tighten bolts E finger tight.
2. Tighten bolt C and then tighten bolts D.
3. Tighten bolts E.

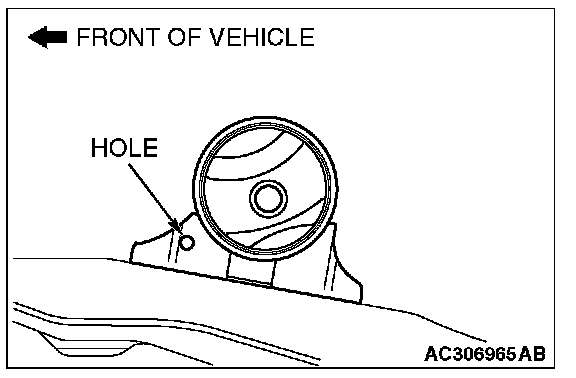

]]B[[ ENGINE FRONT ROLL STOPPER BRACKET INSTALLATION





Install the engine front roll stopper bracket so that its hole points towards the front side of the vehicle.
