Front Door Latch: Service and Repair

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION







CAUTION:

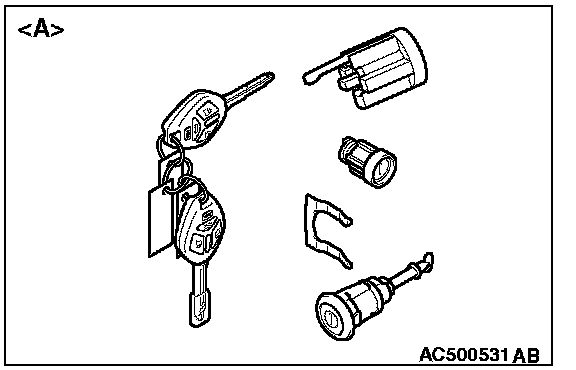

- When the door lock key cylinder is replaced by key set of illustration [A], register the encrypted code with the bar code on the ignition key in the key set. Refer to chassis electrical, Encrypted Code Registration Criteria Table.

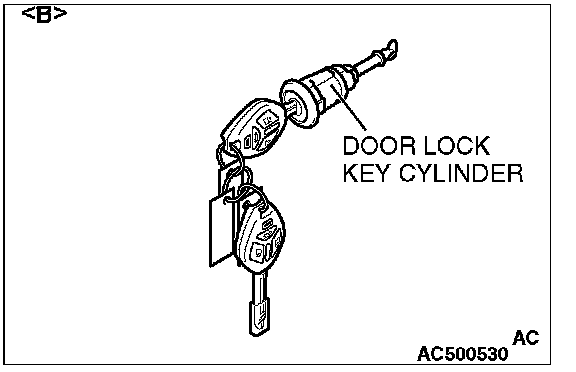

- When replacing by the door lock key cylinder of illustration [B], do not register the encrypted code with the bar code on the ignition key supplied simultaneously.

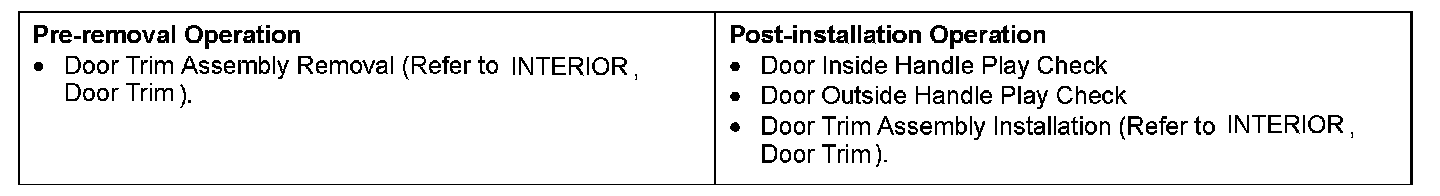

Pre-removal And Post-installation Operation:

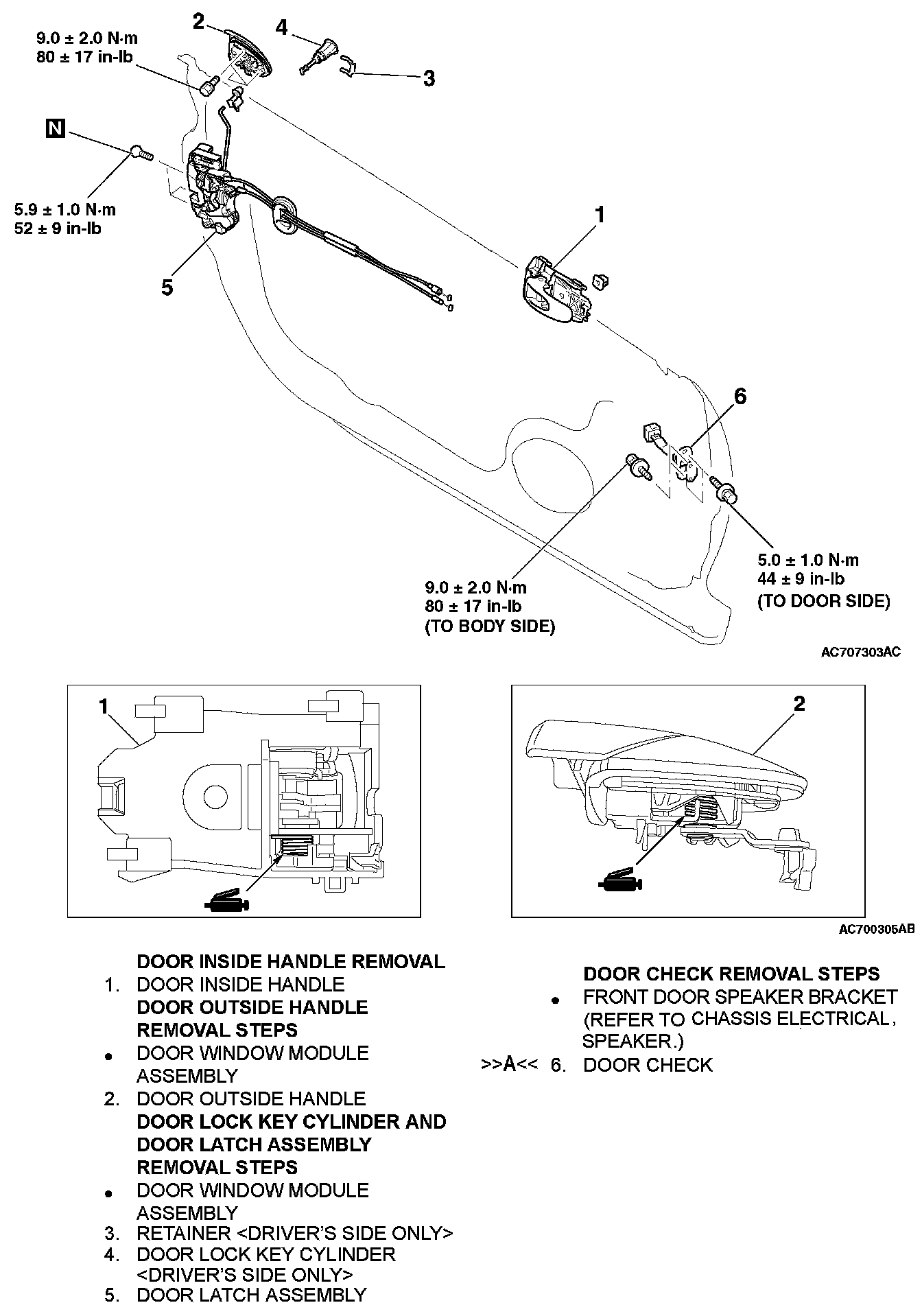

Removal Steps 1-6:

Required Special Tool:
- MB991223: Harness Set

INSTALLATION SERVICE POINT

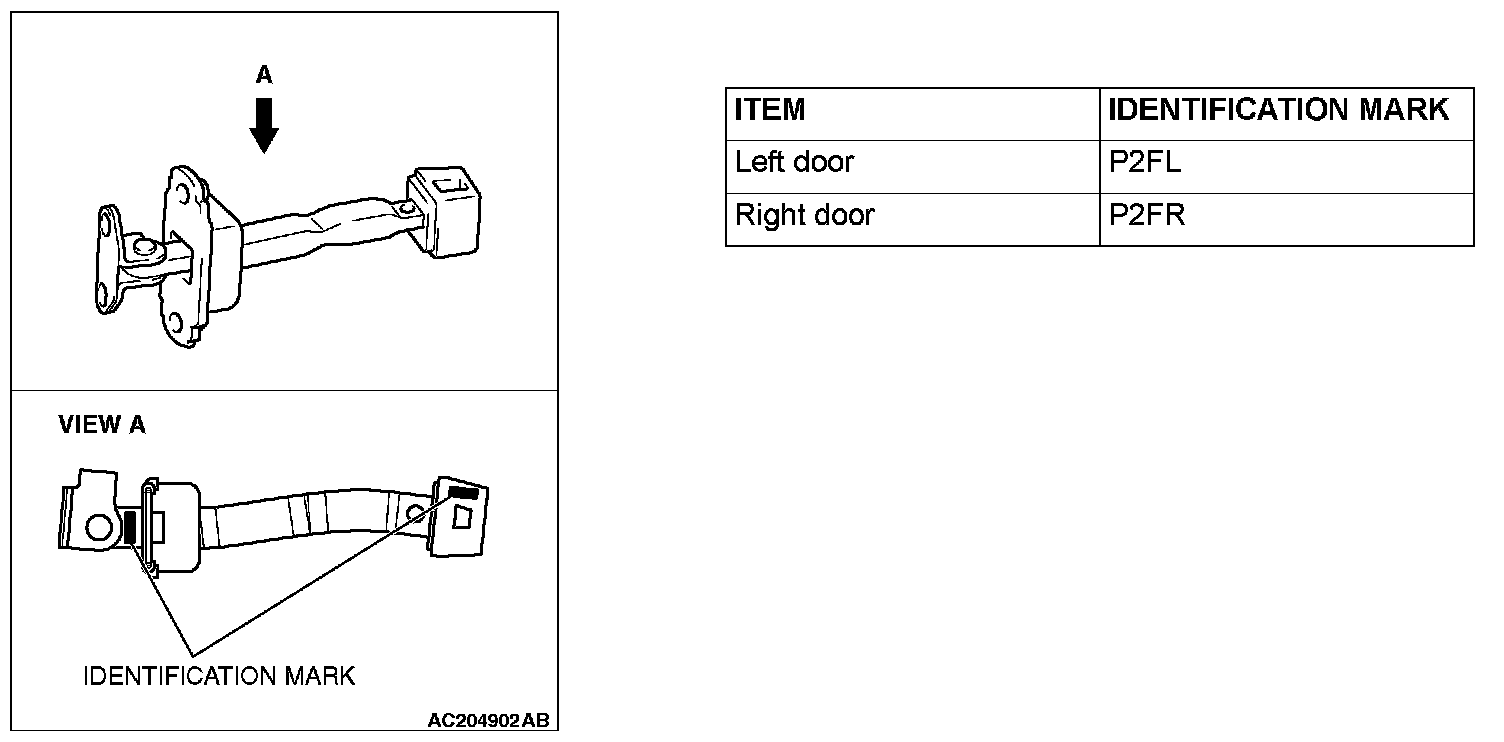

]]A[[ DOOR CHECK INSTALLATION







Install the door check so that the identification mark faces upwards.
