Home >> Mitsubishi >> 2009 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Body and Frame >> Bumper >> Front Bumper >> Service and Repair >> Removal and Replacement

Removal and Replacement

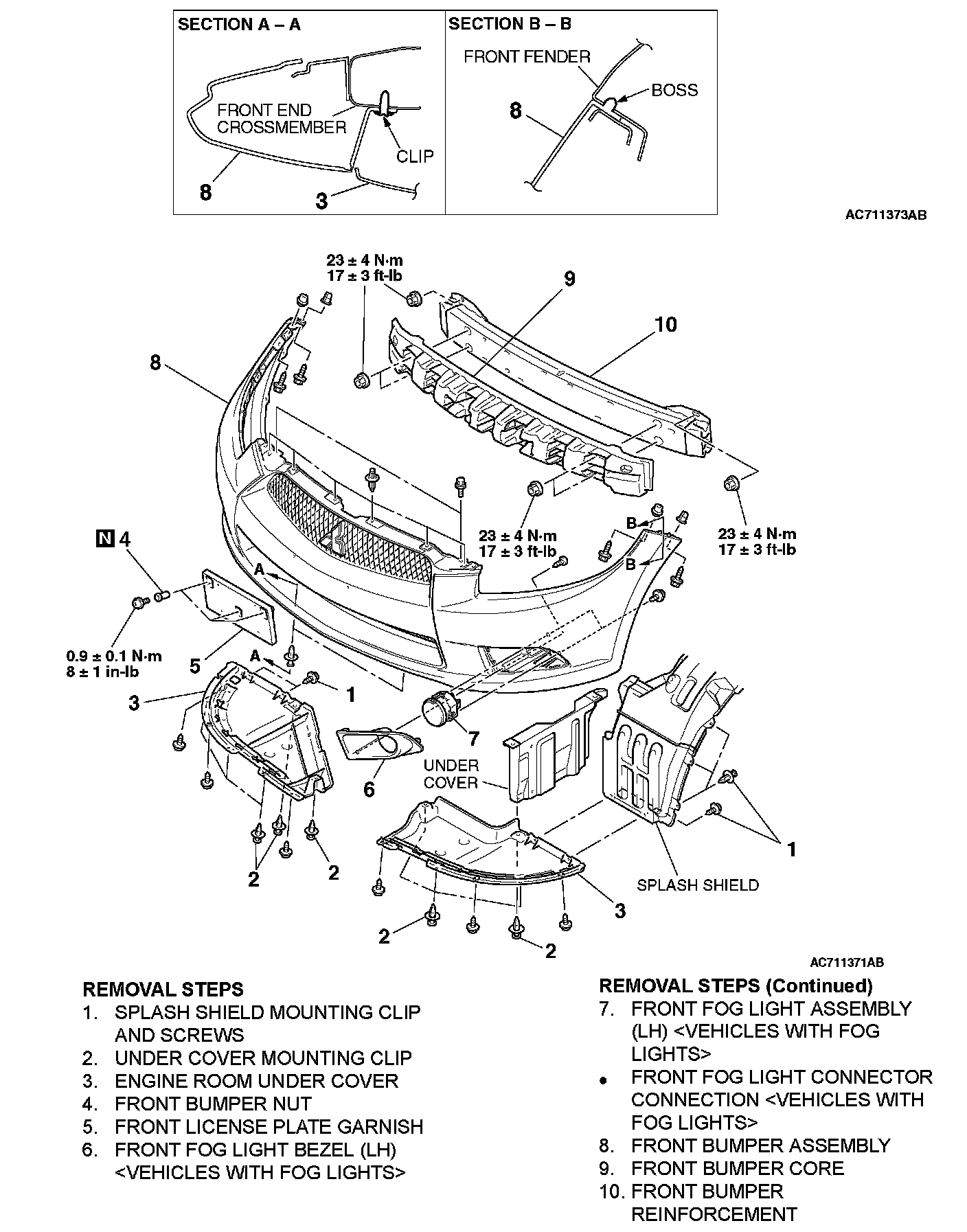

FRONT BUMPER ASSEMBLY AND RADIATOR GRILLE

REMOVAL AND INSTALLATION


Removal Steps 1-10:
