Pinout Values and Diagnostic Parameters

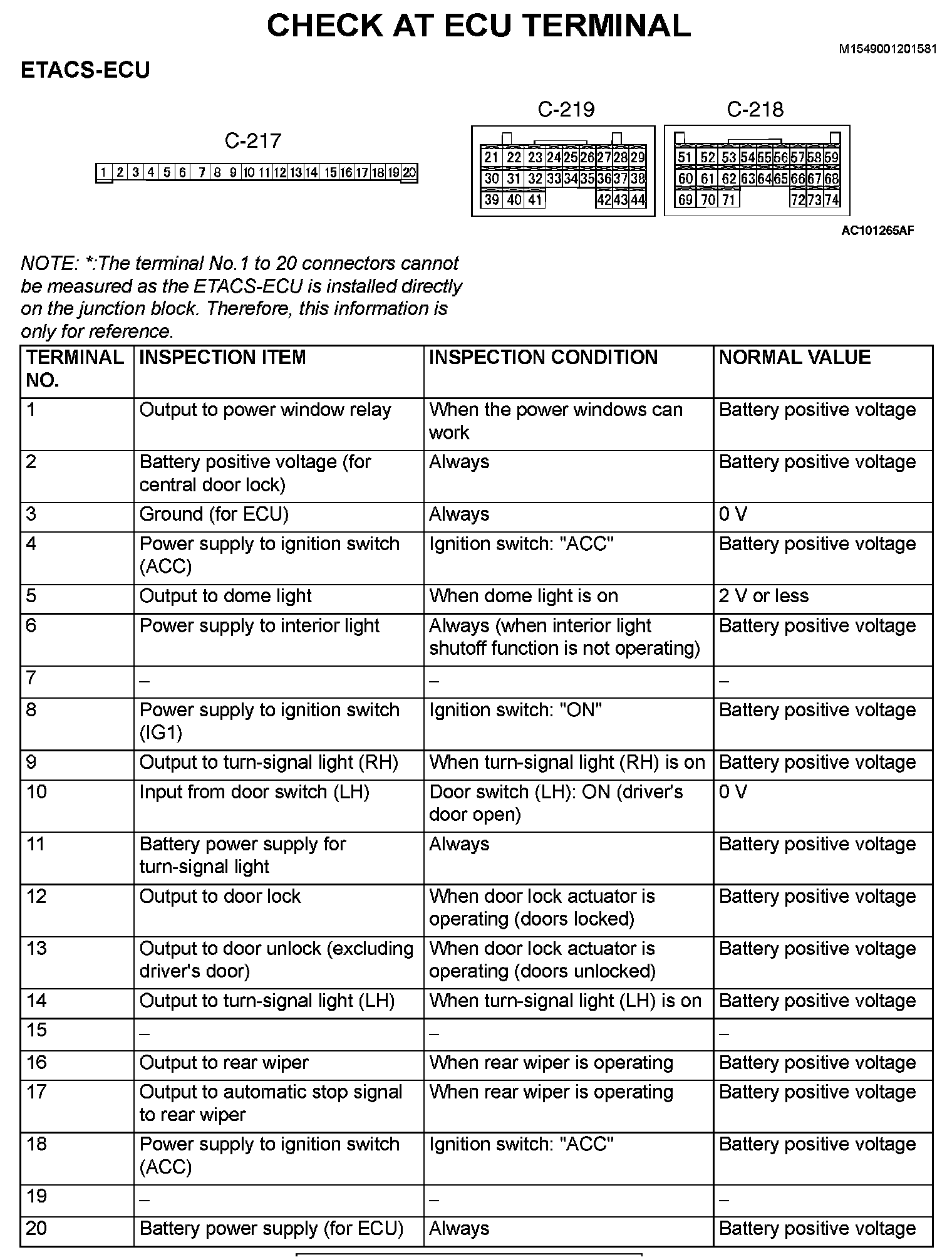

Check At ECU Terminal - ETACS-ECU (Part 1):

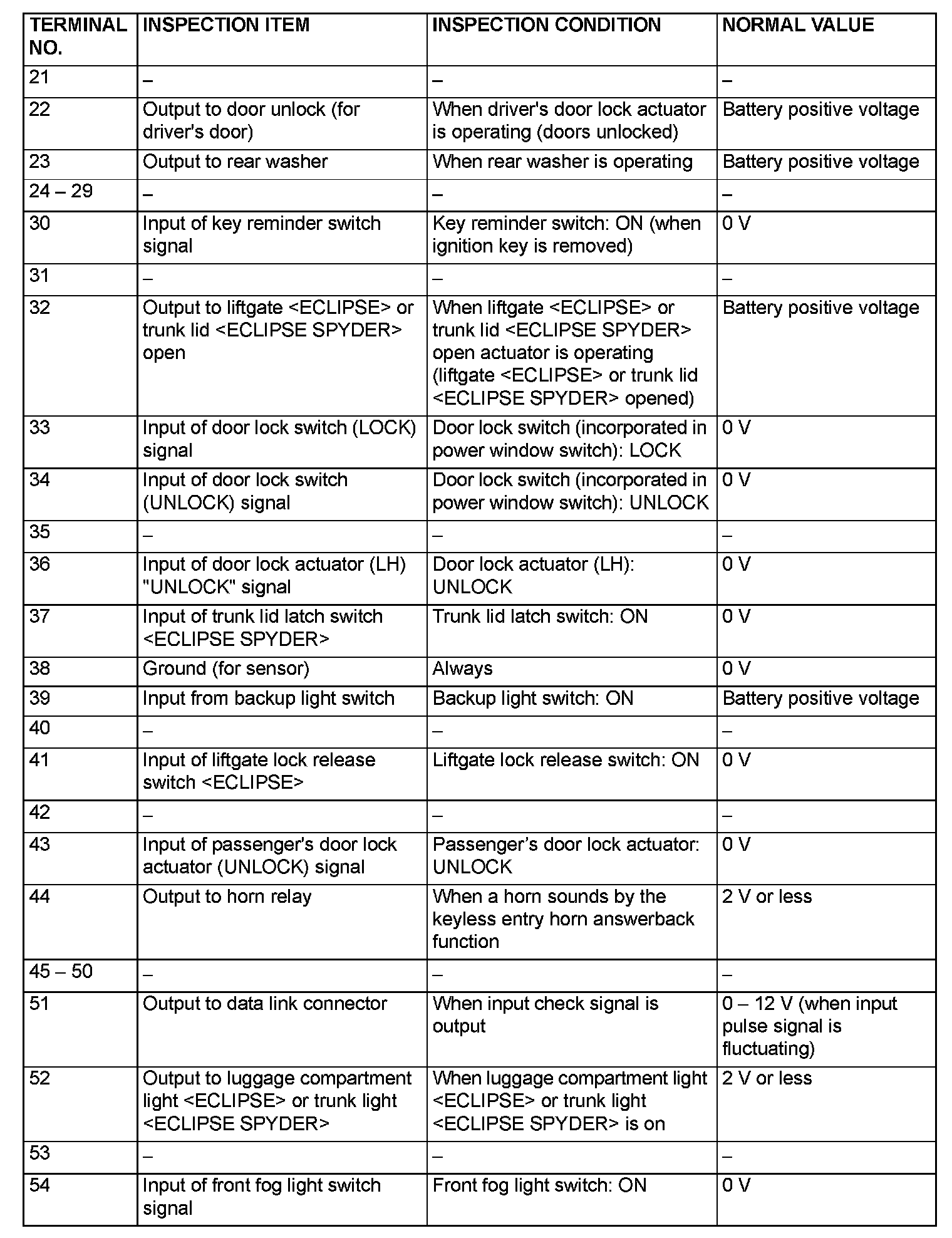

Check At ECU Terminal - ETACS-ECU (Part 2):

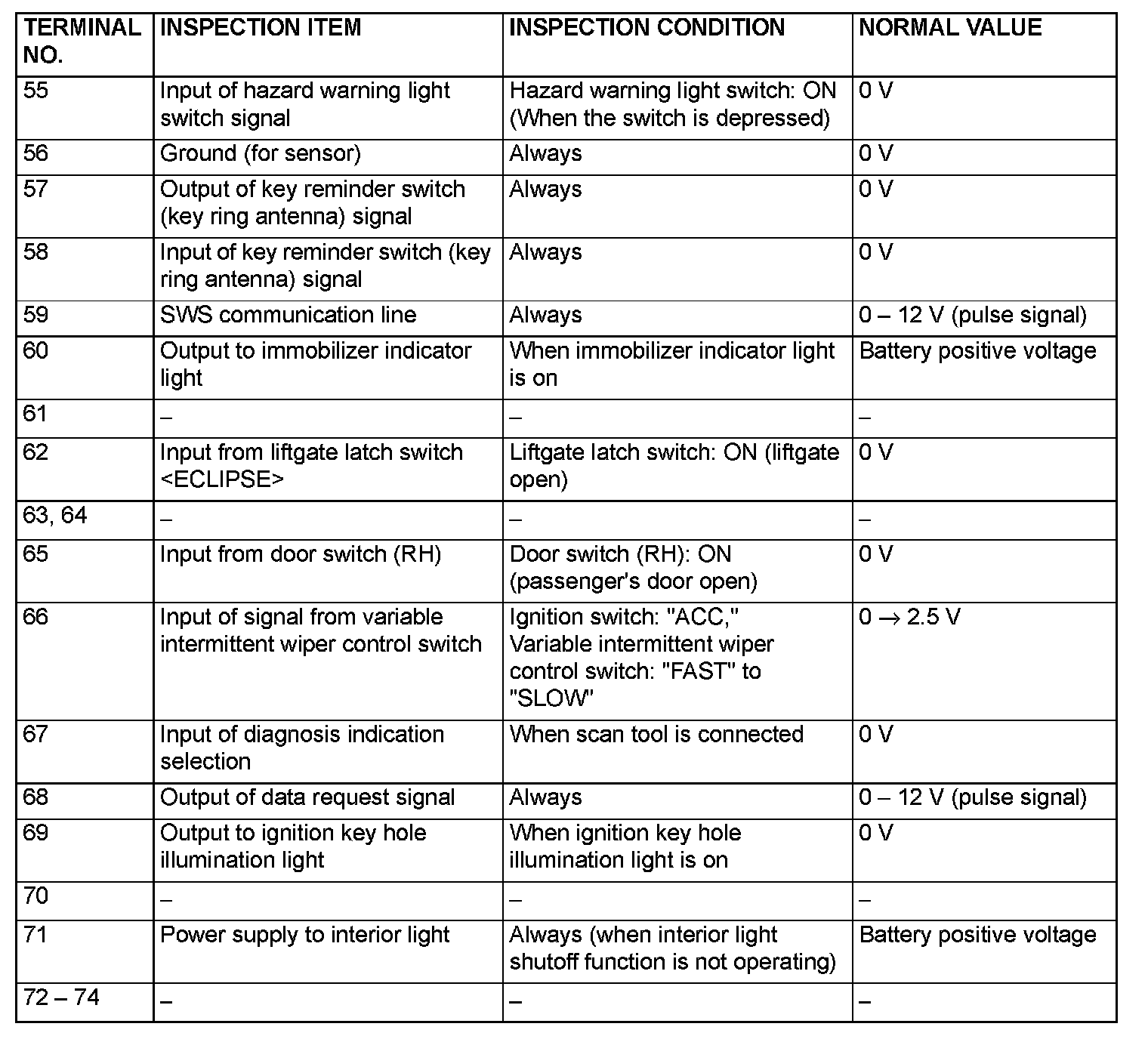

Check At ECU Terminal - ETACS-ECU (Part 3):

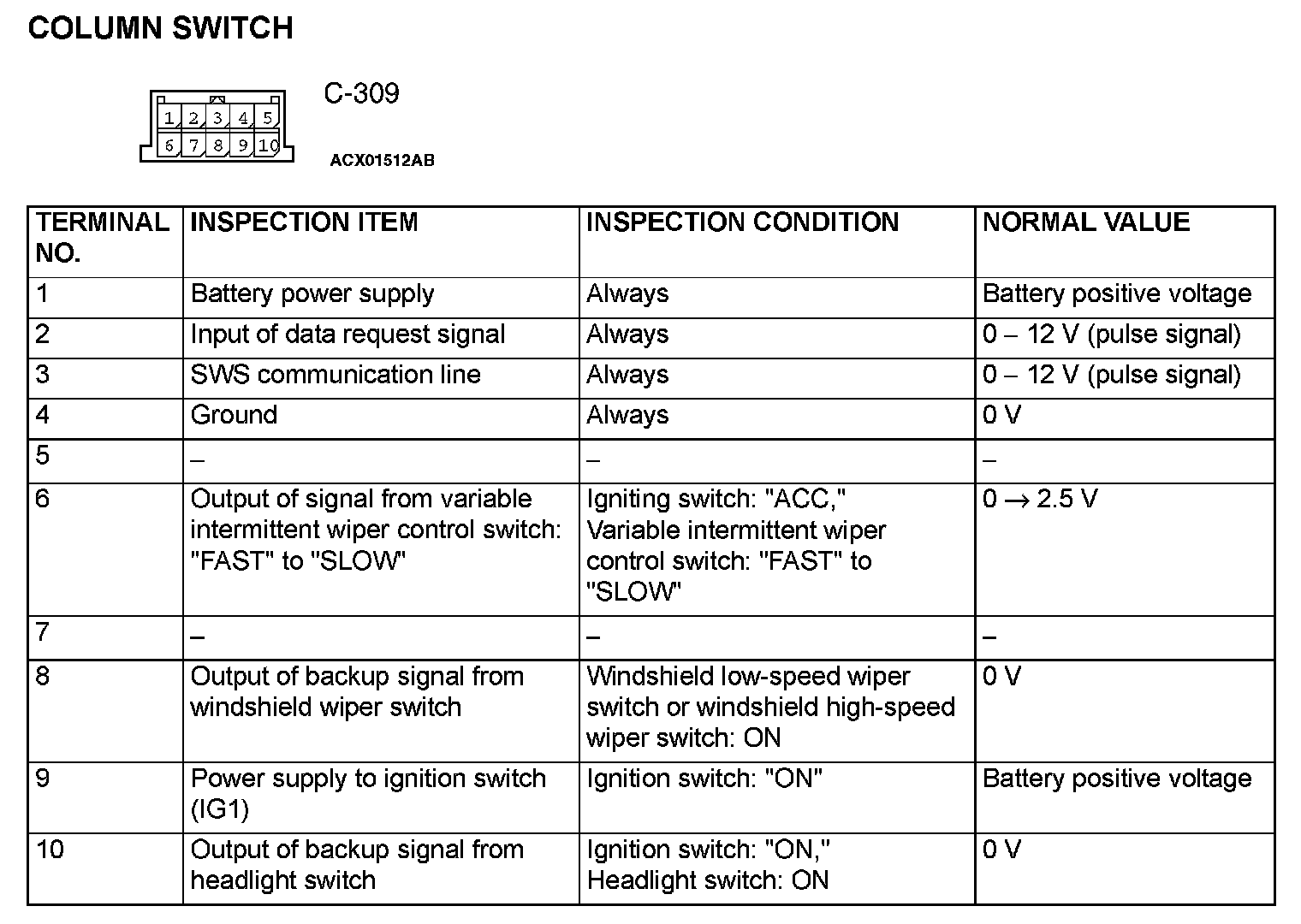

Check At ECU Terminal - Column Switch:

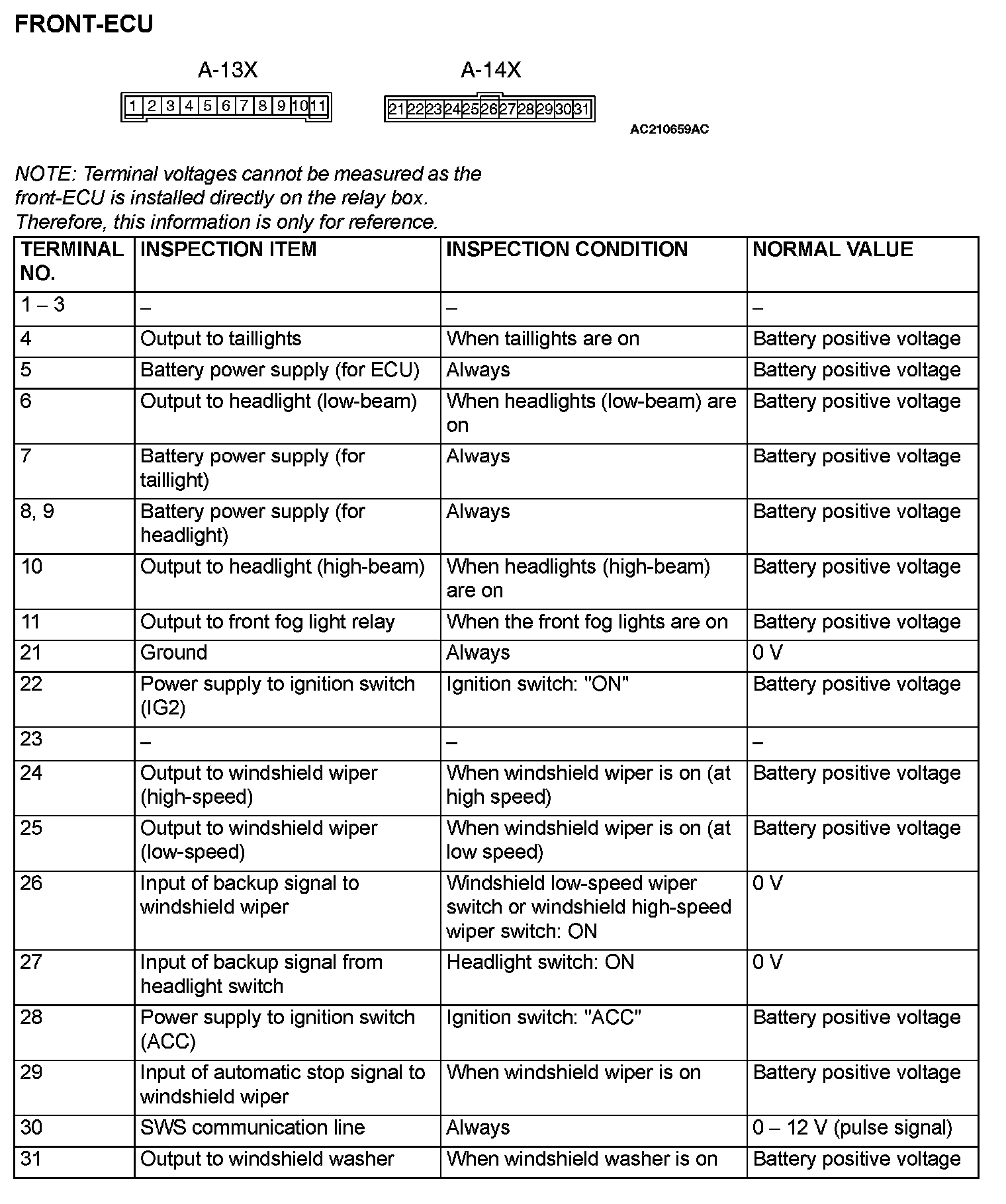

Check At ECU Terminal - Front ECU:

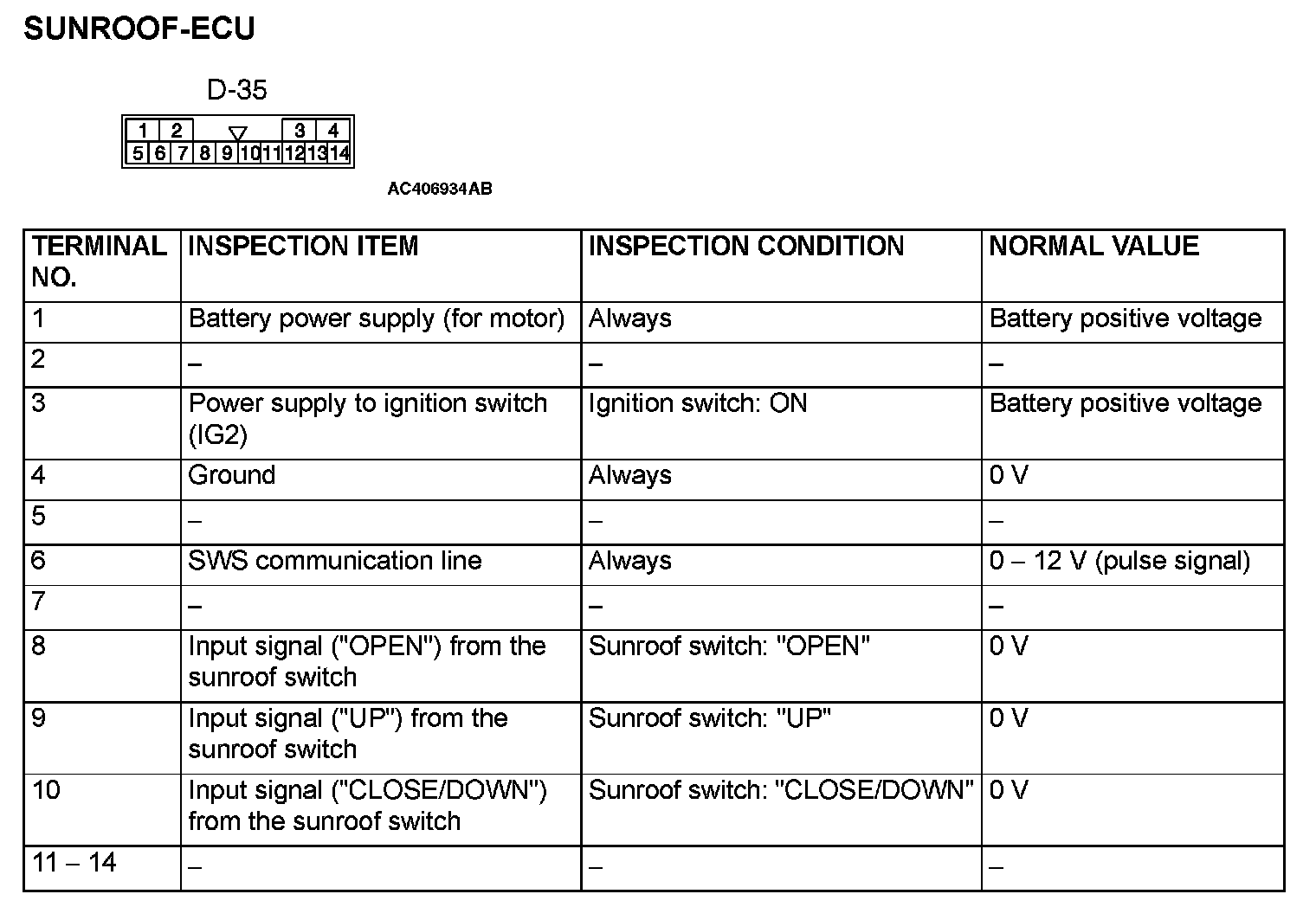

Check At ECU Terminal - Sunroof-ECU:
