Transmitter Battery Check

INSPECTION

TRANSMITTER BATTERY CHECK

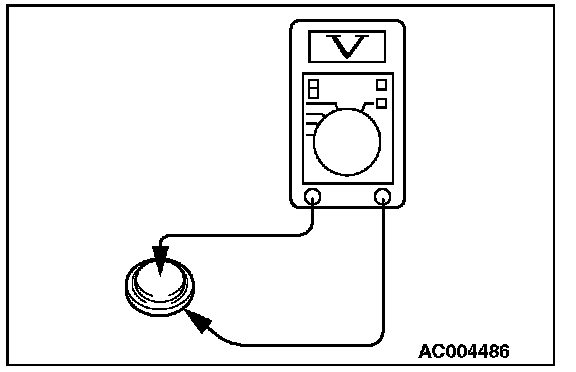

Measure the voltage of the battery. If the voltage of the battery is not within the standard value, replace the battery.

Standard value: 2.5 - 3.2 V
