Radio, Stereo, and Compact Disc: Description and Operation

RADIO WITH CD PLAYER

GENERAL DESCRIPTION

RADIO AND CD PLAYER

There are 2 types of audio system as follows.

[STANDARD AUDIO SYSTEM]
- 1-disk CD player for MP3/CD-R/CD-RW
- AM/FM electronic tuning radio
- MAX output: 140W

[PREMIUM AUDIO SYSTEM]
- Rockford Fosgate audio system.
- CD player (with 6-disk CD changer incorporated) for MP3/CD-R/CD-RW with sound quality adjustment functions by digital signal processor (DSP)
- AM/FM electronic tuning radio
- Audio amplifier
- SIRIUS satellite radio [Vehicles with satellite radio tuner]
- MAX output: 650W
- Steering wheel with remote control radio switches

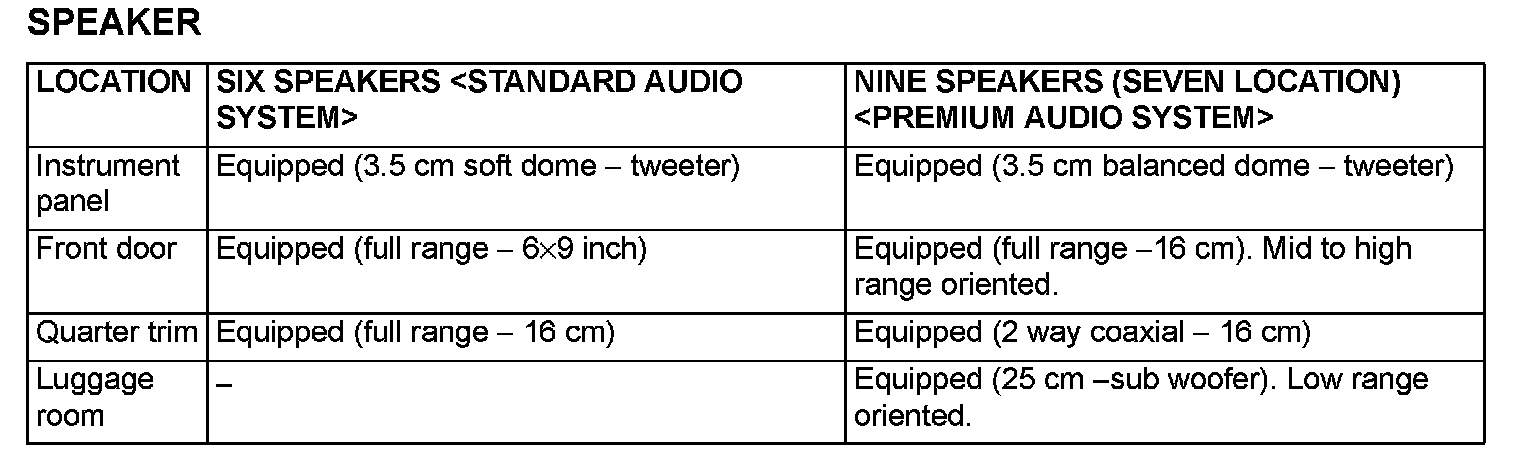

Speaker:
