Intersystem Affiliated DTC Reference Table

INTERSYSTEM AFFILIATED DTC REFERENCE TABLE
For vehicles with CAN, when DTC which influences the transmission data is set to the ECU which sends the data, DTC also could be set to the ECU which receives and controls the transmission data.
The table below shows the relativity of DTC between ECUs. In addition, the alphabet shows the following DTC
^ A: TCL - DTC No. U1073 U1073
^ B: TCL - DTC No. U1120 U1120
^ C: Air conditioner - DTC No. U1120
^ D: SWS - DTC No. U1128

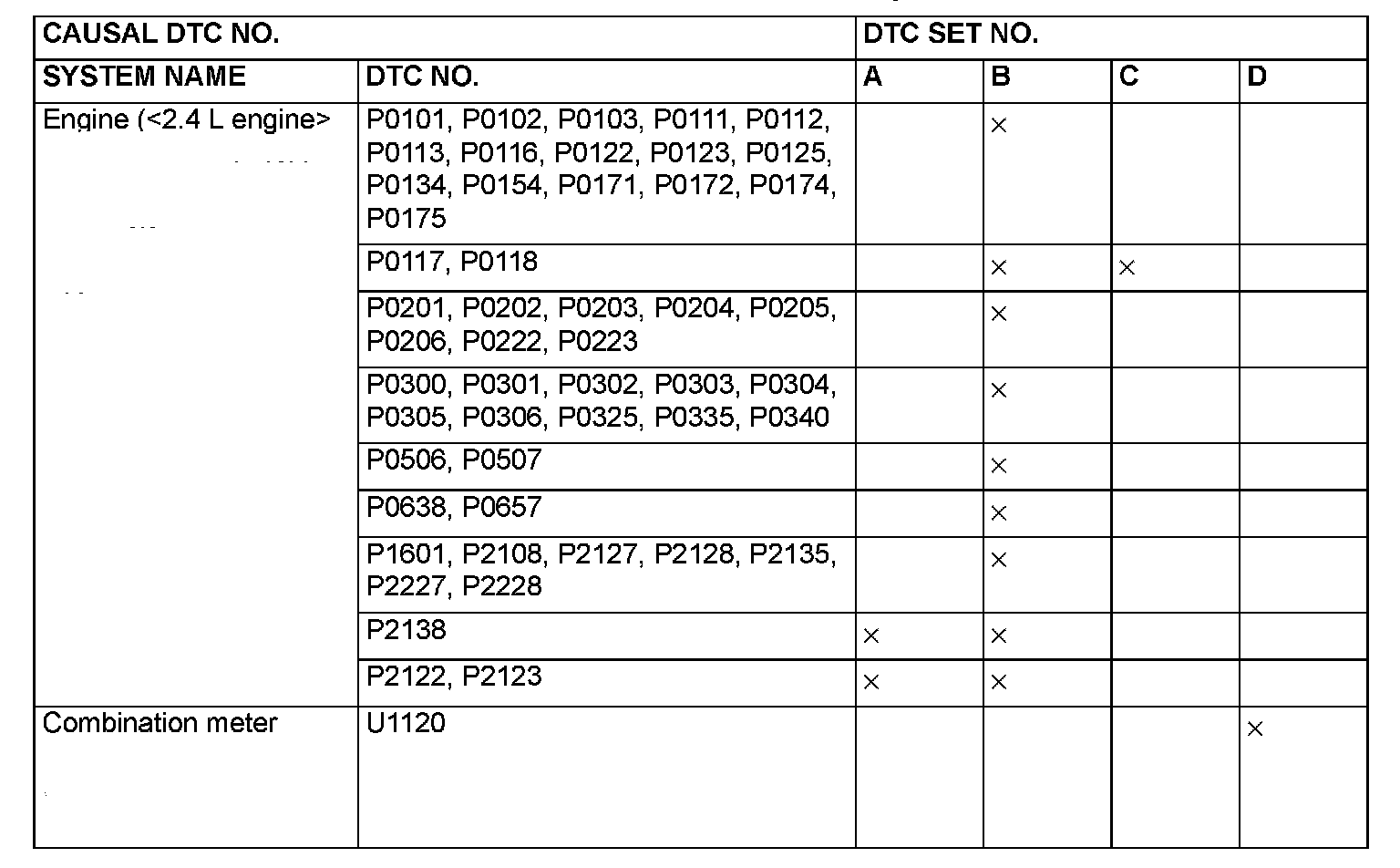

DTC REFERENCE TABLE:
