Washer System Inspection

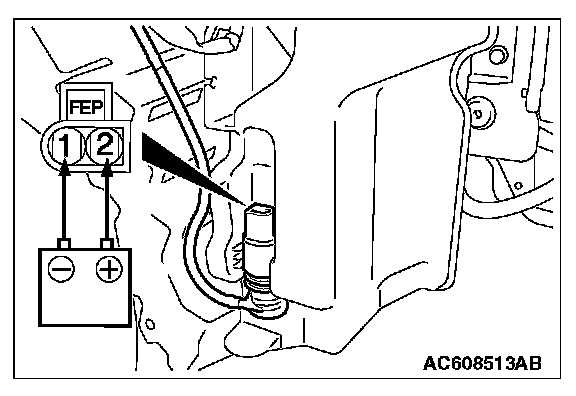

WINDSHIELD WASHER MOTOR CHECK

1. Remove the washer tank assembly with the washer hose attached. Then fill the washer tank with water.






2. Check to see that the water is vigorously sprayed when connecting the positive battery terminal to terminal number 2 and terminal number 1 to ground.

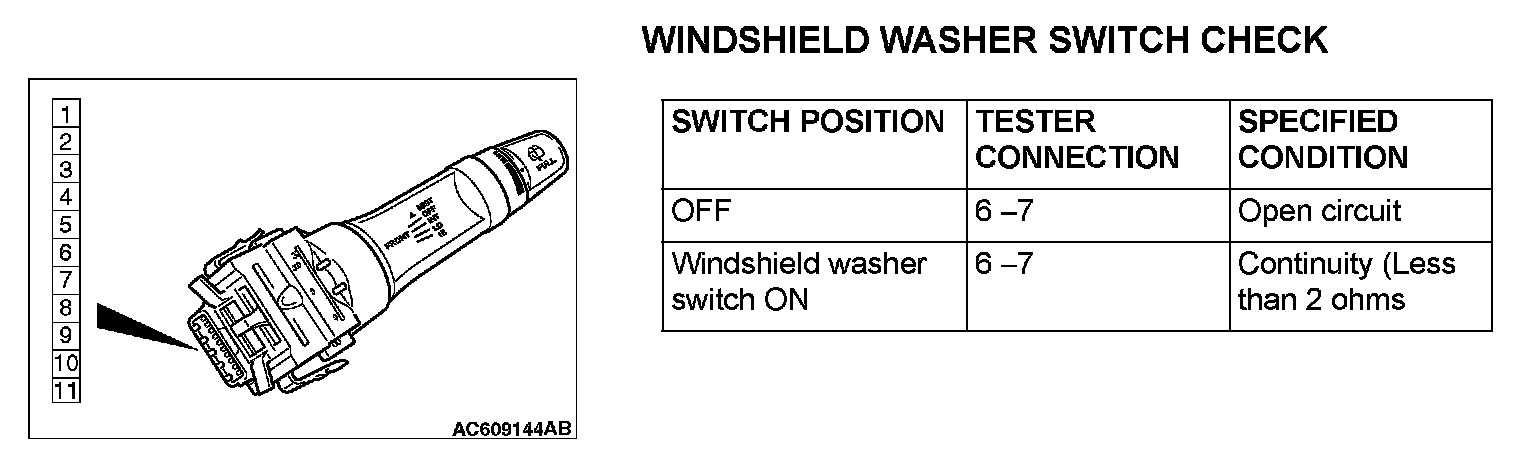

WINDSHIELD WASHER SWITCH CHECK

Windshield Washer Switch Check:

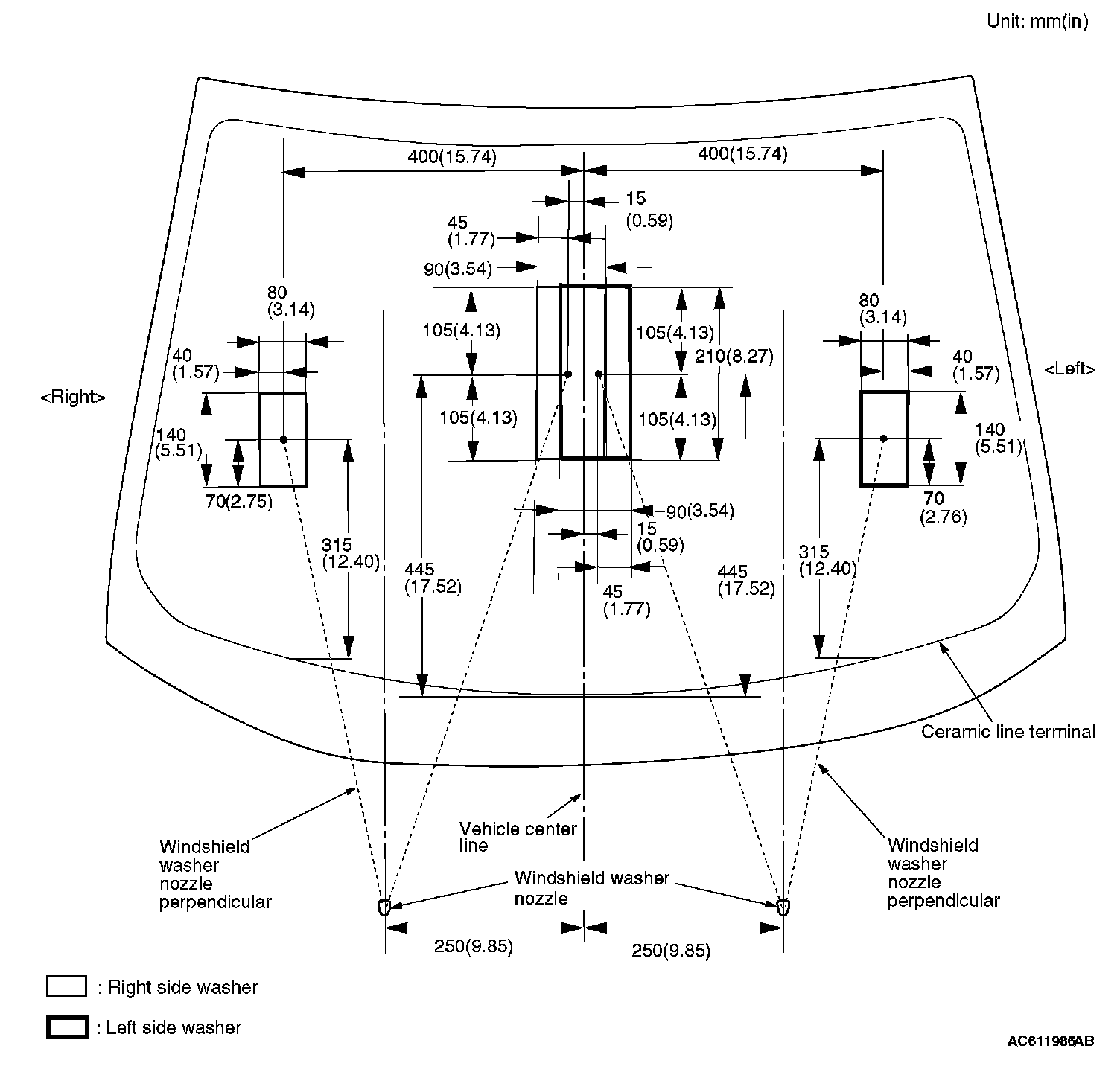

WINDSHIELD WASHER FLUID EJECTION CHECK






Move the nozzle to adjust the position so that the spray is in area shown in the area shown in the illustration.
