Wipers/Washers - Revised Wiper Motor Internal Circuit
No: TSB-09-51-001DATE: August, 2009
MODEL: 2007-09 Outlander, 2008-09 Lancer
SUBJECT:
WINDSHIELD WIPER INSPECTION PROCEDURES CORRECTED - SERVICE MANUAL REVISION
[TSB Revision: TSB-09-51-001]
PURPOSE
The windshield wiper motor internal circuit is incorrect in the affected service manuals. This TSB provides the correct windshield wiper motor internal circuit diagrams.
AFFECTED VEHICLES
2007-09 Outlander
2008-09 Lancer
AFFECTED SERVICE MANUALS
2007 Outlander pages P51B-13, 51B-20, 90-153
2008 Outlander pages 51-28, 51-35
2009 Outlander pages 51-31, 51-38
2009 Outlander Web Service Manual Data

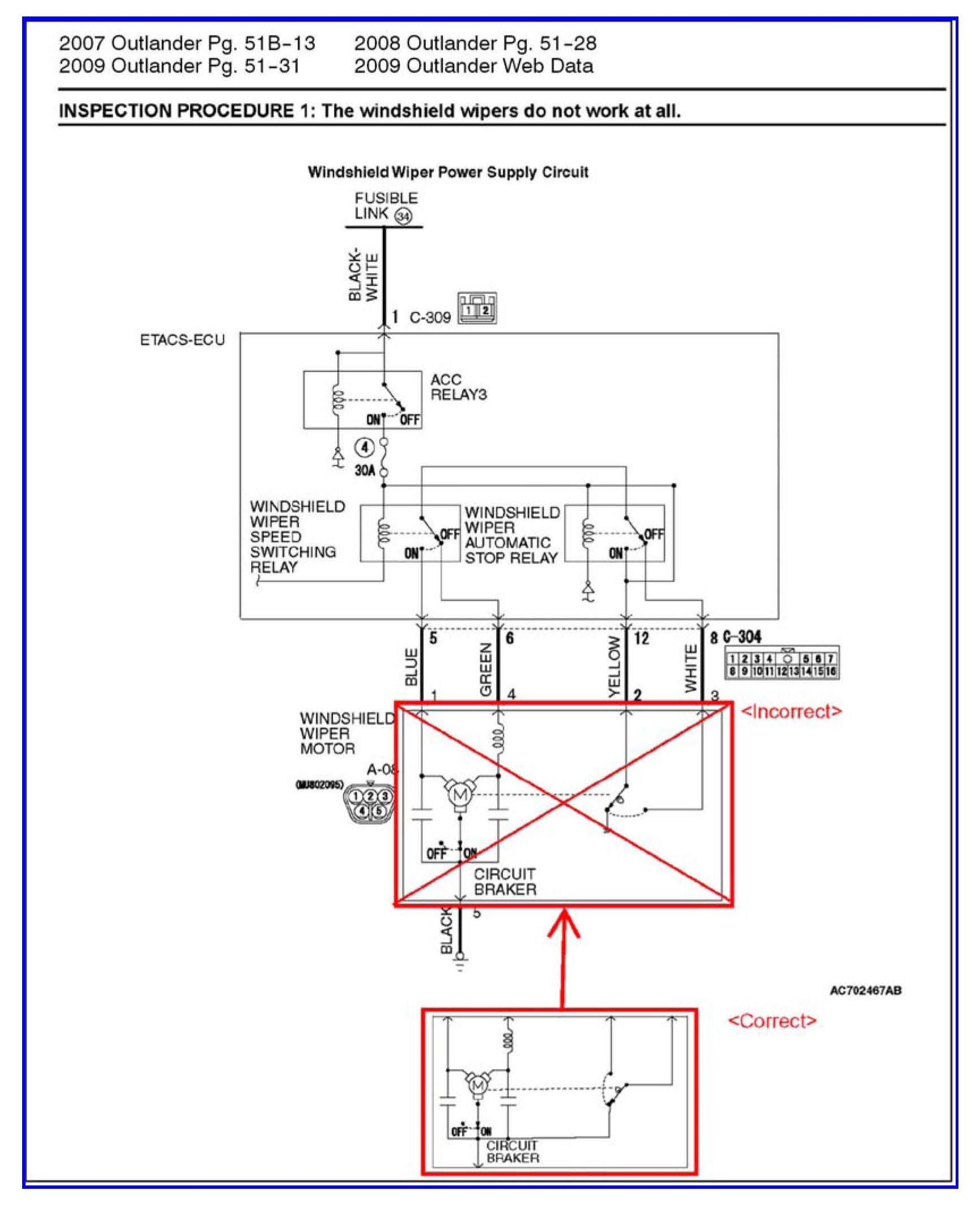

^ Inspection Procedure 1 - The windshield wipers do not work at all.

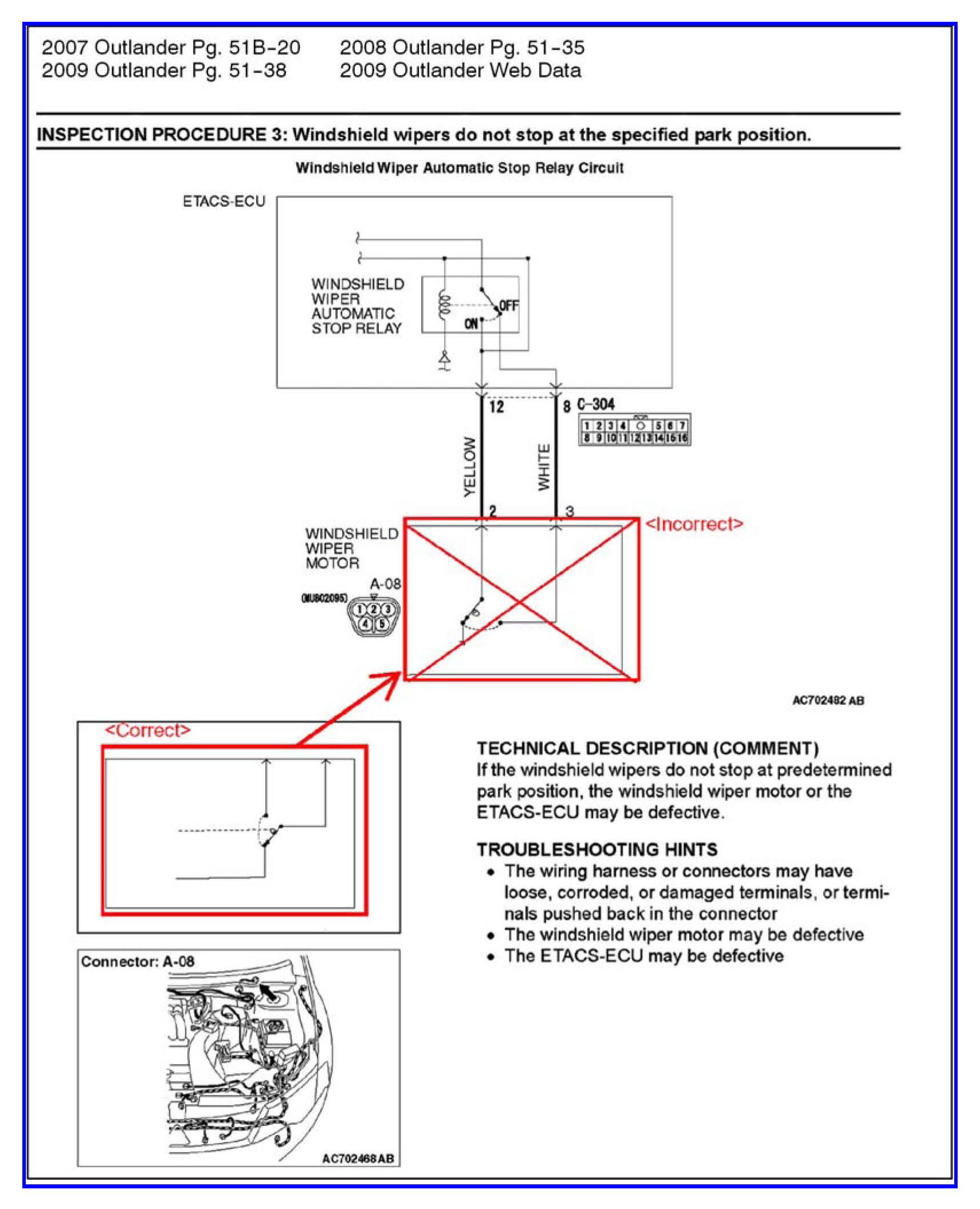

^ Inspection Procedure 3 - Windshield wipers do not stop at the specified park position.

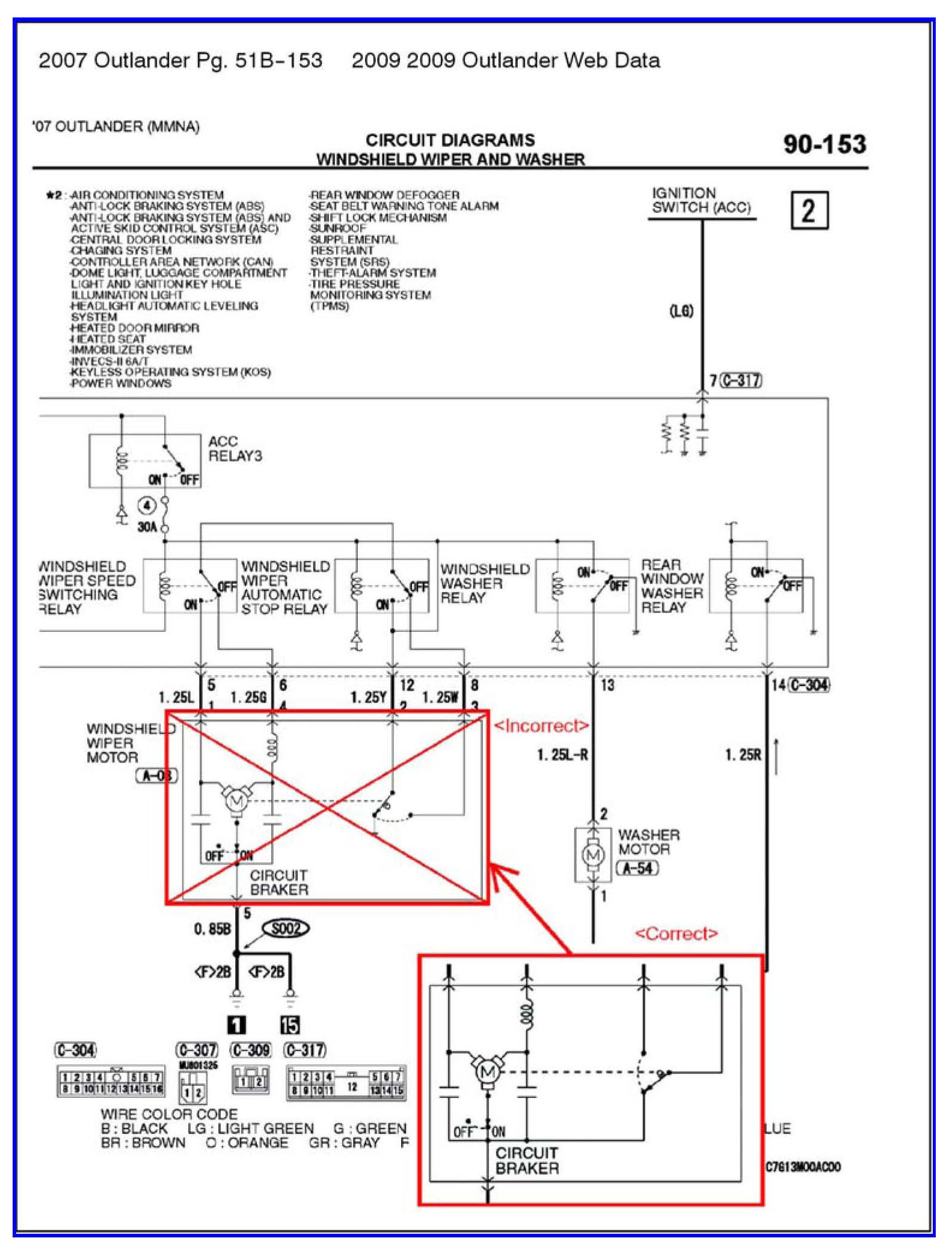

^ Windshield Wiper and Washer - Circuit Diagram
2008 Lancer pages 51-23, 51-31, 90-159
2009 Lancer Web Service Manual Data

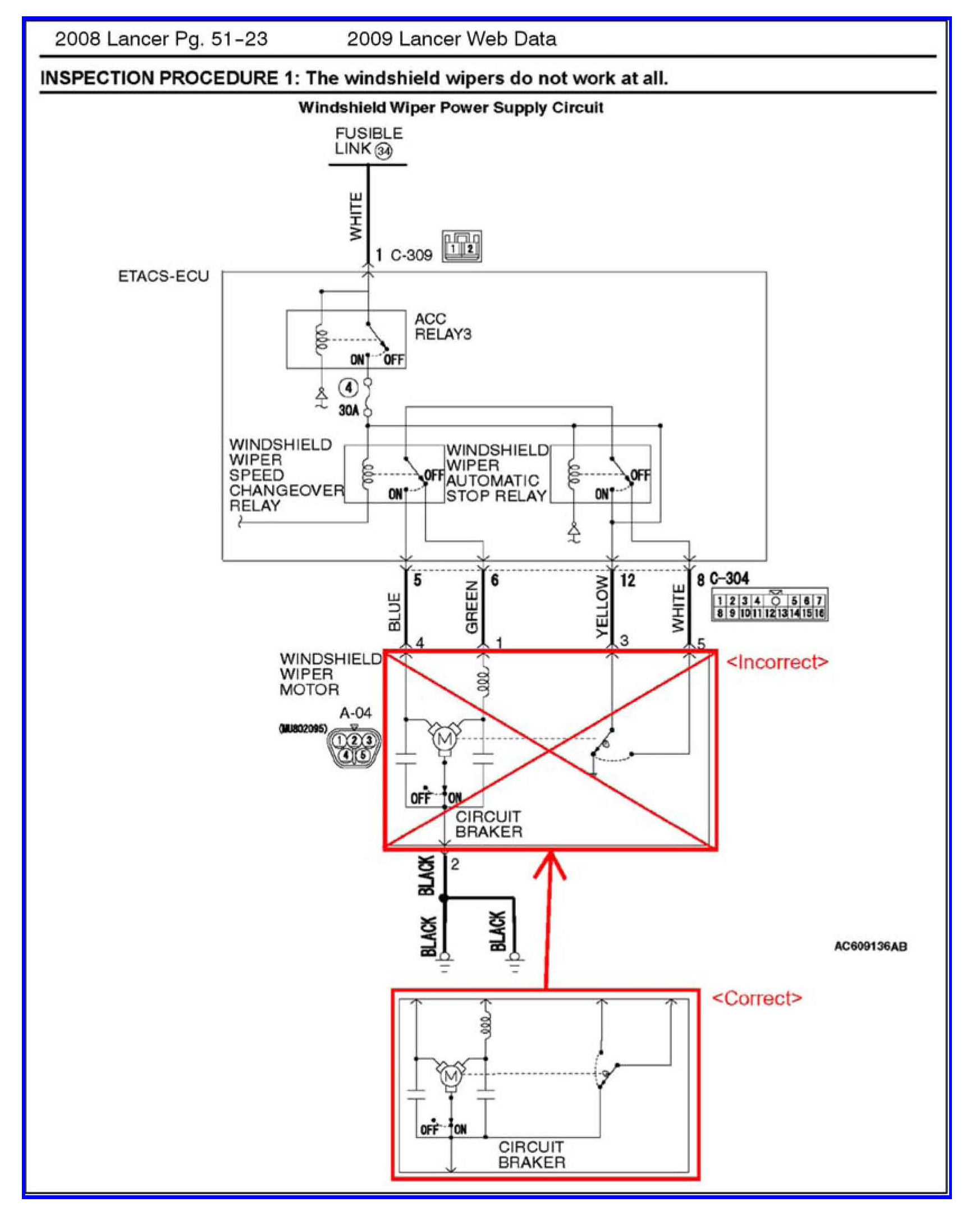

^ Inspection Procedure 1 - The windshield wipers do not work at all.

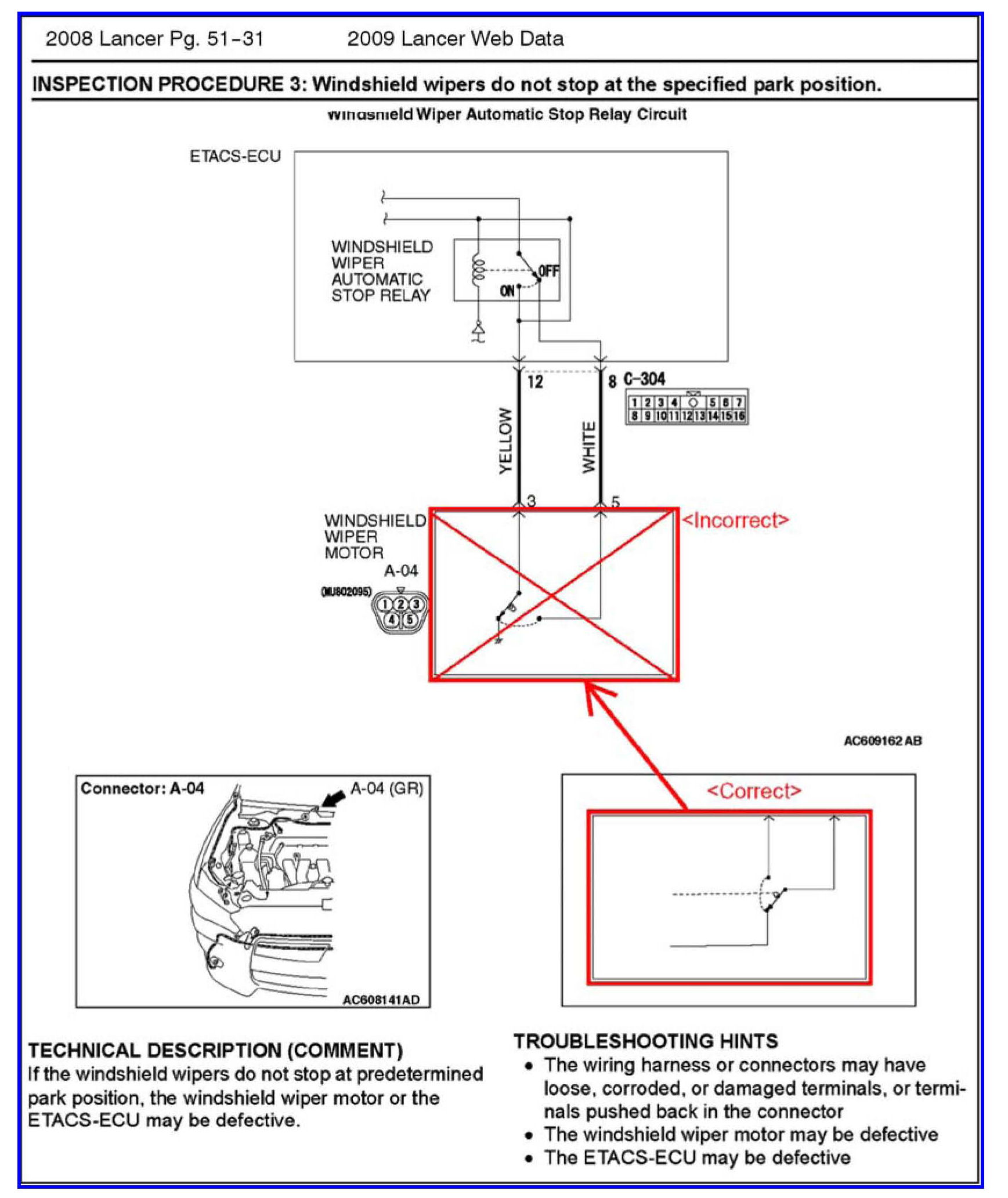

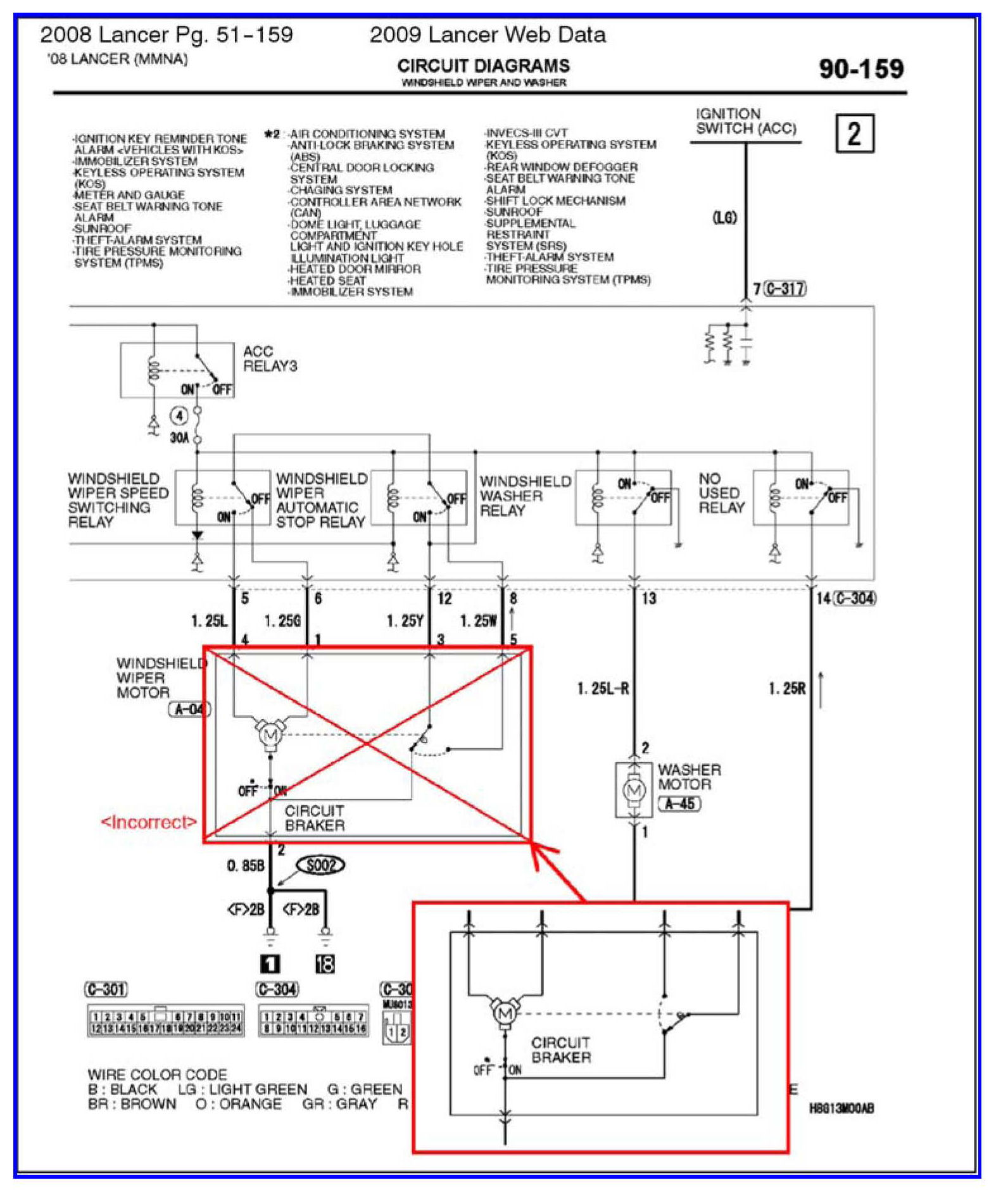

^ Inspection Procedure 3 - Windshield wipers do not stop at the specified park position. Windshield Wiper and Washer - Circuit Diagram
