Windshield Washer

WINDSHIELD WASHER

REMOVAL AND INSTALLATION

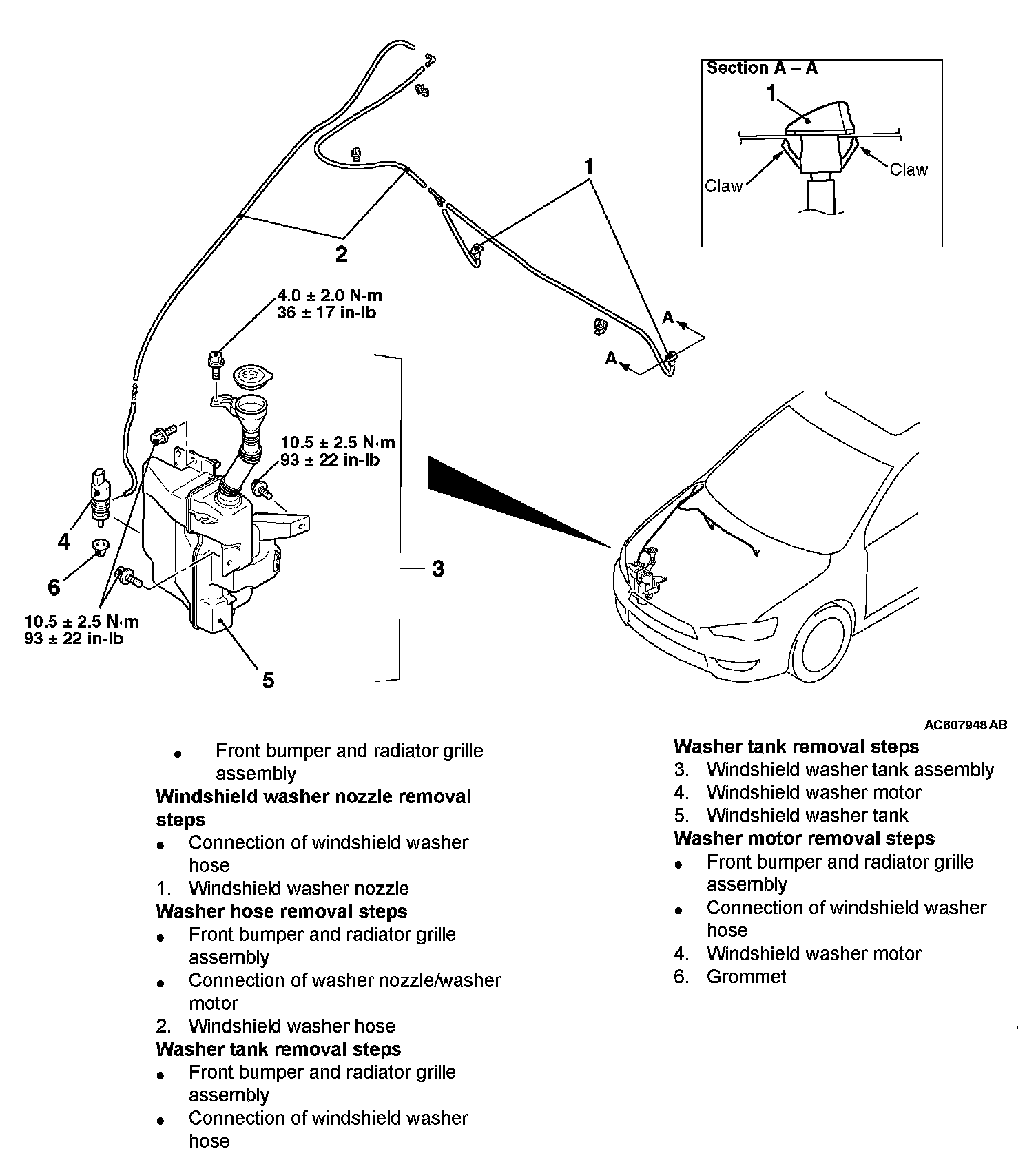

Removal Steps 1 - 6:






NOTE: For removal and installation of the wiper and washer switch, refer to Chassis Electrical, Column switch.
