Windshield Wiper and Washer General Description

GENERAL DESCRIPTION CONCERNING THE WINDSHIELD WIPER AND WASHER

The following ECUS affect the functions and control of the windshield wiper and washer.

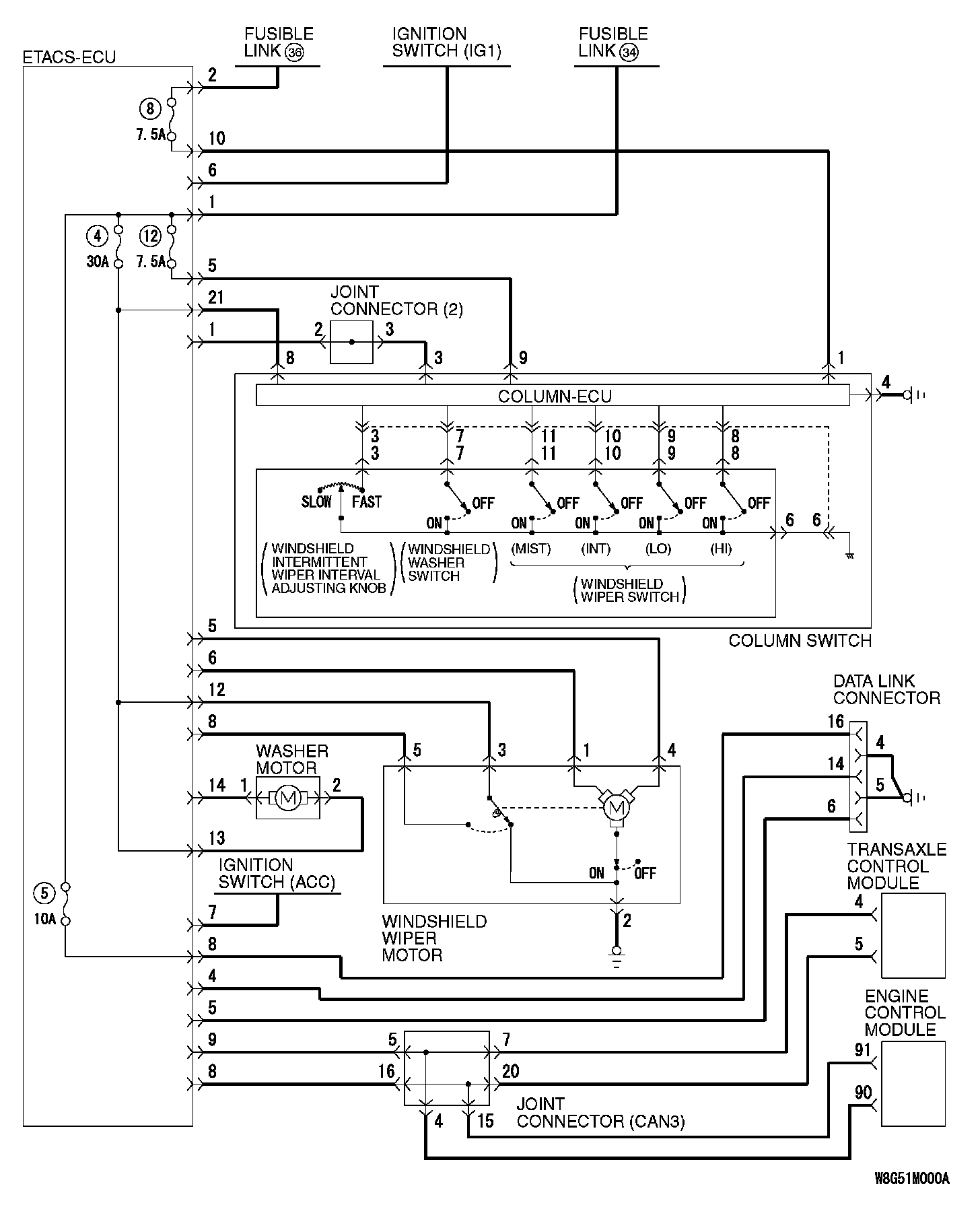

General Circuit Diagram For the Windshield Wiper and Washer

General Circuit Diagram For The Windshield Wiper And Washer:
