M/T - Revised Input Shaft Bearing Service Procedures

No: TSB 08-00-008

TSB: April, 2008

MODEL: 2009-09 Lancer

Subject:
INPUT SHAFT ROLLER BEARING SPECIAL TOOLS & REPLACEMENT - SERVICE MANUAL REVISION

PURPOSE

New Special Tools have been established relating to the disassembly and reassembly of the input shaft cylindrical roller bearings. This TSB introduces those Special Tools and adds the disassembly and reassembly procedures for the roller bearing in the applicable service manuals.

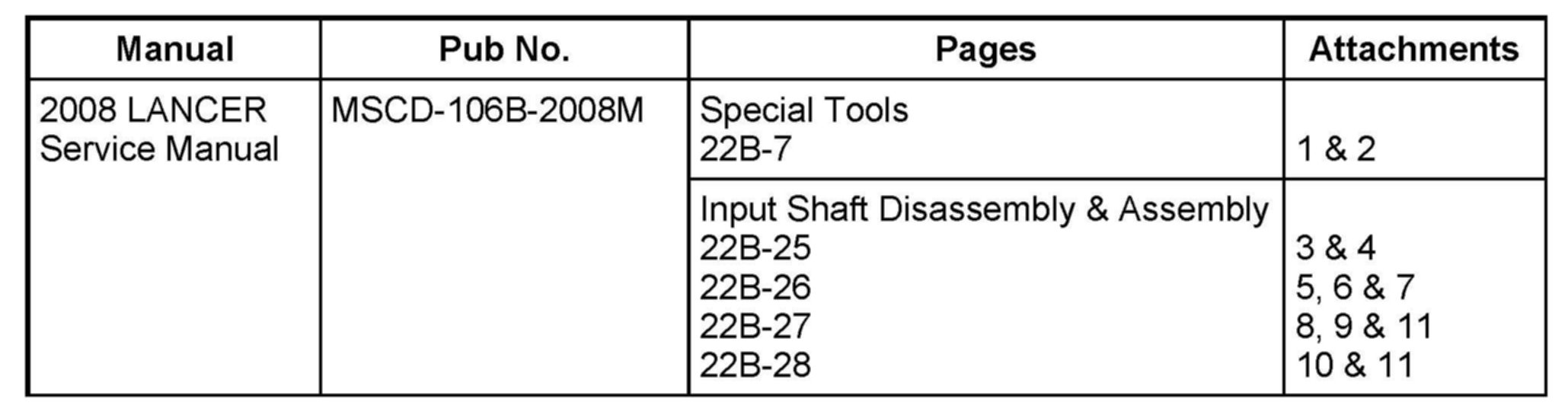

AFFECTED SERVICE MANUALS

CORRECTIONS & ADDITIONS

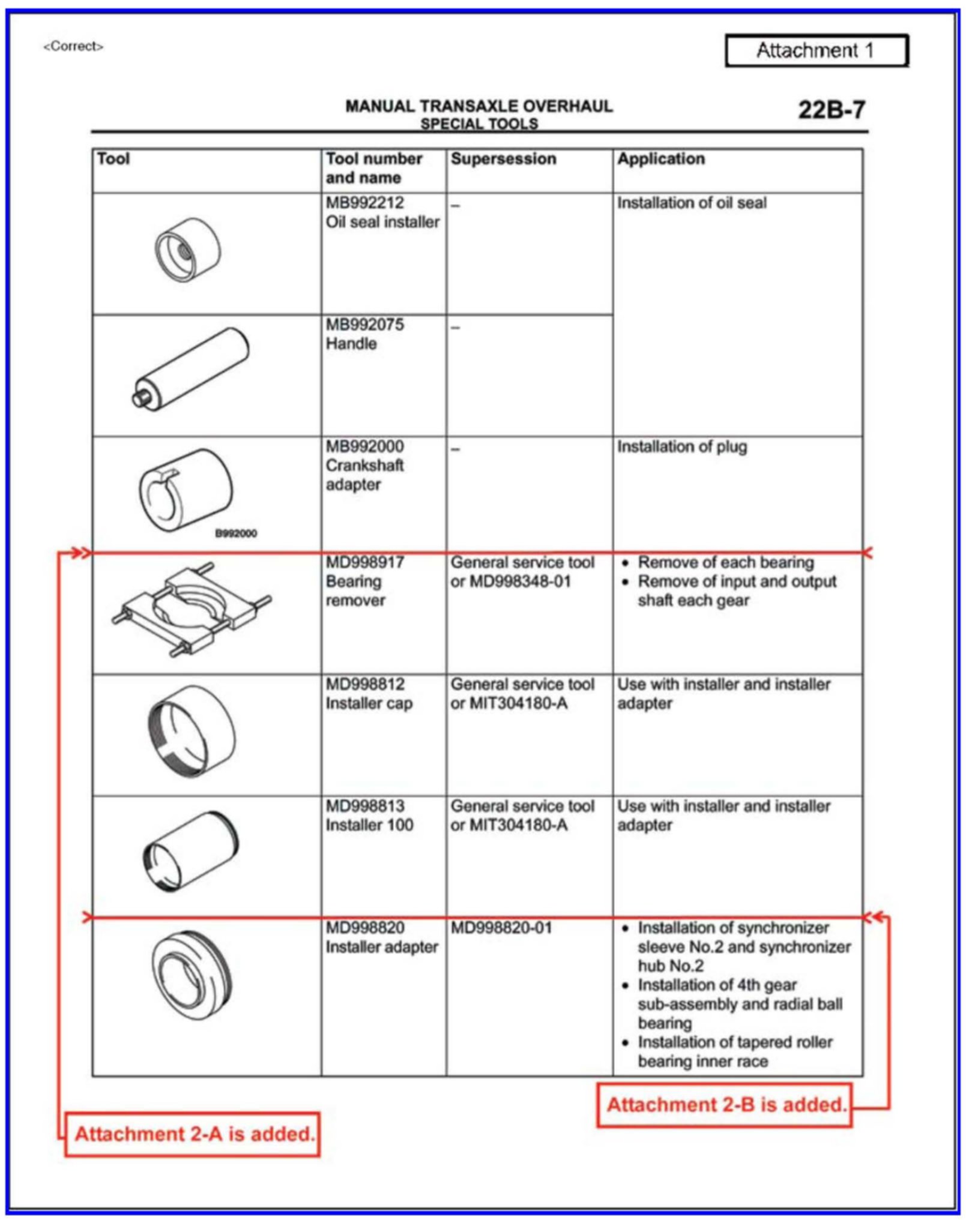

Attachment 1 & 2 - Page 22B-7 Special Tools

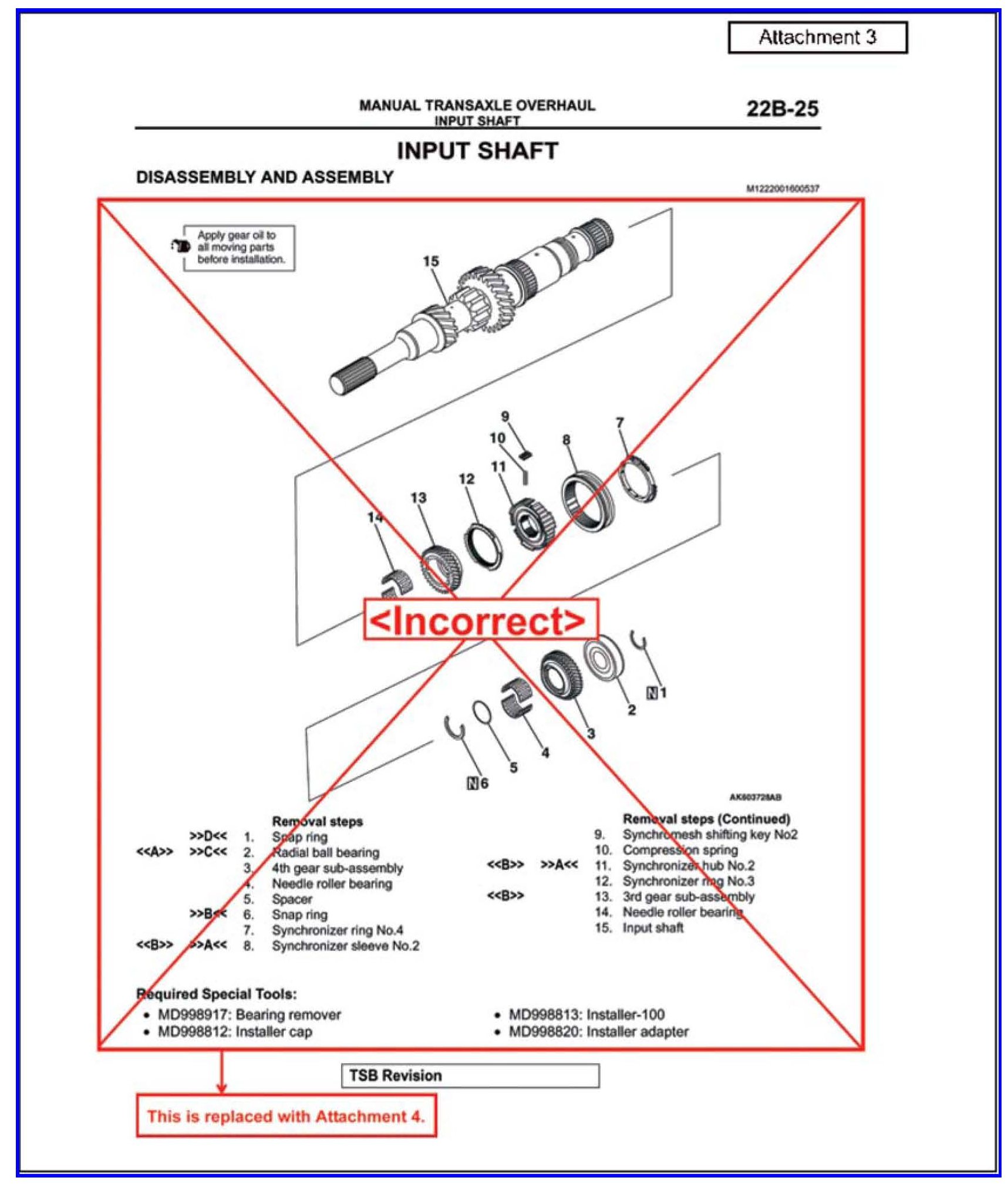

Attachment 3 - Page 22B-25

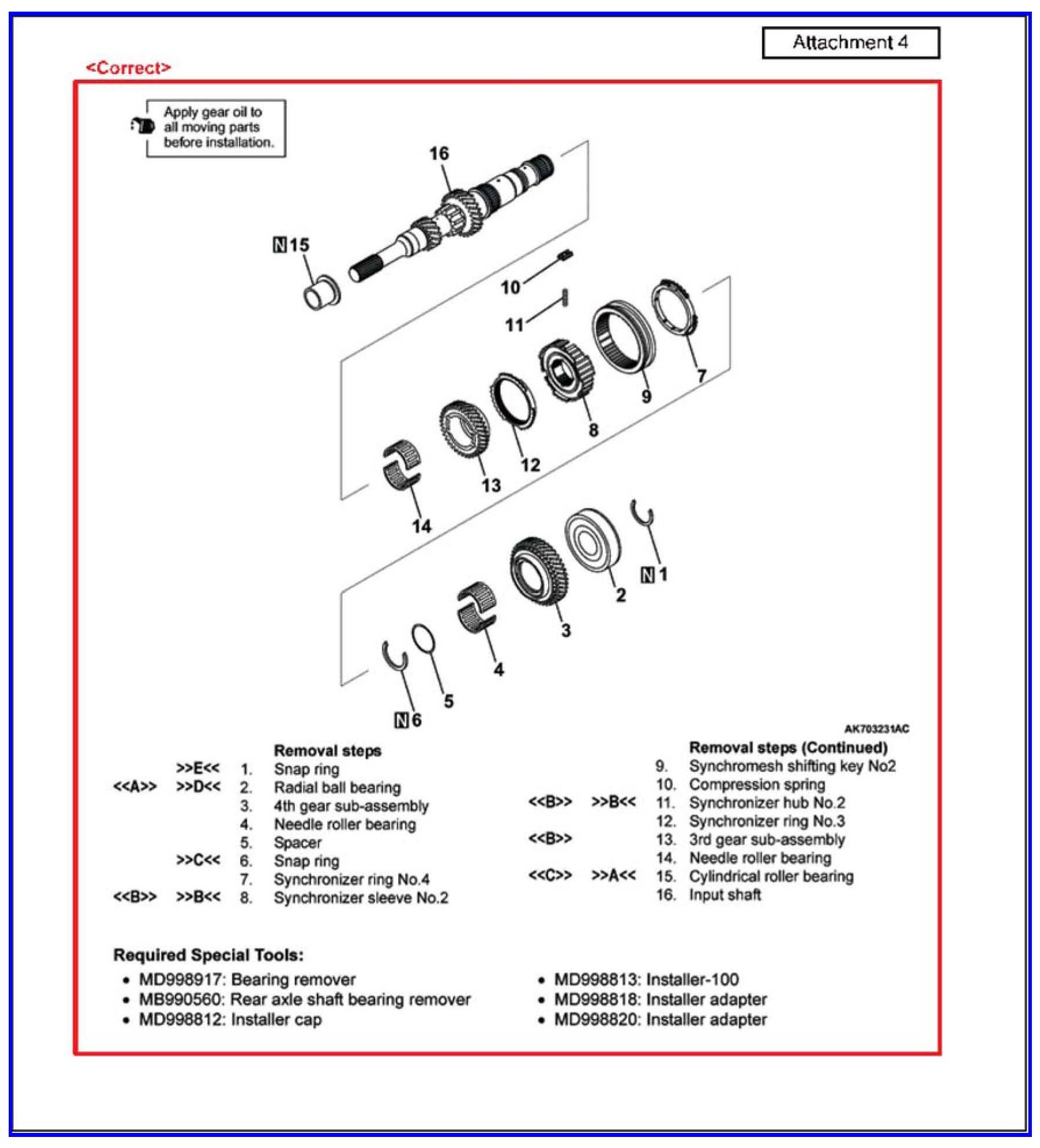

Attachment 4

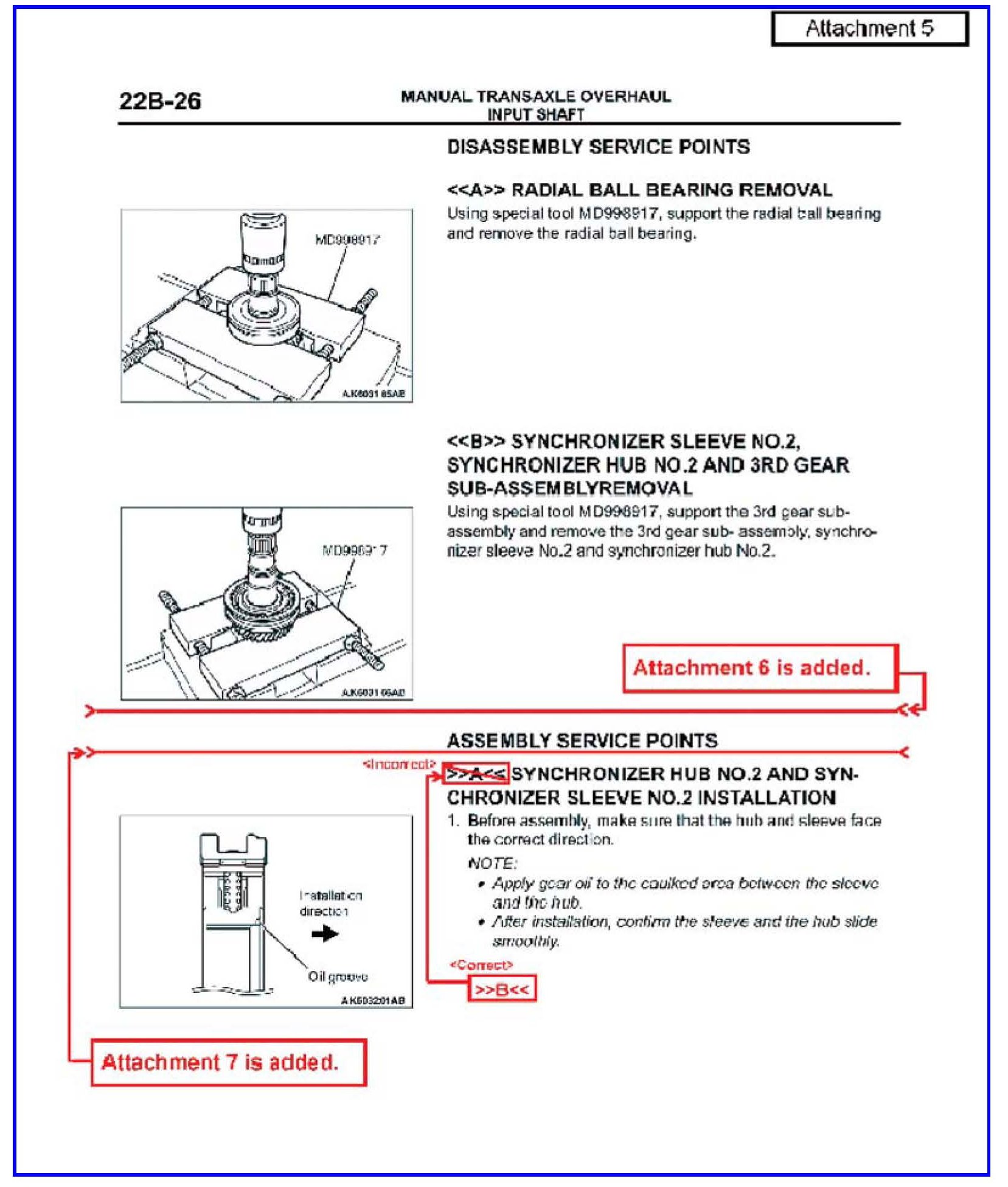

Attachment 5 - Page 22B-26

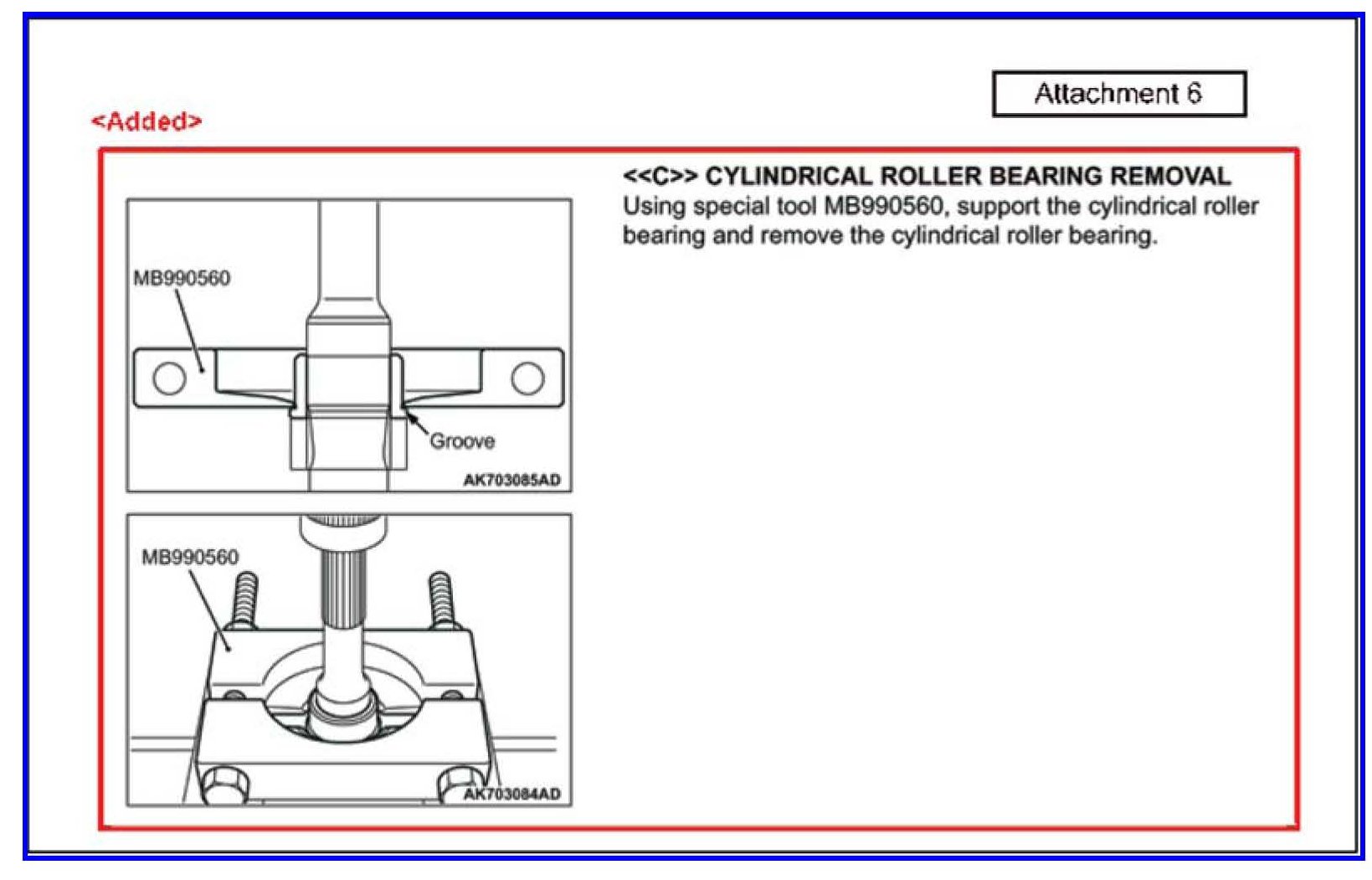

Attachment 6

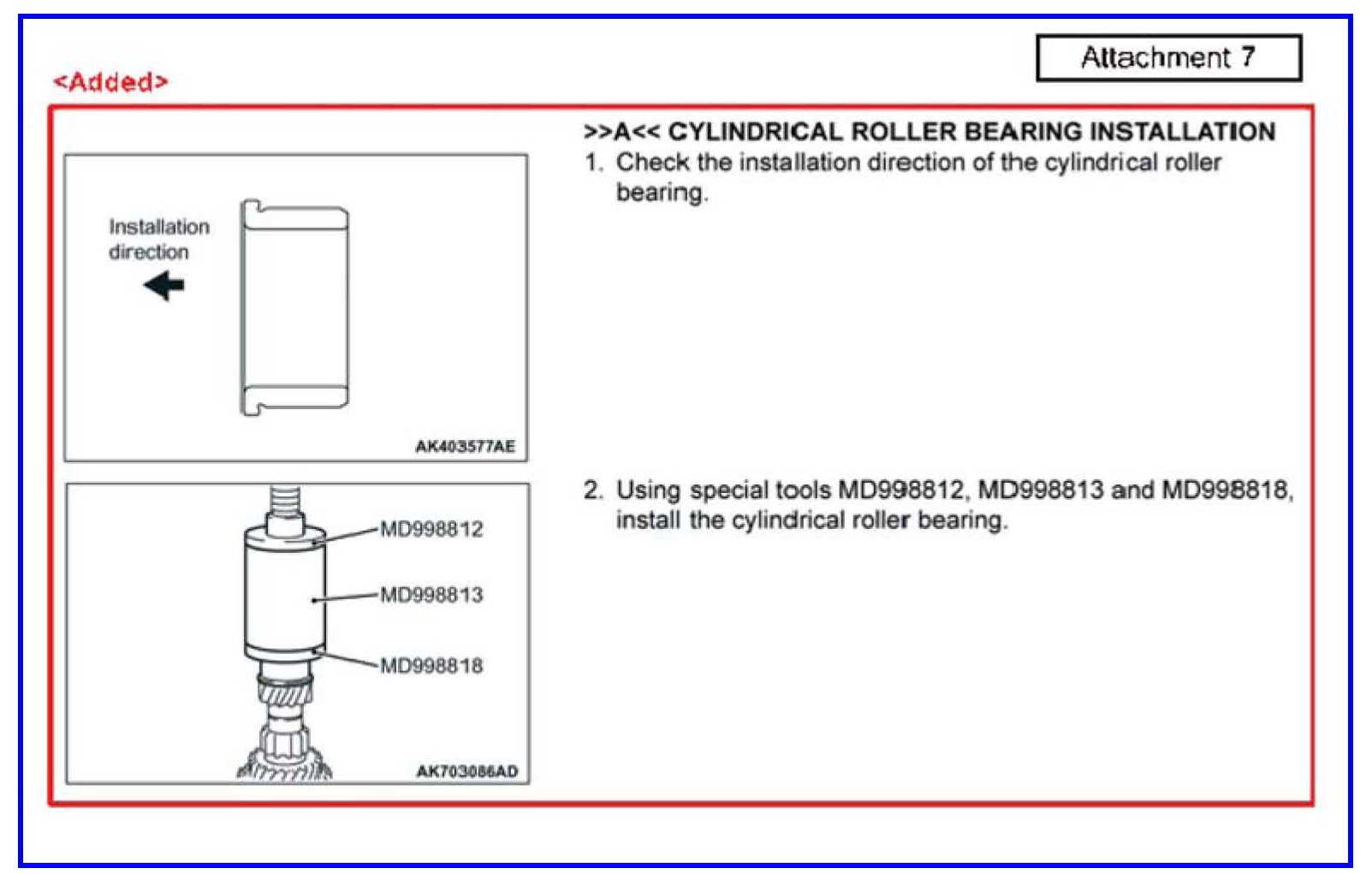

Attachment 7

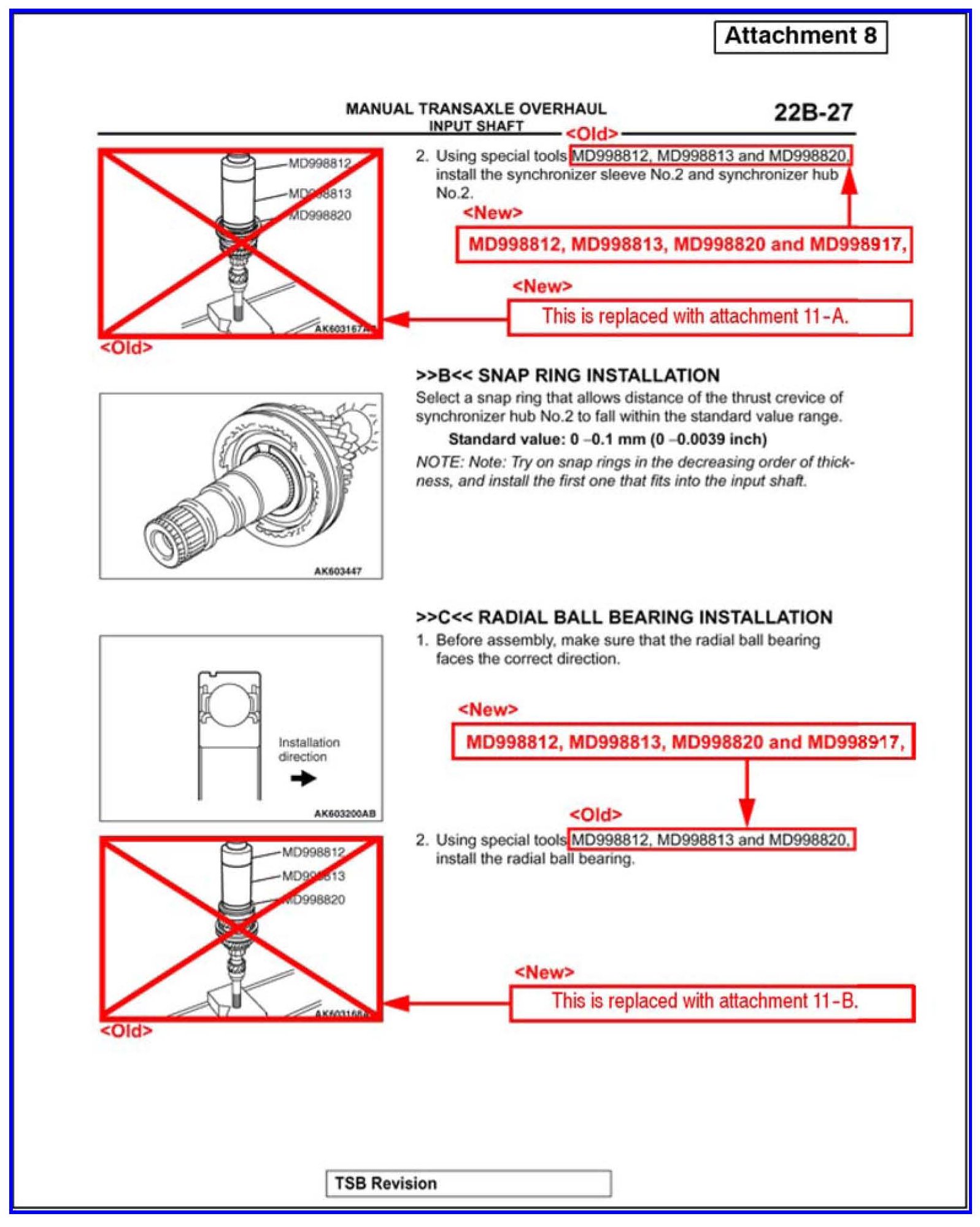

Attachment 8 - Pages 22B-27

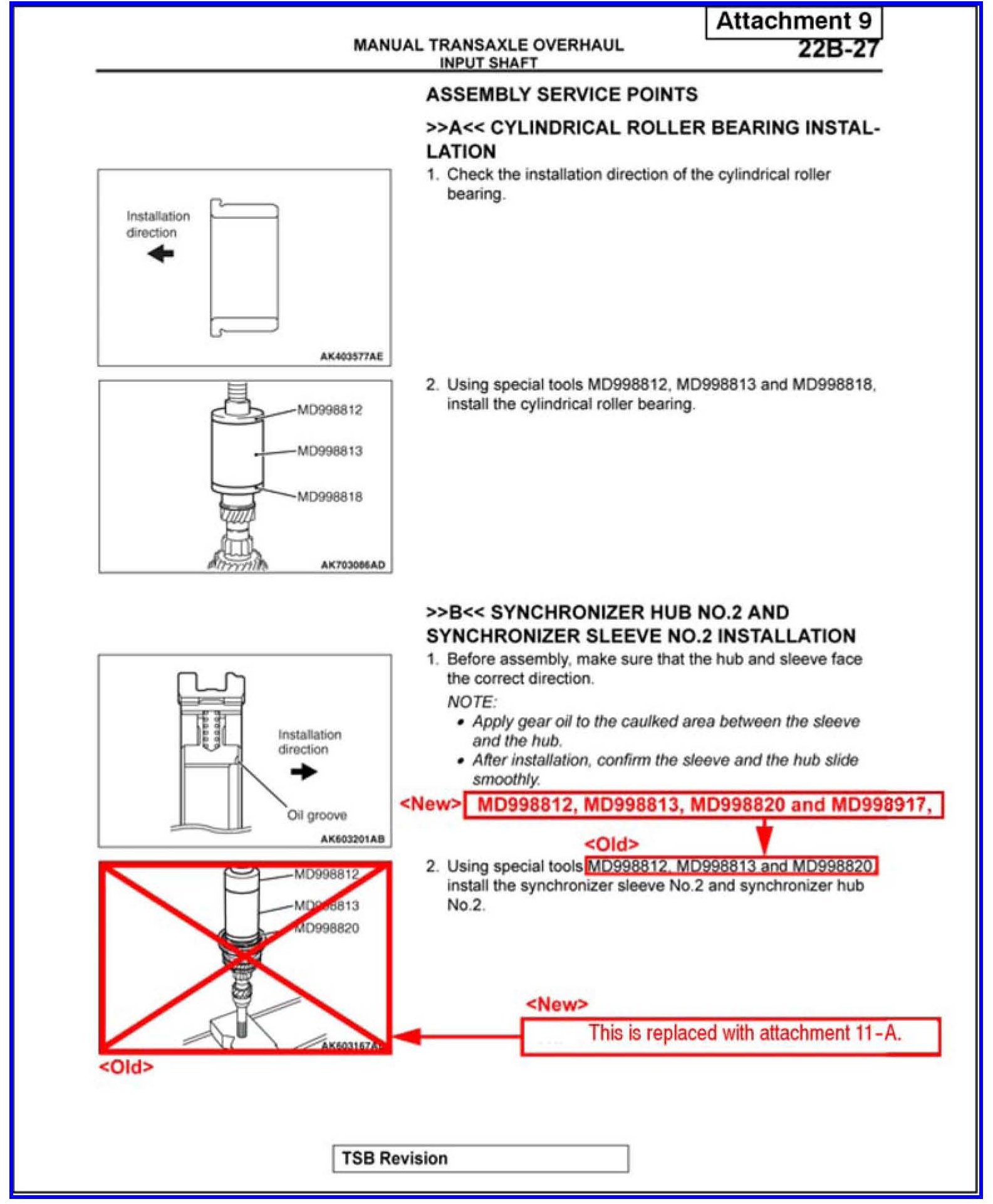

Attachment 9 - Pages 22B-27

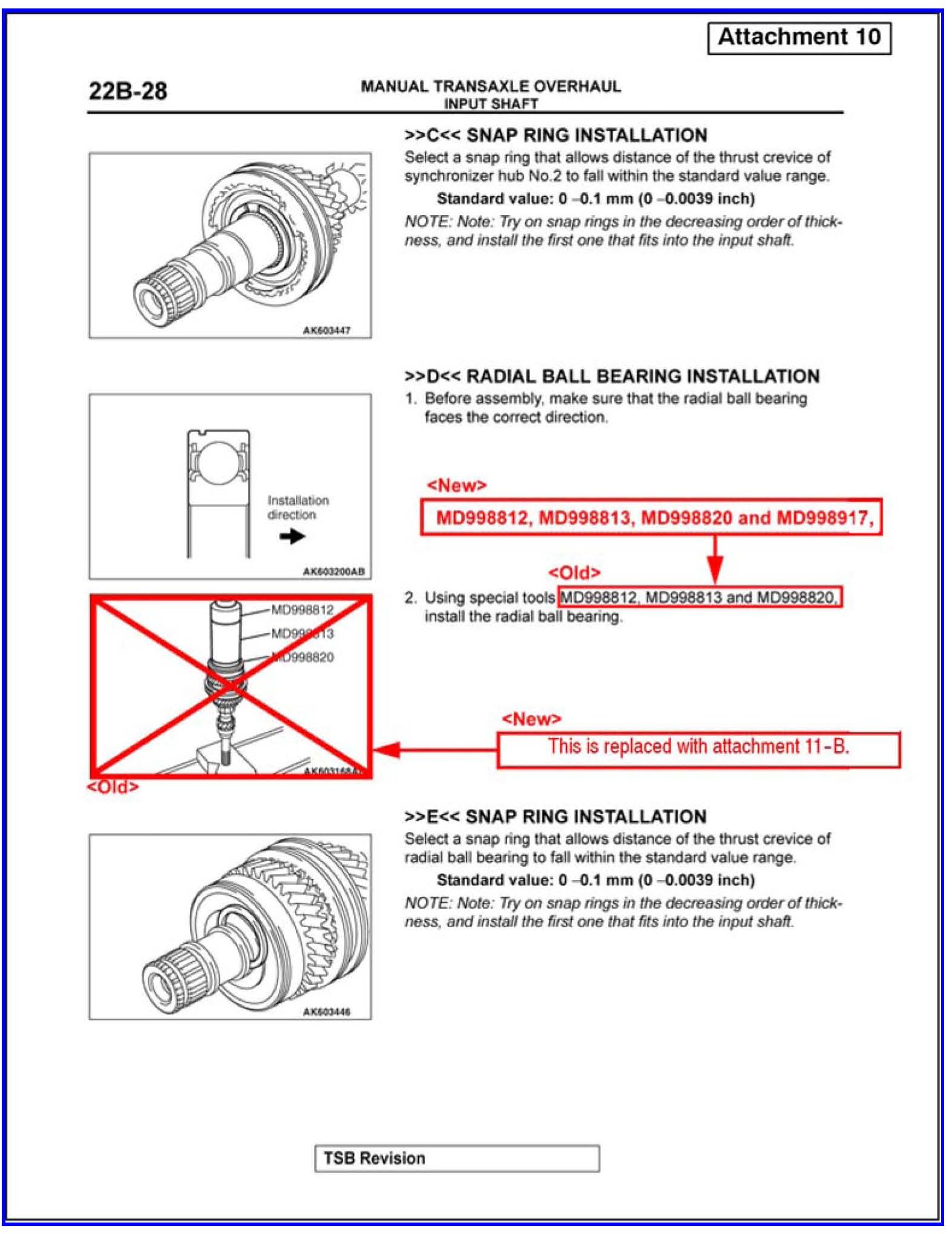

Attachment 10 - Pages 22B-28

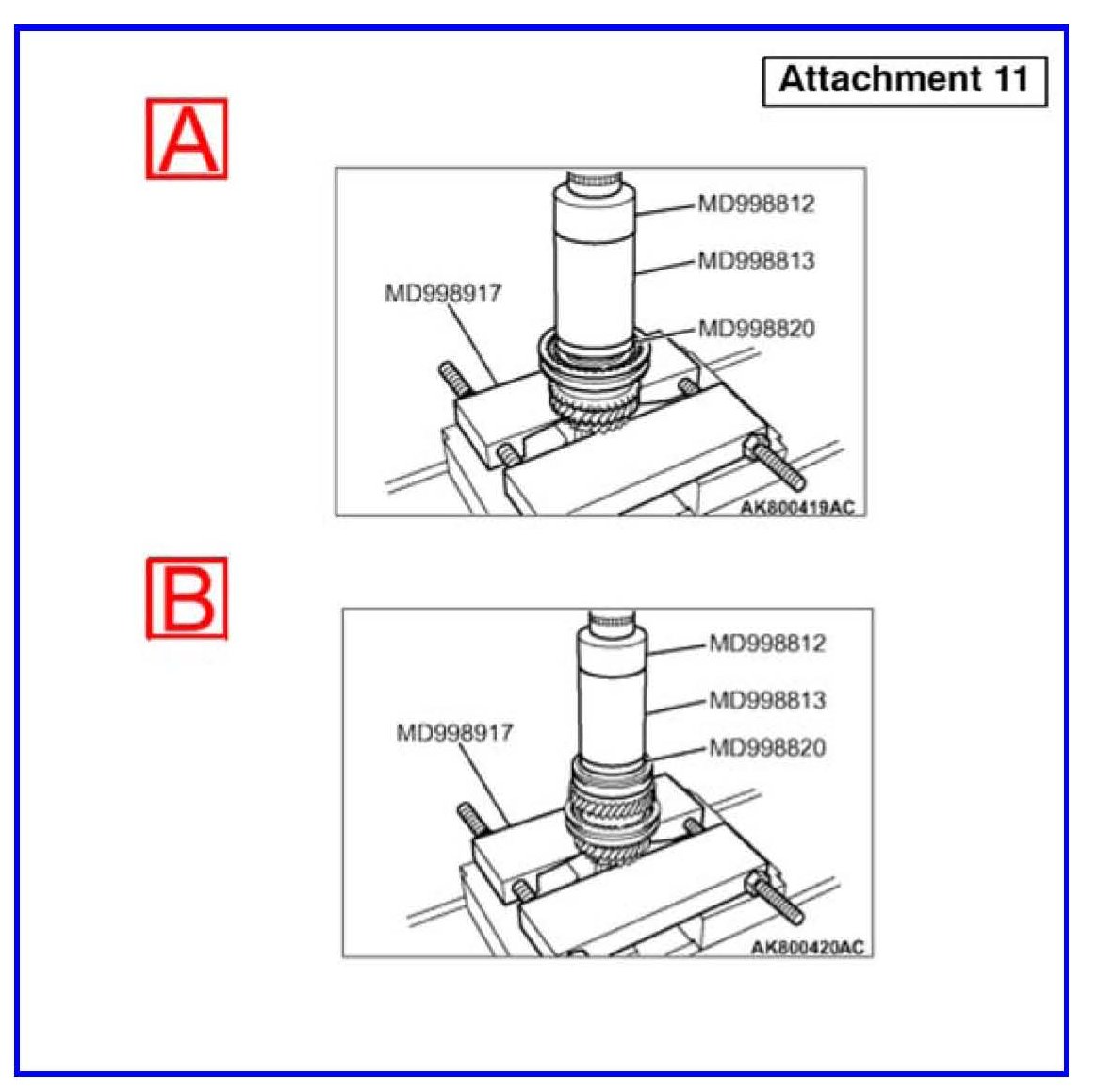

Attachment 11
