Shift Linkage: Service and Repair

TRANSAXLE CONTROL

REMOVAL AND INSTALLATION

WARNING
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the gearshift cable and select cable assembly.

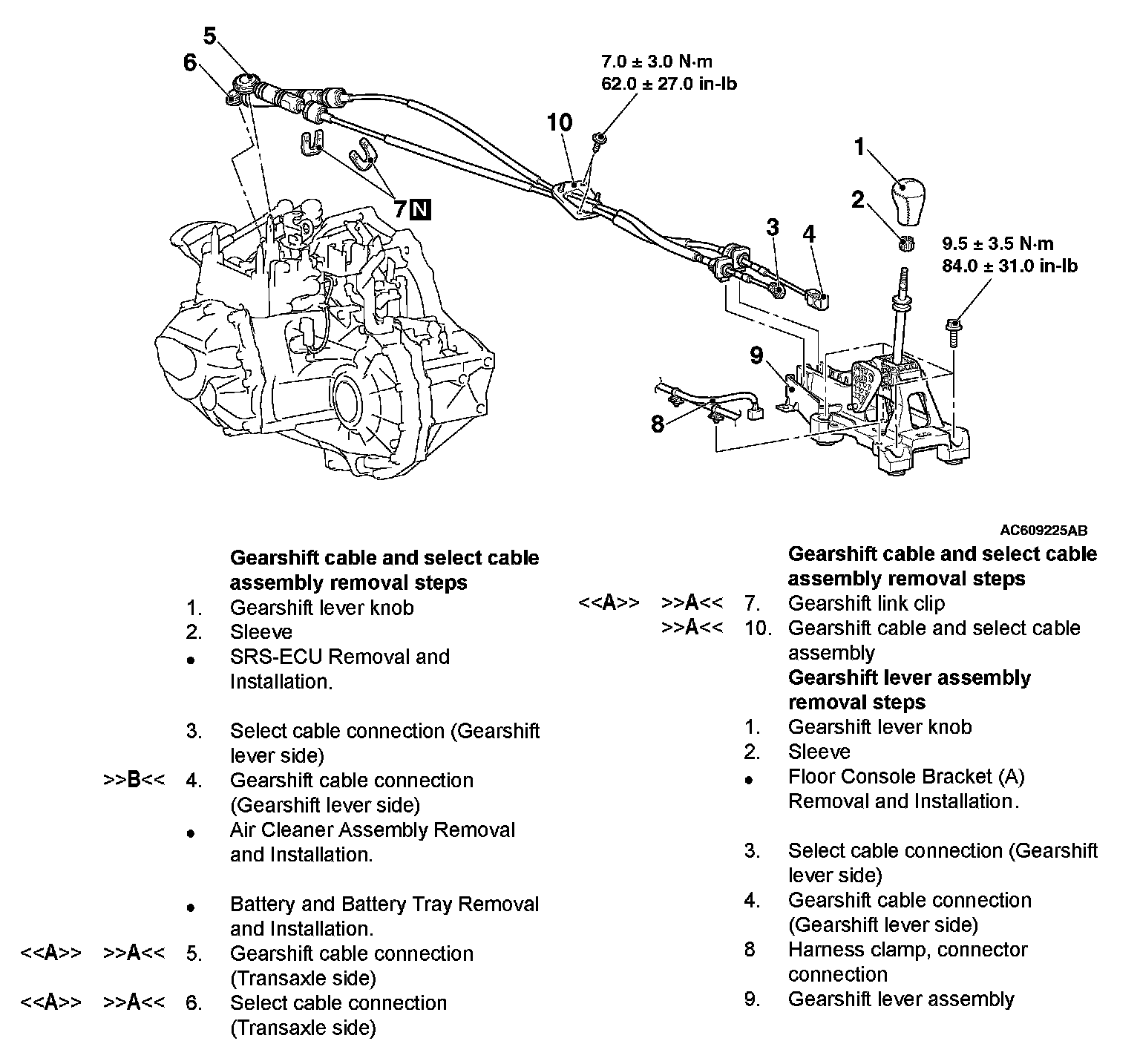

Gearshift Cable And Select Cable Assembly Removal Steps 1-10 / Gearshift Lever Assembly Removal Steps 1-9:

REMOVAL SERVICE POINTS

[[A]] GEARSHIFT LINK CLIP/SELECT CABLE CONNECTION (TRANSAXLE SIDE)/GEARSHIFT CABLE CONNECTION (TRANSAXLE SIDE) REMOVAL

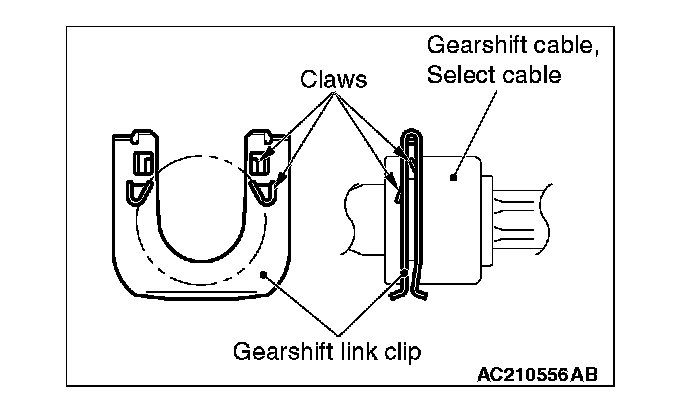

1. Push up the claws of the gearshift link clip using a screwdriver, etc., and then remove the gearshift link clip from the bracket together with the cables.

INSTALLATION SERVICE POINTS

]]A[[ GEARSHIFT CABLE AND SELECT CABLE ASSEMBLY/GEARSHIFT CABLE CONNECTION (TRANSAXLE SIDE)/SELECT CABLE CONNECTION (TRANSAXLE SIDE)/GEARSHIFT LINK CLIP INSTALLATION

CAUTION

Insert thoroughly the gearshift link clip, gearshift cable and select cable until they click in place.

1. After installing the new gearshift link clip to the cable bracket of the transaxle, install the gearshift cable and select cable to the cable bracket.

NOTE: The clip is reversible.

CAUTION
Check that the clip is securely installed.

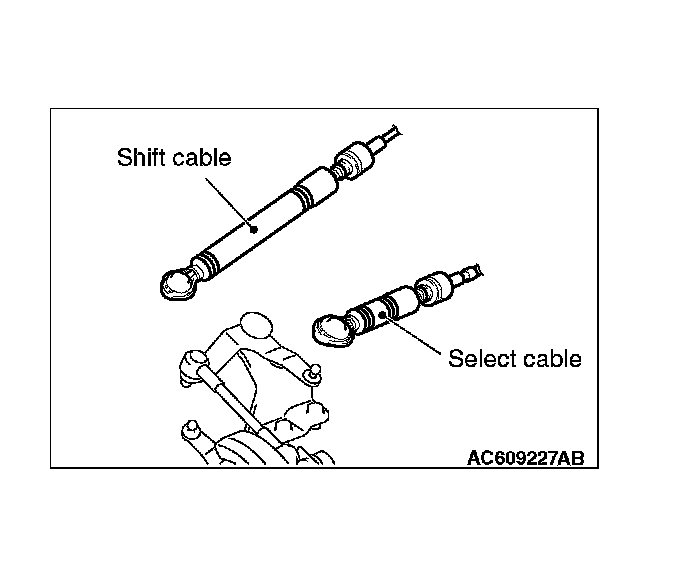

2. Securely fit the tips of the gearshift cable and the select cable.
3. Move the shift lever and gearshift lever to all positions and check that the operation is smooth.

]]B[[ GEARSHIFT CABLE CONNECTION (GEARSHIFT LEVER SIDE) INSTALLATION

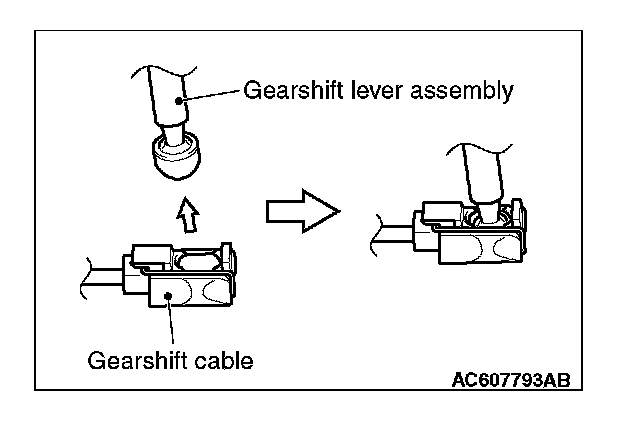

Insert the tip of the gearshift cable to the gearshift lever assembly thoroughly as shown until it clicks in place.
