Transmission Case
TRANSAXLE CASEDISASSEMBLY AND ASSEMBLY

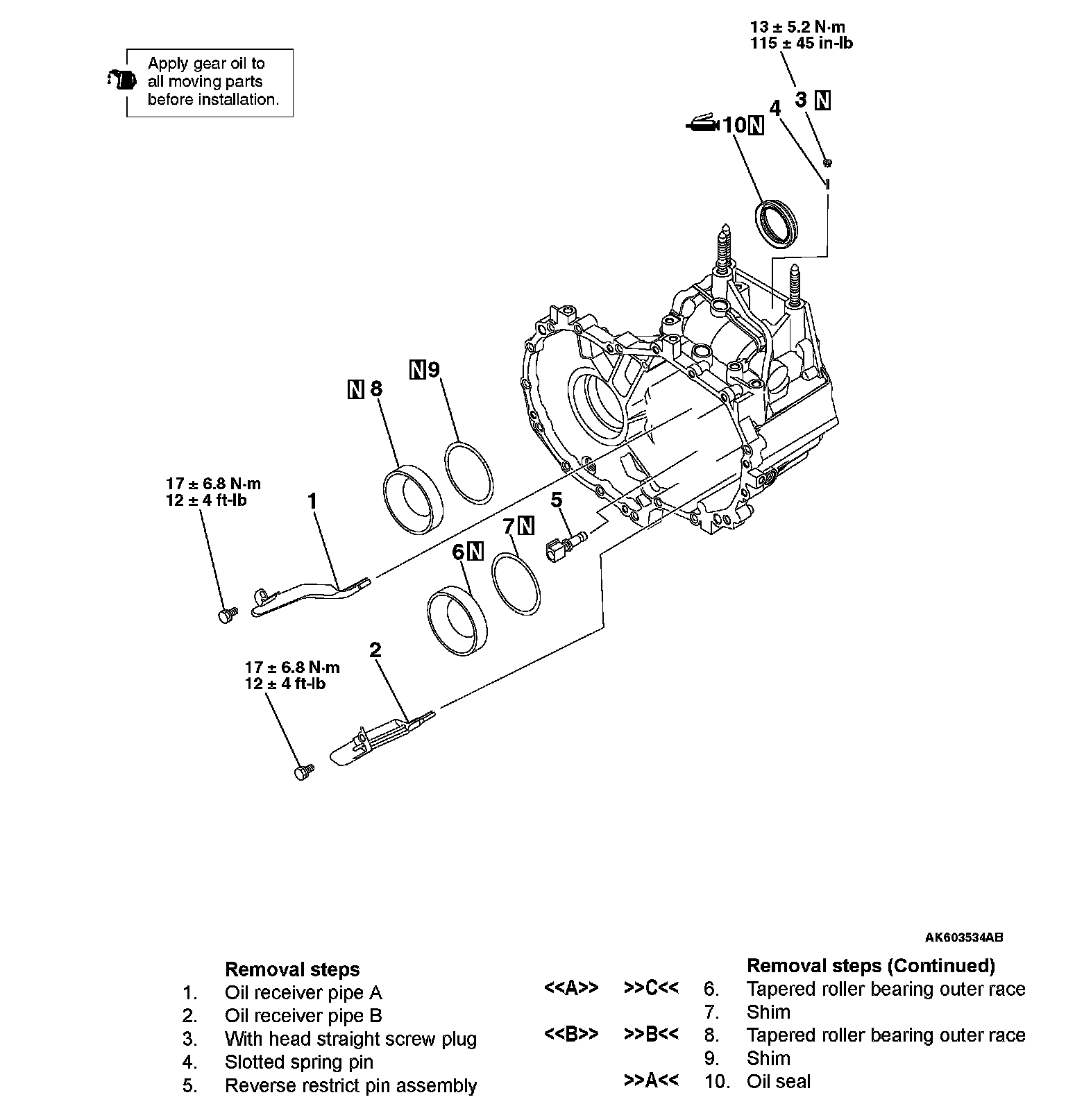

Removal Steps 1-10:
Required Special Tools:
^ MB991015: Knuckle oil seal installer
^ MB990211: Slide hammer
^ MB992039: Slide hammer puller
^ MB992210: Oil seal installer
^ MB992075: Handle
^ MB991966: Bearing outer race installer
^ MB990938: Installer bar
DISASSEMBLY SERVICE POINTS
[[A]] TAPERED ROLLER BEARING OUTER RACE REMOVAL

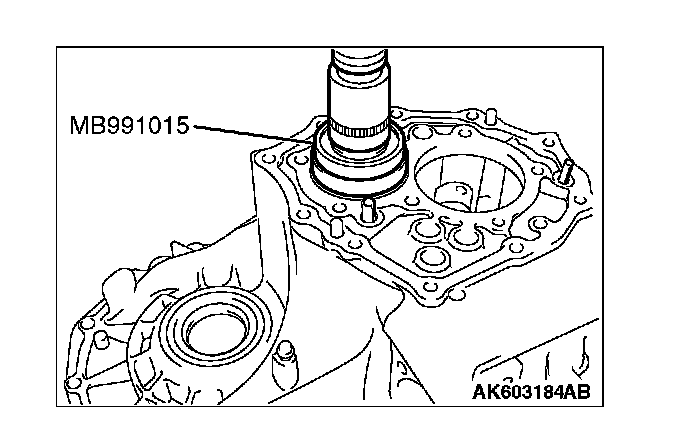

Using special tools MB991015, remove the tapered roller bearing outer race.
[[B]] TAPERED ROLLER BEARING OUTER RACE REMOVAL

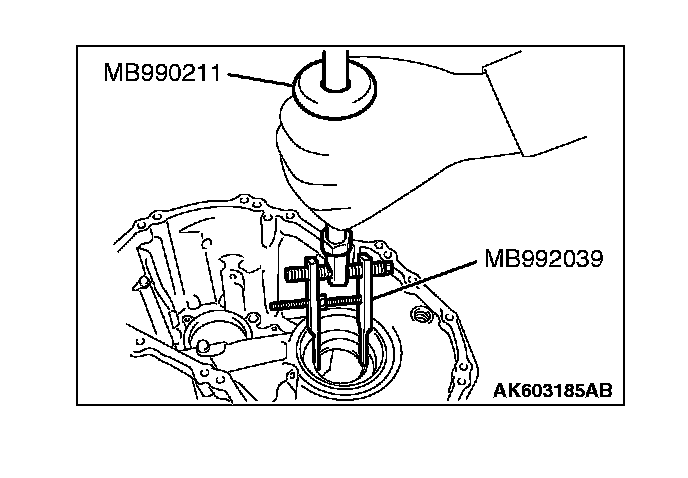

Using special tools MB990211 and MB992039, remove the tapered roller bearing outer race.
ASSEMBLY SERVICE POINTS
]]A[[ OIL SEAL INSTALLATION

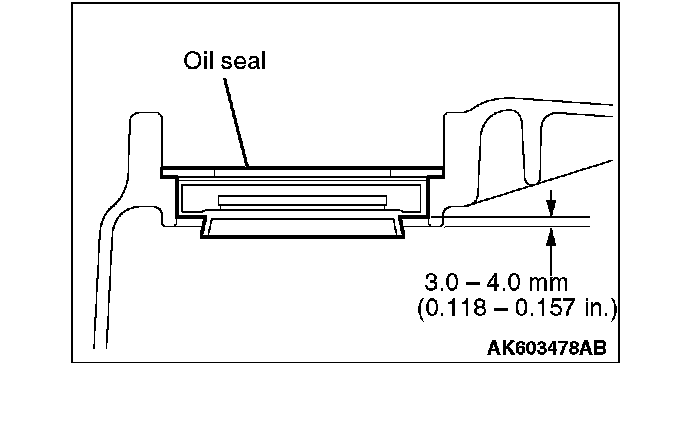

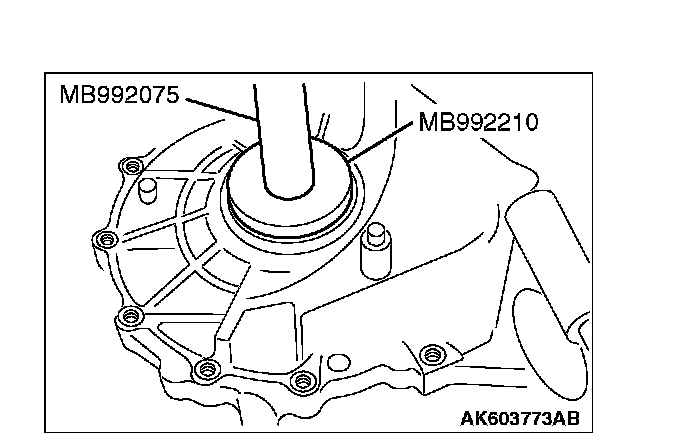

1. Using special tools MB992210 and MB992075, press-fit the oil seal until the difference in height between the transaxle case and oil seal is obtained as shown.
2. Pack grease to the oil seal lip area.
Specified grease: Mitsubishi Part No. 0101011 or equivalent
]]B[[ TAPERED ROLLER BEARING OUTER RACE INSTALLATION

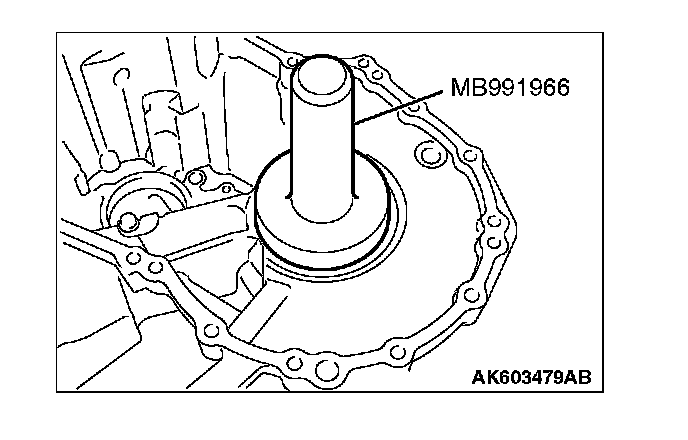

Using special tools MB991966, Install the tapered roller bearing outer race.
]]C[[ TAPERED ROLLER BEARING OUTER RACE INSTALLATION

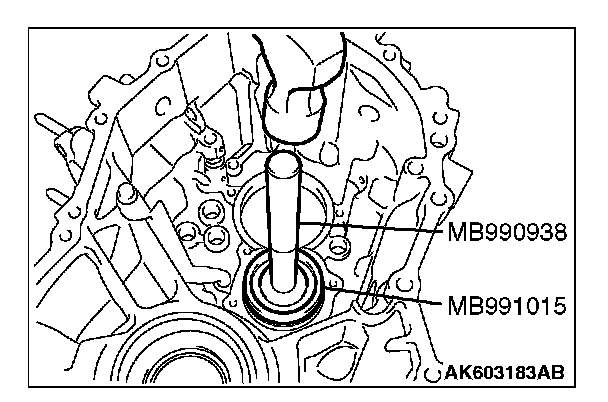

1. Set special tools MB991015 and MB990938.

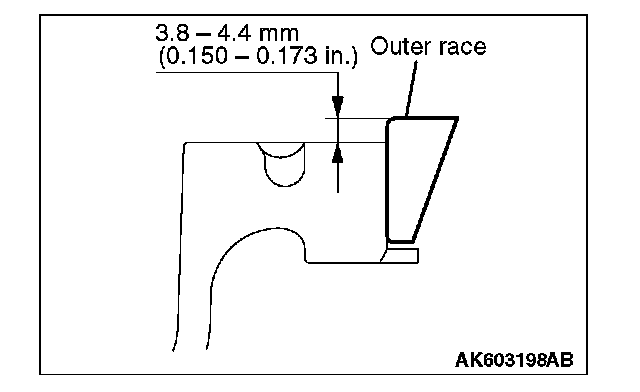

2. Press-fit the tapered roller bearing outer race to the height shown in the illustration.
