Differential

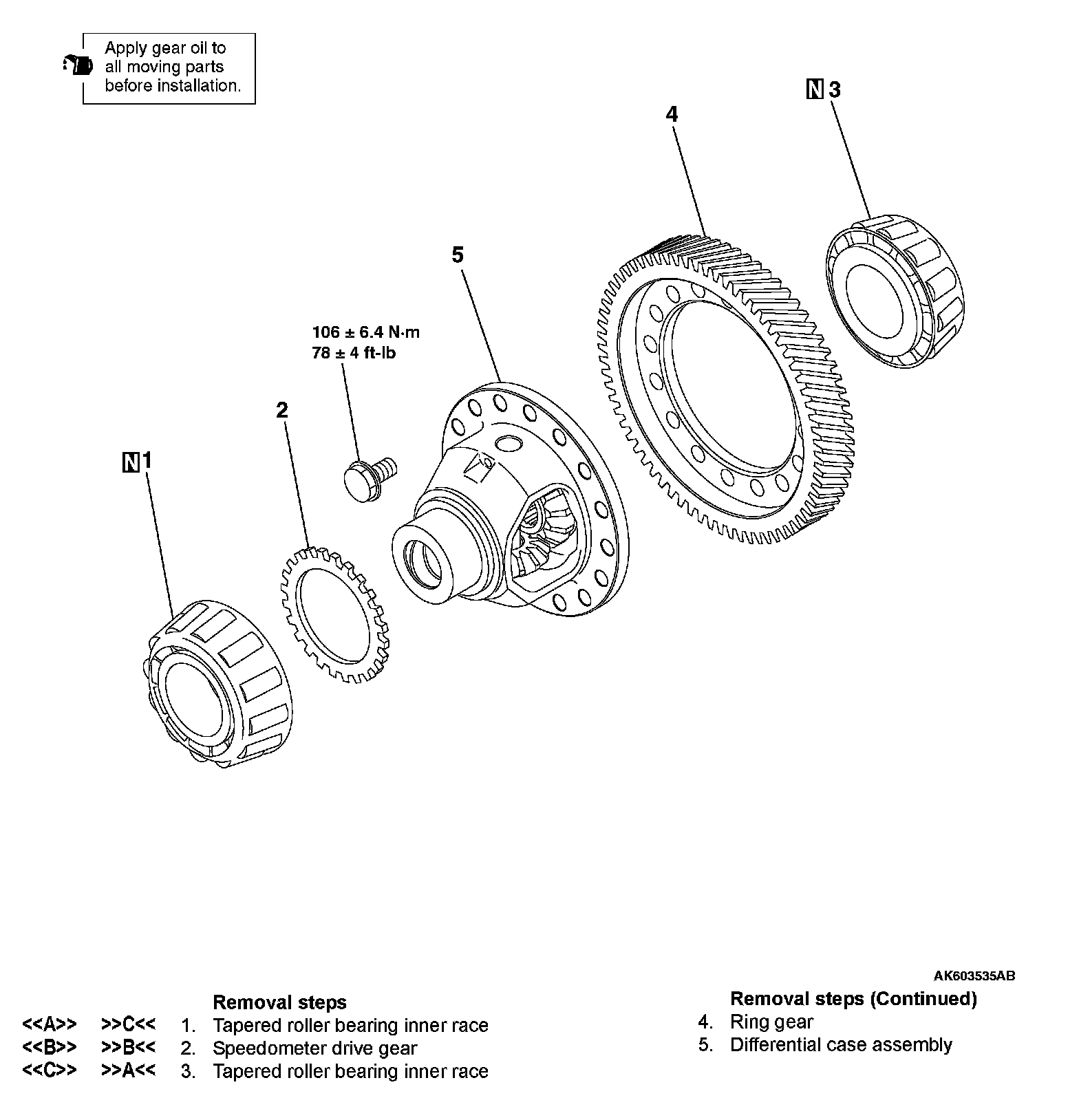

DIFFERENTIALDISASSEMBLY AND ASSEMBLY
Removal Steps 1-5:
Required Special Tools:
^ MD998917: Bearing remover
^ MB991395: Crankshaft front oil seal installer
^ MB990810: Side bearing puller
^ MD999566: Craw
^ MD998812: Installer cap
^ MB992150: Oil seal installer
^ MB990891: Rear suspension bushing base
^ MB992138: Bearing installer
DISASSEMBLY SERVICE POINTS

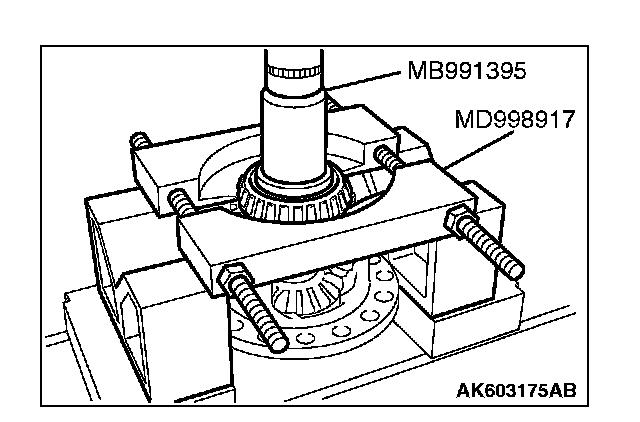

[[A]] TAPERED ROLLER BEARING INNER RACE REMOVAL
1. Using special tool MD998917 and MB991395, support the tapered roller bearing inner race, and then set them on the press.
2. Push down on the differential case with the press and remove the tapered roller bearing inner race.

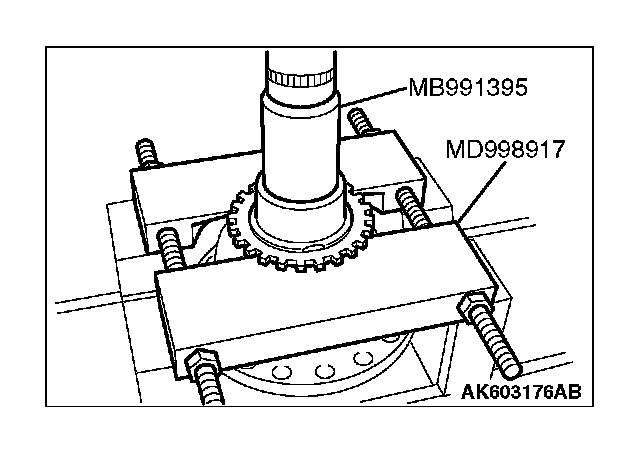

[[B]] SPEEDOMETER DRIVE GEAR REMOVAL
1. Using special tool MD998917 and MB991395, support the speedometer drive gear, and then set them on the press.
2. Push down on the differential case with the press and remove the speedometer drive gear.

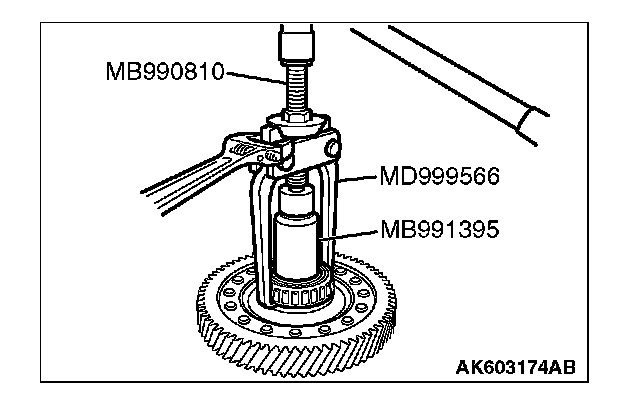

[[C]] TAPERED ROLLER BEARING INNER RACE REMOVAL
1. Using special tool MB990810, MD999566 and MB991395, remove the tapered roller bearing inner race.
2. Push down on the differential case with the press and remove the tapper roller bearing inner race.
ASSEMBLY SERVICE POINTS

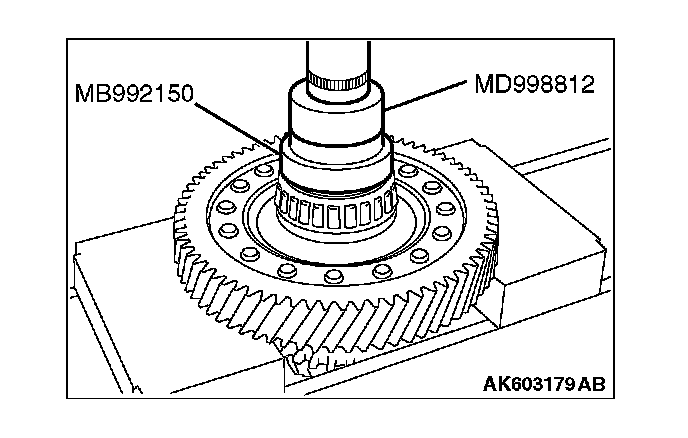

]]A[[ TAPERED ROLLER BEARING INNER RACE INSTALLATION
Using special tools MD998812 and MB992150, install the tapered roller bearing inner race.

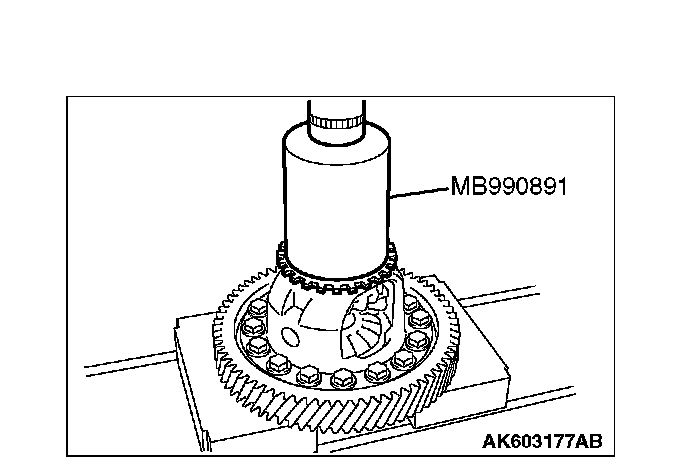

]]B[[ SPEEDOMETER DRIVE GEAR INSTALLATION
Using special tools MB990891, install the speedometer drive gear.

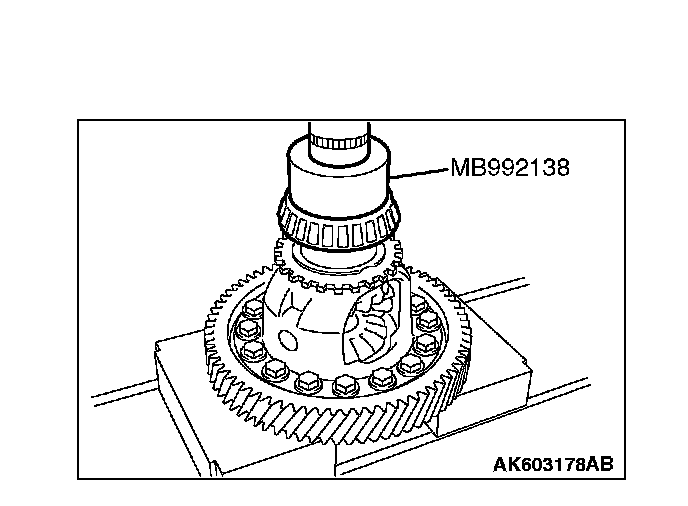

]]C[[ TAPERED ROLLER BEARING INNER RACE INSTALLATION
Using special tools MB992138, install the tapered roller bearing inner race.
